Butt Fusion Machine

Our offered Product range includes Hydraulic Butt Fusion Machine and Manual Butt Fusion Machine.

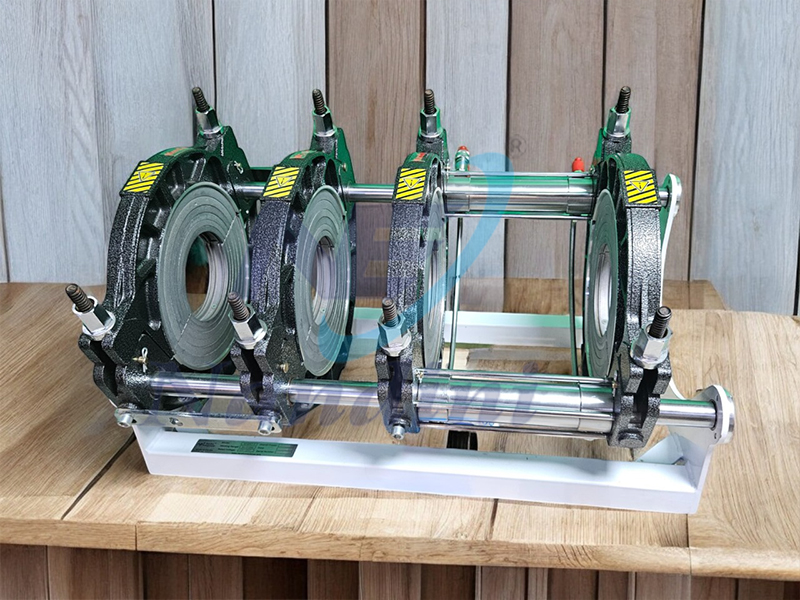

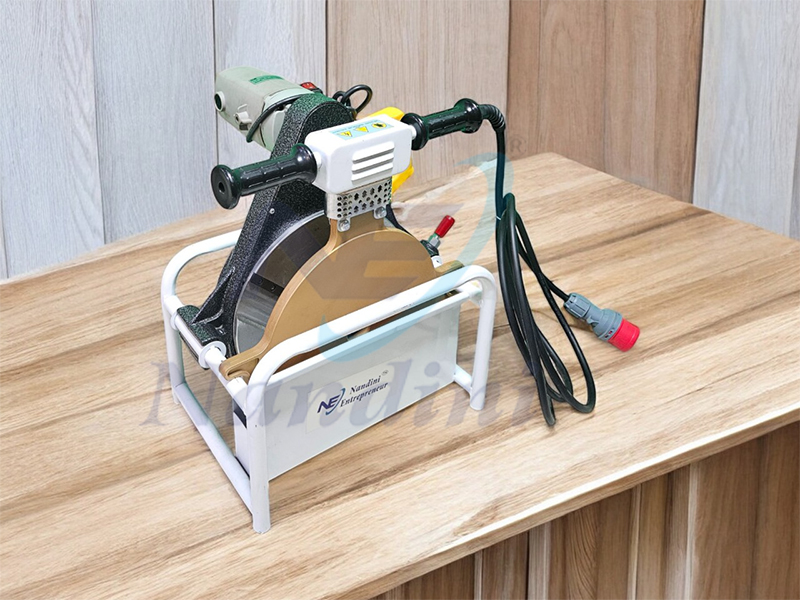

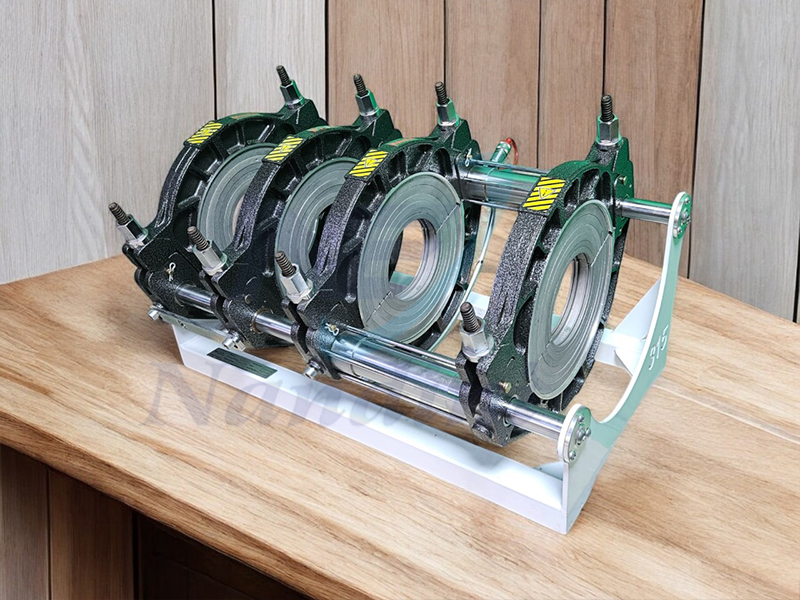

Hydraulic Butt Fusion Machine

Min. Order (MOQ) 10 Piece
Material Mild Steel
Finishing Polished
Country of Origin India
Machine Structure Horizontal
Driven Type Hydraulic
Power 3-6kw
Specialities Rust Proof, Long Life, High Performance, Easy To Operate
Usage/Application Automotive Industry, Cutting Tools Industry

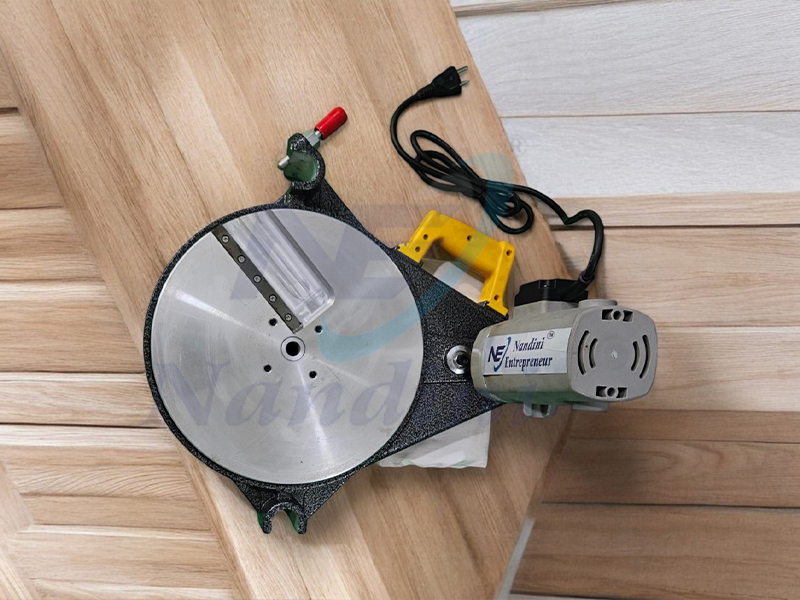

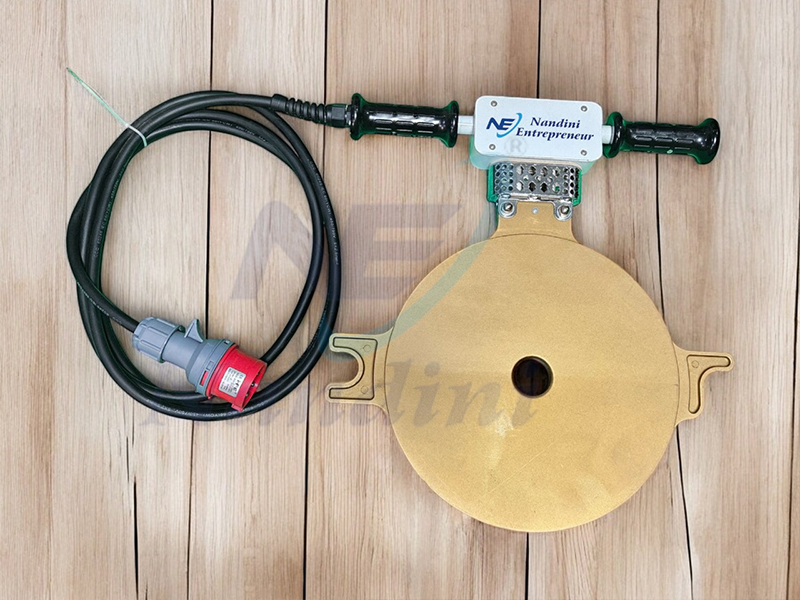

Suiiable for PE, PP, PVDF pipes bu welding lnfegraied die casiing aluminum clamps, sleel base wiih cylinder, provides sfable perlormancei Planing fool wiih separaie swilch prevents uninlenfional operaiion. Durable and long life HSS blade. Healing plale wiih high qualify PTFE coaiing, enables swi lemperaiure conirol.

Technical Specification

Model	NEHBW1 6	NEHBW200	NEHBW250	NEHBW31 5
Welding range (mm)	63-160	63-200	90-250	90-315
Standard reducers (mm)	63-75-90-110-125-140-160	63-75-90-110-125-140-160-180-200	90-110-125-140-160-180-200-225-250	90-110-125-140-160-180-200-225-250-280-315
Power supply	220V/50Hz, 1PH	220V/50Hz, 1PH	220V/50Hz, 1PH	220V/50Hz, 1PH
Total power	3.25 KW	8. 5 KVV	4.15 KW	4.95 KW
Heating plate	1.5 KW	1.8 KW	2.3 KW	3.1 KW
Planing tool	1.0 KW	1.0 KW	1.1 KW	1.1 KW

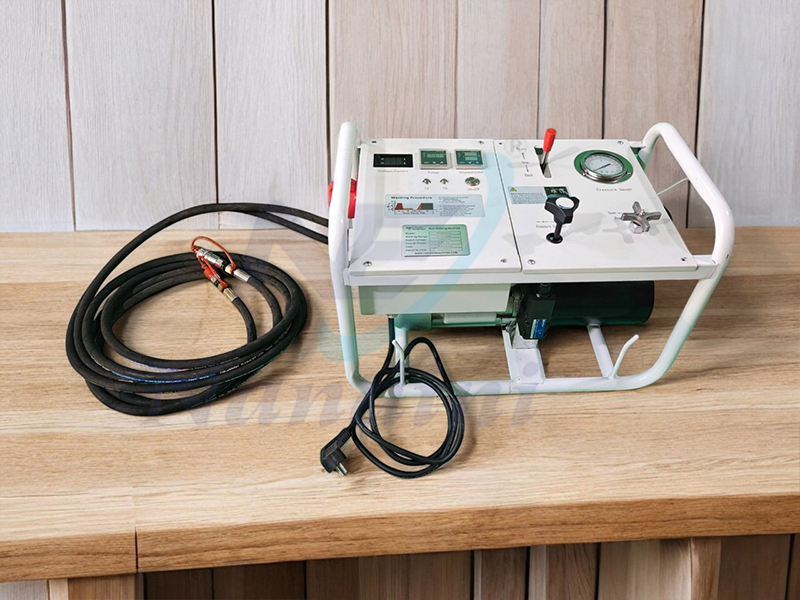

Hydraulic station	0.75 KW	0.75 KW	0.75KW	0.75KW
Pressure adjusting range	0-16 Mpa	0-16 Mpa	0-16 MPa	0-16MPa
MaxTemperature of heating plate	270°C	270°C	270°C	270°C
Temperature Deviation	±5°C	±5°C	±5°C	±5°C

View Complete Details

Ask Latest Price & Details

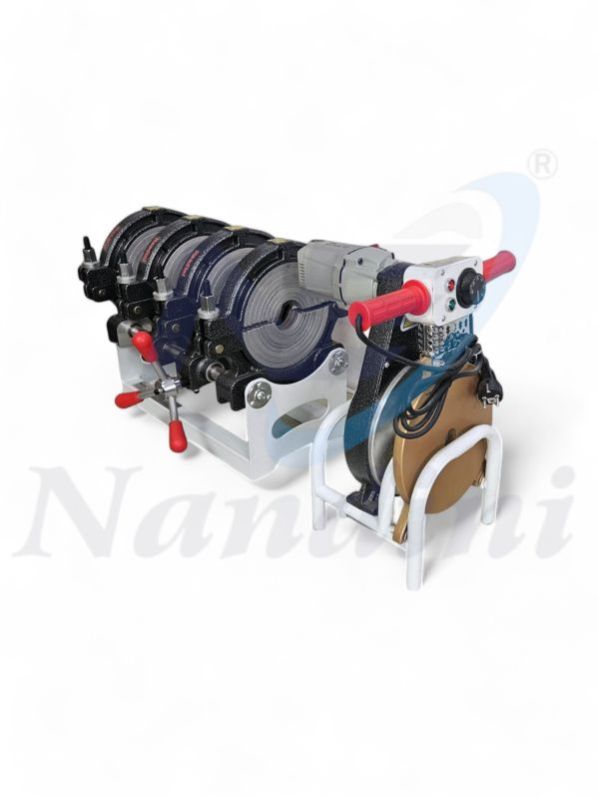

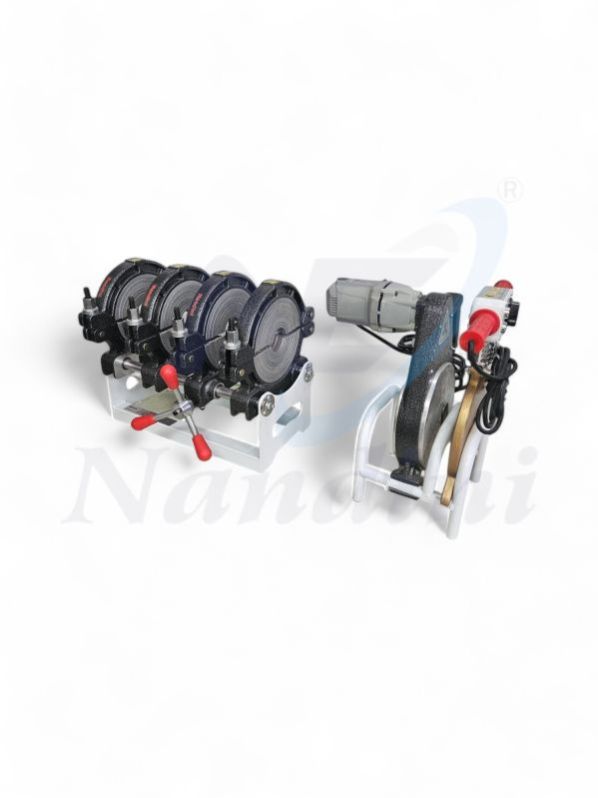

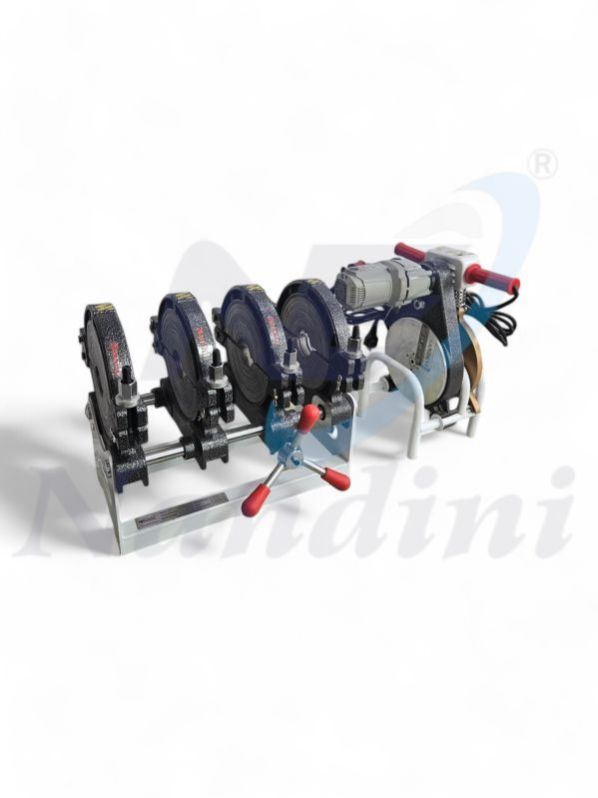

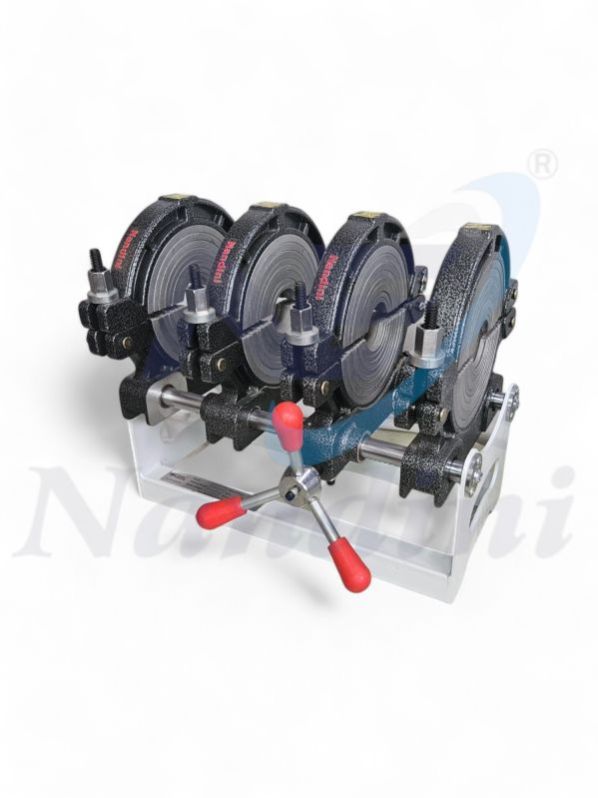

Manual Butt Fusion Machine

Min. Order (MOQ) 1 Piece
Driven Type Manual
Condition New
Power 3-6kw
Certification ISO 9001:2008
Country of Origin 220V
Country of Origin India
Brand Name Automatic
Automatic Grade Manual
Application Industrial

Suitable for PE, PP, PVDF pipes butt welding Integrated, high-strength full welding steel base with gear transmission.Planing tool with full-gear transmission structure. Durable and long life HSS blade. Heating plate with high quality PTFE coating, enables swift temperature control.

Additional Information:

Payment Terms : T/T

Packaging Details : SEAWORTY PACKING

Technical Specification

Model	NEMBW1 60	N EMBW200
Welding range (mm)	63-160	63-200
Standard reducers (mm)	63-75-90-110-125-140-160	63-75-90-110-125-140-160-180-200
Power supply	220V/50Hz, 1PH	220V/50Hz, 1PH
Total power	2.5 KW	2.8 KW
Heating plate	1.5 KW	1.8 KW
Planing tool	1.0 KW	1.0 KW
MaxTemperature of heating plate	270°C	270°C
Temperature Deviation	±5°C	±5°C
