Nvis Technologies Pvt. Ltd. - Multimeter

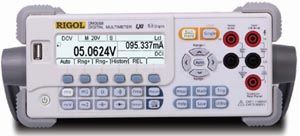

DM3058 is a digital multimeter designed with 5 digits readings resolution especially fitting to the needs of high-precision, multifunction, and automatic measurement.

• Real 5 digits readings resolution
• Up to 123 rdgs/s of measurement speed
• True-RMS AC Voltage Current measuring
• Quickly Save or Recall the 10 groups of Preset Configuration
• Preset 10 groups of Standard Sensor Configuration, built-in Thermocouple compensate in Cold Terminal
• Clone or backup all the configurations within instrument into other DM3058 via U-disc
• The first 5 digit digital multimeter passing LXI Criterion in industry, which can achieve system integration easily
• With easy, convenient and flexible random sensor measurement control software: UltraSensor
• Standard configuration interface: USB Device, USB Host, LAN, RS-232, GPIB, and support U-disc storage and Web remote control
• Support remote control via a command line and enable to compatible with commands from main stream multimeters

The Nvis 62T, 5 digit and Nvis 63T, 6 digit are high speed, high accuracy, Digital Bench Top Multimeters that meet the measurement needs of voltage-current and resistor accurate measurements. Their outstanding performances, such as fast reading rates (Max. 45 Readings/Second) and DC voltage measurement accuracy up to 0.005% provide a high standard in your work bench.

• 12 different measurement capabilities
• DCV/ACV, DCI/ACI, W2 W/W4 W, Frequency/ period Diode Test /continuity- dB/dBm etc.
• High brightness vaccum fluorescent dual display
• True-rms AC voltage and current measurement, Frequency bandwidth up to 100 KHz/300 KHz
• DCV measurement accuracy up to 0.01 % / 0.005, resolution; 1 mV/0.1JL/V
• Max. measurement rate: 45 results per second
• Equal accuracy frequency measurement greater than 1 MHz, Min resolution 10 mHz
• Zeroing (REL) mode
• 2 W, 4 W Resistance measurement
• Build in mX+b, %, dB, dBm etc. mathematics calculation function
• 512 reading storage and MAX/ MIN/ AVER/ STD statistics
• HI/ IN/ LO for speed sieving
• RS-232 interface for easy communication and optional GPIB
• Calibration without opening the case
• 10 sets of meter status can be stored and loaded
