Our Products

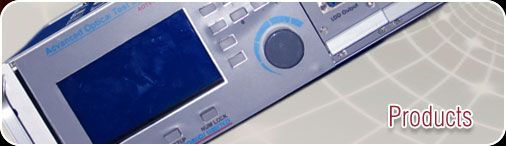

We offer a complete product range of Optical Light Source, Laser Controllers, Radio over Fiber, Vacuum Pick-up Tool and Modular Test System
| ||||||||||||||||||||||||||
| Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The demand for laser drivers has been rising upwards with time. This has resulted in a variety of laser controllers being developed. Thus the user has the option of selecting the laser controller that best suits their requirement.
The controllers are available for CW or pulsed operation with very high currents.
Features
| Highly stable. | |
| Compact design. | |
| User friendly. | |
| Modular designs compatible with our AOTS 5000 series. | |
| Laser safety features like slow turn On & Off, soft start are built-in. | |
| Available in different versions like PCB module, Bench top or 19" Rack Module. | |
| There is provision for RS-232 interface for monitoring & control of different parameters. |
Applications
OEM applications
R&D applications
Driving laser bars & arrays
| Specifications - Continuous Wave | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Specifications - Pulsed | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||

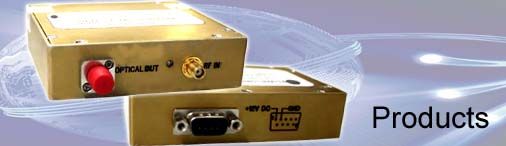

Optical Transmitter(TX) will convert the RF signals into Optical Signal.The optical Transmitter works on the principle of direct modulation. A typical link consists of an optical transmitter that receives the RF signal, transmits it over a single mode fiber to an optical receiver and reconverts the optical signal to RF. This Radio over Fiber Modules is suitable for Telecommunications, Antenna Remoting, Optical Delay lines & Radar Applications. These modules can be used as Optical Distributed Systems in Radar application. By using these modules communications can be established from meters to few Kilo meters long Distances. Transceiver modules have small form factor therefore they are easily accommodated in less space.
Features
| High Dynamic Range | |
| Low Noise DFB Laser | |
| ITU CWDM Compatible | |
| LD / PD Monitoring |
Applications
Wideband RF Transmission
Antenna Remoting
Delay Lines
RADAR
GPS Over Fiber
| Parameters | Value & Units |
| Frequency Range | 950-2150 MHz |
| Frequency Flatness | ±(950-2150)dB |
| Dynamic Range | -90 to 15 dBm |
| RF Link Gain | +9 dB |
| Input IP-3(min) | +11 dBm |
| Output IP-3(min) | +10 dBm |
| CNR | -58 dB |
| Gain Stability | 0.25 over 25 hours |
| SFDR | -75 dB/Hz 2/3 |
| Noise Figure (Max) | ≤19dB |
| Maximum Input Power | +0 (or better) dBm |
| Input P1 | -15 dBm |
| Impedance | 50 Ohm |
| -->Go to Top of Page | |
| Optical Specifications | |
| Laser Diode Type | Class1, Un cooled MQW DWF |
| Operating Wavelength | 1310±nm |
| Modulation Type | Direct |
| Optical Power Output | 4.5dBm |
| F/O Diff EFF(Min) | 0.07 W/a |
| Allowed back reflection | 35dB |
| Optical Interface | FC / APC |
| General Specifications | |
| Supply Voltage | 12 v |
| Supply Current | 300 mA |
| RF Input & Output Connector | SMA (F) |
| Optical Connector | FC/APC |
| Operating Temperature | -20 to +50 °C |
| Mechanical Dimensions | |
| Transmitter | 95(L)x88(W)x25(H) |
| Receiver | 110(L)x72.2(W)x25(H) |
One of the most important equipments required in any industry or laboratory involved in handling micro-objects is this Vacuum Pickup Tool. The equipment has been designed with an imported vacuum release valve for better control and reliability. The features of this instrument are at par with the international standards at a reduced price.
Features
| Simple and compact design, easy to operate and economical in cost. | |
| Pen style gripper for easy handling. | |
| ESD Silicone hose. | |
| Customized Pickup tools. | |
| Low noisy. | |
| Built-in vacuum release valve allows precise component placement. |
Applications
ESD safe handling
Manual pickup and placement of micron chips or components.
Handling small electronic components and optical components.
| Specifications | ||||||||||||||||||
|
