We offer a complete product range of Variable Optical Attenuator

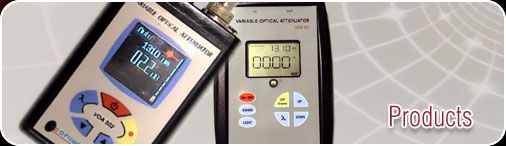

The variable optical attenuators are available as hand held units for ease of operation and handy for field tests. Optiwaves set of variable attenuator along with optical light source and optical power meter forms a very good combination of test & measurement instruments required for installation & maintenance of optical fiber cables.
Features
| Alpha-numeric display with backlight or Organic color graphical display. | |
| Keypad with soft touch keys for smoother operation and longer life. | |
| Can be operated with internal battery or ac power supply. | |
| The battery can be charged with adapter connected to instrument or with USB port. | |
| Power consumption is low thus ensuring long battery life. | |
| Operating over a wide attenuation range of 60 dB. | |
| Auto Off of the unit for power saving and long battery life. | |
| PC interface via RS232 for control & monitoring. | |
| A rubber holster is provided to the instruments for additional protection against falls. Applications |
| Parameter | VOA 501 | VOA 502 |
| Calibrated Wavelength (nm) | 1310 & 1550 | 1310 & 1550 |
| Attenuation range (dB) | 0 to 60 | 0 to 40 |
| Attenuation accuracy (dB) | ± 0.1 | ± 0.1 |
| Resolution (dB) | 0.1 | 0.1 |
| Display | 7-segment | Graphical color OLED |
| Fiber Connectors ** | FC - PC connectors | FC - PC connectors |
| Interface | RS-232 | RS-232 |
| Power supply | Rechargeable Batteries along with adapter | |
