Our Products
Clamps
2 Products availableMetal & Metal Products
2 Products availableVentilation Louvers

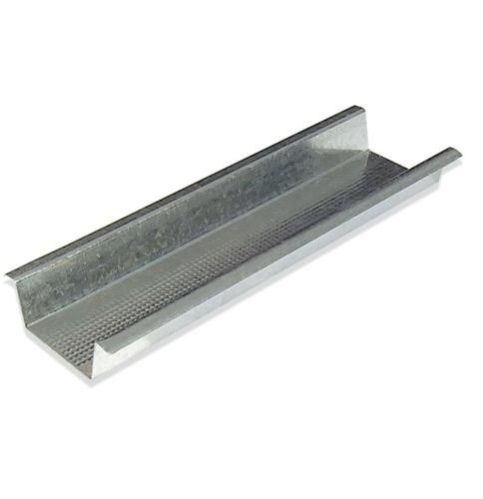

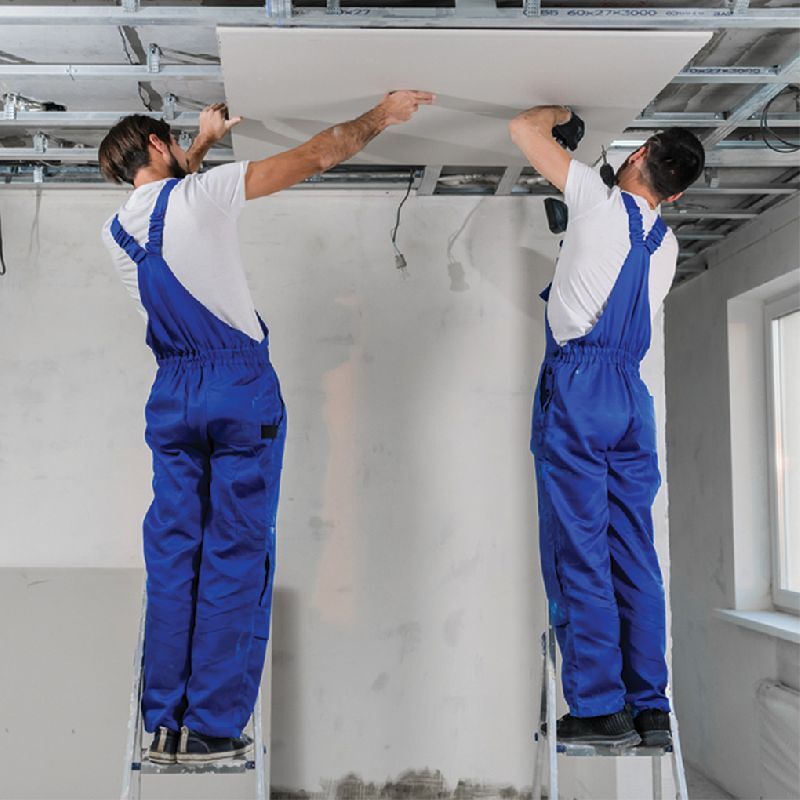

1 Products availableLeading Manufacturer, Supplier & Retailer of 200F Decorative Ceiling, 150F Decorative Ceiling, 84R Decorative Ceiling, 225C Decorative Ceiling and Gypsum Ceiling Sections.

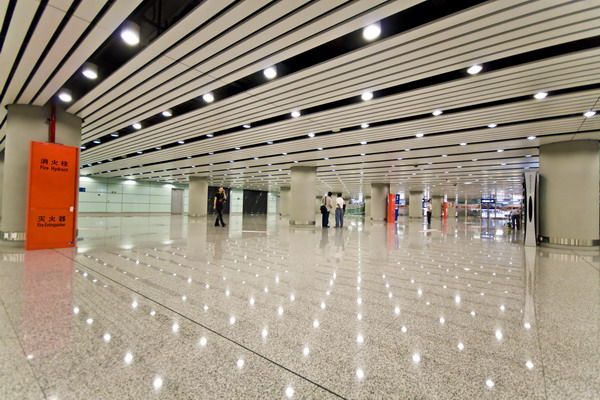

200F ceiling system comprises of 200 mm X 17 mm. Panels are fixed on the roll formed out of metal coils galvanized coil coated steel or aluminium alloy. carriers 34.5 mm wide X 48 mm deep out of 0.9 mm Aluminium or 0.5 mm galvanised steel with cutouts to hold the panels in module of 200 mm at maximum 1.7 m c/c without insulation and at maximum 1.5 m c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.2 m c/c. Hangers are fixed to the roof by ceiling brackets. Panels are available in lengths up to maximum 6 m to suit site dimensions. Edge profiles or wall angles are 24 mm X 24 mm and match the colour of the panel.Metal used for construction of both panels and carriers:Aluminium - Alloy AA5050, AA3105 or AA1050 is used to make the panels and carriers. Thickness is 0.6 mm for panels and 0.9 mm for carriers.Mild Steel - Galvanized with 180/ 120 gsm Zinc coating. Thickness is 0.5 mm for panels and 0.5 mm for carriers. Finish of the panels: Panels are available in plain and perforation of 2.5mm and 1.7mm
150 F LINEAR CEILING SYSTEMS Hi-STEEL 150F ceiling system comprises of 150 mm X 17 mm. Panels are fixed on the roll formed out of metal coils galvanized coil coated steel or aluminium alloy. carriers 34.5 mm wide X 48 mm deep out of 0.7/0.9 mm Aluminium or 0.5/0.6 mm galvanised steel with cutouts to hold the panels in module of 150 mm at maximum 1.7 m c/c without insulation and at maximum 1.5 m c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.3 m c/c. Hangers are fixed to the roof by ceiling brackets. Panels are available in lengths up to maximum 6 m to suit site dimensions. Edge profiles or wall angles are 24 mm X 24 mm and match the colour of the panel. Aluminium - Alloy AA5050, AA3105 or AA1050 is used to make the panels and carriers. Thickness is 0.5 mm for panels and 0.7/0.9 mm for carriers.Mild Steel - Galvanized with 180 / 120 gsm Zinc coating, . Thickness is 0.5/0.6 mm for panels and 0.6/0.5 mm for carriers. Finish of the panels: Panels are available in plain andperforation of 2.5mm and 1.7mm
Its ceiling section available in various different types of categories
Additional Information:
Payment Terms : L/C
Packaging Details : Customisation available
Delivery Time : Within 15 days
