Building Hardware

Our product range contains a wide range of Railway Hinges, Railway Smooth Hinges and Railway Washer Hinges

railway hinges

Railway Hinges

In an endeavor to serve the travelling lifeline of many countries, Pallotton conceived the idea of manufacturing railway hinges. It soon became one of the most reliable manufacturers for hinges and then the next step was to venture in export. Because of the quality and engineering expertise, Palloton made entry in the list of top hinges exporters from India.

Engineering Marvel

Crafting hinges for railways is a responsibility and not just a business endeavor. With this focus in mind, we have to be doubly careful about everything from selecting the raw material to manufacturing process, ease of installation, etc.

Pallottons engineering team has designed a range of hinges that fit perfectly and are easy to install. We classify our range of hinges as:

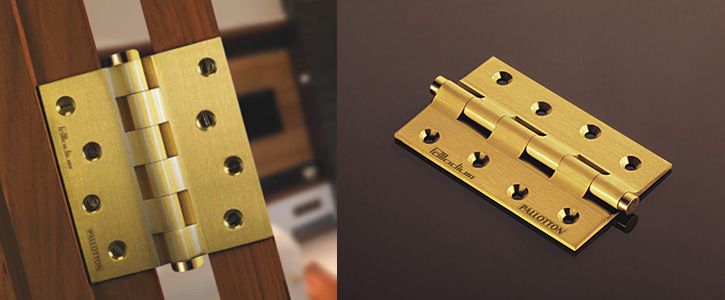

  • Railway smooth hinges

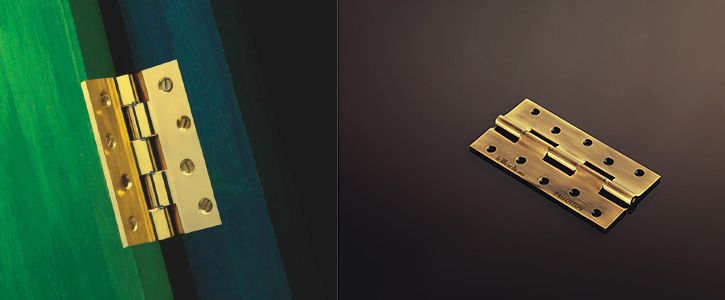

  • Railway washer hinges
  • Railway cut hinges

As manufacturers of railway hinges, we do not hide our engineering designs, our drawings and specifications are available for our clients and for general information. The hinges for railways require robust qualities. We, at Pallotton, ensure that our hinges are durable and can withstand high temperatures and pressures. Each of our variety has multiple variations that can be changed as per the clients preference like alternatives in the type of tip.

Revolutionary Commitments

At Palloton, we know that being manufacturers and exporters, we have to fulfill certain responsibilities and commitments. The conventional commitments are very much valid but we intend to offer you more. Besides, the usual best price policy, quality assurance, and timely delivery, we offer installation, maintenance, inspection services that make up the one-stop shop for all your railway hinges requirements.

We have been catering to clients in almost all continents and have been fulfilling their brass accessories orders. Download our product catalog for comprehensive details on the products that we create and also for information on the dimensions and other specifications. Alternatively, reach us atinfo@palladiumproducts.comfor best quotations, samples, or queries.

CODE
NO		 SIZE
M.M.		 A
LENGHT		 B
W/OPEN		 C
WIDTH		 D
BUTT DIA		 E
PIN DIA		 F
THICKNESS		 G
C.S.K DIA		 SIZE OF
SCREW		 NO. OF
HOLES
162 75 X 19 75 44 19 6 3 2 8 20 X 5 6
  75 X 22 75 50 22 6 3 2 8 20 X 5 6
163 75 X 22 75 52 22 8 4 3 9 25 X 8 6
  100 X 22 100 52 22 8 4 3 9 25 X 8 8
164 75 X 25 75 64 25 9 4.5 3 10 35 X 8 6
  100 X 25 100 64 25 9 4.5 3 10 35 X 8 8
  125 X 25 125 64 25 9 4.5 3 10 35 X 8 10
  150 X 25 150 64 25 9 4.5 3 10 35 X 8 10
165 75 X 28 75 70 28 10 4.5 3.5 10 35 X 8 6
  100 X 28 100 70 28 10 4.5 3.5 10 35 X 8 8
  125 X 28 125 70 28 10 4.5 3.5 10 35 X 8 10
  150 X 28 150 70 28 10 4.5 3.5 10 35 X 8 10
166 100 X 31 100 79 31 10 4.5 4 10 35 X 9 8
  125 X 31 125 79 31 10 4.5 4 10 35 X 9 10
  150 X 31 150 79 31 10 4.5 4 10 35 X 9 10
167 100 X 28 100 73 28 11 4.5 4.5 10 35 X 9 8
  125 X 28 125 73 28 11 4.5 4.5 10 35 X 9 10
  150 X 28 150 73 28 11 4.5 4.5 10 35 X 9 10
  200 X 28 200 73 28 11 4.5 4.5 10 35 X 9 14
168 100 X 38 100 94 38 12 4.5 4.5 10 35 X 9 8
  125 X 38 125 94 38 12 4.5 4.5 10 35 X 9 10
  150 X 38 150 94 38 12 4.5 4.5 10 35 X 9 10
  200 X 38 200 94 38 12 4.5 4.5 10 35 X 9 14
169 125 X 50 125 119 50 13 5 4.5 10 35 X 9 10
  150 X 50 150 119 50 13 5 4.5 10 35 X 9 10
  200 X 50 200 119 50 13 5 4.5 10 35 X 9 14
