Our Products

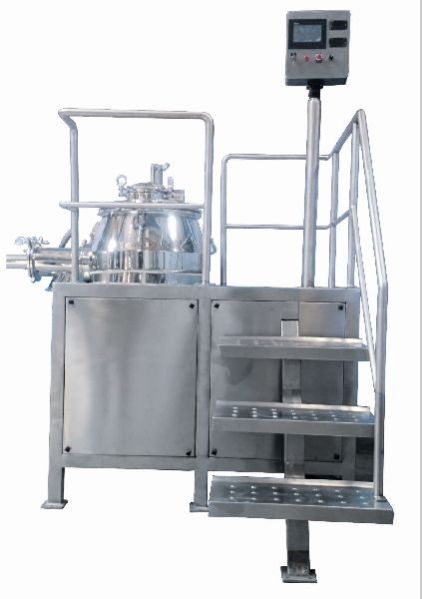

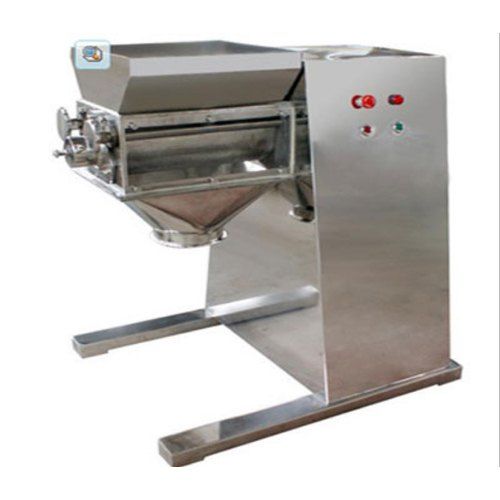

Leading Manufacturer, Supplier & Retailer of Oscillating Granulator and High Speed Mixer Granulator.
Design as per stringent cGMP requirements. High Speed mixing and granulating All contact parts SS 316 Double Speed for impeller and chopper Residue free discharge Option PLC control.
Technical Details
| MODEL | RMG-25 | RMG-50 RMG-100 | RMG-150 | RMG-250 | RMG-400 | RMG-600 |
|---|---|---|---|---|---|---|
| Gross Capacity Ltrs. | 25 | 50 100 | 150 | 250 | 400 | 600 |
| Working Capacity - Ltrs. | 20 | 40 80 | 120 | 200 | 320 | 480 |
| Impeller Motor - HP | 3/5 | 5 / 7.5 7.5 / 10 | 10 / 15 | 25 / 30 | 30 / 40 | 40 / 50 |
| Chopper Motor -HP | 1.5/2 | 2/3 2/3 | 3/5 | 3/5 | 5 / 7.5 | 5 / 7.5 |
| Gear Box Size | V-400 | V-500 V-500 | V-600 | V-700 | V-800 | V-1000 |
| Gear Box Ratio | 5 : 1 | 5 : 1 10 : 1 | 10 : 1 | 10 : 1 | 10 : 1 | 10 : 1 |
| Dimensions | All Dimensions are in mm | |||||
| Length | 750 | 1425 1950 | 2075 | 2150 | 2225 | 2500 |
| Width | 950 | 1300 1585 | 1650 | 1700 | 1750 | 2000 |
| Height | 2225 | 2775 3400 | 3550 | 3625 | 3750 | 4150 |
