this 3 ply is appropriate for packing conservative products like confectionery, tea, consumables etc. The final product specifications are made as per agreed pact with the customers based on the type of products that are to be packed. Polyester to foil and foil to poly lamination is done by dry lamination. This foils are usually used for packing pouch.

• peel strength :between pet / foil : 150 g / 15 mm minimumbetween foil / poly : 200 g / 15 mm minimum
• printing :reverse printed up to eight colours on polyester as per text, layout and shade approved by customer.
• configuration : un-printed 3 ply available in the reel
• winding direction : generally printed or clear polyester side is out with poly film inside.
• core : material options: (a) plastic (b) card board
• core id : 76 mm or 70 mm 1 mm
• splices : butt type made with 25 mm pressure sensitive tape.
• reel outer diameter : 275 5 mm maximum
• reel wander : within 1 mm
• reel width : minimum 40 mm 1 mm
• joints per reel : maximum 2. Average less than 1.
• identification : each reel shall be identified with a sticker pasted inside the centre with reel number, specification, net weight, gross weight & date of manufacture.
• packing : slit size reels are packed in cardboard carton.relevant markings are provided in each outer package.

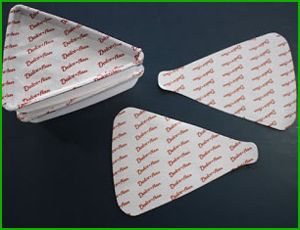

PATELS FOIL FLEXI-PACK produces variety of LIDDING FOIL appropriate for sealing to PS (Polystyrene), PVC (Polyvinyl Chloride), PP (Polypropylene) PET (Polyethyleneterphthalate) , PE (Polyethylene) and HDPE (High Density Polyethylene) jars/cups/tubs substrates with the following all-purpose specification.

Aluminium foil thickness: from 20 microns to 45 microns Coating: one side with primer suitable for printing and/or other side with thermosealing lacquer.Width, inner core diameter and outside diameter: according to customer's requirements.

Aluminum Strip foil is an outstanding barrier to humidity, mist and gases. It completely blocks the passage of light and entry of unwanted odours. Each Tablet is separately guarded.Laminated foils can be offered both un-printed and printed strip foil as per customers requirements in FoilLDPE and FoilHSL formations, These are extraordinary foils with common lamination of LDPE of 150 gauge or 35-37 micron on the aluminum foils. Employed for aluminum tablet packing as strips both side with printing
