Our Products

We offer the best product range of Planer Machine, YD-200MW1 panasonic welding machine, CNC Wood Carving Machine, Vaccum Membrane Press Machine and Electrical Furnace.

Precision Bench Drill Machine

75,000 / Piece Get Latest Price
  • Application Tool Rooms , Educational Institutes, Workshops, Rolling Mills Etc, Small & Medium Scale Industries, Fabrication Workshops .
  •  DRILLING CAPACITY IN STEEL  13mm
  •  SPINDLE TRAVEL  87
  •  PILLAR DIAMETER  47.6
  •  PILLAR LENGTH  625
  •  DISTANCE BTW CENTRE OF SPINDLE & PILLAR FRONT  150
  •  MAX DISTANCE BTW SPINDLE & TABLE  250
  •  MAX DISTANCE BTW SPINDLE & BASE  363
  •  TABLE WORKING SPACE  Ø 200
  •  BASE WORKING SURFACE (MACHINED)  175 x 175
  •  OVERALL SIZE OF BASE  320 x 230
  •  NO OF SPINDLE SPEEDS  4
  •  RANGE OF SPINDLE SPEEDS (rpm)  640-1040-1640-2540
  •  V BELT  A 36
  •  MOTOR  1/2 H.P
  •  NET WEIGHT  45 Kg
  •  SPACE OCCUPIED (LxBxH)  390 x 300 x 815
View Complete Details

Most Powerful Magnetic Drilling Tapping Machine

3.46 Lakh / Piece Get Latest Price
  • EAN 4250187507151
  • Core Drilling 130 mm
  • Twist Drilling 45 mm
  • Tapping M42
  • Countersink 80 mm
  • Reaming 50 mm
  • Motor Output 2300 Watts
  • Stroke 310 mm / 85 mm
  • Magnet Size 120 x 360 x 65 mm
  • Magnet Power 29250 N
  • Weight 51 Kg.
  • Morse Taper MT4
  • Speed Gears 4
  • Speed 1 30 – 80 min-1
  • Speed 2 50 – 120 min-1
  • Speed 3 130 – 350 min-1
  • Speed 4 210 – 550 min-1
  • Advantages Carbon brush indicator, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Power assist servo feed, Reversible motor, Steady watt control, Variable speed & torque
  • Includes 1 Attached cooling tank, 1 Carry case on wheels, 1 drill drift & 1 taper drift, 1 offset screwdriver, 1 Operating manual, 4 ejector pins
View Complete Details

Magnetic Drilling Cum Tapping Machine

1.23 Lakh / Piece Get Latest Price
  • Availability 13 Kg.
  • EAN 4250187507137
  • Cutting Depth 55 mm
  • Twist Drilling 18 mm
  • Reaming 18 mm
  • Motor Output 1150 watts
  • Stroke 160 mm
  • Magnet Size 84 x 168 x 41.5 mm
  • Magnet Power 10400 N
  • Morse Taper MT2
  • Speed Gears 2
  • Speed 1 50 – 250 min-1
  • Speed 2 100 – 450 min-1
  • Speed 3 x
  • Speed 4 x
  • Advantages Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed
  • Includes 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters
  • Core Drilling 40 mm
  • Countersink 40 mm
View Complete Details

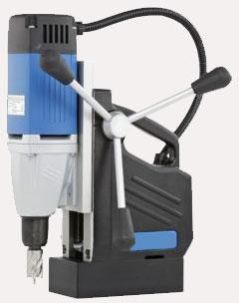

Basic Magnetic Drilling Machine

42,000 / Piece Get Latest Price
  • Availability 12 Kg.
  • EAN 4250187506604
  • Core Drilling TCT 35 mm
  • Core Drilling HSS 32 mm
  • Cutting Depth 55 mm
  • Twist Drilling 13 mm
  • Motor Output 900 watts
  • Stroke 160 mm
  • Magnet Size 84 x 168 x 48 mm
  • Magnet Power 10400 N
  • Direct Arbor 19 mm Weldon
  • Morse Taper Direct arbor
  • Speed Gears 1
  • Speed 1 450 min-1
  • Speed 2 x
  • Speed 3 x
  • Speed 4 x
  • Advantages Attached cooling tank, Grease gearbox, Internal lubrication, Lightweight, Single speed
  • Includes 1 Attached cooling tank, 1 ejector pin, 1 offset screwdriver, 1 Operating manual, 1 Safety lashing strap, 1 Transport case
View Complete Details

Heavy Duty Power Drill

  • 35 mm Load Speed 600 rpm
  • Voltage 240 V
  • Power Consumption 850 W
View Complete Details

Panasonic 400 Kr2 ARC Welding Machine

92,000 / Piece Get Latest Price
  • Power Source YD-400KR2DJE
  • INPUT Rated input voltage (V) 415, +10%, 10%
  • Phase/Freq. (no./Hz) 3ph/50-60
  • Max. Input KVA @ 415 Vac: –
  • @50% Duty Cycle (KVA/KW) –
  • @60% Duty Cycle (KVA/KW) 21/9
  • OUTPUT
  • Rated Current Range (amps) 60-400
  • Rated Output Voltage (V) 16-39
  • Welding Current (40 C)
  • @60% Duty Cycle (Amps) 400
  • @100% Duty Cycle (Amps) 310
  • GENARAL –
  • Conformance to International Standards –
  • Applicable Shielding Gas CO/CO2+Ar
  • Insulation (Class) H
  • Cooling(Type) Forced Air Cooling
  • Dimensions(mm) 736 x 675 x762
  • Weight(KG) 149
  • WIRE FEEDER YW-50KB3
  • Rated Welding Current (Amps) 400
  • Applicable Wire Diameter(mm) 08., 1.0, 1.2, 1.6
  • Weight (KG) 10.5
  • WELDING TORCH YT-40CS4
  • Duty Cycle 10 Min Cycle 400 Amps, 60% (CO2) 360 Amps, 60%(CO2+Ar)
  • Duty Cycle Continuous 310 Amps, 100% (CO2) 280Amps, 100% (CO2+Ar)
  • Applicable Wire Diameter(mm) 0.8, 1.0, 1.2
  • Cable Length(meter) 3
  • Weight (incl. Cable)(KG) 2.8
  • Wire Feeder YW-50KB3DAE
  • Welding Torch YT-40CS4DAF
View Complete Details

Panasonic YD-200MW1

22,000 / Piece Get Latest Price
  • Availability 8.5kb (excluding input cable)
  • Welding process MMA (manual metal arc)Welding
  • Rated inut voltage 230 VAC+10%, -15%
  • Number of phase Single phase
  • Rated frequency 50 Hz/60 Hz (Common)
  • Rated input power at 200A 7.6kw
  • Rated input current max 42.5 A
  • Rated input current eff. 33A
  • Open circuit voltage 65 VDC
  • Rated output current 200 A
  • Rated output current 60% (at 200A, 28V)
  • Rated output current 100% (at 155 A, 26.2V)
  • Welding current range (DC) 30A/11.2 V to 200A/18V
  • Control method Inverter
  • Cooling method Forced air cooling
  • Dimensions (WxDxH) 160x450x312 (mm) (excluding knobs a nd the likes.)
  • IP Code IP23S
  • Protection Class S
  • Welding process TIG welding
  • Rated input power at 200A 5.1kw
  • Rated input current max 28.8A
  • Rated input current eff. 22.3A
  • Rated output current 60% (at 200A, 18V)
  • Rated output current 100% (at 155A, 16.2V)
View Complete Details

Welding Equipments

  • No-load Voltage (V) 60V
  • Weight (kg) Approx 13.5 kg
  • Frequency (Hz) 50 / 60 Hz
  • Power Factor 0.93
  • Efficiency (%) 85%
  • Rated Input Current (A) 13A
View Complete Details

Vaccum Membrane Press Machine

  • Features Used for applying a uniform lamination of PVC, decorative papers and veneer till 0.4 mm on top surface and borders on flat & designed work piece having smooth shape.Short pressing cycles.
  • No. of working tables 1
  • Work table size ( L x B) 2500×1250 mm
  • Max. height of work piece 50 nos
  • Vacuum -0.1 mpa
  • Heating Load 24.8 hp
  • Total Power 12 hp
View Complete Details

Semi Automatic Threading Machines

  • Brand Name PATHAK
  • Automatic Grade Semi-Automatic
  • Material Aluminum Casted
  • Condition New
  • Capacity 1/2 TO 2″
  • Model PT50
  • Screw Threads BSPT /NPT
  • Capacity (mm) 50mm O.D of GI or MS Pipe
  • Voltage (V) 220 V
  • Frequency (Hz) 50 Hz
  • Weight (kg) 40 kg
  • Motor Power (HP) 1 HP
  • Speed (RPM) 28 RPM
  • Phase 1
  • Gear Box Yes
View Complete Details

Hand Shears And Rod Cutters

2 Lakh / Piece Get Latest Price
  • Application TOOL ROOMS, EDUCATIONAL INSTITUTES, WORKSHOPS , ROLLING MILLS ETC .
  • Feature High durability , Low Maintenance cost , Trouble free operation , Rigid cutter body .

HEAVY DUTY GEARED HAND SHEARING MACHINE CUTTING CAPACITY –MS
 MODEL  BLADE  TYPE  PLATE/SHEET  FLAT  ROUND  Net.Wt (APPROX)
 UNIT  MM    MM  MM  MM  Kg’s
 VHS-200  200  Geared  7  75*8  16  40
 VHS-300  300  Geared  5  50*6  –  65
HEAVY DUTY GEARED ROD CUTTER MACHINE CUTTING CAPACITY –MS
 MODEL  BLADE  TYPE  PLATE/SHEET  FLAT  ROUND  Net.Wt (APPROX)
 UNIT  MM    MM  MM  MM  Kg’s
 VRC-25 60  Geared  – 50*12 25 65
 VRC-30 60  Geared  – 50*12 28 85
SPRING-LEVER HAND SHEARING MACHINE CUTTING CAPACITY –MS
 MODEL  BLADE  TYPE  PLATE/SHEET  FLAT  ROUND  Net.Wt (APPROX)
 UNIT  MM    MM  MM  MM  Kg’s
 VHS-7 175 Lever 3 40*4 8 12
 VHS-9 225 Lever  4 40*5 8 22
 VHS-13 325 Lever  4 50*4 10 35
 VHS-15 375 Lever  4 50*4 10 50
View Complete Details

Tapping Machine

  • Model No. TM – 12
  •  Tapping Machine Capacity  12 mm.
  •  Drilling Capacity  8 mm.
  •  Spindle Travel/Table travel (6 mm.)  75 mm.
  •  Distance Spindle to Column  140 mm.
  •  Distance between chuck to base  450 mm.
  •  Distance between chuck to work table  380 mm.
  •  Size of base Plate-L x B  480 x 350 mm.
  •  Size of Work Table-L x B  190 x 220 mm.
  •  Diameter of Column  74 mm.
  •  V-Belt (Inside)  inside A-71
  •  V-Belt for Motor (Outside)  A-25
  •  No. of Spindle Speeds  3
  •  Forwards Speeds Range  350/620/1100
  •  Reverse Speeds Range  420/745/1315
  •  Motor Single phase or three phase  0.75/1 H.P.
  •    1440 R.P.M.
  •  Overall Height  1245 mm.
  •  Overall Width  370 mm.
  •  Overall front to back  600 mm.
  •  Weight approx  120 Kg.
View Complete Details

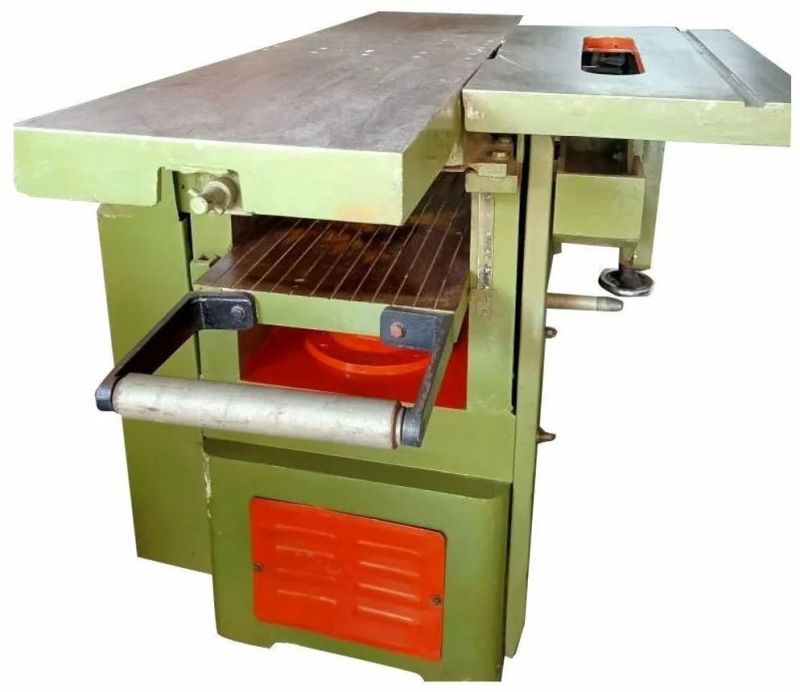

Planer Machine

1.50 Lakh / Piece Get Latest Price
  • Driven Type Elecric
  • Condition New
  • Rated Power 5-7kw
  • Certification ISO 9001:2008
  • Voltage 380V
  • Weight 100-1000kg
  • Automation Semi Automatic
  • Country of Origin India
  • Warrenty 1 Year
  • Type Planer Machines
We are a reputable manufacturer, exporter, supplier, retailer, distributor, and trader of high-quality Planer Machines from India. Our new electric Planer Machine boasts a rated power of 5-7kw, ISO 9001:2008 certification, and operates at 380V. With a weight range of 100-1000kg, this semi-automatic machine offers efficiency and precision. Backed by a 1-year warranty, our Planer Machine is designed for optimal performance and durability. Upgrade your workshop with our reliable and versatile Planer Machine that ensures smooth operations and excellent results.

 STROKE OF TABLE  4”  6”  8”  10”  12”  16”  20”
inch mm inch mm inch mm inch mm1 inch mm inch mm inch mm
 Length of bed 72 1830 108 2743 144 3658 180 4522 216 5487 288 7315 360 9144
 Length of table 54 1371 78 1981 102 2590 126 3200 150 3810 198 5029 252 6400
 Max Travel of table 48 1219 72 1829 96 2438 120 3048 144 3657 192 4876 240 6096
 Max. height under cross rail 30 762 36 914 48 1219 54 1371 60 1524 60 1524 64 1625
 Max. planing width 30 762 36 914 48 1219 54 1371 60 1524 60 1524 64 1625
 Cutting speed P.M 410 410 410 410 410 410 410
 Return Speed P.M 610 610 610 610 610 610 610
 Table width 24 609 27 685 31 787 33 838 36 914 36 914 48 1119
 No. of tool post on cross rail 1 1 2 2 2 2 2
 Method drive  ELECTRICAL INIVIDUAL
 H.P.Required 2 3 5 7.5 7.5 10 20
 Approx weight in Kg. 3000 4000 6000 7500 10000 14000 24000
View Complete Details

Polishing Machine

  • Features High Speed Superfine Polishing Machine
  • Mild Steel Power 2 hp
  • Speed 1440 rpm
  • Load 1.5 Kw
View Complete Details

Vibro Metal Polishing Machine

  • Features SEMI-AUTOMATIC MACHINE, TO REMOVE DRAWL AND BURRS FROM FROM SHARP CORNERS, DEBARRING AND POLISHING , AVAILABLE IN BOTH SINGLE PHASE AND THERE PHASE , METAL COMPONENTS .
  • MOTOR CAPACITY 3HP
View Complete Details

CNC Wood Carving Machine

  • Work table area -(mm) W 1200 X L 2500 X H 300 or W 1200 x L 2500 x H 200
  • Cutting speed -(mm/m) 35mtr. / min
  • MAX height for material (mm) 300 or 200
  • MAX width for material -(mm) 1350 (WITHOUT GANTRY)
  • Drive system Advanced Digital Micro Stepper Drivers
  • Drive motor Advanced Digital Micro Step Motors
  • Spindle 3500W aircool
  • Spindle rotating speed (rpm) 6000-18000
  • Power consumption (W) -Minimum 300 to 500 W
  • X, Y, S lde way Linear ball bearing profile rails,
  • X Y Rack and pinion Z Lead screw
View Complete Details

CNC Laser Engraving Machine

  • used Mainly used for large plastic characters cutting, color plate engraving, Plexiglas engraving cutting, sign engraving, crystal, trophy engraving, sculpture .
  • Motorized table controls the table up/down
  • Cooling Mode Industrial Chiller
  • Rotary device Helps in the fine engraving of cylindrical items like glass, mug etc.
  • Applications Craft industry , Leather clothing industry , Mold industry , Packaging Industry ,

Working Area 600×400 900×600 1000×800 900×1300 1300×2500
Laser Power 30-150 W 30-150 W 30-150 W 30-150 W 30-150 W
Cutting Speed 60,000 mm/mn 60,000 mm/mn 60,000 mm/mn 60,000 mm/mn 60,000 mm/mn
Power Supply 220 V /50 Hz 220 V /50 Hz 220 V /50 Hz 220 V /50 Hz 220 V /50 Hz
Graphic formet supported DST,PLT,BMP,DXT DST,PLT,BMP,DXT DST,PLT,BMP,DXT DST,PLT,BMP,DXT DST,PLT,BMP,DXT
Software Supportec Coreldraw,Photoshop,Autocad Coreldraw,Photoshop,Autocad Coreldraw,Photoshop,Autocad Coreldraw,Photoshop,Autocad Coreldraw,Photoshop,Autocad
Driving Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor
Operating temperature     0-45’C
Operating humidity 5-95% 5-95% 5-95% 5-95% 5-95%
Equipment Size 1360x800x1080mm 1460x800x1080mm 1560x1250x1080mm 2080x1300x1300 mm 3000x1300x1600mm
Weight 250KG 280KG 320KG 360KG 1100 KGS
View Complete Details

CNC Metal Engraving Machine

  • Working size  W 1200 X  L 2500 X H 300
  • Max feeding height 300mm, or (Customized)
  • Max travelling speed 3000-10000mm/min // 35mtr. / m
  • Tool diameter 3, 4 , 6, 12.7mm
  • Transmission mode XY is with high precision helical gear rack transmission,  Z is  with imported Ball screw transmission
  • Software working environment Windows98/XP/7
  • Spindle power 5.5kw* Water Cooling Spindle / air cooled 4 k w
  • Driver motor Stepper/Servo optional
  • Working voltage 220v\\380v(Optional)
  • Engraving command (G code)(nc), mmg, plt, eng, dxf
  • Spindle rotating speed 3000-24000rpm/min // 6000-18000
  • Control system NC studio/DSP
View Complete Details

Automatic Wood Carving With Electric Controller

  • Min. Order (MOQ) 1 Piece
  • Availability 1150 kg
  •  Spindle rotating speed (rpm)   6000-18000 rpm
  • Power consumption 400 W
  • spindle 3.5 kw
  • Job Material Wood, Plastic, Acrylic
  • working area W 1200 X L 2500 X H 200
  • Voltage (V) 220 v
  • Model Number 1325  CNC
View Complete Details

Wood Cutter Circular Saw

  • Availability 3.4kg
  • speed 5500rpm
  • Blade dia 190mm.
  • Max Cut Depth 68mm , 90 degree and 46mm , 45 degree .
View Complete Details

Wood Sander Machine

  • Power 230w
  • Availability 1.4kg
  • Sanding paper & pad size 125mm
  • Orbital dia 3.2mm
  • speed 12, 000 RPM
View Complete Details

Electric Planner

  • Speed 13000 RPM
  • Max Cutting Depth 90 mm
  • Power Input 850 W No Load
  • Frequency 50 Hz
View Complete Details

Professional Cordless Drill

  • Availability 1.6kg
  • Battery Voltage (Volts) 14.4 V
  • Type of Power Tool Drill Screw Diameter 8 mm
  • Battery Capacity 1.5Ah
  • Max lock torque 47Nm0-
  • Speed 1, 200 RPM
View Complete Details

Wood Cutter Machine Chain Saw

  • Power 2000w
  • Availability 5.5kg
  • Engine 2 Stroke Forced Air Cool
  • Displacement 58 CC
  • Rated Power 2.5 KW (3.5 HP)
  • speed 8500 RPM
  • Bar size 400mm
  • chain speed 14.5m/s
View Complete Details

Hand Engraving Machine With Different Bit

  • Automation Grade Manual Voltage
  • Single phase Stroke
  • Speed 7200 strokes /min
View Complete Details

Jig Saw

  • Power Consumption 450 W
  • Stroke Rate Under Load 800 – 3, 100 spm
  • Voltage 230V
View Complete Details

Rotary Tool

  • No Load Speed Upto 2500 Rpm
  • Load Speed (rpm) 5000 to 35000 rpm
  • Packing Box
View Complete Details

Automatic Screw Drivers Machine

  • Bit Holder 1/4 Inch hexagon socket
  • No Load Speed 0 – 1300 / 0 – 2600 rpm (1 st ) Voltage: 4.8 V or more
  • Torque 3.5 Nm Battery Type 1.2 V. Nicd
  • Product Dimensions (LxWxH) 28.5 x 27 x 6 cm
  • Charging Time 3-5 hours
View Complete Details

Hand Planner

  • Power 650W
  • Availability 2.8KG
  • Dimension 280X158X140 MM
  • PLANING WIDTH 82MM
  • PLANING DEPTH 0-2.6MM
  • ADJUSTABLE REBATING DEPTH 0-9MM
  • LOAD SPEED 165000RPM
View Complete Details

Hand Drilling Machine

  • No Load Speed 4000RPM
  • IMPACT RATE AT NO LOAD SPEED 60000 BPM
  • WEIGHT 3KG
View Complete Details

Electric Hand Polisher

  • Power 1250 WATT
  • SPINDLE THREAD M 14
  • RUBBER SANDING PLATE DIAMETER 180MM
  • NO LOAD SPEED 750 - 3000 RPM
  • DIMENSIONS 490X80X225 MM
  • WEIGHT 2.5 KG
View Complete Details

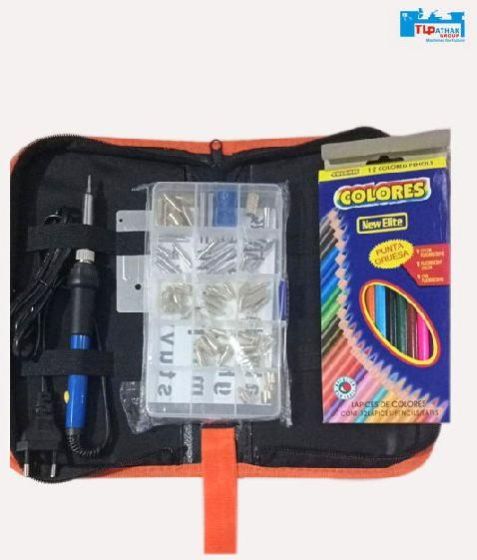

Embossing Pen

  • POWER 60W
  • ADJUSTABLE TEMPERATURE 200- 450 C
  • SOLDERING IRON LENGTH 19.5 CM
  • CORD LENGTH 1.34 M
  • WEIGHT 272GM
  • NO OF TIPS 20
View Complete Details

Engraving Electric Pen

  • BLOWS PER MINUTE 32400 BPM
  • VIBRATION 7M/SQSEC
  • SOUND POWER 70dBa
  • LENGTH 5.8 INCH
  • WEIGHT 0.35 KG
  • AIR INLET THREAD SIZE 0.25 INCH
View Complete Details

Electrical Furnace

  • Power 5 KW
  • LOADING CAPACITIES 10 KG 18 KG 25 KG 30 KG
  • PHASE 3 PHASE
  • MELTING TIME UPTO 3 HOURS
  • FEATURE COMPLETE WITH MELTING CRUCIBLE TONG 24 INCHES
  • HAND GLOVES 16″ PAIR
  • GRAPHITE ROD THREAD TYPE 6 INCH
  • GRAPHAITE CRUSIBLE 180X250 MM
View Complete Details
Tell Us What are you looking for? Will call you back

Contact Us
