Small form-factor pluggable (SFP) is a specification for a new generation of optical modular transceivers. The devices are designed for use with small form factor (SFF) connectors, and offer high speed and physical compactness. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a ber optic or copper networking cable.

Because SFP modules can be optical or fiber optic networks can be upgraded and maintained more conveniently than has been the case with traditional solderedin modules. Rather than replacing an entire circuit board containing several soldered-in modules, a single module can be removed and replaced for repair or upgrading. This can result in a substantial cost savings, both in maintenance and in upgrading efforts.

SFP SERIES

Data Rates: 155M, 622M, 1.25G, 2.5GTransmission: Distances: 500m, 20km, 40km, 80km, 120kmIndustrial (-4045 C) versions available

BIDI SFP SERIES

Data Rates: 155M, 1.25G, 2.5GTransmission: Distances: 3km, 20km, 40km, 80km, 120kmSL/LC Interfaces

CWDM SFP SERIES

Data Rates: 1.25G, 2.5GTransmission: Distances: 40km, 60km, 80km, 120kmWavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm

40GBASE OSFP+FEATURfSLaserClass 1Electrical interface compliant to SFP+ MSA Optical Interface compliant to IEEE802 3ae 12C Management InterfaceLow Power Consumption SR 300m, LR 10km, ER 40km, ZR 80km

APPLICATIONSRack to RackData CenterHigh-speed Storage Area NetworkSwitch and RouterWireless Repeater

40GBASE QSFP+FEATURESHot PluggableAggregate Bandwidth of upto 40GIEEE 802.3ba CompliantQSFP+ MSA CompliantOperating Temperarure: 0-70CSingle 3.3V Power SupplySR4 up to 150 meters, LR4 up to 10km

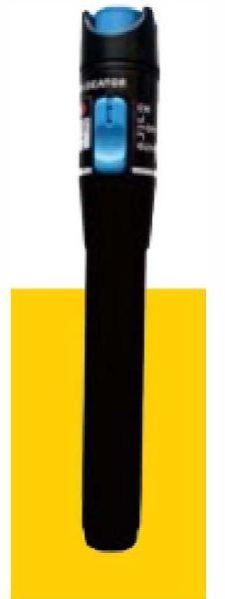

DESCRIPTIONThe Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fi bers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying con tinuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable

FEATURES- Easy to use- Fast response, no warm up- Continuous and pulsed-light- 20 MW for Max output power- Standard AAA alkaline batteries- Rugged and weatherproof design- 2.5mm universal connector- 1.25mm can be optional
