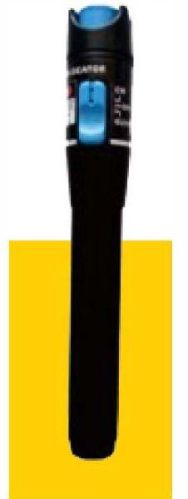

VISUAL FAULT DETECTOR

Get Latest Price

ModelBD261A
Operating Temp (°C)-20~+60
Dimensions(mm)175*25
Modulation Frequencies(Hz)CW 2Hz
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

PEP Charles Limpens Pvt. Ltd.

Malur, Kolar, Karnataka

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ModelBD261A
Modulation Frequencies(Hz)CW 2Hz
Dimensions(mm)175*25
Connector Type2.5mm Unniversal connector (LC,MU,E2000 can be optional)
Battery life (°C)>=50hrs
Power SupplyA A A 1.5v (2pcs batteries)
Emitter TypeFP-LD
Output Power (mw)1,3,5,10,15,20
Operating Temp (°C)-20~+60
Storage Temp.-40~+60
Wavelength(+-20nm)650
Weight(g)80
Max.measurement Range (Km)1,3,5,10,15

DESCRIPTION
The Pen-type Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fi bers.The VFL generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying con tinuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable

FEATURES
- Easy to use
- Fast response, no warm up
- Continuous and pulsed-light
- 20 MW for Max output power
- Standard AAA alkaline batteries
- Rugged and weatherproof design
- 2.5mm universal connector
- 1.25mm can be optional
