Pluga Franklin Electric

Lamdapura, Vadodara, Gujarat

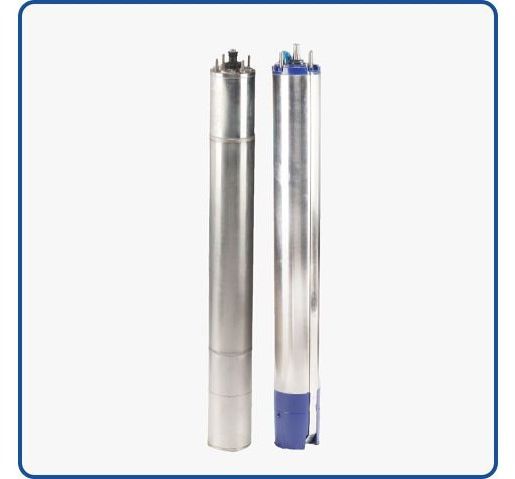

Salient FeaturesCompletely rewindable.Cooling and lubrication by nontoxic fluid.Special coated Cu rotor shaft for longer life.High quality carbon v/s SS thrust bearing.High efficiency electrical design. (lower operating cost)4" NEMA coupling flange.Pressure compensation diaphragm.Additional strip to safegaurd.

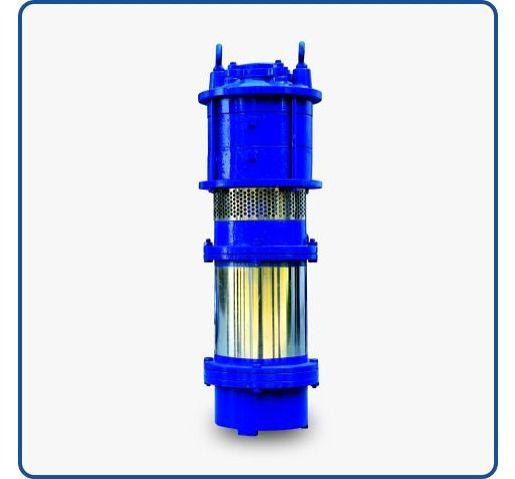

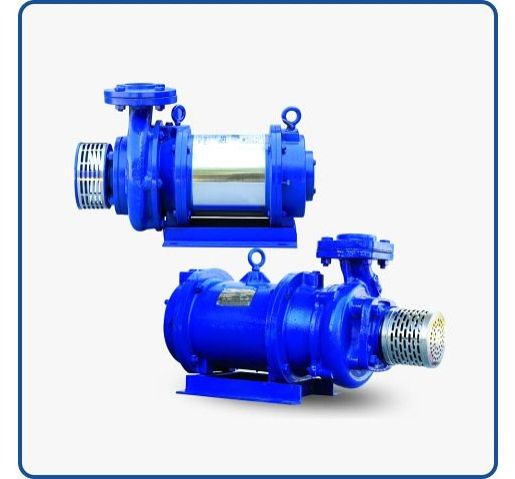

Salient FeaturesSS / CI Motor body with flanged design ensure robustness and reliability.Better efficiency due to copper rotor which enables high performance at low voltage.Heavy duty carbon thrust bearing takes care of thrust loads.Designed to start at low voltage and to work under wide voltage fluctuation.Corrosion free stainless steel shaft.Superior polymer coated winding wire to withstand wide voltage fluctuation.All rotating components are dynamically balanced to ensure long bearing life andvibration free smooth operation.Oil seal is well protected from foreign particles.Rotors are treated with special epoxy paint to ensure corrosion resistance.Provided with strainer of stainless steel.SS fasteners for ease in maintenance and durability.ApplicationIrrigation from open wells / ponds / canals / river.Water supply to high rise buildings / community.Fountains / drip Irrigation / nurseries.Pressure boosting.

Salient FeaturesSS / CI Motor body with flanged design ensure robustness and reliability.Better efficiency due to copper rotor which enables high performance at low voltage.Heavy duty carbon thrust bearing takes care of thrust loads.Designed to start at low voltage and to work under wide voltage fluctuation.Corrosion free stainless steel shaft.Superior polymer coated winding wire to withstand wide voltage fluctuation.All rotating components are dynamically balanced to ensure long bearing life andvibration free smooth operation.Oil seal is well protected from foreign particles.Rotors are treated with special epoxy paint to ensure corrosion resistance.Provided with strainer of stainless steel.SS fasteners for ease in maintenance and durability.ApplicationIrrigation from open wells / ponds / canals / river.Water supply to high rise buildings / community.Fountains / drip Irrigation / nurseries.Pressure boosting

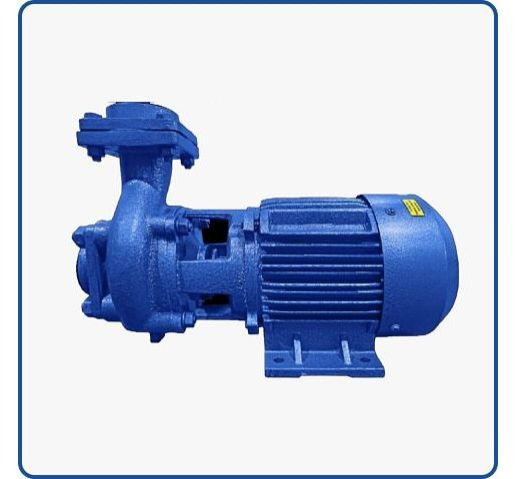

Salient FeaturesMonoblock pumpsets TEFC motor is designed to with-stand widevoltage fluctuation.F class motor windings are vacuum impregnated with synthetic varnish for better resistance.All rotating components are dynamically balanced to ensure long bearing lifeand vibration free smooth operation.Robust construction with high quality material.High quality mechanical seal / gland packing.Single phase motors are fitted with thermal over load protector (TOP)for safety purpose.High quality antifriction ball bearings.Corrosion free stainless steel ground finish shaftApplicationIrrigation, farm houses, sprinklerWater supply for domestic use in apartmentsIndustries for clear water handling in industryConstruction site, hotels, hospitals

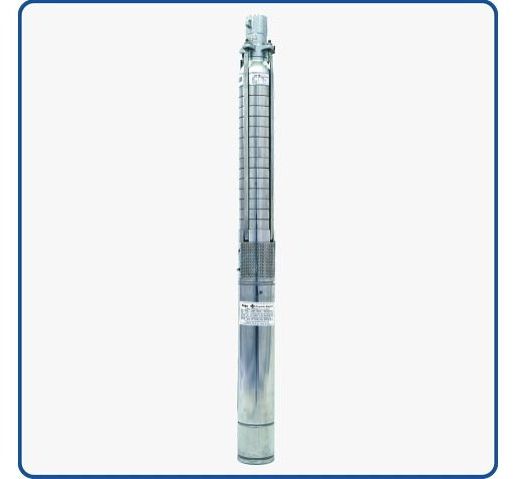

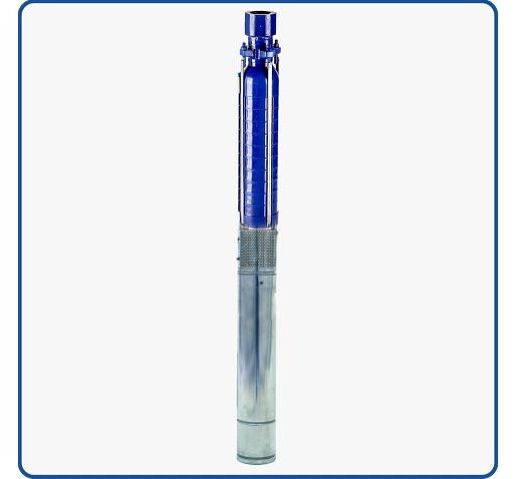

Feature NEO series of pump specially designed by Pluga for handling high sand content in borehole water for irrigation & drinking water application. PHP is Hybrid pump that gives you best of both world, High resistance of sand with sand friendly design & Look of Stainless steel fabricated pump. High grade engineering polymer for high resistance to Sandy waterExtra large & strong NRV for firm grip of pipe without breaking.Rubber coated ball type NRV for low friction loss & back flow.Shaft support bush in Suction, reduce stress on motor & bearings.Hybrid pumps have SS 304 Suction and NRV & SS covered bowl.Designed to withstand high pressure up to 40bar or 380mts head.Pump assembled on SS304 tie road, easy to dis-assemble & repairCan be used in Solar pump application.Designed for High efficiency

Feature NEO series of pump specially designed by Pluga for handling high sand content in borehole water for irrigation & drinking water application. PHP is Hybrid pump that gives you best of both world, High resistance of sand with sand friendly design & Look of Stainless steel fabricated pump. High grade engineering polymer for high resistance to Sandy waterExtra large & strong NRV for firm grip of pipe without breaking.Rubber coated ball type NRV for low friction loss & back flow.Shaft support bush in Suction, reduce stress on motor & bearings.Hybrid pumps have SS 304 Suction and NRV & SS covered bowl.Designed to withstand high pressure up to 40bar or 380mts head.Pump assembled on SS304 tie road, easy to dis-assemble & repairCan be used in Solar pump application.Designed for High efficiency

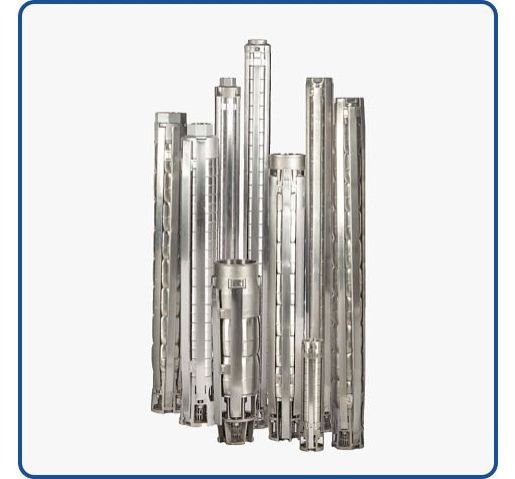

Use of Superior Quality SS 304 Sheet metal Pump Grade Stainless Steel can withstand high abrasive Sandy Water and Corrosive environment of Salty water and give same performance for life longHigh Quality Rubber Bush & Neck Ring are specially provided to reduce the wear due to Sand on the Impeller, Bowl & ShaftNRV to avoid effect of Water Hammer in Pump and prevent Reverse Rotation of PumpInternational NEMA standard spline coupling ensures smooth operation

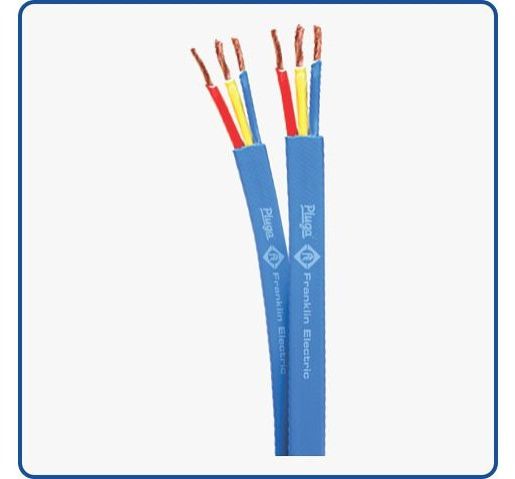

We provide high-quality Submersible Flat Cable made of 99.97% pure copper, conforming to IS 694/1990s standards. The conductor is Class 2 of IS 8130/1984, ensuring reliable performance. This cable features PVC insulation (Type A IS 5831/1984), making it durable and safe for submersible applications. As a trusted manufacturer, we offer a premium product that meets industry standards for efficiency and longevity.

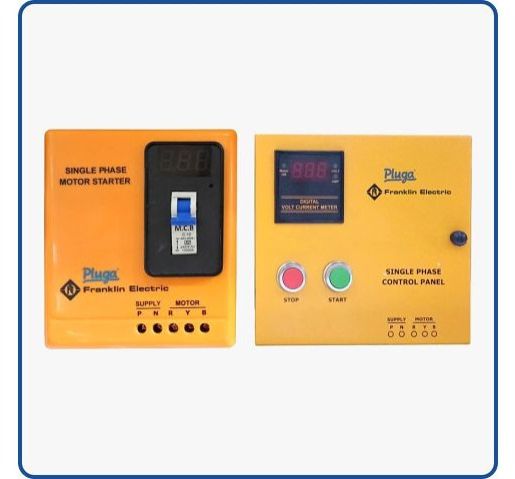

Salient FeaturesDigital Display of Voltage and CurrentRugged powder coated sheet metal enclosureHigh quality, branded MCB and Contactor relay insideEasy assembly and genuine spares for faulty component replacementProtection Dry run protection (In C version)Overload protection (over current)Over/Under voltage protectionSingle phase preventer phase imbalance, phase reversal in 3Ph models

Salient FeaturesCompact close-coupled design; robust and rust resistant; superior efficiency and performanceHeavy-duty oversized motor shaftImpellers and diffusers made of 300 series stainless steel for maximum durabilityEasy maintenanceRobust ball bearing fitted into the motor bracket for greater longevityApplicationSmall domestic and industrial systems / domestic water supplyWater distribution / pressure boosting Irrigation / gardening / sprinklers / rain water collectionIndustrial plants / wash-down unitCooling and chilling / heating and conditioning / air conditioning systemsOther various installation

Salient FeaturesAll Stainless Steel hydraulics for superior durability, efficiency and performance over a wide variety of applications.Rugged motor mounting with oversized ball bearings ensure long operating life in the toughest jobs. Heavy-duty motor bearing not required.Standard mechanical seal provides superior sealing between water end and motor; balanced version available (30-45-65-95 VR).Removal of the mechanical seal without dismounting the motor (for motors _ 4 kW, 2 piece coupling).Removal of the mechanical seal with motor removal and without pump disassembly (for 0.37 to _ 4 kW)In-line suction and discharge with round flanges fit the widest range of applications and provide convenient, compact installation.Rugged IEC mount electric motors produced to European and AU/NZ market standards.Replaceable stainless steel wear ring in the neck of the impeller (30-45-65-95 VR).ApplicationPressure boostingBoiler feedWater supply and treatmentReverse osmosisWash down unitsHot/cold water circulation for HVAC systemsIrrigationIndustrial washing machine Unit.Vehicle washing machineCooling towerDM water unit in Furnace1

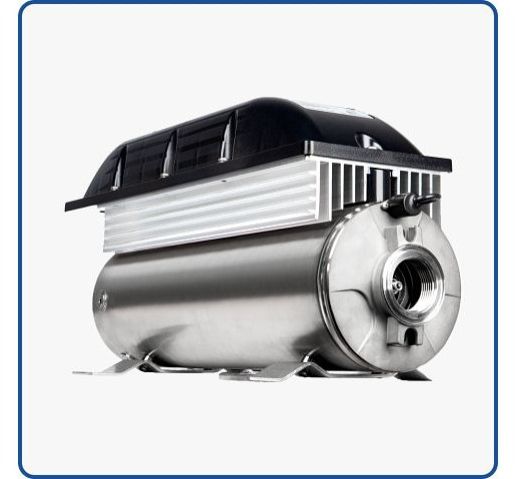

Features and BenefitsUnique uni-module system- Single pump and motor design with integrated driveSmall and compact- Fits into small areas, even in shaftsStainless steel construction- Made for years of operationSimple and easy installation- Step-by-step illustrated instructionsQuiet and cool operation- No fan (Radiant cooling)NEMA 4 electronics enclosureMulti-mounting- Horizontal, vertical & even upside downBuilt-in electronic protectionsSurge protectionVoltage underloadLocked pumpOpen circuitShort circuitOverheated controllerApplicationUnique uni-module system- Single pump and motor design with integrated driveSmall and compact- Fits into small areas, even in shaftsStainless steel construction- Made for years of operationSimple and easy installation- Step-by-step illustrated instructionsQuiet and cool operation- No fan (Radiant cooling)NEMA 4 electronics enclosureMulti-mounting- Horizontal, vertical & even upside downBuilt-in electronic protections

Applications Water distribution / pressure boostingRainwater collectionIrrigation / Gardening / SprinklersDewateringWash down unitFountainsOther various installationsFeatures Compact close-coupled design, robust and rust resistantImpellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performancesDouble mechanical seal separated by an oil* chamber for maximum motor protectionIn compliance with FDA - Food, Drug Administration - and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffsPlug-in type power cable and level control (floater) for easy replacementHeavy duty over size motor shaftStainless steel water proof capsule to protect the motorMotor cooling is guaranteed by the pumped liquidSpecifications Capacities up to 14 m3/h at 50HzHeads up to 11 Bar at 50HzDischarge outlet 1W RpMaximum working pressure 15 BarMaximum immersion depth 20 mMaximum allowable amount of sand 50 gr/m3Maximum solids size up to 2 mm
