Our Products

We are leaders in the market for providing best range of Automatic Rotary Double Color Sports Shoes Injection Machine (DR-82), Automatic Rotary Sports Shoes Injection Machine (DR-81-6P), Automatic Rotary Double Color Shoes Injection Machine (F-202), Automatic Rotary Three Color Shoes Injection Machine (F-3C20) and Fully Automatic Sports Shoes Direct Injetion Machine

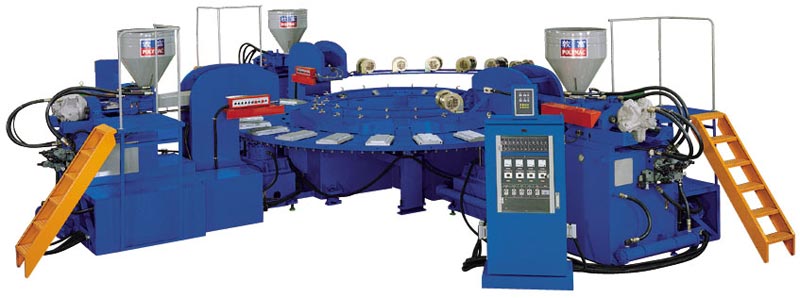

Automatic Rotary Three Color Shoes Injection Machine (F-3C20)

Automatic Rotary Three Color Shoes Injection Machine (F-3C20)
We are counted amidst the famed Automatic Rotary Three Color Shoes Injection Machine (F-3C20) Manufacturers, Exporters, and Suppliers, located in Taiwan (Taichung). The Automatic Rotary Three Color Shoes Injection Machine has fully automatic rotary system and is a three color plastic footwear (sole) injection molding machine. Our Automatic Rotary Three Color Shoes Injection Machineis also very competitively priced. Hydraulic System
  • Three sets of independent hydraulic controlling system
  • Easy for operation
  • Screw is driven by hydraulic motor
  • Injection system is controlled by two steps pressure
  • Movable injection units controlled by cylinder
  • Easy for screw cleaning
  • Powerful clamping equipment
  • Big disk is driven by hydraulic motor in two speed controlling
  • Stable and efficient
Features
  • Fully automatic operation & no specialist required
  • Fully automatic material feeding controlling system and capable for selecting the exact mould operation
  • Material feeding controlled by back pressure valve
  • Easy in adjusting different material density
  • Mould clamping system controlled by pressure switch
  • There are sufficient clamping forces for shaping perfect products

Technical Specifications

Screw diameter 75x1 m/m, 70x2 m/m, 75x1
Max. Injection volume per shot 880x1, 770x2 cm
Injection pressure 620x1, 714x2 kg/cm2
Motor of screw driving Hydraulic Motor
Screw rotation speed 0-110 R.P.M.
Mould station (Max.) 20 pcs
Heater 29 Kw
Automatic thermo-controller 4 sets x 3
Clamping force 70 Tons
Mould space 730 x 220 x 275 m/m
Machine dimension (LxWxH) 9.3x7.6x2.6 m
Machine weight 18 Ton
View Complete Details
Ask Latest Price & Details

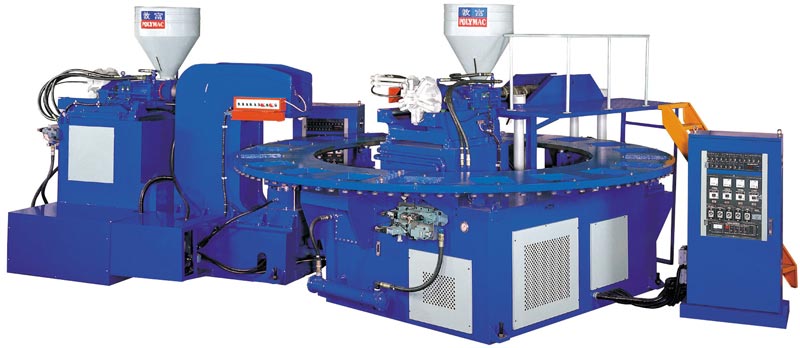

Automatic Rotary Double Color Shoes Injection Machine (F-202)

Automatic Rotary Double Color Shoes Injection Machine (F-202)
We are named as a famous Automatic Rotary Double Color Shoes Injection Machine (F-202) Manufacturer, Exporter, and Supplier in Taiwan (Taichung). Our Two - Color Automatic Rotary Double Color Shoes Injection Machine is equipped with automatic rotary system for enhanced performance. The Automatic Rotary Double Color Shoes Injection Machine, we offer, is efficient in performance and has longer working life. Hydraulic System
  • Two sets of independent hydraulic controlling system
  • Easy to operate
  • Screw is driven by hydraulic motor
  • Injection system is controlled by cylinder
  • Easy for screw cleaning
  • Powerful clamping equipment
  • Big disk is driven by hydraulic motor in two speed controlling
  • Stable and efficient
Features
  • Two sets of independent electric controlling systems
  • Large space for mould, suitable for various kinds of moulds
  • Fully automatic operation. No specialist required.
  • Fully automatic material feeding controlling system and capable for selecting the exact mould operation
  • Material feeding controlled by back pressure valve
  • Easy in adjusting different material density
  • Mould clamping system controlled by pressure switch. There are sufficient clamping forces for shaping perfect products.

Technical Specifications

Screw diameter dia. 75m/m x 2
Max. Injection volume per shot 880 cm
Injection pressure 620 kg/cm2
Motor of screw rotation speed 0-110 R.P.M.
Mould station (Max.) 20 pcs
Heater 11 Kw x2
Automatic thermo-controller 4 sets x 2
Clamping force 70 Tons
Mould space 730x220x275 m/m
Machine dimension (LxWxH) 7.0x3.9x2.6 m
Machine weight 16 Ton
View Complete Details
Ask Latest Price & Details

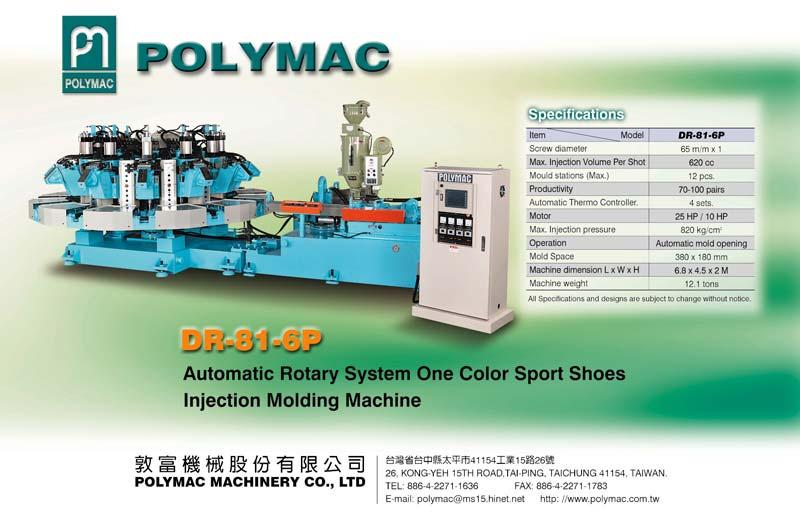

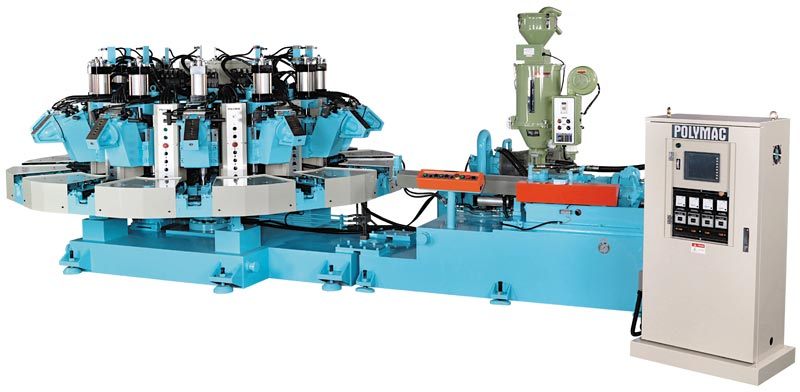

Automatic Rotary Sports Shoes Injection Machine (DR-81-6P)

Automatic Rotary Sports Shoes Injection Machine (DR-81-6P)
We are a well-known Automatic Rotary Sports Shoes Injection Machine (DR-81-6P) Manufacturer, Exporter, and Supplier in Taiwan (Taichung). Our Single Color Automatic Rotary Sports Shoes Injection Machine has fully automatic rotary system and is a direct injection molding machine. The Automatic Rotary Sports Shoes Injection Machine is suitable for PVC & TPR foaming or non forming material. The Automatic Rotary Sports Shoes Injection Machine has high capacity, power saving nature, and is easy to operate. The advanced touch screen control panel system of Automatic Rotary Sports Shoes Injection Machine gives excellent finished products output.

Technical Specifications

Model DR-81-6P
Screw diameter 65mm x1
Max. Injection Volume Per Shot 620cc
Mould stations(Max.) 12 pcs.
Productivity 70-100 pairs per hour.
Automatic Thermo Controller 4 sets.
Motor 25HPx1+10HPx1
Max. Injection Pressure 820kg/cm2
Operation Fully Automatic Operation
Mold Space 380x180 mm
Machine dimension LxWxH 6.8 M *4.5 M * 2M
Machine weight 12.1 tons
View Complete Details
Ask Latest Price & Details
Automatic Rotary Double Color Sports Shoes Injection Machine (DR-82)

Automatic Rotary Double Color Sports Shoes Injection Machine (DR-82)

The company is a celebrated Two Color Automatic Rotary Double Color Sports Shoes Injection Machine (DR-82) Manufacturer, Exporter, and Supplier in Taiwan (Taichung). Our Direct Automatic Rotary Double Color Sports Shoes Injection Machine is equipped with a fully automatic rotary system and is ideal for PVC & TPR foaming or non forming material. The Automatic Rotary Double Color Sports Shoes Injection Machine offers high capacity with power saving and easy operations. The Automatic Rotary Double Color Sports Shoes Injection Machine also has an advanced touch screen control panel system that gives the excellent output of finished products.

Technical Specifications

Model DR-82-6P
Screw diameter 65mm x 1 + 55mm x 1
Max. Injection Volume Per Shot 620cc, 4700cc
Mould stations(Max.) 12 pcs.
Productivity 70-100 pairs per hour.
Automatic Thermo Controller 2 x 4 sets.
Motor 25HP x 1+20HP x 1+10HPx1
Max. Injection Pressure 820kg/cm2
Operation Fully Automatic Operation
Mold Space 380 x 180 mm
Machine dimension LxWxH 9.0 M * 4.6 M * 2M
Machine weight 16.2 tons
View Complete Details
Ask Latest Price & Details
