Product Details
Company Details

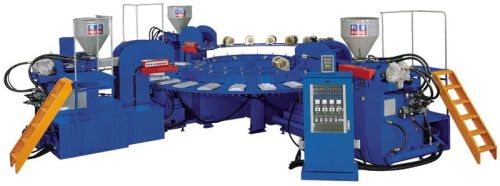

We are counted amidst the famed Automatic Rotary Three Color Shoes Injection Machine (F-3C20) Manufacturers, Exporters, and Suppliers, located in Taiwan (Taichung). The Automatic Rotary Three Color Shoes Injection Machine has fully automatic rotary system and is a three color plastic footwear (sole) injection molding machine. Our Automatic Rotary Three Color Shoes Injection Machineis also very competitively priced.
Hydraulic System

Three sets of independent hydraulic controlling system
Easy for operation
Screw is driven by hydraulic motor
Injection system is controlled by two steps pressure
Movable injection units controlled by cylinder
Easy for screw cleaning
Powerful clamping equipment
Big disk is driven by hydraulic motor in two speed controlling
Stable and efficient

Features

Fully automatic operation & no specialist required
Fully automatic material feeding controlling system and capable for selecting the exact mould operation
Material feeding controlled by back pressure valve
Easy in adjusting different material density
Mould clamping system controlled by pressure switch
There are sufficient clamping forces for shaping perfect products

Technical Specifications

Screw diameter	75x1 m/m, 70x2 m/m, 75x1
Max. Injection volume per shot	880x1, 770x2 cm
Injection pressure	620x1, 714x2 kg/cm²
Motor of screw driving	Hydraulic Motor
Screw rotation speed	0-110 R.P.M.
Mould station (Max.)	20 pcs
Heater	29 Kw
Automatic thermo-controller	4 sets x 3
Clamping force	70 Tons
Mould space	730 x 220 x 275 m/m
Machine dimension (LxWxH)	9.3x7.6x2.6 m
Machine weight	18 Ton
