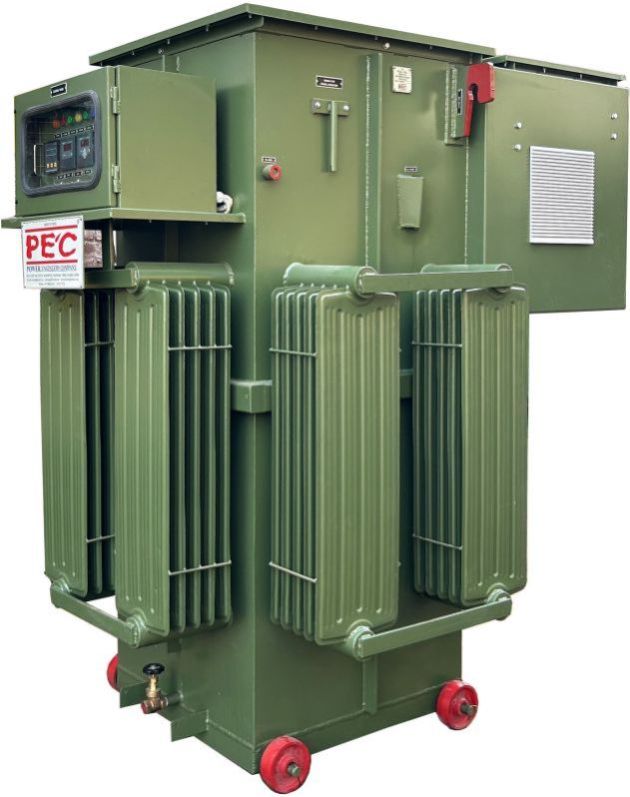

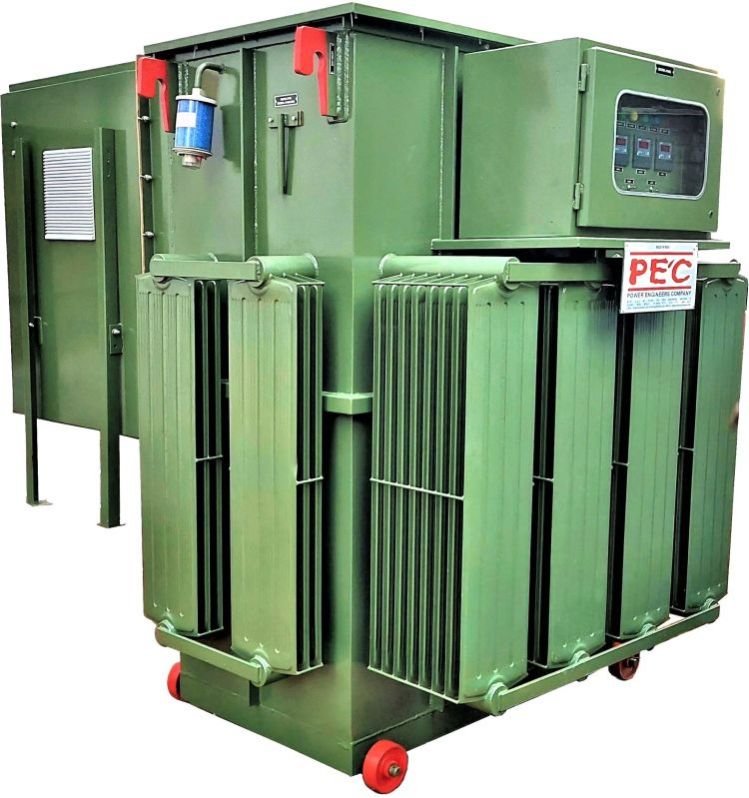

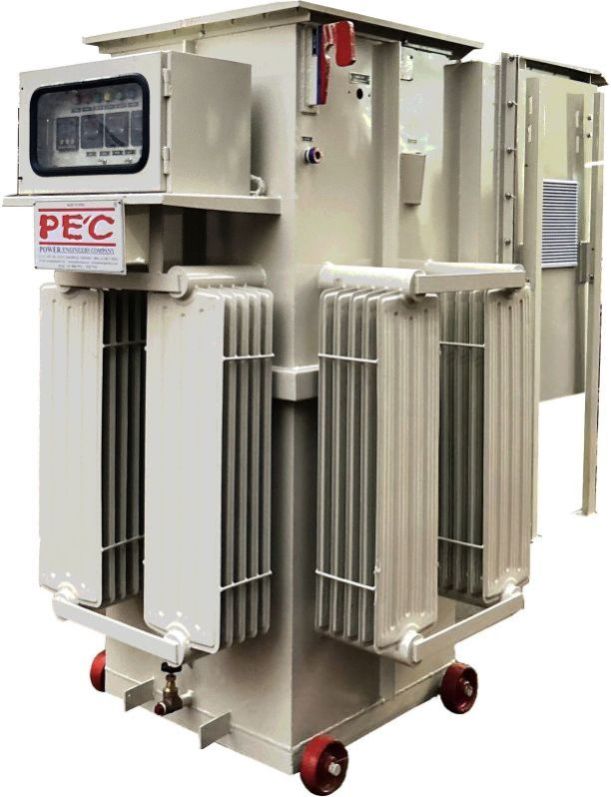

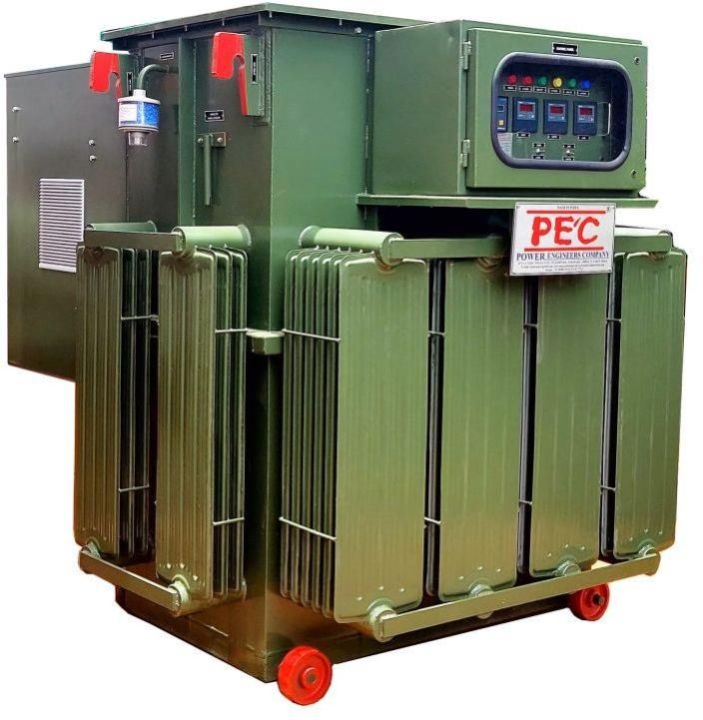

range 0- 33, 000 volts 3 - phase, up to 5000 kva PRINCIPLE OF OPERATION: The Variable Voltage Supply/ Regulator consist of following basic components depending on the rating of the equipment. 1) Step up Transformer2) Buck boost transformer3) Rolling contact type voltage regulator4) Automatic control gear Variable Voltage Supply/ Regulator with constant Input and variable output. It consists of a Step up Transformer, 6 nos. Regulators and Buck Boost transformer. This circuit is normally used to Vary on load voltage when the regulator used in conjunction with buck/boost transformer and step up transformer. The equipment are available with following control devices: a) Manual versionb) Motorised versionc) Remote control In manual version a Hand wheel T Handle is provided and desired output voltage can be obtained by rotating the Wheel Handle manually. In case of motorized version and servo motor will be provided which can be operated by two sets of push buttons or toggle switch for raising and lowering the output voltage. In case of remote control arrangement one extra set of push buttons will be provided in your main panel from where the operator would be able to maintain the desired voltage with the help of those push buttons. DESCRIPTION ROLLING CONTACT REGULATOR This is essential a Continuously tapped auto wound transformer having helical coils mounted on a conventional laminated transformer core. However, the regulating winding is designed as a single layer type giving longer and slimmer version of the transformer coil but in principal it is the same. The regulating winding is varnished and baked to improve rigidity and ensure that the construction is non hydroscopic. After proper treatment longitudinal/track is ground on the coil to form a bared copper surface with the winding wire covering providing inter turn insulation. Graphite rollers , assembled on carrier boards, traverse throughout the length of the coil track. These rollers are connected electrically with the output terminals and as they are driven over the track a variable voltage is obtained. The Regulator may be of one sided or can be made double sided. In case of double sided Regulator both side of regulating winding is bared and allows rollers to be driven in opposite direction on either side of the coil. In such cases carrier boards are provided on both sided of the coils and the output terminals will be taken out though balancing transformer. The contact carrier is driven by a hand wheel / THandle or motor which is coupled to the chain drive. Limit switches operated by the carrier board are fitted to prevent over run. In case of your specific requirement additional limit switches will be fitted for minimum position inter-locking along with the auxiliary circuit. The power supply of the motor is derived from the Regulator unless otherwise specified. The entire regulator assembly is housed inside a rigid M.S.Tank filled with oil. The Hand wheel / T Handle, Motor push buttons etc. is fixed up inside a separate sheet steel box which is attached to the main tank. Wherever automatic control is required the solid stat voltage sensing relay is also provided inside a sheet steel box fitted along with the regulator tank.

We are engaged in manufacturing Power Distribution Transformer to meet the present-day needs of effective power distribution in various establishments. We have installed facility to manufacture Oil-filled Power and Distribution Transformers up to 10 MVA, 66 KV Class. The tested range of Power Distribution Transformers can also be customized to meet the requirements of individual, Industrial, commercial, co-generation and utility services. The Power Distribution Transformers can be provided with a variety of terminations to meet individual requirements for new installation, replacement etc.



Applications :

• Industrial Purpose

• Electricity Board

• Domestic and Consumer Transformers

• Wind Mill Power transmission



Standard Fitting :

• Monogram plate.

• Rating & diagram plate .

• Earthing terminals – 2 Nos.

• Lifting lugs for complete transformer.

• Thermometer pocket.

• Air release hole with plug.

• Oil filling hole with plug on conservator.

• Oil conservator with drain plug.

• Dehydrating breather (1 No.) sillicagel type with oil seal & connecting pipe.

• Prismatic oil level indicator – 1 No.

• Drain valve with plug – 1 No.

• Drain cum bottom filter valve with plug.

• Inspection cover.

• Externally operated off circuit tap changing switch.

• Jacking lugs.

• Under base with flat bi-directional treaded rollers.

• Radiators.

• Pressure relief valve without electrical contacts.

• Filter valve with plug.

• Sampling valve.

• LV additional neutral- out door bushing – 1 No.

• H.V.TERMINALS – BARE BUSHING.

• L.V.TERMINALS - CABLE BOX.

• Buchholz relay.

• Magnetic oil level gauge with low oil level alarm contacts

• Oil temperature indicator with electrical contacts for alarm and trip .

• Winding temperature indicator with electrical contacts for alarm and trip.

• Marshaling box.

Power Distribution Transformer 200 KVA TO 5000 KVA ELECTRIC transformer Distribution Transformer

We manufacture, supply and export distribution transformer, which is deigned as per international standards. The qualitative make of the distribution transformer translates into dependable performance and an assurance of exceptional durability.
