Pramukh Engineers

Pramukh Engineers
location Kumbharwada, Bhavnagar, Gujarat

gstGST : 24AORPP8390P1ZS 4.5/5
View Number

Our Products

  1. Drill & Boring Equipments 4 Products available

Drill & Boring Equipments

Our Complete range of products are 25 Mm Pillar Type Drilling Machine, 25 Mm Radial Type Drilling Machine, 20 Mm Pillar Type Drilling Machine and 40 Mm Pillar Type Drilling Machine.

25 Mm Pillar Type Drilling Machine

25 Mm Pillar Type Drilling Machine
₹ 26,500 - ₹ 28,600 / NOS Get Latest Price
  • Number Of Flower Pillar Type Drilling Machine
  • Availability 100-1000kg
  • Packaging Type GREEN
  • Condition New
  • Automatic Grade Manual
  • Driven Type Mechanical
  • Country of Origin India
  • Brand Name PE BRAND
  • Drilling Capacity in M. S. 25mm
  • Spindle Center to Pillar Face 228mm
  • Spindle Travel 150mm
  • Size of Table Squre 285mm
  • Over all Hight 1625mm
  • Distance from Spindle to Base 1000 Pillor
  • Diameter 90mm
  • Machine Area of Base 575*375mm
  • Over all Dimansion of Base 535*380mm
  • Bore in Spindle MT-3/4 V-Belt = B-46
  • Weight of Machine 180 Kg
View Complete Details
Ask Latest Price & Details
25 Mm Radial Type Drilling Machine

25 Mm Radial Type Drilling Machine
₹ 64,500 - ₹ 67,300 / NOS Get Latest Price
  • Number Of Flower Radial Drilling Machines
  • Availability 4000-6000kg, 475kg (approx)
  • Condition New
  • Automatic Grade Manual
  • Country of Origin India
  • Drilling (m.s.) 25mm
  • Drilling (c.i.) 32mm
  • Boring 40mm
  • Tapping(m.s) 15mm Tapping
  • (c.i) 20mm
  • Spindle nose MT-4 Spindle nose
  • outside diameter 44mm Spindle
  • slive diameter 75mm
  • Travel of spindle 165mm
  • Column diameter 130mm
  • Distance from spindle to base 140*840mm
  • Distance from column to centre- 345*660mm
  • Drilling head Travers 300mm
  • Drilling radius 720mm H
  • High of base plate 125mm W
  • Working surface 600*725mm
  • Width of cast side 16mm
  • Number of t slot 3
  • Overall dimension 1100*800*1600mm
  • Size of box table 280*280*400mm
  • V Belt no(.A-22)(B-41)
  • Radial 25
View Complete Details
Ask Latest Price & Details
20 Mm Pillar Type Drilling Machine

20 Mm Pillar Type Drilling Machine
₹ 16,500 - ₹ 18,300 / NOS Get Latest Price
  • Availability 100 kg
  • Diameter of Column Pilling 74.20mm
  • Spindle Center to Pillar 204mm
  • Max. Spindle Travel 130mm
  • Table Size 260*235mm
  • Base Size 465*315mm
  • Max. Distance Spindle Nose to Table 660mm
  • Max. Distance Spindle Nose to Base 910mm
  • Spindle Nose Taper Bore MT-2/3

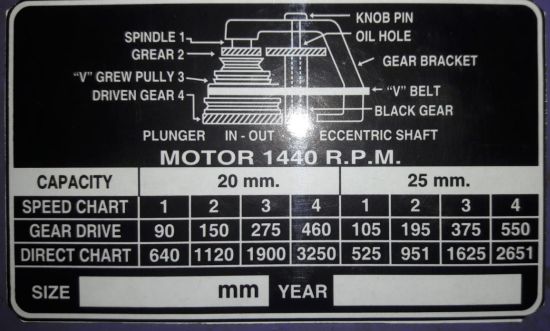

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
40 Mm Pillar Type Drilling Machine

40 Mm Pillar Type Drilling Machine
₹ 47,300 - ₹ 53,000 / NOS Get Latest Price
  • After-Sales Service Provided Spare Parts
  • Drilling capacity in MS 40mm
  • Pillar diameter 120mm
  • Ram diameter 75mm
  • Spindle centre to pillar face 320mm
  • Spindle travel 255mm
  • Size of table square 406mm
  • Size of table round 480mm
  • Distance from pillar to base 1000mm
  • Machine area of base 620*360mm
  • Overall dimension of base 720*460mm
  • Taper in spindle MT-4
  • Spindle speed 4+4(80 to 1800RPM)
  • Overall hight of machine 1850mm V
  • Belt B61
  • Weight of machine 320kg
  • Drill 40
View Complete Details
Ask Latest Price & Details
