Disc Filter

Leading Manufacturer, Supplier & Retailer of T Type Disc Filter, Y Type Disc Filter and Semi Automatic Disc Filter.

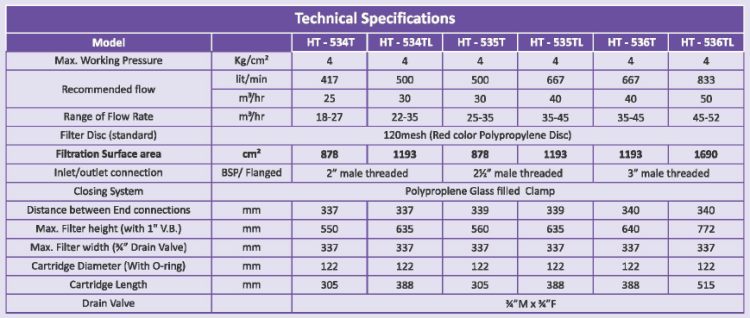

T Type Disc Filter

T Type Disc Filter
  • Country of Origin India
  • Max. Working Pressure 4 Kg/cm2
  • Recommended Flow 417 lit/min
  • Range of Flow Rate 18-27 m3/hr
  • Filter Disc (standard) 120mesh (Red color Polypropylene Disc)
  • Closing System Polyproplene Glass filled Clamp
  • Distance Between End Connections 337 mm
  • Cartridge Diameter 122 mm
  • Cartridge Length 305 mm

Features :

  • Flow passes through outside to Inside of Disc cartridge.
  • Threaded Brass insert, 2 pressure ports for increasing operational life of filter.
  • Surface sealing design, O-ring on periphery of the barrel to ensure the sealing and prevent leakage with time.
  • New Complete Plastic Clamp for fast assembly and disassembly the filter housing.
  • Easy Dise cartridges installation inside the filter.
  • Barrels equipped with 1" Vacuum Breaker to release / intake of air and prevent filter from damage.

Specifications


Download Detail File : Click Here

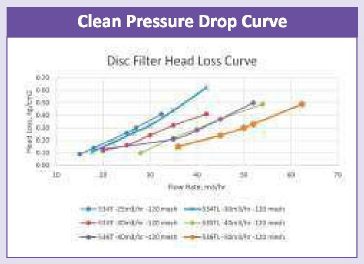

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

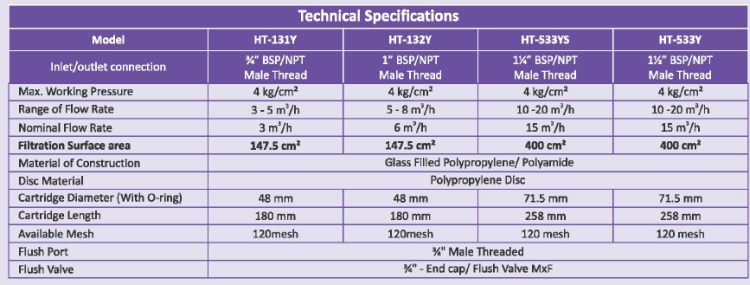

Y Type Disc Filter

Y Type Disc Filter
  • Country of Origin India
  • Max. Working Pressure 4 kg/cm2
  • Range of Flow Rate 4 kg/cm2
  • Range of Flow Rate 18-27 m3/h
  • Nominal Flow Rate 25 m3/h
  • Filtration Surface Area 508 cm2
  • Cartridge Diameter 111 mm
  • Cartridge Length 282 mm
  • Available Mesh 120 Mesh

Features :

  • Disc filter designed for outside to inside flow.
  • Filter body and cap connected by threaded connection to sustain high pressure and easy opening & closing.
  • High filtration efficiency.
  • Spring loaded disc cartridge for uniform compression of discs.
  • UV protected, chemical and high pressure resistant reinforced plastic material used.


Applications :
Landscape & turf, kitchen garden, small nurseries:

  • Removes physical impurities which prevents clogging of emitting devices having small aperture.


Household water tank:

  • Removes physical impurities from water supply collected in rooftop tanks.
  • It further helps in reducing the load on R.O. filter & other appliances.

Specifications


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Semi Automatic Disc Filter

Semi Automatic Disc Filter
  • Application Industrial
  • Total Carbohydrate 1year
  • Country of Origin India
  • Driven Type Electric
  • Automatic Grade Semi Automatic

Features :

  • Flow passes through outside to Inside of Disc cartridge.
  • Uniform distribution of flow into filter housing optimize filtration process.
  • Filter designed for Pressure rating 8 Bar (PN-8)
  • 2male threaded pressure port at the top for easy visibility of pressure.
  • Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
  • Filter with Clogging indicator, Red pop up comes out at 0.6 kg/cm’ pressure differential, indicated end user to clean filter manually.
  • Barrel with 1%" Drain port.
  • Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
  • Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
  • Grooved disc design with dimensional consistency proven with more than 95% filter efficiency.
View Complete Details
Ask Latest Price & Details
