Premur Inpex Ltd

Bandhaghat, Howrah, West Bengal

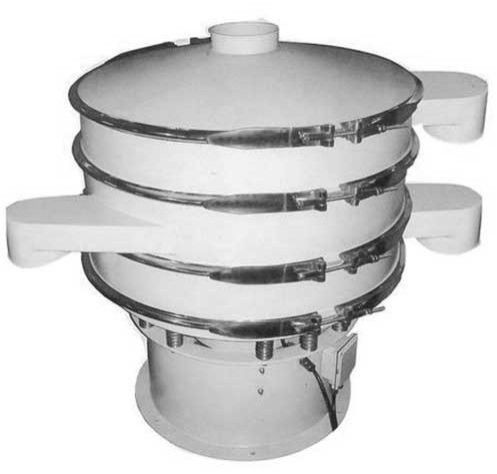

Application Vibratory screening equipment equipped with Vibro Motor delivers gyratory motion through centrifugal unbalanced force on the circular decks mounted on multiple springs. Suitable to separate super fine materials below 3mm. The equipment available with anti-blinding elements. Body construction available in M.S. or S.S. material and also in GMP standard. Advantages Low running cost The low power required to run, it facilitates an overall low cost of operation for this machine. Ideal for multi-fraction separation The machine employs the use of smaller stacked screen frames, the screens can be accurately placed to get the precise outflow in each separation. Flexibility It can be used in many situations, regardless of whether the solid to solid mixture to be separated consists of a binary mixture, or a mixture consisting of multiple fractions. Efficiency and quality of separation Absence of vertical motion in the mechanism, coupled with gentle motion enables more accuracy in separation. Easy maintenance The machine employs the use of screen cleaners, which act to prevent any clogging. Reduced screen blinding Vibration by the bottom weight reduces screen blinding.

Application Rotary screening equipment, hexagonal and conical in shape driven by suitable Motorized Gearbox. Suitable for multiple size separation and can handle wide range of dry materials up to 3mm grain size.

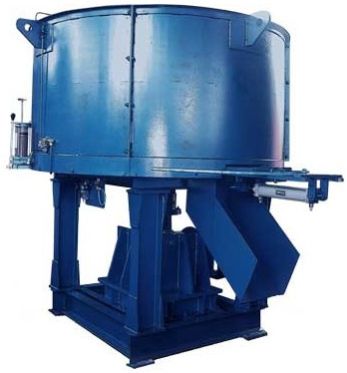

Application Applicable for homogeneous mixing of solid vs liquid in batch. The equipment available in light duty for mixing materials like Coal, Coke, Sand, Mortar, China Clay etc., and in heavy duty for materials like Iron Ore, Chromite Ore, Mn. Ore etc., for in Briquetting or Sintering process. Mixing mechanism available with multiple ploughs. Mulling rollers are given in specific application.

Application Applicable for homogeneous mixing of solid vs liquid in continuous mode by multiple ploughs or by both ploughs & mullers in some specific process. The mixed materials are discharge through automatic pneumatic gate in sequences as per setting by user. The equipment is designed for heavy and medium duty application like mixing of ores with liquids binders for Briquetting or Sintering process.

Application Secondary and tertiary crushing of soft to hard ore and minerals with a crushing ratio of 2.5:1 max. for hard and abrasive material and 3:1 max for soft and non-abrasive materials. The crushing action take place by surface impact of counter rotating plain rolls.

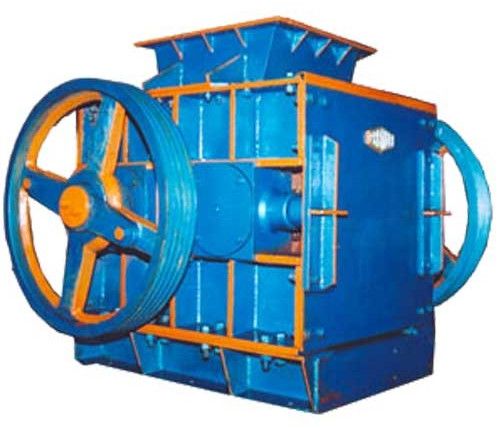

Application Primary and Secondary crushing of of soft non-abrasive or medium abrasive materials like coal, coke, chalk etc., with normal crushing ratio of 4:1. The crushing action take place by counter rotating impact of roll teeth.

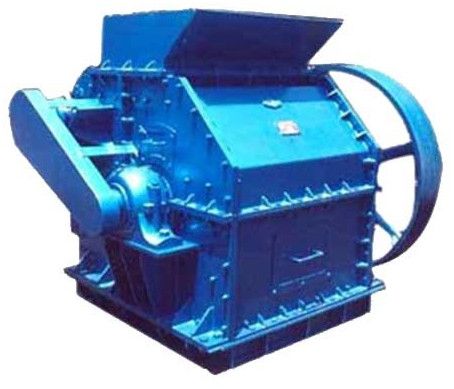

Application Primary and Secondary crushing of soft non-abrasive or medium abrasive materials like coal, coke, chalk etc., with normal crushing ratio of 4:1. The crushing action takes place by impact of roll-teeth against spring loaded breaker plate.

Application Secondary and tertiary crushing of ores and minerals including coal, coke, Iron ore etc., with normal crushing ratio of 10:1. Output available upto 3mm. The equipment available with bottom grate bar discharge or open bottom discharge. The crushing action take place by impact of series of rotating swing hammers against spring loaded breaker plate.

Application Tertiary crushing of soft and medium hard non-abrasive or medium abrasive materials with a crushing ratio of 10:1 max by impact of hammers against liner plate output available upto 60 Mesh (B.S.S.). It is widely demanded for grinding material and discharging, this machine is rigorously checked on various parameters. It is highly acknowledged in the market for its energy efficiency and sturdy structure. We manufacture excellent quality machines, which are available in varied specifications. These products are fabricated using qualitative steel and cast iron using advanced technologies. We offer these products at competitive prices to our clients.

Application Tertiary crushing of soft, medium hard and less abrasive minerals with a max output of 275 Mesh B.S.S. and upto 300 mesh B.S.S. for some soft non-abrasive materials. Suitable to handle, Bauxite, China Clay, Coal, Coke, Lime Stone, Soap stone, herbs, spices etc. Air Swept Mill or Impact Mills are screenless pulverizer ideal for pulverizing soft to medium hard, fibrous and slightly moist materials.

Application Superfine Grinding of medium hard, hard and abrasive materials upto 500 Mesh B.S.S. Suitable to handle, Minerals like Coal, Coke, Bauxite, China Clay, Lime Stone, Mn. Ore etc.

Application Applicable for homogeneous mixing of solid vs liquid in continuous mode by multiple ploughs or by both ploughs & mullers in some specific process. The mixed materials are discharge through automatic pneumatic gate in sequences as per setting by user. The equipment is designed for heavy and medium duty application like mixing of ores with liquids binders for Briquetting or Sintering process.

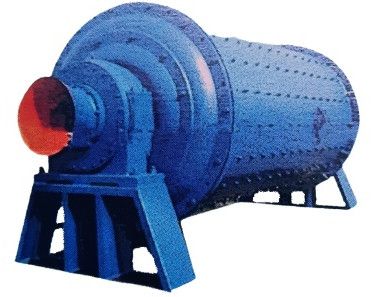

Application Applicable for grinding abrasive Ores like Graphite/Manganese/Chromite Ores in Mineral. It is a grinder, which is cylindrical in shape, primarily used to grind or mix materials like ores, chemicals, ceramic raw materials and many other semi fluids. It rotates around a horizontal axis, partially filled with material to be ground and the grinding medium. Reduction into fine powder happens an internal cascading effect.

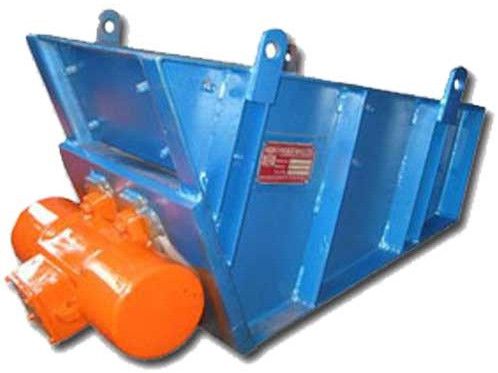

Application Applicable for rated feeding of Bulk solids from service Hoppers to Material Handling System. Available with Unbalanced Vibro Motors or Electromagnetic Drive.

Application Applicable for rated feeding of heavy Rocks of from service Hoppers to Crushers or Conveyors by reciprocating motion with adjustable strokes. These are suitable for bearing in primary and secondary crushers. Task of this machine is bearing uniform materials to crusher machines, this action will increase the efficiency of crushing line and prevents sudden depreciation and injuries of crusher machines. This machine had the ability to control flow line and load input setting. Advantages: High safety factor Easy maintenance High efficiency Ability to control input flows

Application Applicable as a drive for different vibratory equipment like Vibro Screens, Vibro Feeders, Vibrating Tables, vibratory conveyors, Bin Activators. Also used as Bin Vibrators.

Application Primary and Secondary Crushing of Hard rocks, ores and Minerals including Lime Stone, Dolomite, Granite, Iron Ore, Chromite Ore, Ferro-alloy slag etc., with a normal Crushing ratio of 6:1. The crushing action take place by impact of swing Jaw against the stationary Jaw.

Application The equipment is used to reduce moisture content in ores and minerals. The equipment is of co-current design with an inner shell fitted inside the outer shell by suitable mechanical suspensions. The wet materials containing moisture is fed from burner end in the inner shell which is heated by firing medium like FO, LDO, Coal or gas with suitable Burner system or Hot Air Generator and are progressed by Spirals, Lifters and Diverters inside the shells and dry materials come out from outer shell from feeding end. The system is also equipped with suitable dry or wet type Pollution Control System.

Application The equipment is used to separate metals mixed with slags in a wet process by pulsating water. Under the process slags having a lower specific gravity are forced to float while metals with higher specific gravity sink and fall down through a separate chute.

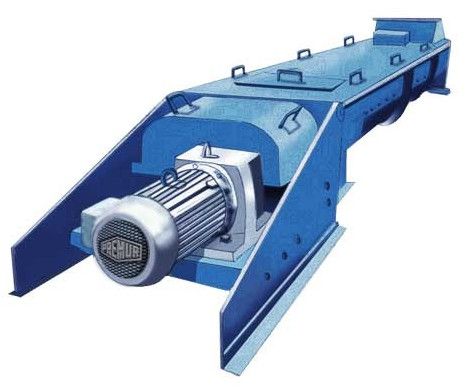

Application Applicable for homogeneous mixing of solid vs solid or solid vs liquid in continuous mode. The equipment available with solid trough for light application to suit soft & less abrasive materials and with diaphragm trough for heavy & highly abrasive materials. Mixing mechanism comprised of helix paddles fitted on counter rotating axles.

Application Vibratory Screening equipment with counter-weight mechanism mounted on Drive Shaft to adjust the amplitude of Vibration. Available upto 4 deck separation with wide range of capacity. The equipment is suitable to handle dry grains upto 3mm.

Application Vibratory Screening equipment equipped with Vibro motors for efficient screening of grains upto triple deck separation. The equipment is suitable to handle upto 3mm dry grains. The amplitude of vibration is adjustable through counter weights of Vibro-motors. Features Compact High resistance to wear and tear High performance Can be used as a drainage screen Advantages Efficient Reliabile Long life Value for money Application Screening Sorting Separating Draining
