PRINTPACK Engineers

Kurla, Mumbai, Maharashtra

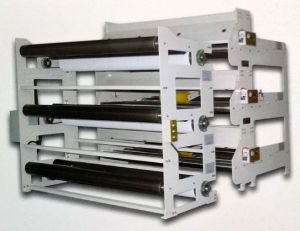

• Control TypeClosed Loop
• Detection TypeNon-contact
• Adjustment DemandNot Required
• Paper TypeCorrugated
• Max Speed250M/mim

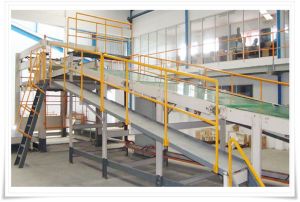

• Stacker StructureSimplex Or Duplex Down Stacker Structure
• Control TypeElevator Deck Control
• Control SystemHydraulic Servo Valve Control
• Sheet HandlingAutomatic Sheet Stacking And Side Delivery
• Sheet Width Triplicity RuleNot Over Triplicity Of Sheet Width

• Max Stacking Height250mm
• Max Stacking Length3500mm
• Effective Width1400mm-2500mm
• Automatic Change Order Time5 Seconds
• Design Speed2000m/min-250m/min

• Pressure AdjustmentSegmented Pneumatic Pressure Adjustment
• Control SystemMan-machine Interface PLC Automatic Control
• Hot Section StructureHot Plate Structure
• Heating Plate MaterialSurface Grinded And Chrome-plated

• Size65", 75", 85", 95", 105".

The machine is provided with three slotting cutters and one corner cutter. The dies are mounted on an eccentric shaft which causes them to move in an arc so that the board is slotted in a shearing manner. The dies can be moved and slot depth adjusted easily.

The sturdy machine cuts and creases and thickness of board in single operation. The pressure is uniform all over the plate and can be evenly controlled with the help of pressure control guides on both sides. The machine is equipped with electromagnetic clutch & brake which is perfectly effective and timing control dwell.
