PRS Compressors Pvt Ltd

• Material Carbon Steel
• Feature High Performance, Low Maintenance
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Configuration Air Compressor

Design Advantages Light weight Aluminium Construction Aluminium after cooler pipe Cast iron cylinders for longer life Oil level sight glass on crank case Load less starting design by releasing delivery pipe pressure Customizable tank sizes Options of single and dual outlet Large Wheels for easy portability Rubber bush on tank to absorb vibration High grade plastic cover to cool cylinder and head   Applications Painting on the Go Tyre Filling Blow Cleaning DIY projects Pneumatic nail guns Small Wood working jobs

• Technical Details

  Model No	Motor HP	No. Of Piston	Piston Displacement	Pressure PSIG	Receiver Liters
  PR – 274	2.0/3.0	2	6.7 / 9.8	200	160 / 200
  PR-282	5	2	17.3	200	200 / 240
  PR-2515	5.0/7.5	2	17.3/22.0	200	200 / 240
  PR-293	7.5	2	23.8	200	240 / 300
  PR-2585	7.5/10.0	2	29.8/37.8	200	240 / 300
  PR -2640	10	2	30	200	240 / 300
  PR-121T2S	10.0 / 12.5	2	32.9/44.0	200	300 / 500
  PR-7140	12.5 / 15.0	2	55.0/ 60.5	200	300 / 500
  PR -55T	15.0 / 20.0	2	54.4 / 81.5	200	500 / 625
  PR-3040	25.0 / 40.0	2	85.5 / 112.0	150	500 / 625
  PR-75TDS	40.0 / 50.0	3+3	132.0/166.0	150	750 / 1000

• Material Carbon Steel
• Voltage 220V
• Frequency 50Hz
• Power Source Electric
• Pressure Medium Pressure, High Pressure, Low Pressure
• Motor Power 0-3Hp
• Configuration Air Compressor

Design Advantages Multiple fin cylinder  The larger surface area and multiple fins help in efficient cooling leading to better overall performance Gasket less All the parts are CNC machined leading to accurate tolerance and thereby eliminating gaskets which may cause leaks in the future. Piston Rings High performance piston rings are sourced from IPL. They have a tapered side that allows less oil carry over compared to flat sided ring. Heavy Duty Connecting Rods Forged steel connecting rods that provides maximum possible durability and has a steel dipper rod for splash lubrication Intercooler Aluminium finned intercoolers that efficiently reduce the temperate between the two stages Pressure Relief Valves There are three pressure release valves provided in the intercooler, discharge and the air receiver for maximum safety Cooling Fan Extra long fans which are balanced and allow efficient cooling till the cylinder head Large Bearings Large SKF main bearing are used to have maximum possible loading Large Crank Case Larger Crank case body allows for higher storage of oil and also contains an aluminium sight glass for oil level checking Load less starting The pressure in the after cooler pipe is released once the compressor reaches set pressure. This allows load less starting for the motor which allows better motor life   Applications Pneumatic tools Painting Sanding Sand Blasting Wood Working Small Fabrication Units

• Technical Details

  Single-stage (Maximum Pressure 9kg/cm² or 128 psi)
  MODEL	MOTOR POWER	CFM	WORKING PR.	RECEIVER SIZE
  PRS1.5-1	1.1 KW	5	7 Kgs	110/135
  PRS 02-1	1.5 KW	13	9 Kgs	120/135
  PRS 03-1	2.2 KW	13	9 Kgs	160/200
  PRS 05-1	4 KW	22	9 Kgs	200/200
  PRS 07-1	5.5 KW	28	9 Kgs	220/250
  PRS 10-1	7.5 KW	34	9 Kgs	250/300
  Two-Stage (Maximum Pressure 12 kg/cm2 or 174 psi)
  MODEL	MOTOR POWER	CFM	WORKING PR.	RECEIVER SIZE
  PRS 03-2	2.2 KW	11	12 Kgs	160/200
  PRS 05-2	4 KW	17	12 Kgs	220/250
  PRS 05-2	5.5 KW	22	12 Kgs	250/300
  PRS 10-2	7.5 KW	35	12 Kgs	420/500
  PRS 10-2	9.3 KW	40	12 Kgs	420/500
  PRS 10-2	11 KW	45	10 Kgs	420/500
  PRS 15-3B	15 KW	60	10 Kgs	500/1000

• Min. Order (MOQ) 1 Piece(s)
• Type Reciprocating Air Compressor
• Material Cast Iron, Steel
• Certification ISO 9001:2008
• Weight 40Kg-500Kg
• Color Red
• Feature Auto Cut, Durable, High Performance, Low Maintenance
• Voltage 220V, 440V
• Condition New
• Frequency 50Hz
• Power Source Electric
• Pressure Low Pressure
• Motor Power 0-3Hp
• Warranty 1Year
• Configuration Air Compressor
• Flow Rating 0-100Cfm
• Country of Origin India
• Brand Name PRYES
• Lubrication Style OIL

Manufactured Products Cylinder Head Middle Plate Cylinder After Cooler Inter Cooler Crankcase Breather Non Return Valve (NRV) Safety Valve Motor Air Receiver Fan With Pulley Oil Indicator Fan Guard Crank Shaft Counter Weight Connect Rod

Additional Information:

• Outsourced Products

  Item	Brand
  Belt	Fenner make or equivalent
  Filter	KLN or Fleetguard
  Pressure Control Switch	Alfa
  Starter	L&T
  Bearing	SKF
  Piston & Rings	IPL
  Pressure Gauge	KEI or Baumer

• Feature High Performance, Low Maintenance
• Voltage 220V
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Motor Power 3-6Hp

Application Dental Hospital Pharmaceuticals Industry Printing Machinery Electronics Industry

• Technical Details

  Model No.	Motor H.P.	Piston Displacement ( CFM)	TANK	PSIG
  PRS – 550NL	0.75	2.7	25	115
  PRS – 750NL	1	3.5	35	115
  PRS – 1100NL	1.5	5.2	50	115
  PRS – 1500NL	2	7	70	115
  PRS – 3000NL	4	14	100	115
  PRS – 284NL	3	7.5	160	135
  PRS – 292NL	5	15	200	135
  PRS – 303NL	7.5	21	240	135
  PRS – 121NL	10	32	300	135
  PRS – 65NL	15	45	500	135
  PRS – 75NL	20	60	500	135

• Power Source AC Three Phase
• Voltage 220 - 240 V
• Frequency 50 - 60 Hz
• Horse Power 10 HP
• Brand Name Pryes
• Compressor Technology Screw
• Number of Compression Stages Three Stage
• Maximum Flow Rate 51 - 120 cfm
• Air Tank Capacity 270 L

• Power Source AC Single Phase
• Frequency 50-60 Hz
• Maximum Flow Rate 51 - 120 cfm
• Compressor Brand Pryes
• Horse Power 10-40 HP
• Usage Industrial
• Air Tank Capacity 100 L
• Number Of Compression Stages Single Stage

We PRS compressors Pvt Ltd are one of the reputed and well-known industrial screw air compressors manufacturer, exporter and supplier in India. We are offering top-class quality industrial screw air compressors to valued customers at cost-effective prices. Our products are using 51-120 cfm as the maximum flow rate. Our products are using 100L as air tank capacity. Our products require lower maintenance and run on a single stage. Due to such high efficiency, our products have wide usages in various industries. Our products are durable, efficient and generate massive airflow. Our products use 50-60 Hz of power for frequency. We are manufacturing Pyres brand only for production and are supplying leading brand globally and throughout the country.

• Power Source AC Single Phase
• Frequency 50 - 60 Hz
• Horse Power 2HP (Available in 1 to 20 HP)
• Maximum Flow Rate 51 - 120 cfm
• Discharge Pressure 7 bar
• Number of Compression Stages Two Stage
• Compressor Mounting Configuration Tank Mounted
• Noise Level Less Than 60 dB

• Power Source AC Single Phase
• Material Mild Steel
• Frequency 50 - 60 Hz
• Number of Compression Stages Two Stage
• Cooling Method Air Cooled
• Compressor Noise Level Less Than 60 dB
• Horse Power 1 to 20 HP

• Frequency 50 - 60 Hz
• Compressor Technology Air Compressor
• Air Tank Capacity 35 To 200 ltr.
• Maximum Flow Rate 0-20 cfm
• Number of Compression Stages Single Stage
• Cooling Method Air Cooled
• Compressor Noise Level Less than 60 dB
• Horse Power 0.5 To 2 HP

• Power Source AC Three Phase
• Voltage 220 - 240 V
• Frequency 50 - 60 Hz
• Output Pressure 10 BAR
• Discharge Pressure 8 BAR
• Air Tank Capacity 500 Liter
• Maximum Flow Rate 21 - 50 cfm
• Horse Power 10 HP
• Noise Level Less Than 60 dB

• Power Source AC Single Phase
• Frequency 50 - 60 Hz
• Compressor Technology Pryes
• Air Tank Capacity 120 L
• Cooling Method Air Cooled
• Horse Power 1 to 20 HP

• Frequency 50 Hz
• Material Mild Steel
• Horse Power 1 -20 HP
• Compressor Brand Pryes
• Air Tank Capacity 20 L
• Maximum Flow Rate 0-20 cfm
• Compressor Noise Level (Db) Less Than 60 Db

• Horse Power 1 to 20 HP
• Compressor Technology Oil Free
• Air Tank Capacity 220 L
• Power Source AC Three Phase
• Number of Compression Stages Single Stage
• Noise Level Less Than 60 dB
• Frequency 50 - 60 Hz

• Power Source AC Single Phase
• Voltage 220 - 240 V
• Frequency 50 - 60 Hz
• Model Name PRS01-02
• Air Tank Capacity 160 L
• Maximum Flow Rate 0-20 cfm
• Discharge Pressure 7 bar
• Number of Compression Stages Single Stage
• Cooling Method Air Cooled
• Horse Power 1 to 20 HP

• Power Source AC Three Phase
• Voltage 220 - 440 V
• Frequency Hz
• Compressor Technology Reciprocating Compressor
• Number of Compression Stages Multi Stage
• Maximum Flow Rate 51 - 120 cfm
• Horse Power 1 to 20 HP
• Discharge Pressure 8 bar
• Compressor Noise Level Less than 60 dB

• Power Source Ac Single Phase
• Frequency 50 - 60 Hz
• Horse Power 1 to 20 HP
• Air Tank Capacity 35 L
• Number of Compression Stages Single Stage
• Compressor Noise Level Less Than 60 dB

• Horse Power 1 to 20 HP
• Compressor Brand Pryes
• Air Tank Capacity 24 L
• Power Source AC Single Phase
• Maximum Flow Rate 0-20 cfm
• Compressor Noise Level (Db) Less Than 60 dB
• Warranty 12 Months
• Frequency 50 - 60 Hz

• Horse Power 1 to 20 HP
• Compressor Brand Pryes
• Power Source AC Single Phase
• Voltage 220 - 240 V
• Frequency 50 - 60 Hz
• Phase Single Phase
• Noise Level Less Than 60 dB

• Power Source AC Three Phase
• Maximum Flow Rate 0-20 cfm
• Number of Compression Stages Two Stage
• Discharge Pressure 8-10 Bar, 4-6 Bar, 6-8 Bar
• Horse Power 5 HP
• Frequency 50 - 60 Hz
• Voltage 220 - 240 V

• Material Carbon Steel
• Feature Durable, High Performance, Low Maintenance
• Voltage 220V
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Configuration Air Compressor

• Feature Durable, High Performance
• Voltage 220V
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Motor Power 0-3Hp

• Feature High Performance, Low Maintenance
• Voltage 220V
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Configuration Air Compressor

• Min. Order (MOQ) 5 Piece(s)
• Type Dental Air Compressors
• Material Aluminium, Cast Iron
• Certification CE Certified, ISO 9001:2008
• Weight 0-300Kg
• Color Black, Dark Grey, Metallic
• Feature Auto Cut, High Performance, Low Maintenance, Shocked Proof
• Voltage 220V
• Condition New
• Frequency 50Hz
• Power Source Electric
• Pressure Medium Pressure, High Pressure, Low Pressure
• Motor Power 0-3Hp
• Warranty 1Year
• Configuration Portable
• Flow Rating 0-100Cfm
• Country of Origin India
• Brand Name PRYES

Electric Dental Air Compressor  used for electrically operated. it's more efficient and reliable

Additional Information:

• Min. Order (MOQ) 5 Piece(s)
• Type Dental Air Compressors
• Material Aluminium, Cast Iron, Mild Steel
• Certification CE Certified, ISO 9001:2008
• Weight 0-25Kg
• Color Black, Blue, Grey
• Feature Durable, High Performance
• Voltage 220V, 440V
• Condition New
• Frequency 50Hz
• Power Source Electric
• Pressure Medium Pressure, High Pressure, Low Pressure
• Motor Power 0-3Hp
• Warranty 1Year
• Configuration Air Compressor
• Country of Origin India
• Flow Rating 0-100Cfm
• Brand Name PRYES
• Mute 64Db
• Thickness HEAVY DUTY
• Usage Oxygen Concentrator

Established in Tirupur, PRS compressors Pvt Ltd is manufacturing and supplying electric dental air compressors. Dental practices are relying on air compressors to provide comfortable and safe services to patients. Using the latest and modern electric dental air compressors help to operate the compressors easily. Due to the reliability and durability of our products, we are considered to be one of the top Electric Dental Air Compressor manufacturers in India. While selecting the electric dental air compressors two things need to take care of such as cubic feet per minute and Litres per minute. The vital usage of electric dental air compressor is used in human mouths for removing cavities or tooth, etc.

Additional Information:

• Min. Order (MOQ) 10 Piece(s)

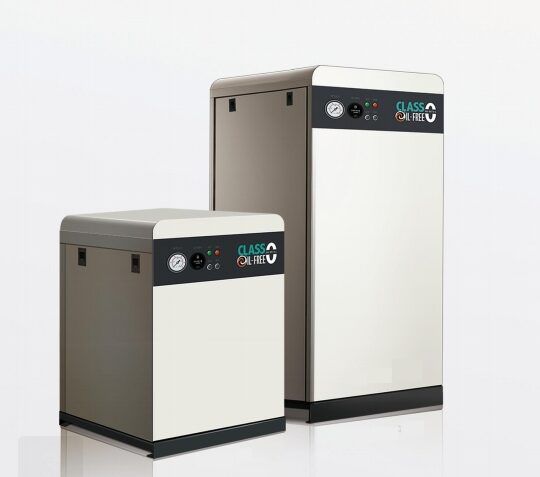

• Type Oil Free Compressors
• Material Aluminium, Cast Iron
• Certification CE Certified, ISO 9001:2008
• Application Cooling Elements, Industrial
• Weight 125-150Kg
• Color Metallic, Silver
• Feature Auto Cut, Durable, High Performance, Low Maintenance
• Voltage 220V, 440V
• Condition New
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Motor Power 0-3Hp, 3-6Hp
• Warranty 1Year
• Configuration Portable
• Flow Rating 0-100Cfm
• Country of Origin India
• Brand Name PRYES
• Usage Dental
• Usage Hospital
• Usage Laboratory

Dental Air Compressor used basically dental hospital machinery applications.and also it's pure oil free compressor. Portable type and skid types also available.Multi Color based on Customer Requirement.

Additional Information:

• Min. Order (MOQ) 5 Piece(s)

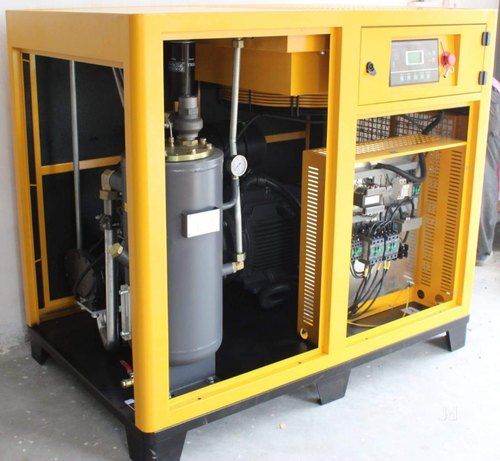

• Type Screw Air Compressor
• Material Carbon Steel, Steel
• Certification CE Certified, ISO 9001:2008
• Application Air Storing
• Weight 240 Kg
• Color Metallic, Silver, yellow
• Feature Auto Controller, Auto Cut, High Performance, Low Maintenance, Sensor Controlled
• Voltage 440V
• Condition New
• Frequency 50Hz
• Power Source Electric
• Pressure Low Pressure
• Motor Power 12-16Hp, 9-12Hp
• Warranty 1Year
• Configuration Air Compressor
• Flow Rating 0-100Cfm
• Country of Origin India
• Brand Name PRYES
• Lubrication Style OIL
• Mute 68Db
• Model Name ECI-10B
• Compressor Technology Screw Compressor
• Maximum Flow Rate >1000 cfm
• Horse Power 7.5 Kw
• Compressor Noise Level (Db) 62 +-2 Db
• Dimension 890 x 630 x 920 mm
• Speed 4000 RPM

Advance Technology, High Reliability, Fully Auto Control System, Direct Driven Motor Coupled, Permanent Magnet Drive, Energy Saving Environmental Friendly, Floor/ Tank Mounted, Variable Speed Drive

Additional Information:

• Feature Durable, High Performance, Low Maintenance
• Frequency 50Hz
• Power Source Electric
• Pressure High Pressure, Low Pressure, Medium Pressure
• Motor Power 0-3Hp
• Configuration Air Compressor
• Flow Rating 0-100Cfm

• Pressure High Pressure, Low Pressure, Medium Pressure
• Material Cast-iron,Mild Steel
• Frequency 50Hz
• Volume 50NOS
• Model Name PRS 10-2
• Usage Food,Medical,Pharma,CNC Industries,Puncher Shop,Wheel Alignment,Service Station
