Rajesh Machine Tools Pvt Ltd

Rajkot, Gujarat

PRESS BRAKE MACHINE

1) BACKGUAGE MOVEMENT BY LEAD SCREW WITH HANDLE

2) HEAVY DUTY FABRICATED BACKGUAGE

3) TOP TOOL (EN-31 MATERIAL STANDARD)

4) BOTTOM DIE (EN-8 MATERIAL STANDARD)

5) OPERATING THROUGH LIMIT SWITCH

6) MANUAL & ONE STROKE & AUTO CYCLE OPERATION

1) hydraulic variable rake angle with :

dual cylinder

2) four edge interchangable shearing blade

- 3) right angle squaring arm 1000 mm :

long

4) front sheet support arm ( length 600 mm )

- 5) backguage movement by lead screw :

with handle

6) manual blade clearance adustment

- 7) sheet claming automatic hydraulic :

type

8) power saving hydraulic power pack unit

- 9) heavy duty fabricated backguage : 10) front table with transform ball for easy sheet movement

Hydraulic CNC Press Brake Machine Wih Length from 1600-7000 meters in length and From 50 Tons to 1000Tons.With Perfect accuracy suitable for Bending all type of products .

Complete range of standard and special tools for any application

Collaboration with top-class European tool manufacturers

To perform different bending application job heavy duty tools with extreme high resistance material is used.

Standard clamping system is used for punch & die.

Introducing the Plus+ CNC Press Brake for Industrial use. This CNC press brake features a Cybelec/Delem control system for precise operation. Equipped with a hydraulic system utilizing Proportional Valve Technology for efficient performance. The single-axis X back gauge system ensures accurate bending. With mechanical upper and lower tool clamping, and a sturdy welded-steel frame, this machine is built for durability and precision.

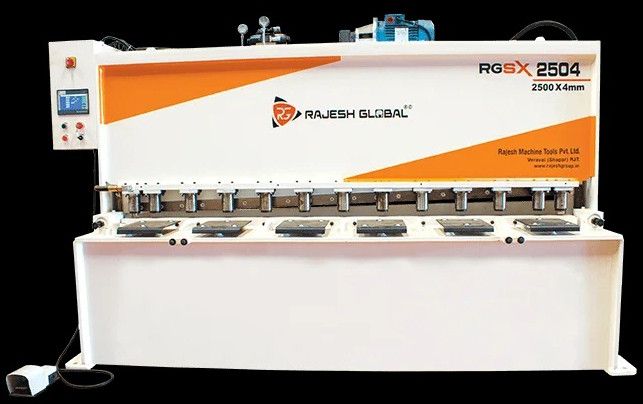

Optimum variable rake angle hydraulic shear Heavy duty rigid all welded steel frame Colour touch screen 7 More hold down near squaring arm for better holding & cutting of small parts Automatic programable high speed bal screw Back gauge with AC servo motor Special cutting blades made for mild steel and stainless steel Front guard for safety Electrical parts Schneider/ Siemens Hydraulic parts Yuken India / Bosch Rexroth Cutting Length: 2000 mm to 6000mm

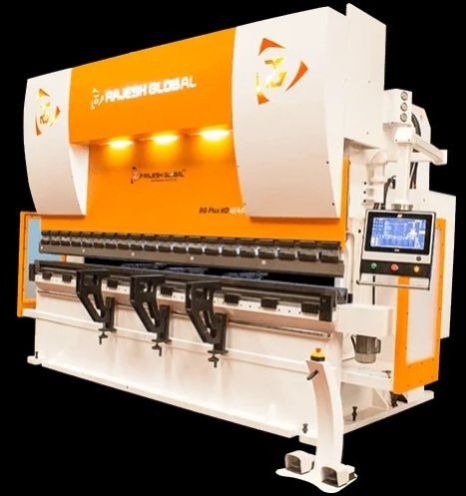

Introducing the Px Hydraulic Press Brake Machine, a powerful tool designed for bending metal sheets with precision. This hydraulic press brake features a sturdy steel frame structure, ensuring durability and reliability for your metalworking needs.

Introducing the C Type Mechanical Power Press, a robust metal machine in sleek grey color. Ideal for industrial metalworking applications, this press comes with a motor pulley for enhanced functionality and efficiency. Upgrade your metalworking operations with this reliable and durable mechanical power press.

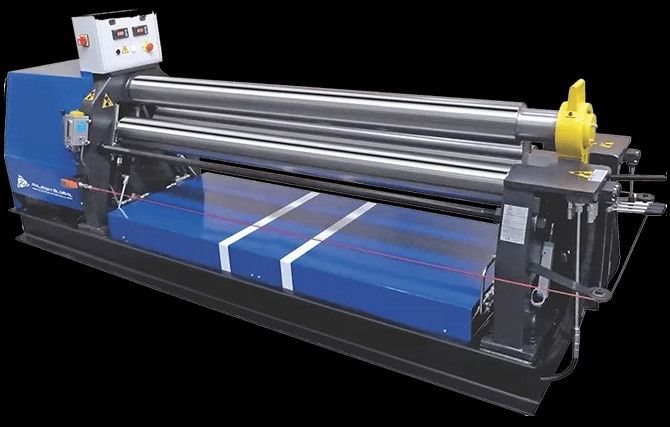

3 rolls driven by independent hydraulic motors Digital displays for controlling the positio of pre-bending rolls Automatic and hydraulic synchronization of roll’s parallelism More hold down near squaring arm for better holding & cutting of small parts Progressive regulation on all movements Polished rolls Tilting device for pre-bending rolls Cone device (thrust) for conical bending for machines with rolls 0 120 & 160 mm
