Motorized Valve

We are leaders in the market for providing best range of Motorized Butterfly Valve with Compact Actuator, Motorized S.S.304 Ball Valve, 3 Way Motorized Slipper Type Valve, 2/3 Way Motorized Valve For F.C.U. and 2/3 Way Motorized High Temp Globe Valve

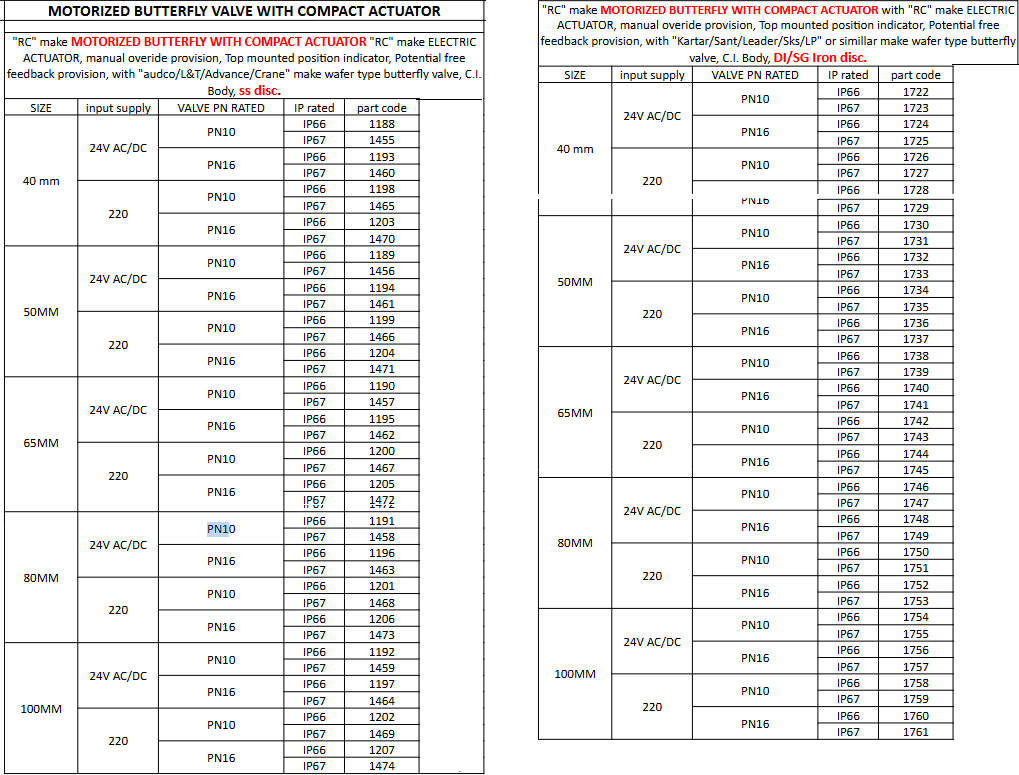

Motorized Butterfly Valve With Compact Actuator

₹ 7,000 - ₹ 1 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Material Mild Steel
Power Manual
Application Industrial
Size 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Feature Durable
Number Of Flower Motorized Butterfly Valve
Country of Origin India
Number Of Way 2way

Product Details

“RC” make motorized butterfly valve comes with Quarter non-spring return compact electric actuator 24V AC/DC supply. The electric actuator has weather proof enclosure, so it can be easily installed in open air. The Actuator has rugged high strength tempered gear & super Efficient motor for providing countless operation.

Basic Features

Low noise level.
Completely water tight from all possible water entering points with O-rings and oil-seals.
Pre-wired 3 core wire for simple & fast installation.
Continuous Mechanical Position indicator.
De-clutch/Key type manual override provision.
Potential free feedback provision.
Compact size for easy installation in confined areas.
B.M.S. compatible.

Motorized Butterfly Valve With Compact Actuator

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Motorized S.S.304 Ball Valve

₹ 3,000 - ₹ 10,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Input Supply 24v Ac/dc or 220v Ac
Control Type Com-on-off Type or 4-20ma(modulating Type, Optional)
Position Feedback Potential Free Feedback Provision Max 220v Ac, 10amp Max. or 4-20ma (with 4-20ma Input Signal Only
Run Time 45 Seconds(quarter Turn)
Power Consumption Less Than 1amp
Ip Rating Ip66 Rated (ip67 Optional)
Ball Valve Type Extended Neck Design 2 Piece Design
Valve Moc Complete Ss304

Product Details

“RC” make motorized SS304 ball valve comes with quarter turn non-spring return compact electric actuator 220V AC supply. The electric actuator has wether proof enclosure, so it can be wisely installed in open air. The actuator has rugged high strength tempered gear & super efficient motor for provising countless operation.

Basic Features

Low noise level
Completely water tight from all possible water entering points wit O-rings and oil seals.
Pre-wired 3 core wire for simple & fast installation.
Continuous mechanical position indicator.
De-clutch/key type manual-overide provision.
Potential free feedback provision.
Compact size for easy instillation in confined areas.
B.M.S. compatible.

PDF

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

3 Way Motorized Slipper Type Valve

₹ 9,000 - ₹ 3 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Bonnet Material Cast Iron Is:210 Fg:260
Type of Valve 2 Way, 3 Way
No. of Port 2 Ports, 3 Ports
Plug Brass Is:1264, Grade Dcb-i/gun Metal
Gland Packaging Nylon Disc with Nbr O-ring

PDF

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

2/3 Way Motorized Valve For F.C.U.

₹ 1,500 - ₹ 4,500 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Country of Origin India
Make Rc
No of Port 2 Way, 3 Way
Valve Type Normally Close, Supply to Open
Suitable Media Water
Body Brass Forged Is:1264 Grade Dcb-i
Connectors Brass Hex Nut Is:319
Actuator Saddle Brass Sheet
Actuator Base & Housing Aluminium

Application:

These valves are compact units consisting of small Electric Actuator and 2/3 Way Valve for controlling the flow of water or any liquid that is not injurious to Brass. These valves are designed for use in Fan Coil Units or any other system requiring quite and compact water lines.
These valve are made for use upto 150 P.S.I.G.
Note:- THIS IS A SIMPLE DIVERTING VALVE AND CAN BE USED IN ANY WHERE THERE IS A REQUIREMENT FOR DIVERTING LIQUID, THIS VALVE IS ONLY MEANT FOR USE IN LIQUID.
