Our Products
Pneumatic Valves
2 Products availableValves & Valve Fittings
2 Products available3way Motorized Valve
1 Products availableAIR Valves
1 Products availableLevel Controllers
1 Products availableButterfly Valves
1 Products availableIndustrial Valves
1 Products available
Additional Information:
Payment Terms :
Delivery Time : Ex-stock
Product Details
Application :
Used for 2 position or floating control of liquid for open-close service or in system requiring that the flow be off / on or proportionate working.
Construction :

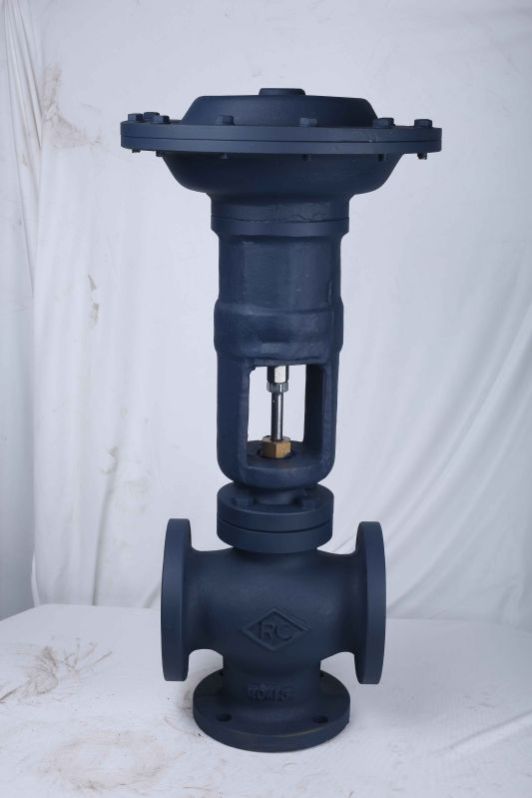

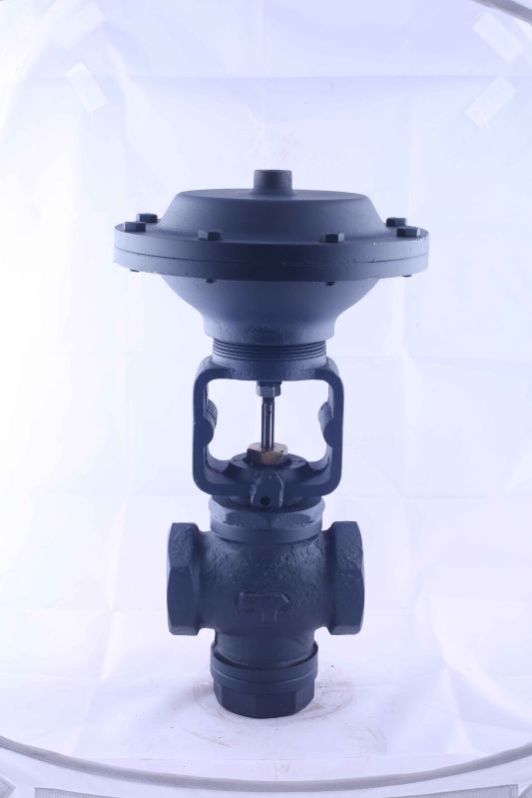

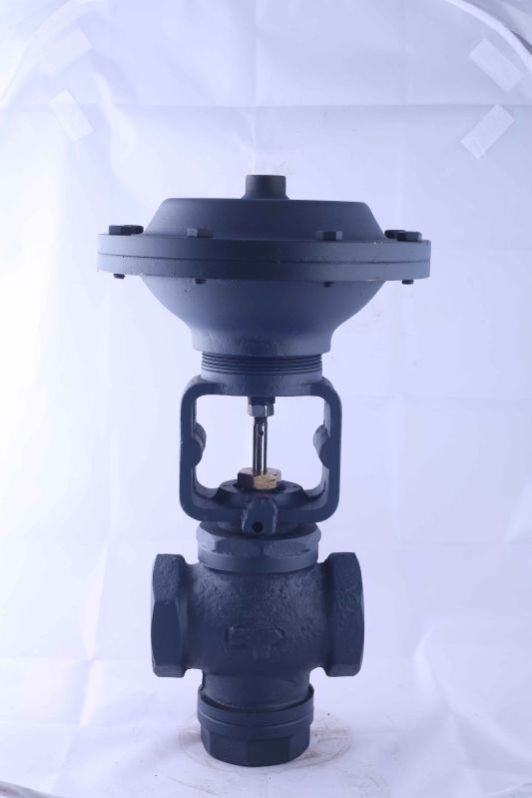

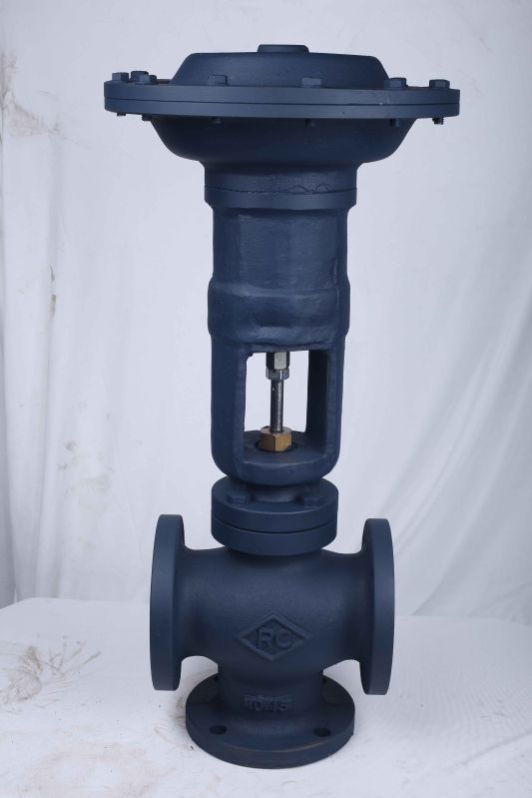

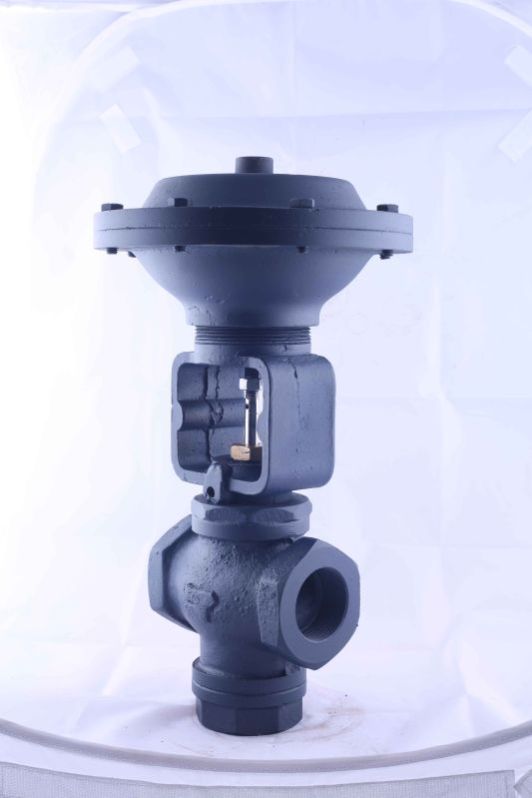

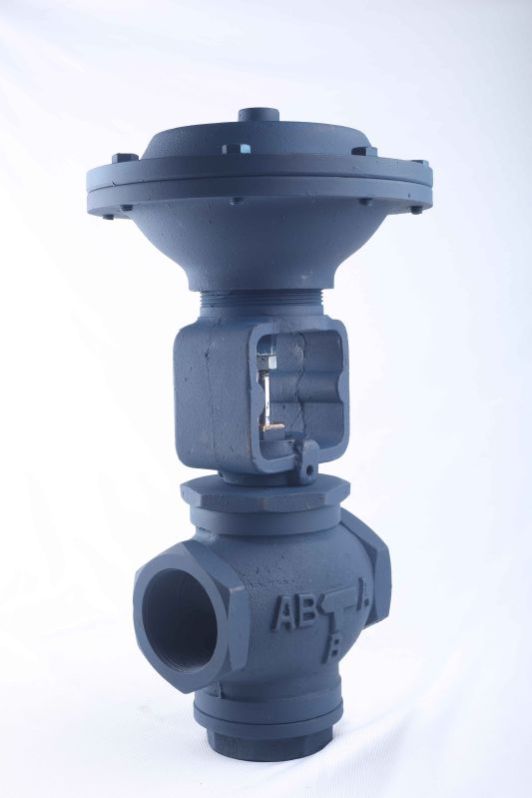

2 way motorized globe valves with Metal to metal seating/soft seating and spring loaded packing. Constant total flow throughout full plug travel. Linkage provide with strain relief mechanism assuring tightest possible close-off without putting excessive strain on the motor. Linkage has easy to read valve position indicator. Actuator positions valve stem.
Product Details
RC-AV series are compact, economical models of air purge valves. These valves are been smaller in size, can conveniently be fixed on lines with small space let around.The RC-AV series are very useful for venting air from water in service lines, hydronic heating and solar systems, storage tanks etc.
Design of RC-AV series vent is very simple. It employs to actuate a free floating valve. All working parts are corrosion resistance brass/PP. Unit is designed for working pressure upto 150 P.S.I.G.
“RC” make all variant auto vent comes with shut off valve for easy mounting & removal, when the autovent is unscrewed from the shut off valve. the valve will close automatically.
Product Details
“RC” make butterfly valve with tamper switch is designed to be used with quarter turn valve to electronically provide position indicator, mostly used on butterfly valve and ball valve for HVAC and Firefighting industry.
Features & Specs
Product Details
“RC” make Flow Switch is designed for use on Non- Viscous liquid, Water, Methyl Glycol Solutions or any other liquid not injurious to Brass & Non-Ferrous Metal parts that come in the contact with the liquid. The SPDT contacts make or break and electrical circuit when flow starts or stops.
They can be wired to close circuit and open a second circuit. When liquid flow either exceeds or drops below the adjusting flow rate.
The “RC” make Level Controller System helps to minimize water wastage caused due to unnecessary over flowing , it works in such a way that each overhead tank maintains its own level independently. When the water level comes at low level, the inlet of the RC Motorized Valves open up, filling the tank and when the water level reaches high level the RC Motorized Valve closes. When all of the overhead tank Motorized Valve closes the pressure on the pump header increases and the pressure switch installed on the pump header cuts the pump, now if the water level in any of the over head tank decreases the Motorized valve will open releasing the pressure and when the pressure is released the pressure switch installed on the pump header will starts pumping water to fill the tanks.

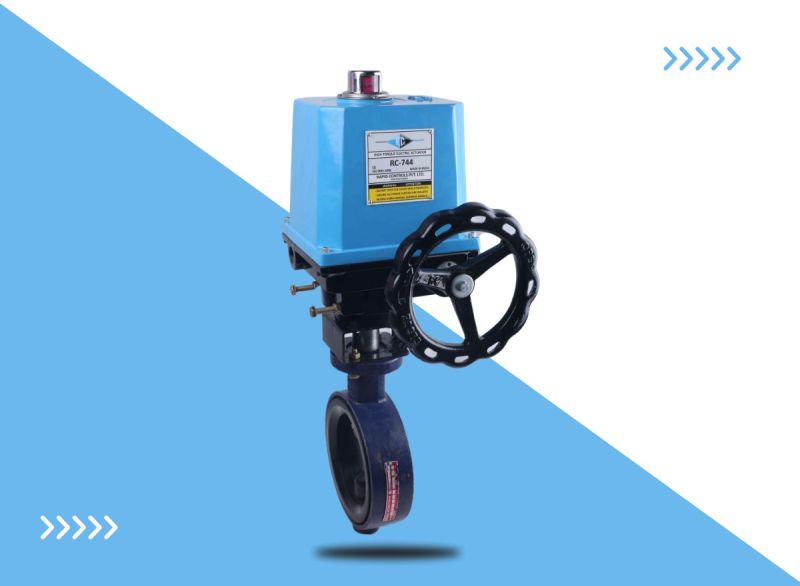

Butterfly valves are essential components in the industrial world, known for their simplicity, efficiency, and cost-effectiveness in controlling fluid flow. In this blog, we will explore what butterfly valves are, their advantages, and their common applications, helping you understand why they might be the perfect solution for your fluid control needs.
What is a butterfly valve?
A butterfly valve is a type of valve used to regulate the flow of liquids, gases, or slurries through a pipe. It consists of a disc mounted on a rotating shaft. When the valve is open, the disc is turned parallel to the flow, allowing fluid to pass through. When the valve is closed, the disc is turned perpendicular to the flow, blocking the passage. This simple quarter-turn operation makes butterfly valves highly efficient.
Applications of butterfly valves
Thanks to their adaptability and reliable performance, butterfly valves are used in many industries. Some of their common applications include:
Water and Wastewater Treatment: Managing the flow of water and waste fluids in treatment plants ensures efficient and effective processing.
Oil and Gas: Controlling the flow of oil, gas, and other hydrocarbons in pipelines and processing facilities is crucial for safe and efficient operations.
Chemical Processing: Handling chemicals and corrosive substances requires robust and reliable flow control solutions.
HVAC Systems: Regulating air flow in heating, ventilation, and air conditioning systems to maintain optimal indoor climates.
Food and Beverage: Ensuring sanitary conditions in the processing and transportation of food and beverages to meet industry standards.
Why Choose Butterfly Valves?
Choosing butterfly valves for your fluid control needs offers a balance of performance, efficiency, and cost. Whether you need to handle high pressures and temperatures or require a quick and easy operation, butterfly valves provide a reliable and effective solution.
At rapid controls private limited, we offer a range of high-quality butterfly valves designed to meet the rigorous demands of modern industrial applications. Our valves are built using proven technology and premium components, ensuring durability and optimal performance.
Product Details
“RC” make flow switch is used to detects air flow in ducts, responding only to velocity of air movement. When the air come in the contact of the paddle. The SPDT contacts make or break and electrical circuit when flow start or stop.
They can be wired to close circuit and open a second circuit. When Air flow either exceeds or drops below the adjusting flow rate.
Rapid Controls make Motorized butterfly valve with on/off and modulating hi-torque & Compact Actuatorwith 24v or 230v .
Additional Information:
Payment Terms :
Delivery Time : As per schedule
Product Details

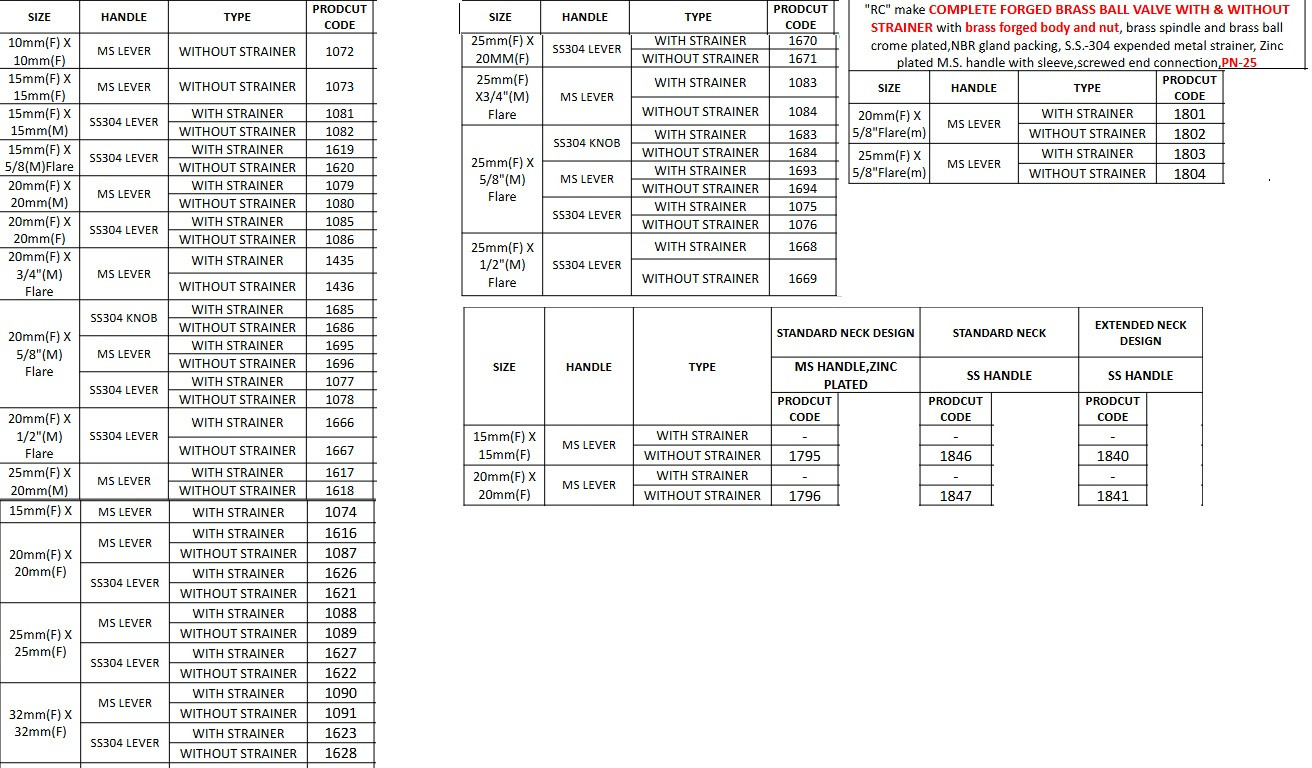

“RC” make Ball Valves provides the quality needed for commercial, industrial, institutional and process piping requirements.
Lead Right Shut Off:
Sealing design assures complete and positive shut off. Seal maintain tight closure despite temperature, pressure or vacuum. The valves holds the pressure or vacuum equally well in either direction. No mechanical spring devices or external adjustments required.
Saving On Installtion Cost:
By installation brass ball valve with strainer you save the installation cost by installing brass ball valve with built in strainer, instead of installing ball valve & strainer separately.
Low Maintenance Design:
Valves never need lubrication no metal-to-metal contact between moving parts, no galling or seizure troubles. Long lasting lip-seal and the absence of internal springs simplify maintenance. Straight-through flow reduces erosion of valves parts and the “wiping action” of the valve seats on the ball or disc prevents build-up of abrasive particles.
Quarter-turn Operation:
A quarter-turn is all it takes to go from full open to full closed position. Ideal, where fast valve operation is desirable. On manually operated valves, the position of the handle shows at a glance whether valves are open or closed, or at any intermediate setting.
High Neck Design:
A extended neck design is our ball valves gives you space for easy installation of insulation and trouble free operations for many many years to come.
