Leading Manufacturer, Supplier & Retailer of Spencers Environmental Chamber, Spencers Plant Growth Chamber, Spencers Rotary Microtome, Spencers Advanced Rotary Microtome and Spencers Cryostat Microtome.
SPENCERS manufactures custom environmental chambers used by pharmaceutical and biotech industries for a variety of Industrial Testing and Life Science Applications. SPENCERS offers a diverse product line of Controlled Environmental Chambers designed for high demand testing, processing or conditioning and provides precise environment for products and manufacturing processes.
These chambers can range from walk-in type used for the storage of temperature sensitive pharmaceuticals, to large drive-in chambers used in testing automobiles. These systems can be supplied with temperature and humidity PID controls or with fully computerized data acquisition and control systems. The common goal is to provide a product that: meets and exceeds customer needs and intended specifications; proves dependable in its daily operation and that utilizes the latest in innovative technology. An increasing number of clients use controlled environment chambers for precise storage conditions, product development, and quality control. These chambers are often custom/design/build applications unique to a specific requirement.
SPENCERS personnel are capable of handling projects requiring close tolerance temperature and humidity uniformities, particulate reduction for clean room classification, low temperature refrigeration, depressed and elevated humidity and special electrical classification for flammable material storage.
TEMPERATURE SELECTIONS
-20 C to +150 C
HUMIDITY SELECTIONS
10% RH TO 98% RH
HEAT/COOL RATES** Varying temperature options on Demand.
EXCLUSIVE STANDARDS
Customized rate of Heat/Cool.
Custom cyclic process controls.
Dependability, low maintenance & Value.
Temperature Uniformity & Temperature Control Stability.
Optimum Transition Rates of Temperature.
Sturdy design and long-lasting finish Custom built to customers design, specifications & loadings.
An extended choice of process and control options.
FEATURE SELECTIONS
Microprocessor/Microcontroller based Temperature Controls.
Microprocessor based Humidity controls.
Alarms with rechargeable battery backup.
|
TECHNICAL SPECIFICATION |
|
|
General Specifications of Environmental Chambers |
|
|
Chamber Construction |
Bench top / Floor standing / Walk In Environmental Chambers |
|
Capacity |
5 Cu. Ft. to 100 Cu. Ft. or walk in environmental chamber as per requirements. |
|
Temperature range |
0 °C to +70 °C ( As per requirements) |
|
Humidity range |
10% RH to 95% RH ( As per requirements) |
|
Illumination |
Optional Light / Dark control system comprising of fluorescent lights & control system. |
|
Test Cycles |
Control system with memory to preset test cycles as per requirements. |
|
Heat / Cool Rates |
Heat/Cool rates customized to meet user requirements. |
|
Display |
LED/LCD display. |
|
Controller |
Microprocessor/Microcontroller based Controller. |
|
Data memory & print |
Optional data memory & print interface or added with printer facility. |
|
Alarms |
Customized alarm system to warn various parameters. |
|
Environmental Chamber Construction |
|
|
Outer Panels |
Outer panels are made of GI coated/ CPRCA sheet/Stainless Steel |
|
Interior Panels |
Interior panels are made of Stainless Steel |
|
Door |
Standard hinged door with Double gasket seal between the door and the cabinet increases system efficiency. |
|
Insulation |
Polyurethane foam insulation with a thickness of 50mm |
|
Shelves/Trays |
Perforated Stainless steel Trays. ( As per requirements). Stainless steel trays lift out for easy cleaning. |
|
Reservoir drain |
Recessed Reservoir drain, with convenient drain hose, is easily accessible and a screened based prevents rodent infestation. |
|
Castors |
Castors for minimal effort mobility. |
|
Environmental Chamber Heat / Refrigeration system |
|
|
Heating system |
Level, constant heat is continually maintained through a water media, by specially designed high purity magnesium oxide and helically wound nickel-chrome wire heating elements. Elements are totally enclosed for efficient heat transfer and operator safety. The warm air is evenly distributed throughout the chamber through efficient motor fans ensuring very good temperature sensitivity. |
|
Refrigeration system |
SPENCERS superior refrigeration system with optional Backup refrigeration system. Uniform refrigeration is maintained through the use of air-cooled, high torque, hermetically sealed condensing unit. High quality cooling system components include: efficient fan circulation evaporator coil with thermal expansion valve, moisture-liquid indicator, filter drier, heat exchanger, and pressure control valve. All refrigerant lines are copper and fully insulated. |
|
Compressor |
Heavy duty Air-cooled compressor. The compressor is distinguished by its excellent performance, low noise level (<60dB) and minimal vibration. |
|
Condenser |
Highly efficient condenser with automatic condensate evaporating system. |
|
Evaporator |
Internal evaporator system Forced draught. |
|
Refrigerant |
Non-CFC/HCFC environmental friendly based on compressor capacity. |
|
Air Circulation |
Forced air circulation to maintain chamber uniformity. |
|
Environmental Chamber Air-Humidity Circulation |
|
|
Humidity System |
Unique forced air circulation design maintains an even, continuous, moist airflow throughout the cabinet. Perforated trays further enhance even humidity distribution to testing samples. Self-contained stainless steel water reservoir in each chamber assures a relative humidity of 90%. Temperature variation between trays is ±0.5° C, top to bottom. |
|
Environmental Chamber Control System |
|
|
Control System Standard |
The standard control system consists of Micro-processor based independent temperature controllers for Heat, Cool & Humidity mode with LED/LCD display. The illumination is controlled through solid state cyclic timer to control the photoperiodic cycle of the chamber. Optional alarm system for various parameters. |
|
Control System Advanced |
The advanced control system features robust PID Controllers with process control settings or micro-controller/Micro-processor based Control system. The control system has various optional features such as LED/ LCD Display |
|
Power Supply |
220 volts, 50Hz / 110 volts, 60Hz. |
| Spencers Plant Growth chamberisfrequently used for research applications such as lighting for vascular plants to facilitate standard plant production, plant pathology research and seedling germination and development. SPENCERS Plant growth chambers and rooms are specifically designed to maximize growth area. They are ideal for genetic studies involving Arabidopsis, plant physiology, and early growth studies of seedlings. TEMPERATURE SELECTIONS0 to +60 degrees C with an accuracy of +_ 0.1 degrees C, uniformity +_ 0.5 degrees C. HUMIDITY SELECTIONSDigital Humidity Controller with Humidity range of 30% to 98% with an accuracy of +_ 1%, uniformity +_ 2% to 3%. EXCLUSIVE STANDARDSCustomized styles & Design.Dependability, low maintainance & Value.Accurate temperature control and holdover capabilityTimer alarm, auto tuning and auto start stop function.Multi Step programmable and self diagnostic function.Over temperature and current protection to ensure user Safety. |
|
TECHNICAL SPECIFICATION |
|
|
General Specifications of Plant Growth Chambers |
|
|
Chamber Construction |
Benchtop / Floor standing / Walk In Environmental Chambers |
|
Capacity |
5 Cu. Ft. to 50 Cu. Ft. |
|
Temperature range |
0 °C to +60 °C ( As per requirements) |
|
Humidity range |
30% RH to 98% RH ( As per requirements) |
|
Illumination |
Optional Light / Dark control system comprising of fluorescent lights & control system. |
|
Test Cycles |
Control system with memory to preset test cycles as per requirements. |
|
Heat / Cool Rates |
Heat/Cool rates customized to meet user requirements. |
|
Display |
LED/LCD display. |
|
Controller |
Microprocessor/Microcontroller based Controller. |
|
Data memory & print |
Optional data memory & print interface or added with printer facility. |
|
Alarms |
Customized alarm system to warn various parameters. |
|
Plant Growth Chamber Construction |
|
|
Outer Panels |
Outer panels are made of GI coated/ CPRCA sheet/Stainless Steel |
|
Interior Panels |
Interior panels are made of Stainless Steel |
|
Door |
Standard hinged door with Double gasket seal between the door and the cabinet increases system efficiency. |
|
Insulation |
Polyurethane foam insulation with a thickness of 50mm |
|
Shelves/Trays |
Perforated Stainless steel Trays. ( As per requirements). Stainless steel trays lift out for easy cleaning. |
|
Reservoir drain |
Recessed Reservoir drain, with convenient drain hose, is easily accessible and a screened based prevents rodent infestation. |
|
Castors |
Castors for minimal effort mobility. |
|
Plant Growth Chamber Refrigeration system |
|
|
Refrigeration system |
SPENCERS superior refrigeration system with optional Backup refrigeration system. Uniform refrigeration is maintained through the use of air-cooled, high torque, hermetically sealed condensing unit. High quality cooling system components include: efficient fan circulation evaporator coil with thermal expansion valve, moisture-liquid indicator, filter drier, heat exchanger, and pressure control valve. All refrigerant lines are copper and fully insulated. |
|
Compressor |
Heavy duty Air-cooled compressor. The compressor is distinguished by its excellent performance, low noise level (<60dB) and minimal vibration. |
|
Condenser |
Highly efficient condenser with automatic condensate evaporating system. |
|
Evaporator |
Internal evaporator system Forced draught. |
|
Refrigerant |
Non-CFC/HCFC environmental friendly based on compressor capacity. |
|
Air Circulation |
Forced air circulation to maintain chamber uniformity. |
|
Plant Growth Chamber Air-Humidity Circulation |
|
|
Humidity System |
Unique forced air circulation design maintains an even, continuous, moist airflow throughout the cabinet. Perforated trays further enhance even humidity distribution to testing samples. Self-contained stainless steel water reservoir in each chamber assures a relative humidity of 90%. Temperature variation between trays is ±1° C, top to bottom. |
|
Plant Growth Chamber Control System |
|
|
Control System Standard |
The standard control system consists of Micro-processor based independent temperature controllers for Heat , Cool & Humidity mode with LED/LCD display. The illumination is controlled through solid state cyclic timer to control the photoperiodic cycle of the chamber. Optional alarm system for various parameters. |
|
Control System Advanced |
The advanced control system features robust PID Controllers with process control settings or micro-controller/Micro-processor based Control system. The control system has various optional features such as LED/ LCD Display |
|
Power Supply |
220 volts,50Hz / 110volts, 60Hz. |
Spencers Senior precision Rotary Microtome is manually operated microtome, used to produce thin sections of specimens of different hardness in both routine and research applications in Laboratory, Pathology and Histopathology, biology, medicine and institutes. The Rotary Microtomes are designed to section soft materials embedded in paraffin as well as harder specimen, provided those specimen are still suitable for manual sectioning. The instrument ensures life-long smooth operation. Individual components are fabricated and assembled from selected material using latest technology.
|
||||||||||
|
|
Spencers Rotary Microtome are manually operated advanced rotary microtomes, used to produce thin sections of specimens of different hardness in both routine and research applications in biology, medicine and industry. They are designed to section soft materials embedded in paraffin as well as harder specimen, provided those specimen are still suitable for manual sectioning.
Product Features:
|
Robust Ergonomic design & Compact dimensions
|
Reduces hand stress via smooth-running hand wheel |
|
Precise guide way and clamping device for knife holder with optimum sliding capability |
Elevating, Leveling movements of knife and lateral movements for the sturdy Knife Holder to use complete knife edge
|
|
Angle of cut and angle of attack easily adjusted
|
Convenient and accurate specimen advance. |
|
Automatic disengagement of feed mechanism at the limit of Feed
|
full-handwheel rotation, manual sectioning or optional rocking mode, where the handwheel is turned back and forth over a short distance |
|
A heavy and rigid base to render a shake proof operation
|
Remarkable stability and even weight distribution |
|
Convenient specimen holder
|
Easy use: Microtome Knife & Disposable Blade Holder |
Spencers Cryostat Microtome is specifically designed for Cryotechniques suitable for Clinical & Research operation. SPENCERS Cryostat with its ergonomic design guarantees relaxed efficient working conditions. The microtome offers the performance, ease-of-use and versatility to make it the ideal instrument in all types of laboratory work. The Cryostat Microtome is used for cutting thin sections of fresh, frozen material.
Product Features:
|
Spacious Cryo chamber
|
Quick freeze Cryo bar. |
|
Microtome housed at the back outside cryo chamber
|
Smooth running handwheel with motion lock |
|
Powerful quick response refrigeration system
|
Interior Lighting |
|
Microprocessor based digital Temperature Control &
|
Heavy duty castors for easy movement of the unit |
|
Motorized specimen Forward & reverse
|
Robust Ergonomically Designed Microtome |
Spencers Cryostat Microtome is specifically designed for Cryotechniques suitable for Clincal & Research operation. SPENCERS Cryostat with its ergonomic design guarantees relaxed efficient working conditions. The microtome offers the performance, ease-of-use and versatility to make it the ideal instrument in all types of laboratory work. The Cryostat Microtome is used for cutting thin sectionsof fresh, frozen material.
Temperature range:
Temperature range from -45 C to -60 C.
Spacious Cryochamber:
It provides convenient access to the elegantly designed freezing chamber with the best quality controlled refrigeration system which can be set to maintain temperature upto -45 degrees C. The cryo bar inside the cryo chamber enables fast freezing of the specimen. Microtome Control functions are outside chamber. Open top design to minimize temp gain during prolonged use. Waste fluids drain efficiently into easy access collection jar.
The Microtome:
With a proven track record for cutting a diverse range of hard and soft tissues, plastics, rubber, bone, manmade fibres, wood and many other materials . The cryostat is designed specifically for low temperature operation. The rotary microtome at the heart of the cryostat is designed specifically for high performance and at the same time withstand up to the rigorous conditions imposed by frozen section work. The microtome mechanism is housed outside the cryochamber for easy cleaning & maintainance.
Product Features:
| Designed with maintenance free roller bearing slide ways |
Precise mechanism that ensures optimum sectioning results
|
|
All locks & adjustments are readily accessible for fast & safe operation
|
A heavy and rigid base to render a shake proof operation |
|
High precision and stability for fast, secure and comfortable operation
|
Convenient and accurate specimen advance |
|
Reduces hand stress via smooth-running hand wheel
|
Reduces hand stress via smooth-running hand wheel |
|
Section Thickness Indication :Visual LCD display
|
Range of section thickness :1 - 99μm( in 1 μm steps ) |
|
Coarse specimen advance :99μm
|
Horizontal specimen feed :25 mm |
|
Vertical specimen stroke :60 mm(+/-1mm) |
Specimen orientation :Orientation in three axes (360 degrees)
|
|
Knife Holder Adjustments :North-south Adjustment with Clockwise Clamping Mechanism
|
Type of Knife used :Microtome Knives of size 100-180MM |

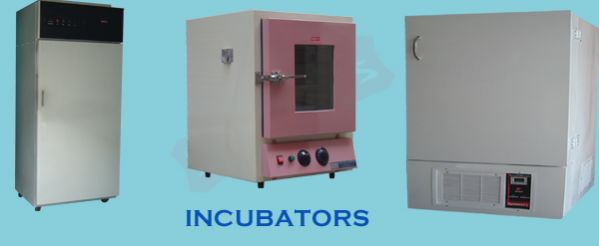

Spencers Incubators complemented with a comprehensive range of control technologies and performance enhancing features are built for research, medicine and a variety of applications in industry and other fields where processes require extremely high precision.
Spencers BOD Incubators complemented with a comprehensive range of control technologies and performance enhancing features are built for research, medicine and a variety of applications in industrySpencers CO2 Incubators complemented with a comprehensive range of control technologies and performance enhancing features are built for research, medicine and a variety of applications in industry

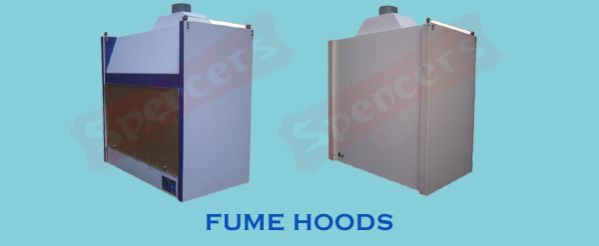

| Spencers Fume Hoods are recommended for exhaust from the hood working area, of gases, vapor, toxic particles, odor to improve working environment of people who regularly handle toxic substances. These reduce personal exposures and odor level in the laboratory.These are designed to exhaust toxic, or otherwise harmful vapors etc., for protecting laboratory personnel & equipments. A motor-blower exhaust system (Optional) generates negative pressure within the hood, extracting the contaminated air from the work area and expelling it into the atmosphere and preventing the fumes from escaping into the room.These are recommended for various laboratories like Bio-Chemistry, Pharmaceutical units, printed circuit etching/cleaning etc. These are capable or handling corrosive fumes of sulphuric and hydrochloric acids etc. If work-area walls are lead-lined (Optional), it can be effectively used for Radio-Isotopic applications. Construction:The main body of the fumes hood is made of FRP. The work surface (Worktable) is of stainless steel sheet. A small S.S. Sink, water tap and water outlet provided. A sliding door made of acrylic, moves vertically up/down with counter balanced weight operated by steel rope. Hope is provided with fluorescent light for easy working in the chamber. A metal clad socket and gas cock is also provided in the chamber. The control panel is fitted with on/off toggle switches for mains, motor-blower and tube light and mains indicator. Standard Sizes:4 2 2' 6 x 2 x 2' 5 x 3 x 2' Other sizes on request. Optional Accessories:Complete exhaust system suitable for 10' duct and installation.Fume Duct - PVC.Lead-Lining on work-area walls for radio - isotope application.Special exhaust system (for duct above 10 ft.)F.C. mounting base with storage space and door.Acid resistance ceramic- tiles work surface (Work Table). |
Inderjeet Singh (Rattan Sales Corporation)
718, Jaina Tower-1, District Centre, Janak Puri-58, Janakpuri, Delhi - 110058
