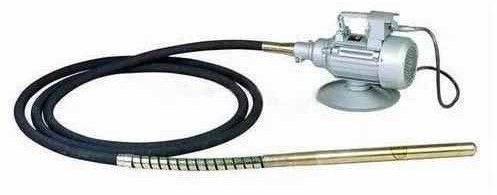

Leading Manufacturer, Supplier & Retailer of Engine Concrete Vibrator Machine, Concrete Road Screed Vibrator and Electric Concrete Vibrator.
Features

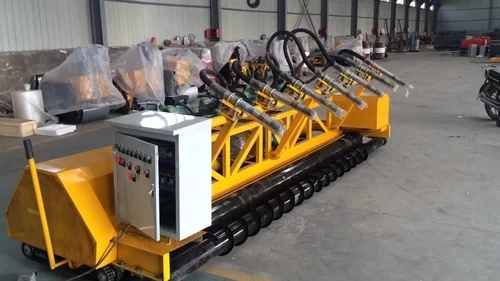

Concrete vibrator paver is the most advanced machine used for all kinds pavement, road, square, airport to make the road smoothing. It is specially designed for road construction. It is a combination of the concrete roller paver and concrete vibrators. This unique design helps the machine to reduce large quantity needs of labors and highly improved the working efficiency.
SPECIFICATIONS FOR FVP219 CONCRETE VIBRATOR PAVER:
Engine model:Electric Motor, 380 V 50 HZ
Vibrator Motor Power:1.5kw
Lifting Motor Power:1.5kw
Traveling Motor Power:3kw
Auger Motor Power:4kw
Traveling speed:0-5 mmin
Working width:3-8m (customized)
Diameter of roller:219mm
Roller Rotation:36rpm
Max Paving thickness:300mm
Vibrators Details
Quantity:6-12unit
Diameter:50mm
Length:2m
Distance between two vibrators:500mm
Competitive Advantages of the product
1.The Concrete Vibrator Paver is the combination of concrete roller paver and concrete vibrators. Highly improved the efficiency of road construction.
2.Customized concrete vibrator paver, the length of the machine will be desighed according to the needs of our customer, 3-8m are all available.
3.50cm-distance between every two vibrators.
4.Meet strict flatness and levelness specifications.
5.Easy operation helps to reduce large quantity needs of labors.
Color : Optional
Vibrator detail : 50mm, 2m
Additional Information:
Delivery Time: 10 Days
Features:
Easy Portability
Steel cage design or rough site handling
Double oil seal protection
