Total Station #232565

digital theodolite

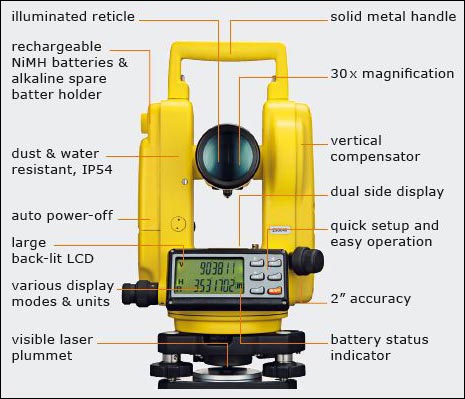

Digital Theodolite
  • Brand Name Roorkee Survey
  • Feature Affordable, Easy to use, Flexible
  • Condition Good
  • Product Type Digital Theodolite
  • Usage Used for various construction tasks to acquire accurate angle measurement, alignments.
  • Laser Plummet Laser class 1 in accordance with IEC 60825-1 resp. EN 60825-1
  • Place Of Origin Roorkee
  • Min. Order Quantity As per client requirement
With our domain expertise, we are engaged in manufacturing, exporting and supplying high quality Digital Theodolite. The Digital Theodolite that we offer is widely used for various construction tasks to acquire accurate angle measurement, alignments, grade work and short range leveling. The Digital Theodolite is offered with various display modes, hold and set zero for horizontal angle, a variation of measurement units, simple distance measurement via stadia lines make an easy operation with only six keys. Features Of Our Digital Theodolite
  • Affordable
  • Easy to use
  • Flexible

Specifications

Angle measurements (Hz, V)
Precision2"
Display resolution1 or 5"
Display unitsDEG (360o 00' 00"), GON (400), MIL (6400), V / %
Telescope
Magnification30x
Objective aperture45 mm (1.7 in)
Minimum focusing distance1.35 m (4.43 ft)
Stadia multiplication factor/constant100/0
Compensator
SystemAutomatic vertical compensator, User set On/Off
Working Range 3'
Operation
DisplayDouble side large character back-lit LCD
Keys6 one touch button functions
Laser plummet
TypeVisible laser point
Accuracy1.5 mm at 1.5 m instrument height
Environmental conditions
Operating temperature-20o C +50 C
Protection to dust and waterDust and water resistant, IP54
Weight
Weight including battery and tribrachv4.5 kg (9.9 lb)
Battery/Power Management
Type of batteryRechargeable NiMH, replacement alkaline battery pack
Operation period without laser plummet36 h
Laser Plummet : Laser class 1 in accordance with IEC 60825-1 resp. EN 60825-1

Additional Information:

Payment Terms : T/T

Delivery Time : Depend on Order

Chart


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Topcon Electronic Total Station

Topcon Electronic Total Station
  • Brand Name Roorkee Survey
  • Feature Precision engineered, excellent quality, reliable performance, compact size
  • Material High-grade material
  • Condition Good
  • Product Type Topcon Electronic Total Station
  • Place Of Origin Roorkee
  • Min. Order Quantity As per client requirement
We are offering topcon electronic total station. we are proud to introduce ourselves as one of the major exporting and supplying units of topcon electronic total station (gowin), based in india. Designed to perfection, the topcon electronic total station (gowin) provided by us is required in diverse industries for surveying purposes. Fabricated with the help of high-grade materials, these topcon electronic total stations (gowin) available with us have a sturdy structure and are durable at the same time. Moreover, the clients can avail from us, these quality-tested topcon electronic total stations (gowin) at industry leading prices. attributes
  • precision engineered
  • excellent quality
  • reliable performance
  • compact size
standard components
  • total station (with lens cap) x 1
  • plstic carrying case x 1
  • battery charger bc- l1w x 1
  • on board battery bt l1w x 1
  • plastic rain cover x 1
  • tool kit with case x 1
  • instructional manual x 1
specificationstelescopeobjective lens diameter45 mm (edm: 50mm)magnification30ximageerectfield of view1o30'resolving power3.0"min. Focus distance1.3 mangle measurementaccuracy*2"methodabsoluteminimum reading1" / 5"distance measurementdistance range1 prism : 2, 000 m3 prisms : 2, 700maccuracy+ (2mm + 2ppm x d**) m.s.emeasuring timefine measurement mode : 1.2 sec. (initial 4 sec.)coarse measurement mode : 0.7 sec.tracking measurement mode : 0.4 sec.atmospheric correction rangeyesprism constant correction rangeyessoftware and memoryon-board software functionsdata collection, resection, road, stakeout, area calculation height measurement, etc.internal memory24, 000 ptsinterfacers 232c (standard)displaydisplay unitgraphics lcd, 2 sideskeyboard24 alpha-numeric keytilt correction (automatic index)tilt sensor yescorrection methodliquid typecompensating range+ 3'level sensitivityplate level30" / 2mmcircular level10" / 2 mmoptical plummet telescopeimageerectmagnification 3xfocusing range0.5 to infinityfield of view3o and aboveothersprotection against water and dust***ip 54 (with bt-l1w battery)operating temperature- 20oc +50oc (-4of +122of)dimension336 (h) x 184 (w) x 172 (l) mmweight (with battery)4.8 kgon-board batterybt-l1w (lithium ion)battery chargerbc-l1wmaximum operating timeincluding distance measurement : 14 hoursangle measurement only : 60 hoursoutput voltage : dc 10v note : * standard deviation based on din18723 ** distance measurement based on mm *** based on the standard iec 60529

Additional Information:

Payment Terms : T/T

Delivery Time : Depend on Order

View Complete Details
Ask Latest Price & Details
South Total Station

South Total Station
  • Brand Name Roorkee Survey
  • Condition Good
  • Feature Superior waterproof, dust proof capabilities, Minimum reading 0.1 mm, Convenient data management system
  • Product Type South Total Station
  • Place Of Origin Roorkee
  • Min. Order Quantity As per client requirement
We are a renowned manufacturing, exporting, and supplying unit of South Total Station based in India. Designed for a smooth operation, the South Total Station offered by us comes with handy EDM head. Manufactured using advanced technology, these South Total Stations are provided with complete application programs as well as extended internal memory of maximum 17000 Points. Additionally, the South Total Stations provided by us are available with automatic correction of input parameters. Features
  • Superior waterproof and dust proof capabilities
  • Minimum reading 0.1 mm.
  • Convenient data management system

Additional Information:

Payment Terms : T/T

Delivery Time : Depend on Order

View Complete Details
Ask Latest Price & Details
Transit Theodolite

Transit Theodolite
  • Brand Name Roorkee Survey
  • Feature Optimum performance strength, Durability, Smooth operation, Easy handling
  • Material High quality steel, aluminum and iron.
  • Product Type Transit Theodolite
  • Place Of Origin Roorkee
  • Min. Order Quantity As per client requirement
High quality Transit Theodolite under the brand name Front line is offered by us in the national as well as international market. The Transit Theodolites that we offer are made up of German Model and is fabricated using high quality steel, aluminum and iron. These Transit Theodolites that we offer are further covered with guards and anti-corrosive components to ensure easy handling. The Transit Theodolite that we offer is widely used for surveying and measure horizontal & vertical angles & tachometer. Our Transit Theodolites Are demanded For
  • Optimum performance strength
  • Durability
  • Smooth operation
  • Easy handling

Additional Information:

Payment Terms : T/T

Delivery Time : Depend on Order

View Complete Details
Ask Latest Price & Details
