Our Product / Services
Our product range contains a wide range of Shrink Fitted Rolls
Product Overview

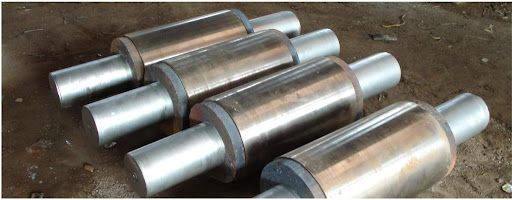

Shrink Fitted Rolls are high-performance, heavy-duty rolls commonly used in rolling mills, steel processing plants, and industrial machinery. Designed with a two-piece assembly – an outer sleeve shrink-fitted over an inner shaft or arbor – these rolls offer superior wear resistance, enhanced strength, and easy replaceability of worn-out parts. They are ideal for high-load and high-temperature operations in metal forming and other industrial applications.

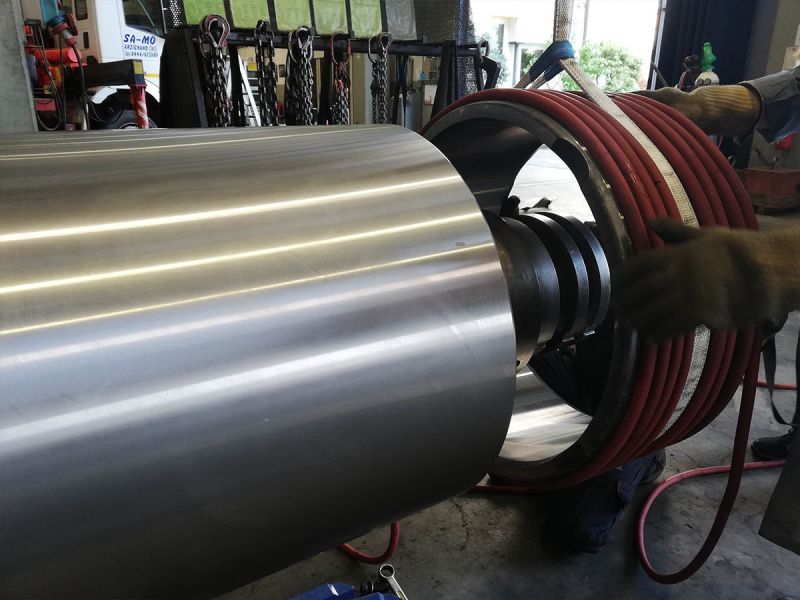

Shrink Fit Design: Outer roll sleeve is heated and fitted over the inner shaft, ensuring a tight and secure mechanical bond upon cooling.
Superior Strength: Allows for easy replacement of the outer sleeve without changing the entire roll assembly, reducing maintenance costs.
High Load Capacity: Perfect for applications involving heavy-duty material pressure and torque.
Precision Machined: Maintains exacting tolerances for consistent rolling performance.
Extended Roll Life: High-grade alloy steel sleeves resist wear, abrasion, and thermal fatigue.
| Material | Alloy Steel, Forged Steel, Cast Steel |
| Hardness | Up to 65 HRC (as per application) |
| Outer Diameter | 150 mm – 1000 mm |
| Length | Up to 3000 mm (custom sizes available) |
| Fitting Type | Shrink Fit (Hot Sleeve over Cold Shaft) |
| Application | Rolling Mills, Steel Re-Rolling, Tube Mills, Metal Processing |
Steel Rolling Mills
Hot/Cold Strip Rolling
Tube and Pipe Mills
Section Mills
Wire Rod and Bar Mills
Export Markets: Middle East, Southeast Asia, Africa, Europe, South America
Export Packing: Shrink fitted rolls are wrapped with anti-rust oil, covered in VCI plastic, and packed in fumigated wooden crates to ensure safe sea or air freight.
Decades of manufacturing expertise in precision-engineered rolls.
ISO-certified production and strict quality control.
Custom design and fitting available as per drawings or samples.
Timely delivery and global export support.
Share your drawing, application details, or dimensions, and we’ll provide a competitive quote tailored to your requirement.
Additional Information:
Payment Terms : L/C
Packaging Details : Packing Specifications Table
Packing Stage Material / Method Purpose
Surface Treatment Anti-rust oil coating Corrosion protection
Primary Packing VCI plastic wrap / Shrink wrap Moisture and dust protection
Cushioning Foam padding / Thermocol / Jute Impact absorption
Outer Packing Fumigated wooden crate / Plywood box Safe transit and stacking
Securing Steel straps / Waterproof tape Stability and weather protection
Delivery Time : 1 WEEK
