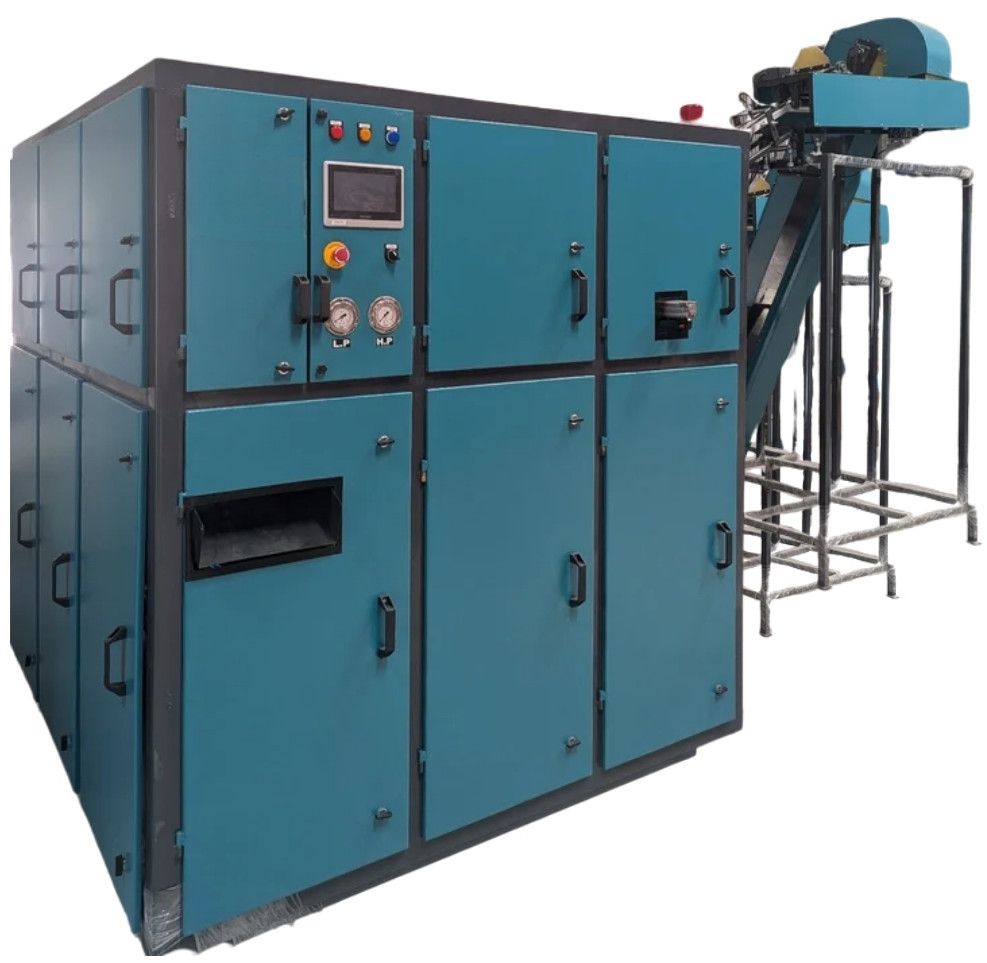

Automatic PET Blow Moulding Machine High Performance, User-Centric Design
Our Automatic PET Blow Moulding Machine is engineered to deliver precision, efficiency, and reliability for modern bottle manufacturing. Designed with advanced automation and robust construction, it ensures consistent production quality while minimizing operator intervention. Whether for small bottles or larger jars, this machine adapts seamlessly to diverse packaging needs.
Technical Specifications (Range-Based)
- Production Capacity: 2, 200 7, 200 bottles per hour (BPH), depending on cavity configuration and bottle size.
- Bottle Size Range: 50 ml 1, 000 ml (standard), with flexibility for jars up to 1 litre.
- Mould Cavities: 2 4 cavity options, enabling scalable output for different production volumes.
- Power Consumption: 12 20 kW, optimized for energy efficiency without compromising performance.
- Operating Pressure: Up to 25 bar, ensuring precise stretch-blow moulding for uniform bottle strength.
- Automation Grade: Fully Automatic, with servo-driven controls for accuracy and reduced downtime.
- Electrical Configuration: Three-phase, 50 Hz frequency, voltage range around 410 V.
- Machine Dimensions: Compact footprint (approx. 2485 mm x 810 mm x 2440 mm), designed for easy integration into existing production lines.
Key Features
- High-Speed Production: Capable of achieving up to 7, 200 BPH with 4-cavity servo models.
- Versatility: Supports a wide range of bottle sizes, from small beverage containers to larger jars.
- Energy Efficient: Optimized heating and blowing systems reduce overall power consumption.
- Durable Build: Constructed with high-quality mild steel and precision components for long service life.
- User-Friendly Operation: Intuitive controls and automatic sequences minimize operator training and intervention.
- Consistent Quality: Advanced stretch-blow technology ensures uniform wall thickness and clarity in PET bottles.
Applications
Ideal for industries such as:
- Packaged drinking water
- Carbonated beverages
- Edible oils
- Pharmaceuticals
- Household products
