Cnc And Lathe Machinery

We are leaders in the market for providing best range of Relief Turning Lathe, Vertical Turning Lathe, Vertical Turret Lathe KOLOMNA 1540, Used Vertical Turret Lathe WMW NILES DKZ2000 and Vtl Sedin 1m553-vertical Turret Lathe

Relief Turning Lathe

We are offering relief turning lathe.Swing dia. Of relief turning slide 250 mm centre height of relief turning slide 150 mm center height over bed 300 mm turning length 630 mm distance between centers 1000 mm swivel range of the relief support 360 cross slide swiveling 360 spindle bore of workspindle 27 mm tool quick draw-back 40 mm relief turning stroke, stepless within 4 steps 0 - 32 mm spindle speeds, stepless within 4 steps 1 - 400 umin. return movement speed stufenlos 2, 5 - 630 umin longitudinal feeds: 18, 0, 063 - 10 mmu thread metric 0, 4 - 225 mm thread inch 0, 016 - 9 thread module 0, 16 - 71 mm threads dp 200 - 0, 4 mm" flute pitch 100 - 20.000 mm 4-800" divisible no. Of pitch 2 - 48 main motor 380 v, 50hz 9 kw weight 6500 kg positioning control: cross slide travel x and y, each 40 mm cross slide adjustment speeds x and y, each 10 and 80 mmmin

View Complete Details

Ask Latest Price & Details

Vertical Turning Lathe

We are offering vertical turning lathe diameter of workpiece, mm 3200height of workpiece, mm 2000weight of workpiece, tons 50tdiameter of faceplate, mm 3200maximum stroke length of the slide, mm:- the top right-turning 1250- upper left is combined with. 1250the greatest moment of cutting the faceplate, 125 kn mspeed limits faceplate, rev min 0.66 .62.1the limits of vertical and horizontal feed, mm min0, 059 . 470the speed of movement of a slider and support, mm min 2715 main electric motor power (not less than) 70 kwoverall dimensions, mm: length 5100 - width 9300- height 7200- height above floor level 6080 mmweight of the machine with electrical equipment, 95.4 tonnes

View Complete Details

Ask Latest Price & Details

Vertical Turret Lathe Kolomna 1540

₹ 62.45 Lakh / Piece Get Latest Price

We are offering vertical turret lathe kolomna 1540 manufactured by kolomna (russia)max. Work piece diameter, mm 4000max. Work piece height, mm 2000chuck diameter, mm 4000max. Work piece weight, kg 50000max. Travel of vertical supports, mm 1250max. Cutting force on right support, kg 6300max. Cutting force on left support, kg 5000supports possible work angle, deg. -15.+40chuck speed, rpm 0, 52.48, 7movement of vertical and horizontal feeds, mmmin 0, 0059.470main electric motor power, kw 63machine overall dimensions, mm 5900 x 10100 x 7200height above floor level, mm 6000machine weight, kg app. 100000

View Complete Details

Ask Latest Price & Details

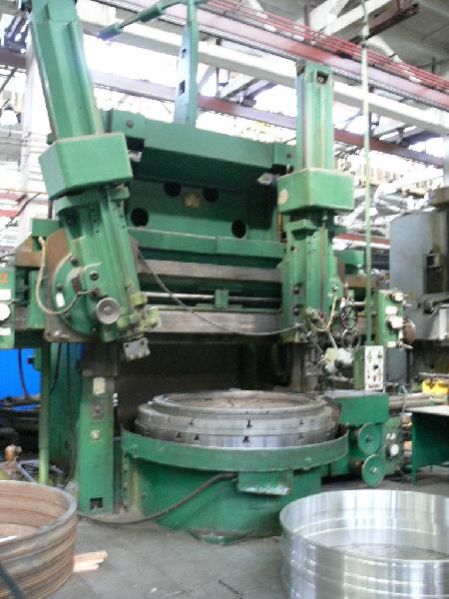

Used Vertical Turret Lathe WMW NILES DKZ2000

Number Of Flower vertical turret lathe
Brand Name WMW NILES
Condition perfect
After-Sales Service Provided no
Country of Origin Germany

Vertical turret lathe wmw niles dkz 2000specifications: max. Swing - 2000 mmtable diameter - 1800 mmmax. Height of workpiece - 1250 mmmax. Vert. Stroke of cutter - 1120 mmturning angle of supports - 30 degrees (both sides)max. Stroke of cutter in side support - 800 mmmax. Weight of workpiece - 10trpm of table - 1, 6-50feed range 0, 04-6, 3 mmminfast feed of support- 1800 mmminfast feed of traverse - 500 mmminmain drive capacity - 30 kwweight of machine - 30t

View Complete Details

Ask Latest Price & Details

Vtl Sedin 1m553-vertical Turret Lathe

We are offering vtl sedin 1m553-vertical turret lathe. Max of workpiece - 2300 mmd of table - 2100 mmh max of workpiece - 1600 mmmass max workpiece - 10.000 kgengine power - 4055 kwtoverall dimensions - 4345 4980 4480 mmmachine weight - 31.000 kg

View Complete Details

Ask Latest Price & Details

Relieving Lathe

We are offering relieving lathe.Swing dia. Of relief turning slide 250 mm centre height of relief turning slide 150 mm center height over bed 300 mm turning length 630 mm distance between centers 1000 mm swivel range of the relief support 360 cross slide swiveling 360 spindle bore of workspindle 27 mm tool quick draw-back 40 mm relief turning stroke, stepless within 4 steps 0 - 32 mm spindle speeds, stepless within 4 steps 1 - 400 umin. return movement speed stufenlos 2, 5 - 630 umin longitudinal feeds: 18, 0, 063 - 10 mmu thread metric 0, 4 - 225 mm thread inch 0, 016 - 9 thread module 0, 16 - 71 mm threads dp 200 - 0, 4 mm" flute pitch 100 - 20.000 mm 4-800" divisible no. Of pitch 2 - 48 main motor 380 v, 50hz 9 kw weight 6500 kg positioning control: cross slide travel x and y, each 40 mm cross slide adjustment speeds x and y, each 10 and 80 mmmin

View Complete Details

Ask Latest Price & Details
