S S Automation & Instrumentation Company

Maharashtra

It will measure the flow of gases, liquids and vapors.Integrated temperature sensor and pressure sensor compensation.No moving mechanical parts inside the vortex flow sensor, so high reliability and low maintenance.Can be made into high temperature flow meter.End Connection Option are Flange, Wafer, Thread Connection & Tri clamp.Applications Custody transfer of natural gas metering, Steam measurement, Flow of liquid suspensions, General water applications, Liquid chemicals & pharmaceuticals.

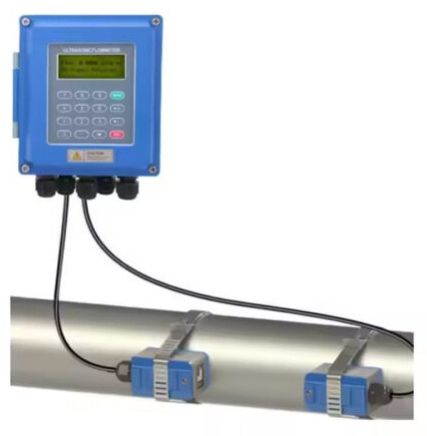

It will measure the liquid flow based on Transient Time Method.Clamp Up type sensor so no cutting of pipe needed.No moving mechanical parts so low maintenance.Bi direction Flow measurement.Suitable for almost all kind of clean pipe.Achieve to heat measurement by connecting the temperature transducer PT100.No pressure drop in flow measurement.Suitable for all kind of liquid having TSS less than 5%.Applications Chemical, petrochemical and process industries, Food and drug industries, Mining industries, Sugar, beverage industries, Water and waste water management, Pharmaceutical industries, Paper and pulp industries, Textiles Industries and many others.

Range : -100 to 600 C.Accuracy : 0.5%.Temperature : PT100.Power Supply : 24V DC.Output : RS485/ 4 to 20mA / 0 5 V DC.Display : With or Without.Response Time :

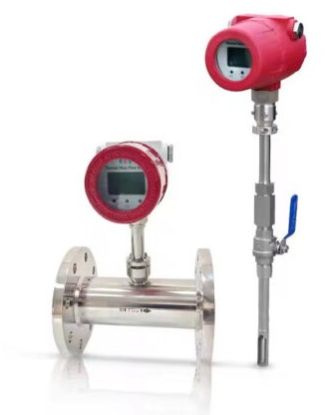

Measuring the mass flow or volume flow of gas/air. Do not need to do temperature and pressure compensation. Wide range: 0.5Nm/s100Nm/s for Air/ gas. Modularization PCB, easily repairable. Wide Flow range ratio. High anti-vibration performance. The sensor has no moving parts. Applications Aeration, Combustion Control, Compressed Air Flow measurement, Steel / Power Plant etc.

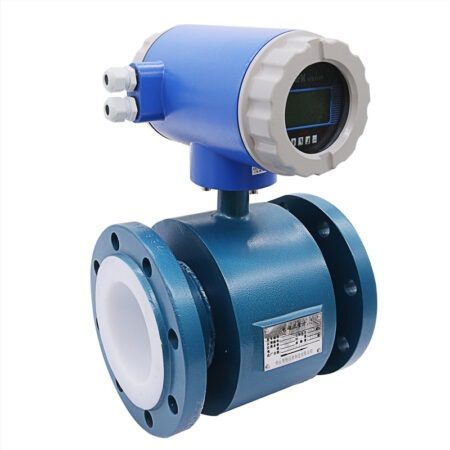

Based on Faradays law of electromagnetic induction. Integral or remote transmitter. No moving parts hence maintenance free. Wide range in nominal diameter. Insertion type magnetic flowmeter for cost effective. solution in bigger line size. Minimum conductivity of liquid 5 S/cm. Available line size up to 2000mm. Applications Electromagnetic flow meters are used in water treatment plants to measure treated and untreated sewage, process water, water and chemicals. Mining and mineral process industry applications include process water and process slurry flows and heavy media flows.

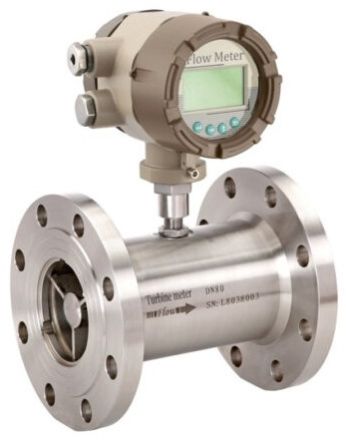

Line Size 4mm to 200mm for liquid. Meters with Sanitary End connections & Specifications. High Pressure up to 400 bar model available. Battery Operated option available. Measurement Ratio : 10:1(Std.), 20:1 (Optional). Media Viscosity Up to 100 CP. Applications Oil & Gas, Aerospace / Defense, PharmaBio Tech, Food & Beverage, Power Generation, Industrial & Municipal, Cryogenics.

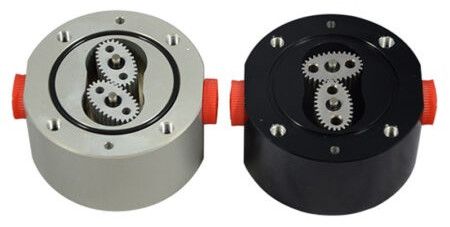

Upto 100mm Line Size available. No pipe conditioning needed. High Accuracy better than 0.5% of reading. Standard model upto 120 Degree C. Integral & Remote Display. Power Supply : 24VDC. High Pressure model available on request. MOC Aluunium or SS304. Application : Flow measurement for lubricating oil & Viscous liquid.

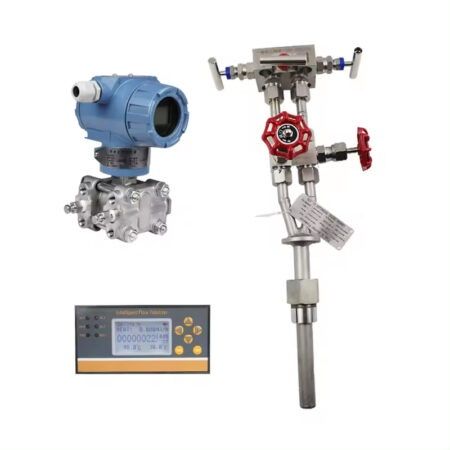

Type : Pitot Tube (DP Based). Media Liquid/Gas/Steam. Accuracy 2% of FS. High temperature , High pressure corrosion resistance. MOC Customizable as per requirement. Certification IBR Available on request Design Standard BS-1042 /ISO:5167.

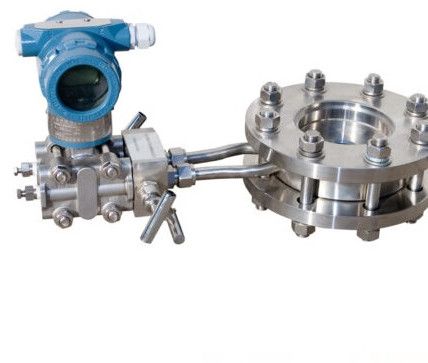

Type : Orifice/Venturi. Media Liquid/Gas/Steam. Accuracy 3 to 4% of FS. MOC SS304 / SS316L. Other Accessories available on request. Certification IBR Available on request Design Standard BS-1042 / ISO:5167.

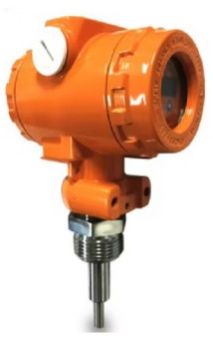

Type : Calorimetric Type / Thermal Dispersion. Power Supply : 24 V DC. Output : 4 to 20mA / PNP/NPN/Relay. Medium Temperature : -20 to 80C. Sensor MOC : SS316L. Protection : IP65 / IP67.

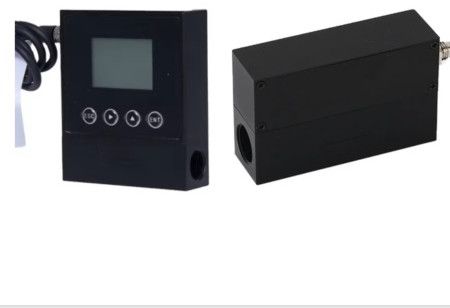

Media : Gas. Power Supply : 24V DC / 230v Ac. Output : 0 to 5 V or 4 to 20mA / RS485. Accuracy : 1.5% of FS. Temperature : Upto 65 C. Pressure : Consult Factory. Connection : 6mm Ferrule Connection available.

Medium : Water, Sewage, Oil etc. Type : Ordinary / Corrosive. Float Material : ABS, SS304, SS316. Cable Material : Nylon, SS304. Range : 1 to 30 meters. Pressure : 1 bar (Customizable). Protection : IP 65 Rated Current & Voltage.

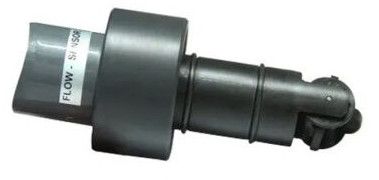

Setting Range : 0.5 to 5 m/S (Liquid). Power Supply : 24 V DC / 230v AC. Response Time : 1 sec. Output : 4 to 20mA / RS485. Medium Temperature : -20 to 120C. MOC : SS or PP. Protection : IP65. Download Catalogue

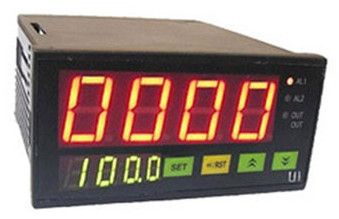

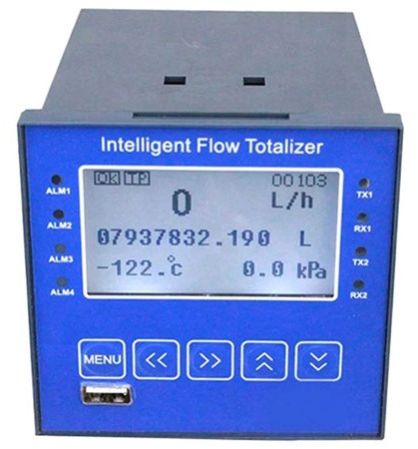

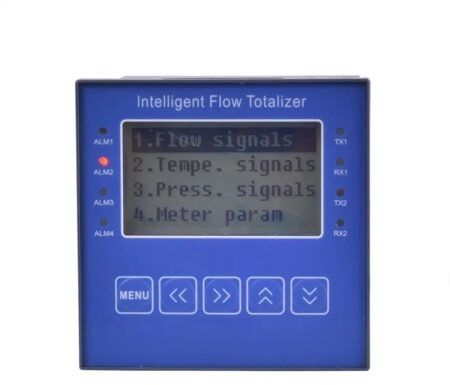

Input : 0 to 5v DC, 4 to 20mA, Pulse, RTD, etc. Sensor Power Supply : 12 or 24v DC. Power Supply : 24V DC / 110 to 230v AC. Output : 4 to 20mA / RS485 / Relay. Accuracy : 0.5% of FS. Temperature : Up to 55 C. Display Type : LED, LCD or TFT. Mounting : Field / Panel Type. Enclose : ABS / Die-Cast Alumunium.

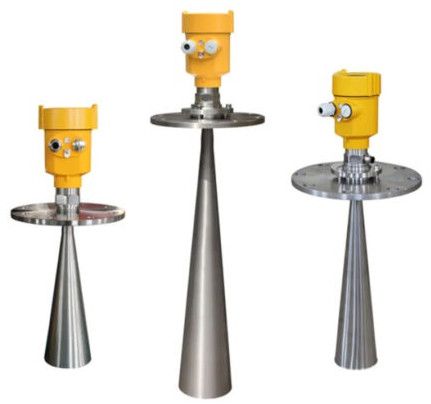

Type: Guided Wave/High Frequency. Media: Liquid/Corrosive Liquid/ Solid Powder. Range: models available from 10meter to 80meters. Version: Cable, Rod, Horn, Water Drop Type. Accuracy: (+/-) 1mm to 4mm. Temperature: -40 to 130 C. Frequency Range: 100MHz .1.8GHz. Protection: IP67 / Ex proof. Output: 4 to 20mA / HART

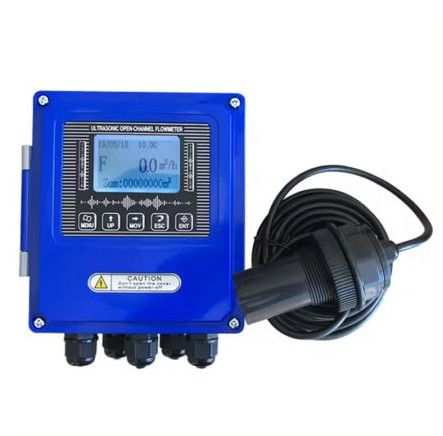

Type : 2 Wire / 3 Wire Type with Integral or Remote. Range : 1 to 30 meters. Output : 4 to 20mA/ RS485/ HART/ Relay. Material : ABS / Cast Iron. Supply : 24 V DC. Display : LCD / LED / No Display. Protection : IP 65 / Ex Proof.

Material - Plastic Size - Different available Shape - Rectangular Function - measure and monitor operational performance Application - Commercial

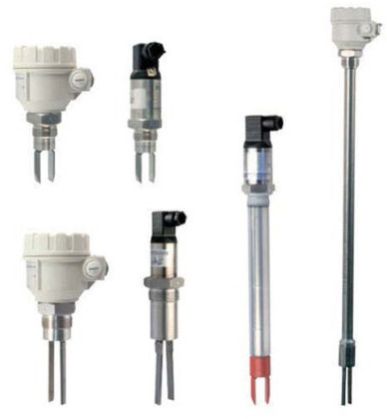

Type : RF Admittance/Tuning Fork/Rotary Paddle. Application : Liquid/Dust particles/Powder. Process Connection : Thread/Flange(optional). Power supply : 220VAC or 24 VDC Consult factory for detail description.

Material - Plastic Size - Different available Shape - Rectangular Function - measure and monitor operational performance Application - Commercial

Material - Plastic Size - Different available Shape - Rectangular Function - measure and monitor operational performance Application - Commercial

Material - Plastic Size - Different available Shape - Rectangular Function - measure and monitor operational performance Application - Commercial

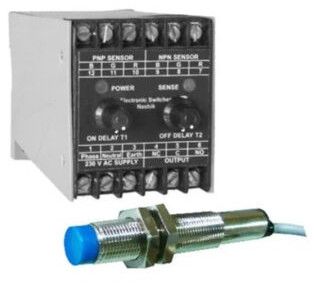

Type : Potentiometric Start Up Delay, Frequency, Hysteresis / Display. LED Indication : Power, Pulse, Replay. Switching : NO/P/NC Relay Mode 8 Amp. Output : 4 to 20mA. Power Supply : 110 -230v AC / 24v DC.

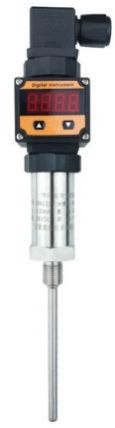

Range : -100 to 600 C. Accuracy : 0.5%. Temperature : PT100. Power Supply : 24V DC. Output : RS485/ 4 to 20mA / 0 5 V DC. Display : With or Without. Response Time :

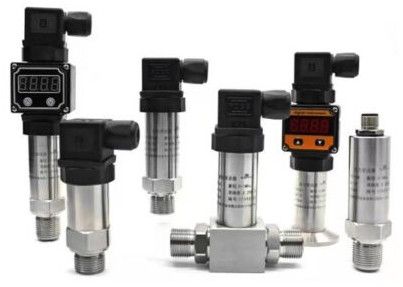

Range : Confirm at the time of order. Output : 4 to 20mA/ 0 5 V/ RS485. Accuracy : 0.5%. Power Supply : 24 V DC. Operating Temperature : -40 to 80 C. Sensor : SS316L. Display : With or Without. Protection : IP 65 / Ex Proof. Housing : Model Cast Aluminum.

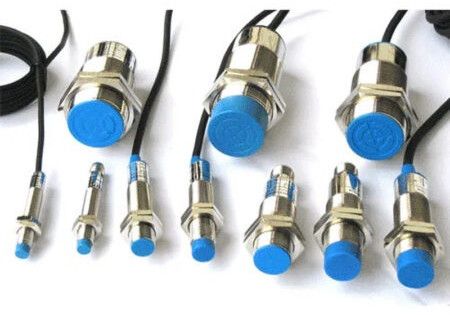

Type: Inductive / Magnetic. Sensing Range : 1mm to 50mm. Accuracy : (+/-) 5%. Temperature : -40 to 100 C. Protection : IP67. Output : PNP / NPN.

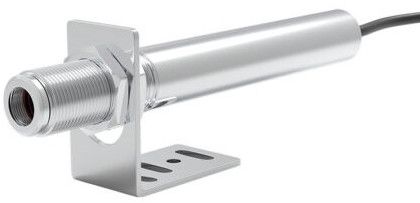

Type : IR Based. Application : Temperature Measurement. Process Connection : Thread/Flange(optional). Power supply : 220VAC or 24 VDC. Range : Upto 1600 Degree C. Output : 4 to 20mA.
