We are offering our clients a wide range of Polyester Bag Slings that find application in manufacturing and other related industries. These Polyester Bag Slings offered in various shapes and sizes, have various lifting capacities. Renowned for reliability and non-corrosive nature, these Polyester Bag Slings can be custom designed as per the clients specific requirements.

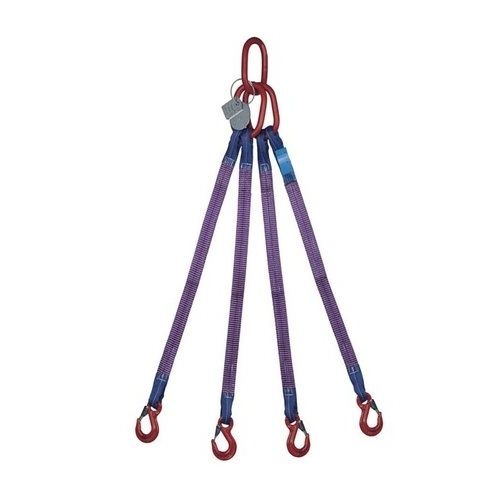

Polyester webbing slings, multi leg polyester slings are made of using either flat webbing slings straps or endless type round slings as per specific requirements depending upon uses and safe working loads. A set of polyester flat webbing slings, multi leg polyester slings includes master link, auxiliary links and different end fittings like eye hooks, swivel hooks, D-shackles or Bow- shackles as per required. All these fittings are made of quenched and tempered alloy steel grade-80 material. Flat slings are stitched directly to the metal ring while endless round slings are attached with connecting links. Anti-abrasive and Anti-cutting protection sleeves can be fitted as per specific requirements. Features Made of either flat webbing or endless round slings Multi bridle available as 2 leg, 3 leg and four leg High strength to weight ratio Colour coded for identification Anti-abrasion sleeves and anti cutting sleeves protection Different end fittings available Only hooks and link are metal components. Conform fully to European Standard EN 1492-2. Safe Working Load Angles The Safe Working Load values quoted in the tables have been rated using the uniform load method for a maximum angle for each leg of 45 degrees from the vertical, as shown in the diagrams. Slings may be rated at greater angles if required, please contact SANKALP for details. The textile elements of these Slings have a minimum safety factor of 7:1 and the metal elements a safety factor of 4:1

Sankalp manufactures flat webbing slings from polyester webbing which are most popular and versatile of the slings. These slings consist of webbing which is either sewn to each other at end or woven endless without sewn. These slings are aspecially used in lifting pipe bundles which are manufactured for export purposes .It is the most economical, safe & efficient mode of lifting.

Details :

• 25mm up to 300mm widths
• 500kg up to 12000kg
• Available with or without Woven tonnage stripes These slings have the following advantages:
• Low weight, therefore offering easy handling
• Protection against hand injuries
• Protection against cargo surface damage
• Highly flexible and adaptable to given shapes
• UV-resistant, eliminating material ageing or brittlement
• Heat resistant up to 100^oC
• Water - resistant fabric, preventing frost damage (down to -40^oC)
• Colour coded as per latest EN standard
• Soft sewn eyes (Flat, Becket or Reverse eyes)
• Low elongation

Additional Information:

• Pay Mode Terms- T/T (Bank Transfer) Port of
• Dispatch: Mumbai Port
• Production Capacity- 300ton/month Delivery Time- 10 days.

An exclusive range of Web Slings offered are an robust tension system used for trailers trucks, light & heavy lorries, and air crafts. These slings provide safer and faster unlocking mechanism and also ensure complete locking of strap in position. Available in customized dimensions, these are highly efficient, durable and precisely engineered.

Features : Low maintenance High performance

Additional Information:

• Port of Dispatch- mumbai Production
• Capacity- 2000pcs/month
• Delivery Time- in 10 days

Polyester Webbing Sling is woven with machine for one time, and processed in the different sewing methods, it can be used the strengthened eye on its ends to improve its strength. Its standard tonnage can be distinguished through the color, and the wide and smooth loading surface especially applies to the articles with the soft surface and if necessary, the protective sleeve which is wider than sling can be used. Because of no contacting metal, it causes hardly damage to the loaded article surface processed with lacquer. Flat woven webbing sling made from polyester can not cause sparkle if it is used under the hazardous and explosive environment. In addition, its low extending property can decrease the bound of load in the courses of lifting, and avoid damage from the shocking strength. At the same time, make codes for the dyeing colors of sling and suggest the simple and correct methods for loading, which is well convenient for our lifting user. We recommend wear sleeves where sharp edges occur Colour coded according to tonnage Factor of Safety 4:1 TO 8:1  The maximum Elongation permitted is only 3% at Wll Temp.

Range: -40C to + 100C

• Polyester can deal with weaker acids and oil and grease.
• Individual serial number is printed on a blue label along with length, swl, mode factors.
• UV-resistant, helps prolong the life of the webbing

Manufactured as per EN Standard, IS Standard  and ASME Standard Mechanical consideration Determine weight of the load. Select sling having suitable characteristics for the type of load, hitch and environment. Slings shall not be loaded in excess of the rated capacity. Consideration should be given to sling angles, which are discussed below. Slings with fittings used in a choker hitch shall be of sufficient length to assure that the choking action is on the webbing. Slings used in a basket hitch shall have the load balanced to prevent slippage. Slings shall not be dragged on.

Polyester endless round slings are popular for their versatility and strength. They can be used in choker, vertical and basket hitch applications. Polyester endless round slings feature a continuous loop. The design of the continuous loop allows the load contact point to change with each application. The alternating of load points helps extend the life of the round endless sling. Sankalp  polyester endless slings are constructed from multiple fiber polyester yarns enclosed in a tough two-ply woven tubular polyester jacket. This jacket protects the inner lifting fibers from wear, abrasion and exposure to other environmental conditions. All polyester endless round slings are color coated to indicated load capacity and come with a durable tag for easy identification. Sankalp Endless Round Slings are manufactured in the INDIA and meet or exceed all current EN 1492-2 and ASME B30.9 standards. We offer endless polyester round slings in various sizes and rating capacities. Round Sling Features Saves time, money and promotes safety in the workplace The most flexible sling available The sling conforms to shape of load, flattens and grabs the load securely. Hook and load contact points can be continually rotated to extend the service lift of the sling Longer sling life means cost reduction in sling purchases The load bearing fibre never comes into contact with the load Protection to the load from sling damage Seamless cover, no edges to wear out Wide variety of sling lengths and load capacities Adapts to all types, sizes, and load configurations Lightweight, easy to rig, store, and clean Excellent resistance to ultra-violet light, rot and mildew No loss of strength in water Only 3% elongation on Polyester Rounds and only 1% on high performance rounds How they are made The round slings load-bearing core is produced from high tenacity polyester yarn wound continuously to provide maximum strength with minimum

Drum Handling Slings provide an easy, inexpensive way to handle steel drums. Available in two styles to suit your needs for handling drums in the vertical or horizontal position.

Polyester eye and eye round slings are strong and versatile. They work exceptionally well in choker, vertical or basket hitches. Sankalp Polyester Eye and Eye round slings feature a jacket that covers the sling body forming a loop, or eyes, at each end. This construction makes polyester eye and eye round slings ideal for applications that expose the sling to additional wear and tear. Sankalp polyester eye and eye round slings are made with strands of polyester yarn enclosed in a tough two-ply woven tubular polyester jacket. Sankalp jacket provides an additional layer of protection against abrasion. All round slings are color coated to indicated load capacity. They come with a durable tag for easy identification. Sankalp Polyester Eye and Eye Round Slings are manufactured in EN 1492-2 And ASME B30.9 standards. Polyester Eye and eye round slings are available in many strengths and sizes. EYE AND EYE SLINGS An eye (or loop) at each end makes this type of sling ideal for use in a basket hitch. This sling type can be used in a choker hitch by passing one eye around the load and through the opposite eye. Permits the use of wide slings on small crane hooks. On multi-ply slings, the bodies are stitched full length. Turend Eye SLINGS On slings with turned eye construction, the eye openings are on the same plane as the flat webbing. Turned eye slings with tapered eyes are well adapted for both basket and choker hitches.

Product Features: Flexible sling ·Soft cover wont tear painted or polished surfaces or cut hands.Lightweight and pliable for easy rigging and storage.Resistant to acids, ultra violet rays, rot and mildew. Heat resistant upto 194 ^oF. Red striped, white core yarns allow for easy identification of damaged slings. Endless Round Sling can be rotated to extend wear life.

Additional Information: Port of Dispatch: Mumbai Port.

Production Capacity: 300 ton/month Delivery.

These specialty web make for easy and secure lifting of your gas bottle cylinders into position using cranes, hoists, forklifts, etc. Two standard versions are available.
