Powder Mixers

We offer a complete product range of Ribbon Type Mixer Machine

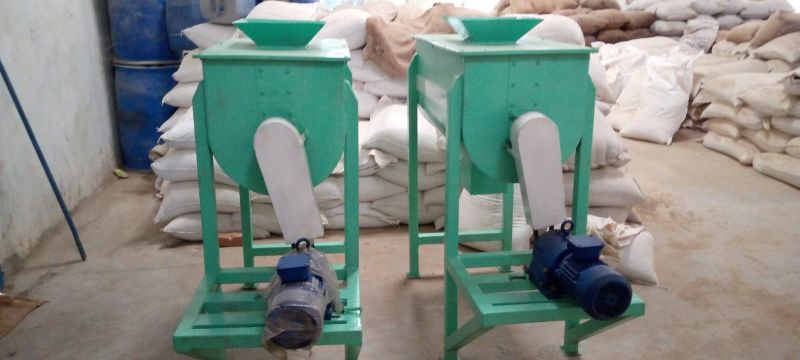

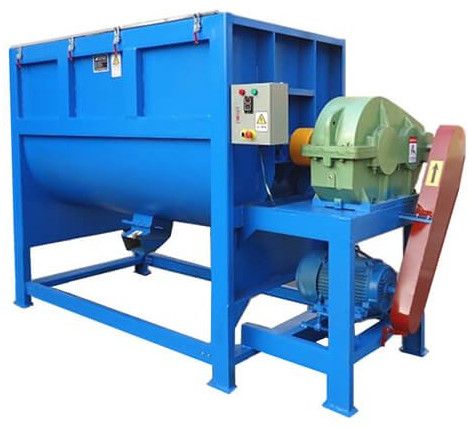

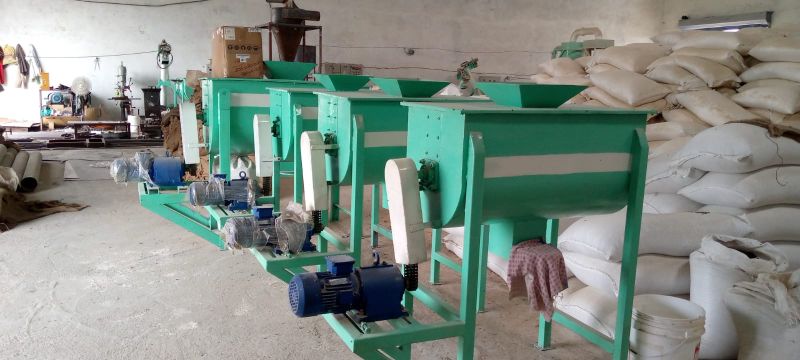

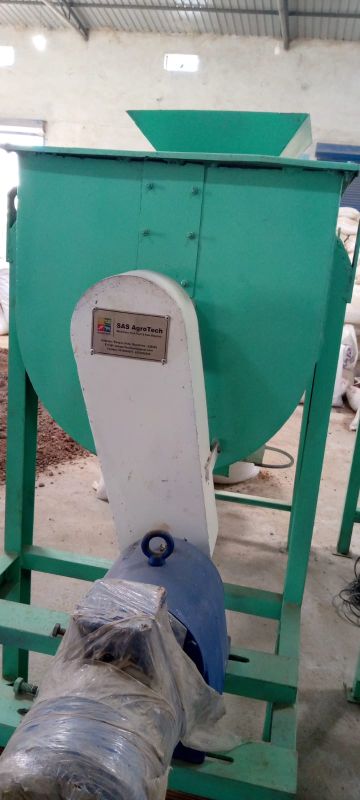

Ribbon Type Mixer Machine

₹ 75,000 / piece Get Latest Price

Min. Order (MOQ) 1 piece
Model Number SAS RB75
Power 1Kw
Brand Name SAS Agrotech
Material Stainless Steel
Driven Type Electric
Condition New
Automatic Grade Semi Automatic
Application Industrial
Feature Sturdy Design, Stable Performance, High Performance
Country of Origin India
Capacity 50-2000 Kg/hr
After-Sales Service Provided Yes
Color HAMMER TONE BLUE
Certification ISI Certified
Voltage 440V, 380V
Weight 100-1000kg
Frequency 50HZ
Warranty 1year
Mixer Type RIBBON BLENDER
Packaging Type Silver
Total Carbohydrate 1year
Number Of Flower Ribbon Blender

A ribbon blender is an industrial mixing machine that uses a set of helical ribbons mounted on a horizontal shaft inside a U-shaped trough to mix dry powders, granules, and low-viscosity pastes. The ribbons rotate to move materials both radially and laterally, creating a triple mixing action that ensures a fast and efficient homogeneous blend.

Trough: A horizontal, U-shaped shell that contains the materials to be mixed.
Ribbon agitator: A set of inner and outer helical ribbons that rotate and move the material in opposite directions. This creates a convective mixing pattern, folding the material back and forth.
Shaft: A horizontal shaft running through the trough that the ribbons are mounted on.
Motor and gearbox: Provide the power to rotate the shaft and agitator.
Discharge valve: A valve, often located at the bottom of the trough, for emptying the blended material

Additional Information:

Payment Terms : T/T

Packaging Details : NORMAL

Delivery Time : READY STOCK
