Our Products

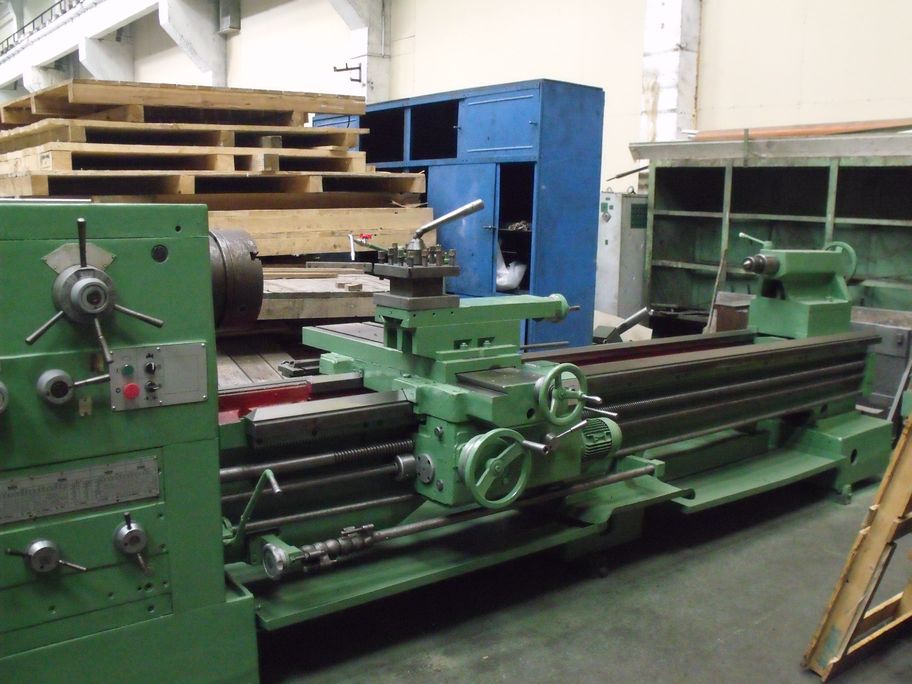

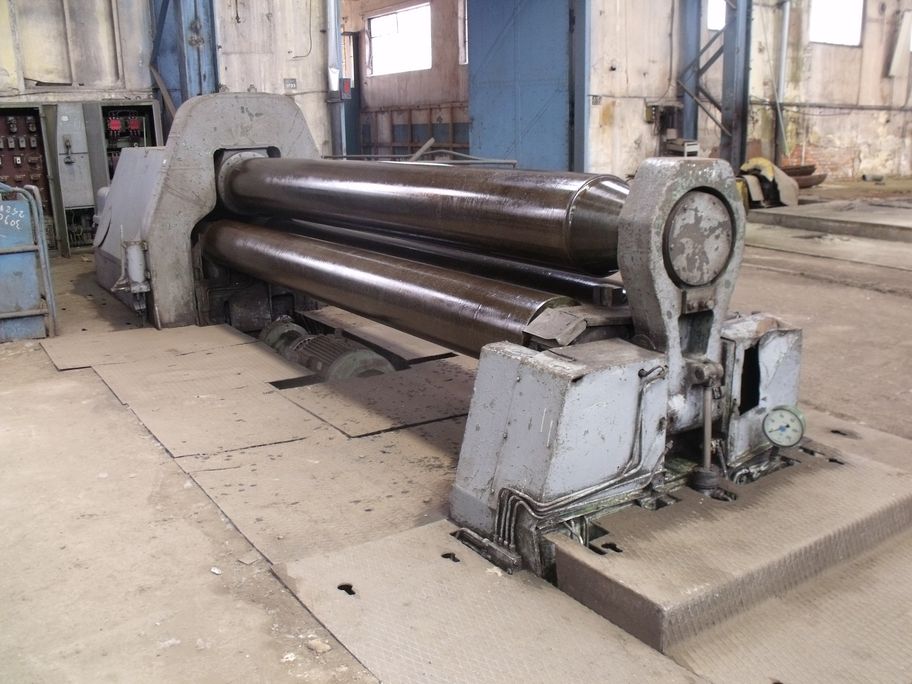

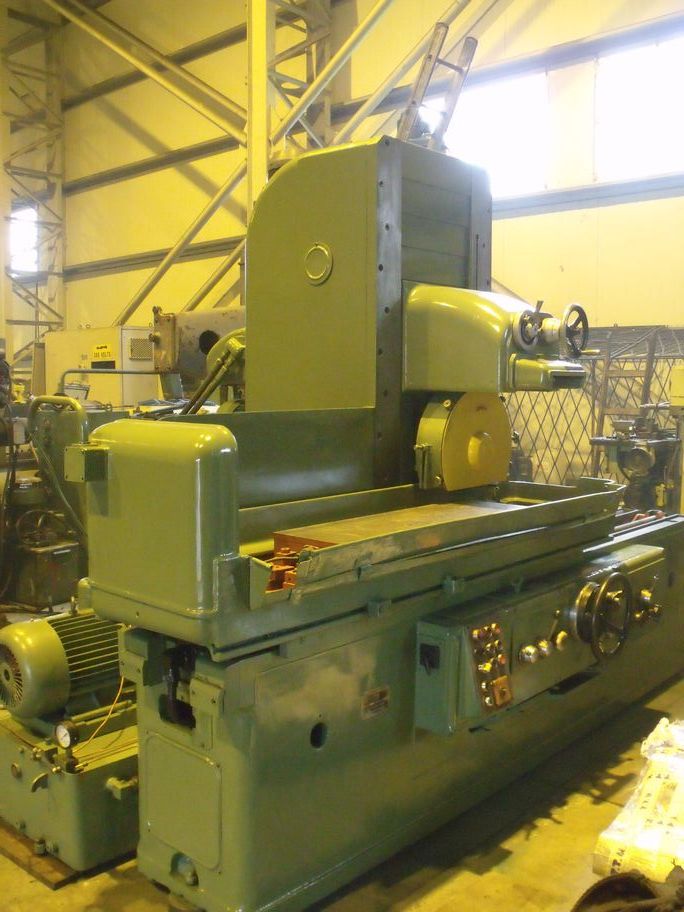

Leading Manufacturer, Supplier & Retailer of Sheet Metal Rolling Machine Type Ubbdk 20x4000, Lathe Machines Type Sna 800x3000 Retrofitted and Surface Grinding Machine Type 3b722.

Universal Grinding Machine

We are offering universal grinding machine type ru 350 x 1000: grinding capacity: -centres height 175 mm-maximum diameter of external grinding 350 mm-minimum diameter of internal grinding 10 mm-maximum grinding length 1000 mm-maximum weight of the piece between centres 300 kgmain spindle taper: morse 4 total power: 11 kw.

View Complete Details

Ask Latest Price & Details

Radial Drilling Machine

We are offering radial drilling machine type gr-616 -maximum drilling steel 60 mm-quill travel 320 mm-main spindle taper morse 5-main spindle speed range 360 - 1600 rpm-working feed range 0, 04 - 0, 63 mmrev.-carriage travel along arm 1250 mm

View Complete Details

Ask Latest Price & Details

Facing Lathe Machine Type Dp800 Wmw

We are offering facing lathe machine type dp800 wmw- retrofitted -max working diameter in gap 1250 mmmax. Swing over bed 800 mmmax swing over saddle 630 mmmax distance cross slide to faceplate 400 mmmax weight of work 800 kgdiameter of the face plate 800 mmdiameter of work spindle in the front bearing 140 mmwidth of the body 500 mmconnected load 18 kwweight 4700 kg

View Complete Details

Ask Latest Price & Details

Crankshaft Grinding Machine

We are offering crankshaft grinding machine.Main technical characteristics: distance between chucks 1100 mm max.swing over table 500 mm max. Weight between centerschucks 500 kg max. Excentricity 130 mmgrinding wheel for cylindrical grinding 900x305x32 mm net weight, approx. 6500 kg

View Complete Details

Ask Latest Price & Details

Radial Drilling Machine

We are offering radial drilling machine type rfh 751750 csepel.Max. Drilling diameter in steel 75 mm main spindle taper: morse 5 min.max. Distance of the main spindle from the column: 400 mm 1750 mm surface area table 2050 x 1100 mmmain spindle travel: 380 mm vertical adjustment of the arm: 950 mmmain spindle speeds range: 19 - 1900 rpm main spindle drive: 11 kwmachine weight cca. 7.000 kg

View Complete Details

Ask Latest Price & Details

Gear Shaper Machine Type 5b150

We are offering gear shaper machine type 5b150diameter: 800 mmmax module: 12, maxmax gear dia: 800mmmax module of gears: 12max gear width: 160 mmtable dia: 800 mmdistance between table surface and spindle nose: 155 to 355 mmmax spindle stroke: 200 mmdistance between table axis and spindle axis: 0 to 700 mmspindle double strokes range: 33-212minrotary feed range at 100 mm shaping tool dia: 0, 2-1, 5 mmdb str table fast stroke: 200 mmmintable turning speed: 1, 7 rpmmain drive power: 10 kwmachine weight: 10 200 kg.

View Complete Details

Ask Latest Price & Details

Drive Pipe Lathe Type Sbf 12 1/4

We are offering drive pipe lathes type sbf 12 14 ( 800 )sarorotating diameter -over guideways.800 mm-over slides.500mm- in gap.1060mmdistance between centres.1500 mmmain spindle bore .311.5 mmcross slide stroke.400 mmmax. Stroke of toolholder slide.400 mmquill diameter of tailstock.100mmquill stroke.300mmmain driving motor power.22 kwweight.6.600 kg

View Complete Details

Ask Latest Price & Details
