Our Products
Our offered Product range includes Dricon Penta Head Microscope, Medical Microscope, Binocular Research Microscope, Binocular Laboratory Microscope and dricon microscope.
TECHNICAL SPECIFICATION
| MECHANICAL BODY | : | Single mold sturdy stand withanti rust materials. Extended base for better stability. |

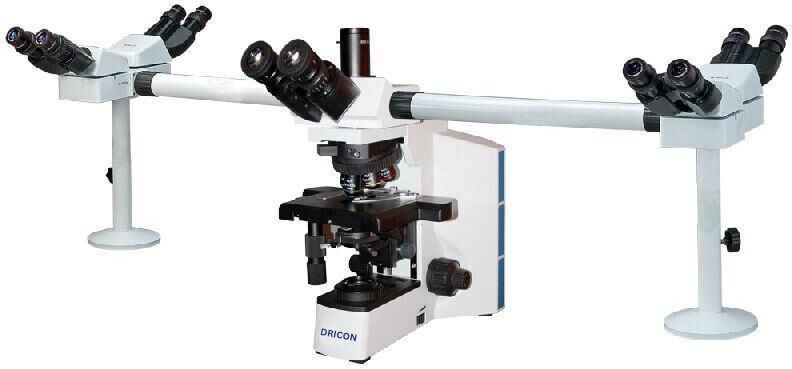

| TRINOCULAR &BINOCULAROBSERVATION HEADS (FIVE) | : | Trinocular head with observation head inclined at 30o rotatable at 360o. (ONE SET) Binocular observation heads inclined at 30o rotatable at 360o fixed on adjustable stands (FOUR SET). Diopter adjustment ring on ocular provides correction for eye acuity. C-mount and video port adapter provided for photography. |
| OPTICAL SYSTEM | : | Infinity corrected system |
| POINTER | : | Green LED pointer, Brightness adjustable. |
| EYEPIECES | : | Wide Field Eyepieces 10x (PAIRED) FOV 25mmfocusable. |
| NOSEPIECE | : | Sextuple Reverse angle nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. |
| OBJECTIVES | : | Plan Achromatic 2x, Plan Achromatic 4x/0.12, Plan Achromatic 10x/0.25, Plan Achromatic 20x/0.40, Plan Achromatic 40x (SL)/ 0.65 spring, Plan Achromatic 100x/ 1.25 (SL) Oil |
| MECHANICAL STAGE | : | Right handed double plate Mechanical stage Size 200mmX160mm, supported on ball bearing guideways and having low positioned ceramic-coated co-axial controls for stage movement. Double slide specimen holder provided. |
| CONDENSER | : | Sub stage Abbe condenser NA 0.9/1.25 having a spherical lens, adjustable iris diaphragm, swing out filter holder and top lens. |
| FOCUSING | : | Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm. |
| ILLUMINATION | : | Incorporates 12V/100W halogen lamp with adjustable brightness and Power supply. Collector in base fitted with iris diaphragm for KOHLER's light system. |
| POWER | : | 100-240 V AC 50-60 HZ as per ISO & CE standards, |
| STANDARD ACCESSORIES | : | Blue filter, Dust Cover, Operating Manual, bulb and fuge, 2 sets of objectives, STYRO FOAM Molded pack, power cord, immersion oil 8cc. |
| OPTIONAL ACCESSORIES | : | Polarizing attachment, |
With Graduated Slow Motion Mechanical Stage, eye piece 10x, objectives 10x 45x (SL) 100x Oil immersion
Additional Information:
Payment Terms : T/T
Delivery Time : 3 days
product highlights sturdy metal body with all glass optics.smps based power supply ie compatiable for wide voltage range from 100v to 220 volts. Ergonomic design with clarity optics. Eight magnification configurations: 40x, 60x, 100x, 150x, 400x, 600x, 1000x, 1500x. High quality clarity glass optics with anti-fungus, anti reflection coating. All objectives are perfectly para-focused with no image shift thus reproducing sharp and clear images. Professional brand new microscope, used by doctors, pathologists, vets, students, researchers. High quallity quadruple nosepiece with positive click stops. Movable abbe condenser 1.25na, adjustable iris diaphragm. Slide and objective protection via upward stage stopper. Dual side focusing controls. Coarse and fine focusing controls for precise focusing of the specimen. Led illumination standard (halogen illumination on request) quality tested, body parts made of aluminium & solid brass for rugged durability. Technical specifications observation head binocular observation head inclined at 45, rotateable through 360, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale. Main body all parts die casted to provide long life & good mechanical strength. Focussing precise and separate coarse and fine focusing controls with ergonomically placed knobs on both directions. Magnification configurations: 40x, 60x, 100x, 150x, 400x, 600x, 1000x, 1500x eyepiece wide field 10x, 15x pairs objectives din objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L. ). Nosepiece quadruple nosepiece revolves on ball bearing. Mechanical stage co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation. Condenser abbe condenser n. A. 1. 25 having aspherical lens, adjustable iris diaphragm. Illumination in built white bright led illumination with smps based power supply 100-220v.
Additional Information:
Payment Terms : T/T
Dricon Microscope Manufacturer
DRICON Advanced Microscope
+91 98962 62087 / 89018 27507
sales@
Additional Information:
Delivery Time : Within 24 hours
Mr.Tushank Sharma (Scientific System)
4952, Cross Road No.09, Near Hotel M.R. Regency, Sadar Bazar, Ambala, Haryana - 133001, India
