6005 Model is suitable for highly precised Temperature measurement and controlling application like Transformer, Motor and Industrial thermal process. Innovative design made self powered instrument so that doesn't required external power source for its operation. Fully sealed liquid in metal expansion served free from Trimming or other periodic adjustments at site. Accurate temperature measurement made even with variation in ambient temperature. Large dial with pointer enabled to read the temperature form longer distance. Also facilitate Maximum reading pointer which can be resettable. Sensing probe and capillary arrangement makes indicator to keep different location from temperature sensing point (up to 25 meters). User application can be managed using micro switches provided with adjustable set points. Temperature Hot spot measurement has been simulated inside the instrument using CT current (in case of WTI). SCADA interface and remote monitor is made easy with hybrid models. Instrument build with Aluminum pressure die cast enclosure with suitable IP rating for outdoor application.

Dial Size: Round shaped 150mm (6 inches)Dial angular Sweep: Angle 270Dial Graduation: 2CAccuracy Class: 1 5% of FSDCT Current: Up to 5A for Temperature Hot Spot simulation in case of WTIMax. No. of Switches: 2 SwitchesSwitching Range: 15% - 85% of Measuring range

Dial Size: Segmented 115mmDial angular Sweep: Angle 60Dial Graduation: 2CAccuracy Class: 1 5% of FSDCT Current: Up to 5A for Temperature Hot Spot simulation in case of WTIMax. No. of Switches: 2 SwitchesSwitching Range: 15% - 85% of Measuring rangeSwitch Differential: 1C to 5C (3C2C) Fixed

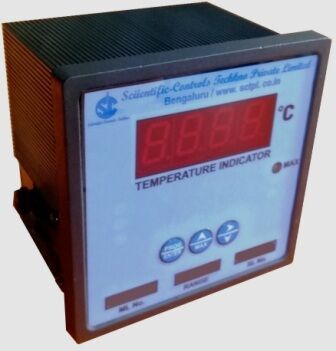

Remote Temperature Indicator Operate on Input 4mA - 20mA signal and Output 4 Sets of 4mA - 20mA .Indicates 4Digit, 7 Segment display and used RS485 Modbus for Communication.

2wire Transmitter input. 4digit, 7segment display. 2 Relays. 4sets, 4-20 mA output. RS485 Modbus Communication.

Digital repeater 440ohms to 2.8K ohms potentiometer signal.4digit, 7segment display.2 Relays.4sets, 4-20 mA output and RS485 Modbus Communication

Input: Resistance per tap inputDisplay: 4 Digit, 7 Segment displayNumber of Relays: 2Output: 4 Sets, 4mA - 20 mA outputCommunication: RS485 Modbus Communication

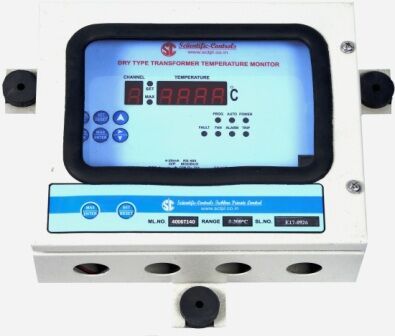

Input: 4-Channel PT100 signal inputDisplay: 4+1 Digit, 7 Segment DisplayOutput: 4mA - 20mA signal outputNumber of Relays: 4Communication: RS485 Modbus Communication

Input: 8-Channel PT100 signal inputDisplay: 4+1 Digit 7 Segment displayOutput: 4mA - 20 mA signal outputNumber of Relays: 3

Input: PT100 signal inputOutput: Dual 4mA - 20 mA signal outputCommunication: RS485 Modbus Communication

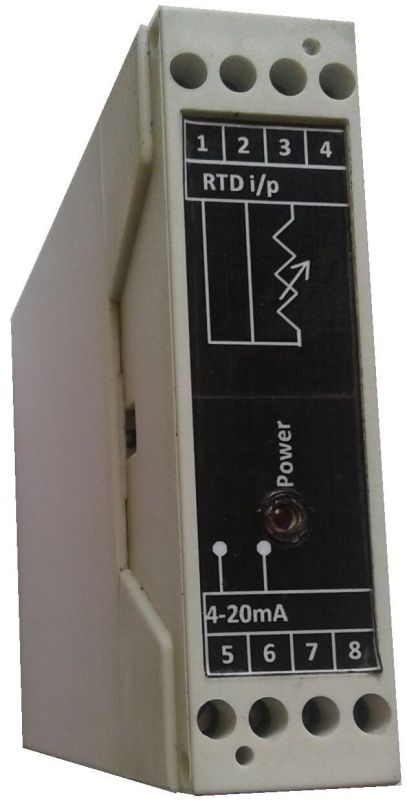

Input: PT100 signal inputOutput: 4mA - 20mA signal outputDC Supply: 24V DC supply

We provide a modern Standard Size 4004 Tap Position Indicator with an Indicator Arrow design, packaged in a convenient box for easy installation. Ideal for manufacturers seeking a user-friendly solution. Enhance your products with this sleek and efficient indicator to streamline operations.
