Our Products
Pressing Machine
2 Products availableMachines And Equipments
2 Products availableLamination Machine
2 Products availableWe offer the best product range of Paper Bag Making Machine, Kraft Paper bag making machine, double profile paper corrugation machine, Oblique Type Paper Corrugation Machine and Vertical Type Paper Corrugation Machine.
Paper Bags can be used in hotels, laundries, cloth, garments, saris, gold, diamonds, silver, watch, pearls show rooms, temples, super markets, shopping malls, book / fancy/ gift shops, pharmacy shops and in pharma industries to pack pharma especially to carry dry items.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wrapped in BOPP Film and Packed in Export worthy Wooden Boxes
Delivery Time : 30-45 days
Technical Specifications
| Machine Model | JUNIOR | SENIOR 1 | SENIOR 2 | ||||||
| A | B | C | I | II | III | I | II | III | |
| Size of Paper bags | Width 5 cm to 20 cm Length10cm to 20cm Side gussete 4cm to 7 cm |
Width 5 cm to 25 cm Length10 cm to 35cm Side/Bottom gussete 5 cm to 8 cm |
Width 10 cm to 45 cm Length15 cm to 60cm Side/Bottom gussete 5 cm to 16 cm |
||||||
| GSM of paper (range) | 40 to 80 | 40 to 80 | 40 to 80 | 44 to 100 | 44 to 100 | 44 to 100 | 50 to 140 | 50 to 140 | 50 to 140 |
| BF of paper (range) | 12 to 18 | 12 to 18 | 12 to 18 | 12 to 22 | 12 to 22 | 12 to 22 | 14 to 35 | 14 to 35 | 14 to 35 |
| Paper roll width (maximum) |
56cm | 56cm | 56cm | 66cm | 66cm | 66cm | 125cm | 125cm | 125cm |
| Production per hour | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 6000 | 6000 | 6000 |
| Paper Flexo Printing attachment available (with polymer stereo) |
NIL | Double colour | Four colour |
NIL | Double colour | Four colour |
NIL | Double colour | Four colour |
| Drive Motor | 2 HP | 2 HP | 2 HP | 2 HP | 2 HP | 2 HP | 3 HP | 3 HP | 3 HP |
| Floor Area | 5 ‘ X 7′ | 5 ‘ X12′ | 5 ‘ X12′ | 5 ‘ X 7′ | 5 ‘ X12′ | 5 ‘ X 12′ | 12 ‘ X20′ | 12 ‘ X 30′ | 12′ X 30′ |
| Total Weight (Aprox) | 1200kg | 1600kg | 1800kg | 1400kg | 1900kg | 2200kg | 2500kg | 3500kg | 4000kg |
Paper Bags can be used in hotels, laundries, cloth, garments, saris, gold, diamonds, silver, watch, pearls show rooms, temples, super markets, shopping malls, book fancy gift shops, pharmacy shops and in pharma industries to pack pharma especially to carry dry items.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wrapped in BOPP film and Packed in export worthy wooden cases.
Delivery Time : 30-45 days
Available with us is this BOXMAC Double Profile Paper Corrugation Machine that is highly efficient and durable in nature. Specially fabricated using the finest grade components, our Double Profile Paper Corrugation Machine is used in diverse industries for corrugation applications. Sturdiness and precise designing are some of the striking features that our Double Profile Paper Corrugation Machine possesses. Quality checked on various industrial norms, the Double Profile Paper Corrugation Machine provided by us conforms to the set quality standards. Further, we offer this Double Profile Paper Corrugation Machine at very moderate prices in the markets. Features Of Our Double Profile Paper Corrugation Machine :
Specialty Of Our Double Profile Paper Corrugation Machine :
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wrapped in BOPP Film and Packed in Export worthy wooden cases
Delivery Time : 30-45 days
Technical Specifications :
| Size | 42" | 52" | 62" | 72" | 85" |
|---|---|---|---|---|---|
| Motor H.P | 6.5HP | 9HP | 10HP | 15HP | 20HP |
| Heating Load App. | 27KW | 37KW | 44KW | Boiler Only | Boiler Only |
| Power Required | 13HP | 18HP | 25HP | 30HP | 35HP |
| Gross Weight App. | 6200kg | 6700kg | 7200kg | 8700kg | 10200kg |
| Speed/Min. | 60MTR | 60MTR | 60MTR | 100MTR | 100MTR |
| Out Put RF.PM110 | 110 | 110 | 110 | 110 | 110 |
We bring forth our BOXMAC Oblique Type Paper Corrugation Machine for various corrugation purposes. Designed to precision, this Oblique Type Paper Corrugation Machine is fitted with flute rolls that are minutely finished and mounted on spherical roller bearings. Thus, this facilitates our Oblique Type Paper Corrugation Machine to give perfect impression on the board. Made available with self loading twin shaft reel stand, this Oblique Type Paper Corrugation Machine has more production capacity and efficiency in comparison to the vertical type. Apart from this, we offer this quality-tested Oblique Type Paper Corrugation Machine in diverse specifications, in order to meet the client's requirements. Why Prefer Our Oblique Type Paper Corrugation Machine?
Technical Specifications:
(A) One Set of Narrow (UV type) Flute Rolls
(B) Flute Rolls material alloy steel.
(C) Flutes in One Feet are 52 Nos. Flute Height 3.2mm
(D) Gum Roll & Gum Pipe is Hard Chrome Plated. SS Gum Tray
(E) Glue circulation Pump.
(F)Electric Heaters 3 Nos. with Pre Heaters- 2 Nos.
(G)Motor – 7.5 HP with Variable Speed A.C Drives.
(H)Rewinding arrangement with 2 Nos. Rewinding Shafts.
(I)Self Loading Hydraulic Lifting Reel Stand with two unwinding shafts with 3 HP Motor.
(J) Make of Bearings: NTN / SKF / NBC
(K) With all Standard Accessories Complete
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wrapped in BOPP Film and Packed in Export worthy Wooden Cases
Delivery Time : 30-45 days
Technical Specifications :
| Size | 45" | 52" | 62" | 72" |
|---|---|---|---|---|
| Motor H.P. | 7.5 H.P | 7.5 H.P | 10 H.P | 12.5 H.P |
| Heating Load | 21 KW | 30 KW | 36 KW | 42 KW |
| Wt. App. | 4.0 MT | 4.5 MT | 5.5 MT | 7.0 MT |
| Output RFT / Minute | 100 | 100 | 100 | 100 |

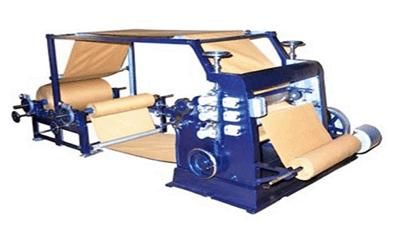

BOXMAC Heavy Duty Single Facer Paper Corrugation Machine (Vertical Type) Bush Mounted Technical Specifications:
(A) One Set of Narrow Flute (UV type) Flute Rolls
(B) Flute Rolls material EN9
(C) Roll Dia 185mm
(D) Flutes in One Feet are 86 Nos.
(E) Gum Roll & Gum Pipe Hard Chrome Plated.
(F) Electric Heaters 3 Nos.
(G) Motor 5 HP & AC Drive.
(H) Rewinding arrangement with 2 Nos. Rewinding Shafts
(I) Manual Loading Reel Stand with two unwinding shafts.
(J) Make of Bearings: NTN / SKF / NBC
(K) With all Standard Accessories Complete.
Additional Information:
Payment Terms : L/C, T/T
Packaging Details : Wrapped in BOPP film and packed in Export worthy wooden cases
Delivery Time : 30-45 days
High speed Single Facer Paper Corrugating Machine with latest Technology. Flute Rolls are minutely finished and mounted on spherical Roller Bearings, to give perfect impression on Board. With self loading twin shaft reel stand, And has more production capacity and efficiency than vertical type
