100G CFP/CFP2 Transceiver

China 100G Cfp Transceiver,100G Cfp2 Transceiver manufacturers, welcome Cfp Optical Transceiver,100G Cfp Optical Transceiver purchasers from worldwide to visit our site.

100G CFP ER4 40km Fiber Optic Transceiver

100G CFP ER4 40km Fiber Optic Transceiver

  • transportation shipment
100GE CFP ER4 optical transceiver modules are designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber, the transmission distance is up to 40km . Features Supports multi-rate (100GBASE-ER4 and OTU4) from 103.1Gb/s to 111.8Gb/s aggregate; Lane bit rate 25.78 Gb/s GbE, 27.95 Gb/s OTU4 Up to 40km transmission on SMF LAN WDM EML laser and PIN receiver with SOA High speed I/O electrical interface (CAUI) MDIO interface with integrated Digital Diagnostic monitoring CFP MSA package with duplex LC connector Single +3.3V power supply Maximum power consumption 16W Operating case temperature: -5 to +70 C Complies with EU Directive 2011/65/EU (RoHS 6/6)Application 100GBASE-ER4
Ask Latest Price & Details

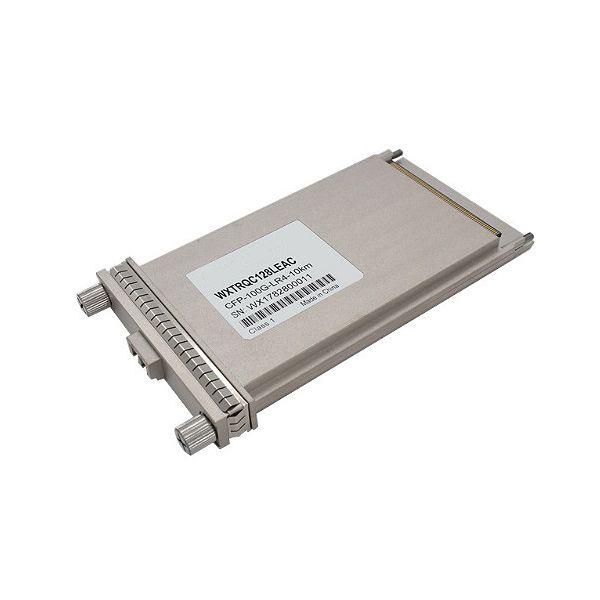

100G CFP LR4 10km Fiber Optic Transceiver

100G CFP LR4 10km Fiber Optic Transceiver

  • transportation shipment
100ge cfp optical transceiver modules are designed for use in 100 gigabit ethernet links over single mode fiber, transmission distance is up to 10km . They are compliant with the cfp msa and ieee 802.3ba 100gbase-lr4. Digital diagnostics functions are available via an mdio interface, as specified by the cfp msa. The optical transceiver is compliant per the rohs . Features supports multi-rate (100gbase-100ge and otu4) from 103.1gb/s to 111.8gb/s aggregate; lane bit rate 25.78 gb/s 100ge, 27.95 gb/s otu4 up to 10km transmission on smf lan wdm eml laser and pin receiver high speed i/o electrical interface (caui-10) mdio interface with integrated digital diagnostic monitoring cfp msa package with duplex lc connector single +3.3v power supply maximum power consumption 16w operating case temperature: -5 to +70 c complies with ieee802.3ba and itu-t g.959 complies with eu directive 2011/65/eu (rohs 6/6)application 100gbase-lr4.
View Complete Details
Ask Latest Price & Details

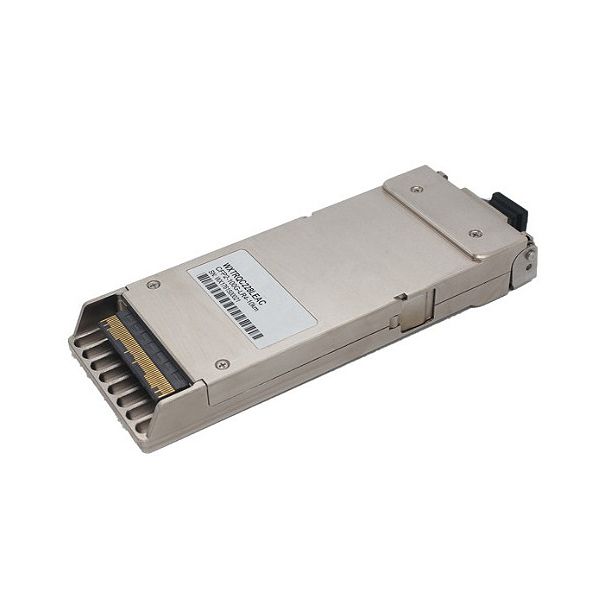

100GBASE CFP2 LR4 Fiber Optic Transceiver

100GBASE CFP2 LR4 Fiber Optic Transceiver

  • Min. Order (MOQ) 1 Piece(s)
  • Warranty 1 Year
  • Brand Name Adela
  • Distance Up To 10km Transmission On SMF
  • Power Supply Single +3.3V
  • Power Consumption 9 W
  • Operating Case Temperature -5 to +70 °C

Features :

  • Supports 100GBASE-LR4(103.1Gb/s) with lane bit rate 25.78 Gb/s GbE
  • LAN WDM DML laser and PIN receiver
  • High speed I/O electrical interface (CAUI-4)
  • MDIO interface with integrated Digital Diagnostic monitoring
  • CFP2 MSA package with duplex LC connector
  • Complies with EU Directive 2011/65/EU (RoHS 6/6)


Application : 100GBASE-LR4

Additional Information:

Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit Notes
Operating Case Temperature TC -5 - 70 °C -
Power Supply Voltage VCC 3.2 3.3 3.4 V -
Power Supply Current ICC - - 2.81 A -
Maximum Power Dissipation PD - - 9 W -
Aggregate Bit Rate BRAVE - 103.125 - Gb/s -
Lane Bit Rate BRLANE - 25.78 - Gb/s -
Transmission Distance TD - - 10 km Over SMF
View Complete Details
Ask Latest Price & Details

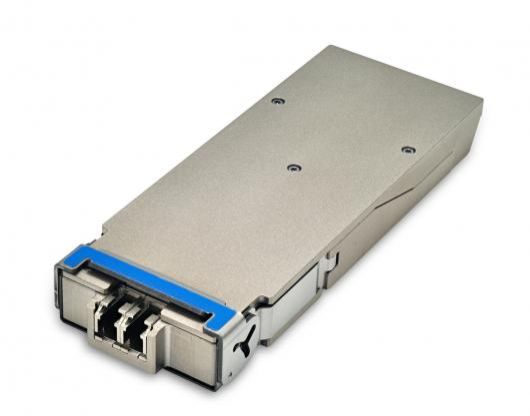

100G CFP2 ER4 40km Fiber Optic Transceiver

100G CFP2 ER4 40km Fiber Optic Transceiver

  • transportation shipment
100G CFP2 ER4 optical transceivers are designed forhuge long distance transmission up to 40km over single mode fiber , they are used for ODN network . Features Supports multi-rate (100GBASE-ER4 and OTU4) from 103.1Gb/s to 111.8Gb/s aggregate; Lane bit rate 25.78 Gb/s GbE, 27.95 Gb/s OTU4 Up to 40km transmission on SMF LAN WDM EML laser and PIN receiver with SOA High speed I/O electrical interface (CAUI-4) MDIO interface with integrated Digital Diagnostic monitoring CFP2 MSA package with duplex LC connector Single +3.3V power supply Maximum power consumption 9 W Operating case temperature: -5 to +70 C Complies with EU Directive 2011/65/EU (RoHS 6/6)Application 100GBASE-ER4
Ask Latest Price & Details
