The cuplock Ledger is used to make a rigid bond to endure uneven site handling. This cuplock ledger is comprised of Forged Blade at both end which fits between Top cup and Bottom cup of cuplock vertical. MS round pipe will be used of 48.00 OD 3.00 mm thick. Minimum projection of blades avoids damages in handing & uniform dimension makes the cup joint rigid.

Acro Plates are mainly manufactured by the heavy raw material such as sheet. The quality raw material being used is of ISI standard & of acceptable quality. The range of the Acro plate is available in ready stock, but with the specific specification of any bulk need, we can also be provided with a minimum delivery period. Punched angle frame provides the facility to adjust any plate. Acro Plates manufactured by our company is a well-accepted product in the Building construction field.

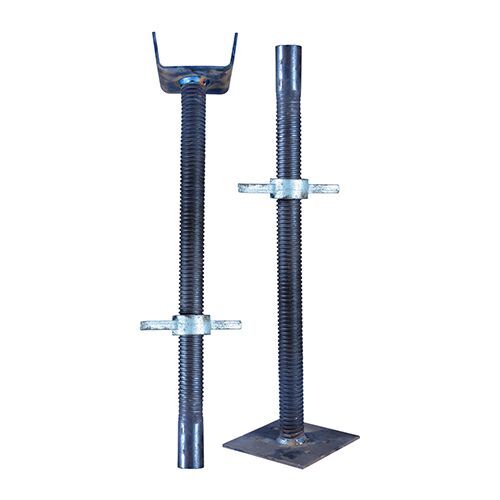

The Scaffolding Adjustable U Head Jack jack stirrup head is used at the top of the vertical cuplock standard in order to provide an additional maximum adjustment of length. The main application of these types of U-Jacks is to hold MS beams and channel in places, upon which the shuttering plates are placed during the construction. The U-Jacks are manufactured using the Roll Threading process, which increases safety and enables them to have a load-bearing capacity of up to 4 tons.

Shree Hari Engineering is very known in importing wooden beams which are normally called in the construction industry as H-Beams (Timber). These beams are manufactured under stringent quality measures. This concrete support H-Beam is a unique introduction to overcome the cumbersome and costly procurement of timber. H-Beams are designed to withstand various loads during construction activities.

The wooden flanges are made of chemically treated, seasoned timber. Using a unique finger jointing method, the webs are manufactured by joining these Flanges with boiling water-proof plywood / Timber and thus made as a monolithic timber beam. Both the flange and web is hot processed by wedge technology to make it a composite versatile section.

H-beams Are Available Sizes :

• H-20 (20 cms depth)
•  Lengths vary from 1.8m to 5.9 Mtr for H-20

Timber H-Beam for formwork is used for concrete formwork construction. H20 timber beam is widely applied in slab Formwork systems, wall formwork systems, column formwork systems, timber structures, and other temporary bearing structures.

Characteristics :

• Solid Flange: Sawed-Pine or Spruce imported From Finland, High-quality spruce; High stability
• Solid web: Birch or poplar or larch plywood; High durability; High load bearing capacity
• Treated by WBP glue exterior used weather & water-proof
• Beam ends sealed: Protect from moisture & UV; Reduce damage; Increase service life
• With high standardization, universal property, Fast operation.
• Highstiffness, light weight, strong load-carrying capability.
• Low cost, recycle resource.

We are offering Film Faced Shuttering Plywood. Shuttering Plywood is BWP grade plywood treated with preservatives mainly used for concrete purpose. Manufactured with select hardwood, it withstands the loads and forces encountered during the pouring of concrete and vibrations.

Weights:

• Imported Calibrated Ply : 25.00kg -12 mm
• Imported Calibrated Ply : 34.00kg – 18 mm
• Indian Ply : 30.00kg -12 mm
• Indian Ply : 40.00kg – 18 mm

Features:

• Film Faced Shuttering Plywood is most effective in RCC Constructions.
• It has a smooth mirror like superior finishing on both surfaces.
• It saves up to 45% of cost compared to other similar products due to its more repetition during shuttering work.
• Its cross laminated structure between Face veneer, Core veneer and the Film again enhance the strength of ply.
• After using it as shuttering plywood for many times, its salvage can be used for paneling, roofing, flooring, partitions etc.

#shutteringplywood #plywood #filmfacedplywood

Tips for Maintenance :

• Clean and Oil the surface before use. The surface should be recoated with mould oil before next use.
• Apply sealants such as chlorinated rubber paint at the cut edges before use.
• Side screwing and nailing should not be performed on the ply.
• Should be stored in packs on a flat and raised surface in a dry, covered place with free circulation of air for better repetitions.
• Care should be taken during transportation to avoid scratches, plywood should not be dragged over one another to avoid scratches.

These products are one of the core elements which are used for supporting building constructions slabs, canopies, beams, lintels for RCC construction work. These plates provide a much-needed alternative for wooden plates, as they are manufactured using noncorrosive and durable materials. Shuttering plates are fabricated from 3.00/2.5 mm thick MS Sheets and 25/30/35 X 4/5 mm thick MS angle. As per the requirements and preferences of the clients, the sizes can be customized and adjusted. Even the shapes can be changed in order to fulfil specific requirements for clients.

These are crucial components that can be used for the purpose of all types of building construction projects. These elements provide ideal and economic solutions for supporting all kinds of formwork, slabs, beams, walls and columns. These act ad adjustable load-bearing support which especially finds usage in withstanding vertical loads or as we braces. These are also known as adjustable props, also known as scaffolding jacks, Shoring props, Post shore props, Formwork props, and pipe support. Heavy-duty steel prop, light-duty props, and Normal duty props are other forms of this type of arrangement.

Specifications:

• Outer members are made of 60 m OD round pipe
• Inner members are made of 48 mm OD round pipe
• Top & Bottom plates are made of 150 x 150 x 6 mm plates
• Heavy-duty malleable cast iron prop nut provides the facility for fine adjustment
• G' pin made o high tensile strength also provides the facility for fine adjustment

Additional Features:

• Our Roll Threaded Props ensure that loss of material is reduced to a great extent, Through which load-bearing capacity ad well as the shelf life of the prop is increased to a large extent
• As per the needs of the customer, Props are available with various heads like beam head, 'U' head, Angle head and Regular

Adjustable Telescopic Acro Span is Economical and convenient product. It is ideal to be used as a self-supporting runner in shuttering systems. Moreover, Adjustable Beam spans are installed under shuttering plates or floor from panels. Adjustable telescopic span is made out of 2.0 mm thick MS sheet with support of 10 mm dia bar and 40 x40 x 5 mm tee. The perfect Adjustable Telescopic spans are manufactured using high-quality Machines and well-equipped testing equipment installed in our workshop.

Features:

• Used for supporting beam bottoms and centring sheet.
• The adjustable span is assembled with an outer sliding & one inner sliding, in order to provide.
•  Variable lengths to the span and lock in different positions.
•  The self-cleaning device on the collar nut, which automatically clears the thread of concrete & dirt.
• Where the nut is rotated thus assuring quick and easy adjustment Spans are considered an integral structural construction scaffolding components of a construction scaffold & provide support to the entire structure.
• As per the need, they can be adjusted & are extensively used the support floor forms during lying of slabs.

Shree Hari Engineering is known for providing the most popular scaffolding frame set/H Frame for use in plastering, masonry, and general construction. The H-frames are created in the Safeway Style, which makes them compatible with frame scaffolding as well. These frames are manufactured from the highest quality MS pipes.

H-Frames consist of welded Frames with 48 OD vertical pipes, which are braced together with scissor type cross braces that are secured by bolts. The H-frames are essentially parts of a larger system, which is bound together by components known as modules. One module within this system consists of two H-frames and two diagonals. An entire H-frame system consists of one horizontal connection and four cross bracings. The entire system covers an area of 1.8 meters.

We are offering MS base Jack specially designed for levelling scaffolding, fast and accurate on-site installation is provided by a combination of coarse and fine adjustment up to a maximum. Base jacks locate in the bottom of the cup lock standards ( vertical ), they provided adjustment for variations in ground levels, and they have a safe working load.

Cuplock Standard / vertical are manufactured from 48 mm OD MS Round Pipe, provided in various sizes with cup joints welded at 500 mm Intervals. The top cups are made from malleable casting to endure rough site handling, and welded bottom cups are pressed from high-quality steel.
