Our Products
Our Complete range of products are MAGNETIC ADJUSTABLE LINKS, SMALL MAGNETIC BASE, ALRGE MAGNETIC BASE, Heavy Duty Magnetic Base KM - 725 and Magnetic Base with Articulated Arm.
‘KUMAUN‘ Magnetic Adjustable Link is a twin unit possessing a multi angle capability. It can be quickly locked at an angle by the turn of wing nut, thus providing the simplest and most rapid means of clamping together.
Small bodied square in shape magnetic base with a V which permits use on round or flat therefore can easily be mounted on machine tools or work surfaces, with greater magnetic pull and quickly released by a simple leverage
Supplied with two rods namely, one for standard dial gauges and dial test indictors and other for standard. Machine shop clamps with a step of 5 / 16 & 7 / 32 at the ends.
SRD 96Similar to SRD 95 but it is having Fine Adjustment for rapid setting indicators to desired readings.
SPECIAL BALL JOINT BASE: SRD 95 & SRD 96BDimensions are same as SRD 95 & SRD 96. But the pillar is provided with Bolt & Socket Joint Action.
Medium duty rectangular shape magnetic base with powerful magnetic pull and a quick release lever with V shape at the bottom facilitate easy mounting on a machine tool or work surface. Exclusive fingertip release tilts unit away from work for easy removal
SRD 98Similar to SRD 97 but having Fine Adjustment to facilitate rapid setting of indicator dials at a desired position.
SPECIAL BALL JOINT BASES: SRD 97 B & SRD 98 BDimensions are same as SRD 97 and SRD 98. But the pillar is provided with Bolt and Socket Joint Action.
Supplied with two rods, one to hold standard dial gauges and dial test indicators 1 / 4 in diameter and other multi step rod 1 / 4 dia with 5 / 6: O.D. at one end and 7 / 32 O.D. at the other end for use with standard machine shop clamps.
A powerful permanent magnetic type base holds to any steel or iron surface - horizontally, vertically or up side down, thus eliminating time spent on clamping indicator to machine.
When magnet is turned 'ON' by the knob, the base remains firmly clamped in any desired position. The base and two sided energized for attachment on flat surfaces and a 'V slot facilitates gripping of the stand of shafts with a diameter range of 20 to 120 mm.
The unique clamping which can hold dial indicator 8 mm or 5/16" stem diameter simple and quick setting is obtained by a new clamping of the extension arm, which guarantees absolutely rigid clamping even with moderate tightening. Magnet should be turned "OFF" when not in use.
| Magnetic Base With Articulated Arm - Magnetic Base Manufacturer |
A model range 3 D measurement, articulated stand with unlimited adjustment. A mechanical central clamping system with one lock mechanism (All joint locks).
Maintenance free and has micro fine adjustment for dial gauges and feelers. A well planned model, guarantees individual field of application.

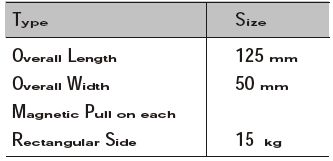

Specifications
