Our Products

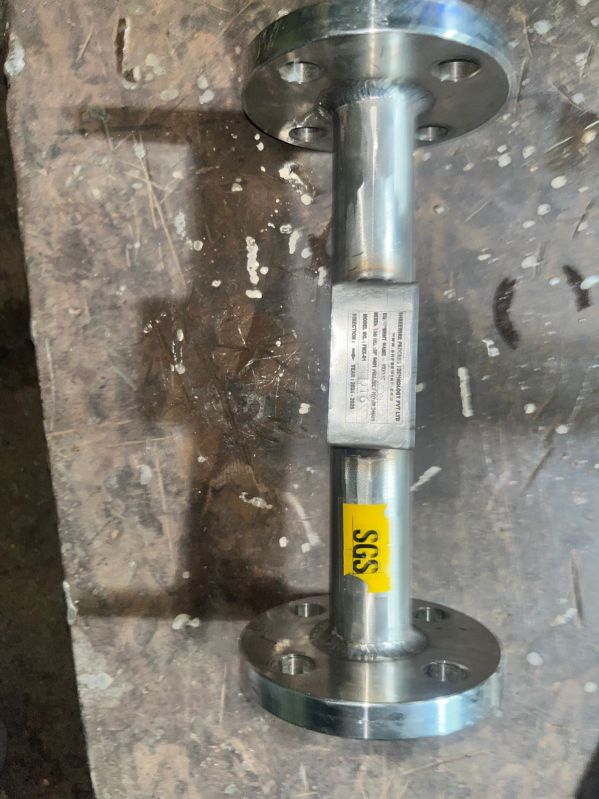

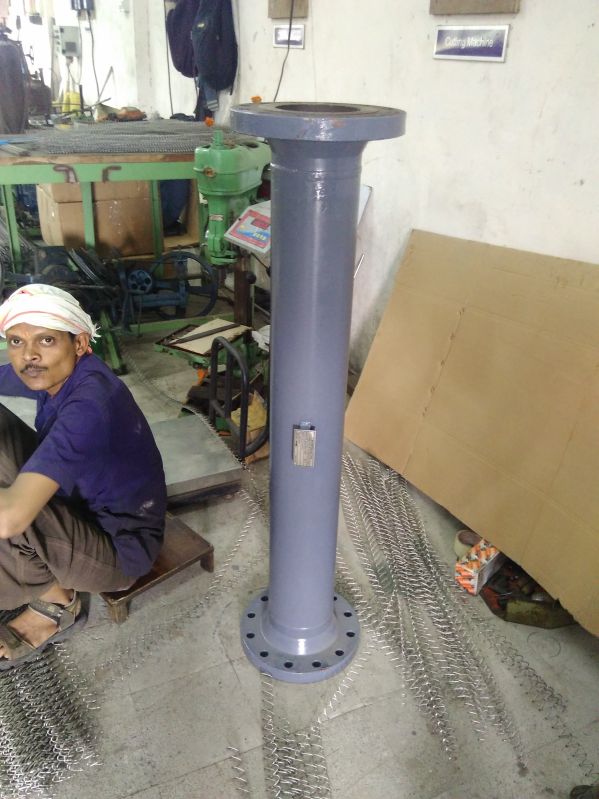

We offer a complete product range of Static Mixer
Model Type – 1: Blade Design Mixer
Mixer Type: SS – 316 Material
Viscosity Range: Less than 1500 cps
Reynolds Number: Greater than 500
Size Range: ½" to 14"
Application: Mixing products into water or water-like fluids
SW-SMx-01: Used for low viscosity. The faster the fluid moves, the faster the mixing. Ideal for mixing products into water or water-like fluids.
Model Type – 2: Helical Design Mixer
Model: SW-SMx-02
Application: Used for high viscosity blending and when the fluid moves more slowly through the mixer
Material: SS – 316
Viscosity Range: Greater than 1500 cps
Reynolds Number: Less than 500
Size Range: ½" to 14"
Application Areas: Epoxy blending, fruits into yogurt, cookies into ice cream, thermal homogeneity, slurry suspension, folding/stripping
Customer Benefits
Excellent mixing and dispersing, even with widely differing fluid viscosities
Compact designs
Reduced product degradation due to very short residence time
Mixing of sensitive products under minimal shear stress
No deposits and blockages due to excellent cross-mixing
Advantages
High level of mixing efficiency – formation of byproducts is dramatically reduced
Low energy consumption
Easy installation
Available in all standard pipe sizes, and for open channel designs, available in any size with no upper limit
Industries Served
Pulp and Paper Processing
Pharmaceuticals
Oil Refining
Petrochemicals
Food Processing
Natural Gas Processing
Water and Waste Water Treatment
Design Calculations
Reynolds Number Formula:
Re = Dvρ/µ
Number of Elements Required:
Re < 10 → 24–36 elements
10 < Re < 100 → 18 elements
100 < Re < 1000 → 12 elements
1000 < Re < 10000 → 6 elements
Re > 10000 → 4 elements
Pressure Drop Calculation
ΔP = 3.061 × 10 × f × n × smxpx(u)² × E
G Value Calculation
G = v(hf × g × ρ / μt)
Pipe Diameter (D in meters)
D = √(4Q / πv)
