Material Handling Machines & Systems

We offer a complete product range of Heavy Duty Pneumatic Air Feeder, Medium Duty Pneumatic Air Feeder, Pneumatic Strip Feeder, industrial pneumatic feeders and Zig Zag NC Servo Roll Feeder

Heavy Duty Pneumatic Air Feeder

Our offered Industrial Feeders are properly designed in accordance with the predefined quality standards to follow various norms and conditions. Offered Medium Duty and  heavy duty  Industrial Feeders  series are well known for its quality & wide usage. Our customers can take these heavy duty series in diverse length and sizes and it can also be customized as per customer’s specifications.

View Complete Details

Medium Duty Pneumatic Air Feeder

Our offered Industrial Feeders are properly designed in accordance with the predefined quality standards to follow various norms and conditions. Offered Medium Duty and  heavy duty  Industrial Feeders  series are well known for its quality & wide usage. Our customers can take these heavy duty series in diverse length and sizes and it can also be customized as per customer’s specifications.

View Complete Details

Pneumatic Strip Feeder

  • STRIP WIDTH 165,212,312,470
  • STRIP THICKNESS 4,3.9

We are committed to a wide range of Heavy Duty Pneumatic Air Feeders industrial pneumatic Feeder supply lines (Also called Heavy Duty Pneumatic Strip Feeders, Pneumatic Steel Strip Feeder, Industrial Pneumatic Feeders, Heavy Duty Pneumatic Feeders, Compact Pneumatic Feeders, Compact Air Feeders) in the standard series, together with a special valve that the feed is increased. The series is designed for high production of small parts, especially if feed strokes needed long conceived. Besides the standard options, they can also meet individually to the different needs of our customers.

View Complete Details

industrial pneumatic feeders

Our offered Industrial Feeders are properly designed in accordance with the predefined quality standards to follow various norms and conditions. Offered Medium Duty and  heavy duty  Industrial Feeders  series are well known for its quality & wide usage. Our customers can take these heavy duty series in diverse length and sizes and it can also be customized as per customer’s specifications.

View Complete Details

Zig Zag NC Servo Roll Feeder

We are a prestigious manufacturer, exporter and supplier of  Zig Zag Nc Servo Roll Feeders  which is manufactured by our dexterous engineers in adherence with the international guidelines using superior quality raw material which is procured from our trusted vendors. These are designed using latest technology and can be customized according to the requirements of our clients. These feeders can be availed by our clients at pocket friendly prices.     zig zag NC servo roll feeder  Features: We are one of the leading manufacturers and suppliers of  SPA I NC Servo Feeder , which are suitable to be used for coil made of different materials. Our range of Servo Feeders is designed using advanced technology, therefore, is easy in operation, safe and stable. We offer these industrial feeders in different specifications, which can, further, be customized as per the varied requirements of client

  • Zig Zag Nc Servo Feeder - Technical Specifications

    Model



    SPA-NCZAF-200

    SPA-NCZAF-400

    SPA-NCZAF-500

    SPA-NCZAF-600

    SPA-NCZAF-800

    SPA-NCZAF-1000

    SPA-NCZAF-1300

    SPA-NCZAF-1500





    SPA-NCZRF-400

    SPA-NCZRF-800

    SPA-NCZRF-1000

    SPA-NCZRF-1200

    SPA-NCZRF-1600

    SPA-NCZRF-2000

    SPA-NCZRF-2600

    SPA-NCZRF-3000

    Material width



    200

    400

    500

    600

    800

    1000

    1300

    1500

    (mm)(max)





















    SPA-NCZAF

    1.5X200

    1.5X400

    1.5X500

    1.5X600

    1.5X800

    1.5X1000

    1.5X1300

    1.5X1500

    MATERIAL THICKNESS



    3.2X100

    3.2X200

    3.2X250

    3.2X300

    3.2X400

    3.2X500

    3.2X650

    3.2X750

    (mm)(max)

    SPA-NCZRF

    2.0X200

    2.0X400

    2.0X500

    2.0X600

    2.0X800

    2.0X1000

    2.0X1300

    2.0X1500





    3.2X100

    3.2X200

    3.2X300

    3.2X400

    3.2X500

    3.2X600

    3.2X800

    3.2X900

    OFFSET WIDTH (mm)(max)

    SPA-NCZAF

    200

    400

    500

    600

    800

    1000

    1300

    1500

    FEED LENGTH (mm)(max)

    SPA-NCZRF

    200

    400

    500

    600

    800

    800

    800

    800











    9999.99









    FEED SPEED (mm)(max)

    SPA-NCZAF







    15











    SPA-NCZRF







    30









    POWER SUPPLY









    415V  3phase









    RELEASE EQUIPMENT









    pneumatic









View Complete Details

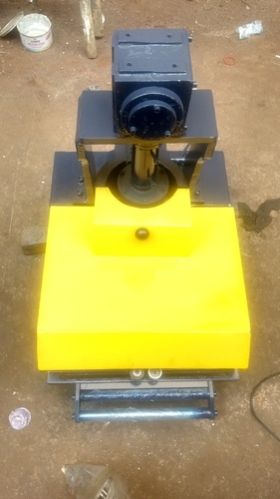

Mechanical Gripper Feeder

Our company has emerged as the prominent manufacturer, supplier and exporter of  Mechanical Gripper Feeder  that are highly efficient and appreciated by our clients for there performance and trouble free operation. These feeders are the perfect solution to problems of feeding medium and high speed press, due to its simple adjustment system, accuracy and capability to mount to any types of press.   Mechanical Gripper Feeder :  SALIENT FEATURES   Round guides with Linear ball bushings. Capability to mount to any type of press. Transmission through bevel gear box and cardian shaft from the press. Lubrication oiling by grease nipple. Easy setting of pitch length. All adjustments are easily reachable. Quick opening of the gripper for the strip insertion. Release of the fixed gripper for die piloting in order to obtain & accurate positioning at high speed. Adjustment for various thickness by means f knuckled knobs placed at the upper part of the feed. Standard transmission for speeds uptill 300 strokes per minute including gear box, transmission shaft and rubber coupling. Mounting stand bracket. Cascade roll basket

  • Mechanical Gripper Feeder - Technical Specifications


    Model No.


    Width


    Length


    Thickness

    Speed Max.
    S.P.M

    SPA-MGF-135

    10-135

    5-135

    0.1-2.5

    700

    SPA-MGF-210

    10-210

    5-205

    0.1-2.5

    550

    SPA-MGF-320

    10-320

    10-320

    0.2-3.0

    450

    SPA-MGF-420

    30-420

    10-420

    0.2-3.0

    350








View Complete Details

High Speed NC Servo Feeder

Company expertise lies in manufacturing, exporting and supplying a wide assortment of  Coil Handling Hydraulics Lifter Machine . For the fabrication of this product, our professionals make use of high quality raw material and advanced technology. Our offered product is tested on well-defined parameters of quality in order to ensure flawless

View Complete Details

NC Servo Roll Feeder

6.50 Lac /Piece
Get Latest Price
  • Type All
  • Power 5KW
  • Lifting Capacity All
  • Feeding Speed standard
  • Usage/Application Industrial
  • Brand SPA


  •


View Complete Details

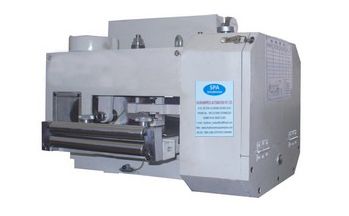

High Speed Gear Change Feeder

We are a renowned manufacturer, exporter & supplier of High Speed Gear Change Feeders. These products have cam mechanism, high precision feeding, speed up to 40m/min & one year quality guarantee. Cam option is 3, 4, 8, 12 division, feeding length is chosen according to the cam division and gear ration and they are suitable for numerous productions. Our feeders can be availed by customers at reasonable prices.     FEATURES High cam mechanism High speed and high precision feeding, speed up to 40M min Reliable and  stable feeding One year quality  gurantee Option function Cam options is 3, 4, 8, 12division feeding length is chosen according to the cam division and gear ration , this system is suitable multitudinous for production

  • High Speed Gear Change Feeders - Technical Specifications


    MODEL

    GCF-100

    GCF-210

    GCF-300

    GCF-400

    STOCK WIDTH(mm)

    100

    210

    300

    400

    STOCK THICKNESS (mm)





    0.3~2.0



    CAM DIVISION





    3/4/8/12



    FEEDING LENGTH (mm)





    1.20~600



    FEEDIING ANGLE





    180



    RELEASE ANGLE





    135~120%



    FEEDING DIRECTION





    LEFT TO RIGHT




View Complete Details

Nc Servo Feeder

  • WIDTH 200,300,400
  • THICKNESS 0.5-6.0

High Performance brushless Servo Drive (From International Source) Low inertia, brush less AC Servo motor with high energy; Precision incremental Optical Encoder (In built) to provide velocity & position loop feedback. Hardened Terminal : Easy-to-read solid state Interface Terminal display area with a backlit 4 line display, sealed membrane keypad with tactile feedback. User Friendly Interface : The Interface Terminal directs the operator with clear, descriptive message in plain English. Pressing the Help Key While in different screens directs the operator with instructions on how to change parameters or look at information. Different modes off operation cab be selected as well as jogging forward or reverse in manual mode. Batch counting : The operator chooses the number of parts to make and the Interface Terminal will display a message when the count is reached. Up to 999, 999. Advanced Feed-Angle Monitoring : Continually monitors the feed-angle and the material position. Compact electronic Control Enclosure with built-in Operation Panel that can be easily adapted for press mounting or used as a freestanding console.

View Complete Details

Pneumatic Feeders

We are manufacturer a wide range of pneumatic feeders which are produced as per client''s specifications. We are engaged in offering a comprehensive range of Industrial Pneumatic Feeders that is available in normal series along with a special valve, which increases the feeding speed. The series is specifically designed for the high production of small parts; especially at the time when, long feed strokes are needed. Apart from the standard options, these can also be customized to suit the varied requirements of our clients.

View Complete Details

roll feeders

gripper feeders
