Power Converter

Our product range contains a wide range of Dc Dc Converter-4w, DC Converter and AC Converter

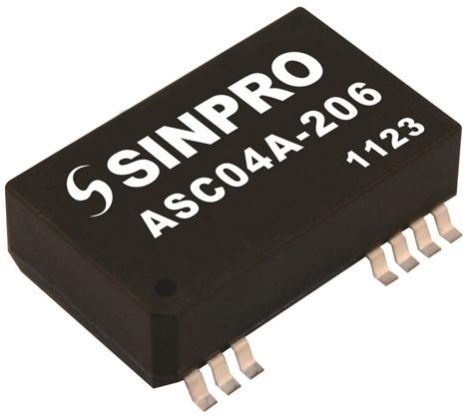

DC DC Converter-4w

Min. Order (MOQ) 100 piece

We are offering dc dc converter-4w. 2 :1 wide input range voltageregulated output size: 20.3w x 31.8l x 10.2hmm 1500 vdc isolation potting material: epoxy (flammability to ul94v-0) case material: non-conductive black plastic(flammability to ul94v-0)emi meets to en55022 class aremote on/off control(option)industrial standard pin-out 3 year warranty

Additional Information:

Payment Terms : T/T

Delivery Time : 30

View Complete Details

Ask Latest Price & Details

DC Converter

Min. Order (MOQ) 50 Piece(s)

.2:1 Wide Input Range Voltage.Regulated Output.Size: :55.2W x 43.1L x 13H mm .1500VDC Isolation.Potting Material : Epoxy( Flammability to UL94V-0 ).Case Material: Copper Plated with Nickel.Short Circuit Protection : Auto Recorver.2 year warranty.Output Power Range: 45W .Output Voltage Accuracy: 0.2% .Temperature Coefficient: 0.05% .Line Regulation: 0.5% .Load Regulation: 0.5% .Transient Response Recovery Time: 500S .Short Circuit Protection: Auto Recorver.Operating Temperature Range: -4075 .Maximum Case Temperature: 100 .Storage Temperature Range: -55105 .Cooling: Free-air Convection .Relative Humidity: 95% .Switching Frequency: 310K Hz (Typ.) .MTBF: 600, 000 hrs.

Additional Information:

Payment Terms : T/T

Delivery Time : 30days

View Complete Details

Ask Latest Price & Details
