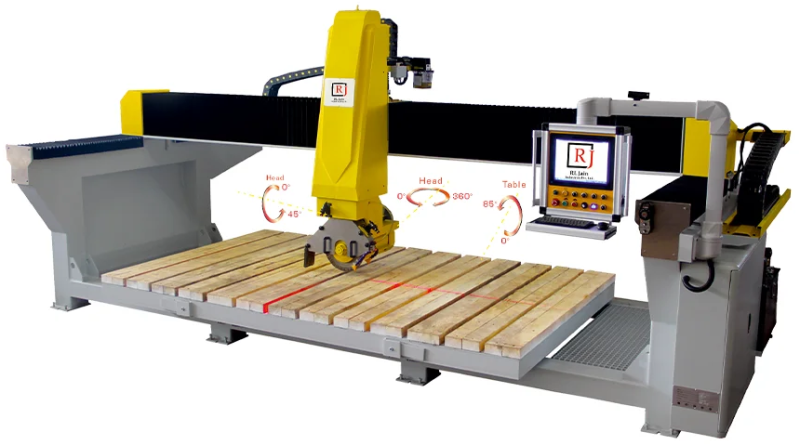

Stone Bridge Saw Cutting Machine – Fully Automatic

Manufacturer: SLP Engineers

The Stone Bridge Saw Cutting Machine from SLP Engineers is a fully automatic, high-precision cutting solution designed for processing natural and engineered stones such as granite, marble, and quartz. Built with advanced motion control technology, durable components, and intelligent automation, this machine offers excellent performance for fabricators seeking efficiency, accuracy, and long-term reliability.

Precision Engineering for High-Quality Cutting

Equipped with a linear motion (LM) guideway system and helical rack & pinion mechanism for X and Y axis movement, the machine ensures smooth, precise travel across the stone surface. The Z-axis is driven by a high-accuracy HIWIN ball screw (Taiwan), enabling fine control over cutting depth and positioning.

The robust build and vibration-free motion system are ideal for high-precision applications, ensuring consistent results on a wide variety of stone materials, from thick granite to delicate marble slabs.

Flexible Cutting Capability

The machine supports a cutting blade range from 12 to 26 inches, accommodating a wide range of project needs:

\n
• \n

  Maximum cutting depth: 200 mm

  \n
\n
• \n

  Minimum cutting depth: 45 mm

  \n
\n

The cutting head rotates between 0° and 90° for both longitudinal and crosswise cutting, while the blade tilts from 0° to 45°, allowing for accurate miter and bevel cuts. This flexibility reduces the need to reposition the stone, saving time and improving workflow efficiency.

A laser alignment system is built-in for visual accuracy before cutting, minimizing errors and material waste.

Powerful Drive System

\n
• \n

  Main Head Motor: 20 HP with VFD (Variable Frequency Drive), IP65-rated, up to 3000 RPM

  \n
\n
• \n

  Servo Motors:

  \n
  \n
  • \n

    Left/Right (X-axis): 2 HP with VFD

    \n
  \n
  • \n

    Forward/Reverse (Y-axis): 2 HP with VFD

    \n
  \n
  • \n

    Head Up/Down (Z-axis): 1 HP with VFD

    \n
  \n
  \n
\n
• \n

  Trolley Tilting Motor (Hydraulic): 2 HP

  \n
\n
• \n

  Head Rotation Motor: ½ HP

  \n
\n
• \n

  Lubrication Motor: ½ HP

  \n
\n
• \n

  Total Power Consumption: 22.5 HP

  \n
\n

These motors deliver reliable performance under load while optimizing energy efficiency and control.

Automation & Control

The machine is equipped with a PLC (Programmable Logic Controller) control panel, offering:

\n
• \n

  Touchscreen interface

  \n
\n
• \n

  Programmable job settings

  \n
\n
• \n

  Real-time monitoring and diagnostics

  \n
\n

The PLC system simplifies operations, allowing operators to repeat complex cuts with consistent precision.

Trolley and Lubrication

The trolley size is 3600 mm x 1830 mm, capable of holding large slabs. It includes a hydraulic tilting system, making it easier to load and position stone materials. An automatic oil lubrication system keeps critical components running smoothly with minimal manual maintenance.

Conclusion

Designed for high-demand environments, the Stone Bridge Saw Cutting Machine delivers powerful, automated stone processing with exceptional accuracy. Its robust construction, servo-driven motion, and user-friendly control system make it an ideal solution for fabricators producing countertops, tiles, architectural elements, and more.

The Portable Edge Cutting Machine Automatic seems to be an excellent choice for cutting both Granite and Marble slabs and tiles. Here's a summary of its key features:

1. Material Compatibility: The machine is designed to handle both Granite and Marble slabs and tiles, making it a versatile tool for stone cutting tasks.

2. MS Channel Fabricated Bed with Bridge: The machine's foundation consists of a sturdy MS (Mild Steel) channel fabricated bed upon which a bridge is mounted. This design ensures stability and support for the cutting process.

3. Automatic Cutter Movement: The cutting blade unit moves on the bridge, and the cutter itself automatically moves forward and backward. This automatic movement is powered by a gearbox motor, enhancing the machine's efficiency and reducing the need for manual intervention.

4. Heavy Duty and Durable: The machine is built to be heavy-duty and durable, capable of withstanding the demands of continuous stone cutting operations.

5. Vibration-Free Operation: The machine's design and construction ensure that it operates without creating excessive vibrations during cutting. This is crucial for maintaining accuracy and preventing unnecessary wear on the equipment.

6. Branded Motor and V Belt Pulley System: The machine is powered by a reliable branded motor mounted above the cutter unit. The motor drives a V belt pulley system, providing the necessary rotational movement to the cutting blade.

The combination of an automatic cutter movement, durable construction, and vibration-free operation makes this Portable Edge Cutting Machine Automatic an efficient and user-friendly tool for stone fabrication workshops. Its ability to handle both Granite and Marble materials allows for greater versatility and flexibility in production.

With its automatic features, such as automatic cutter movement and a reliable motor drive, the machine streamlines the cutting process, potentially leading to higher productivity and reduced manual labor. This is particularly beneficial in high-volume stone processing environments.

Overall, the Portable Edge Cutting Machine Automatic appears to be a reliable and efficient solution for cutting Granite and Marble slabs and tiles, catering to the needs of stone fabrication businesses and contributing to improved cutting precision and productivity.

Portable Edge Cutting Machine is best suited for cutting Granite & Marble Slab and tiles. It has MS Channel Fabricated bed upon which bridge is mounted. Cutting Blade unit moves on bridge and cutter moves forward and Backward manually by moving Handle. Machine is Heavy Duty, Durable, doesnt create vibration while work. It is powered by Branded Motor mounted above the cutter unit and it drive V belt pulley which provide rotational movement in cutting blade
