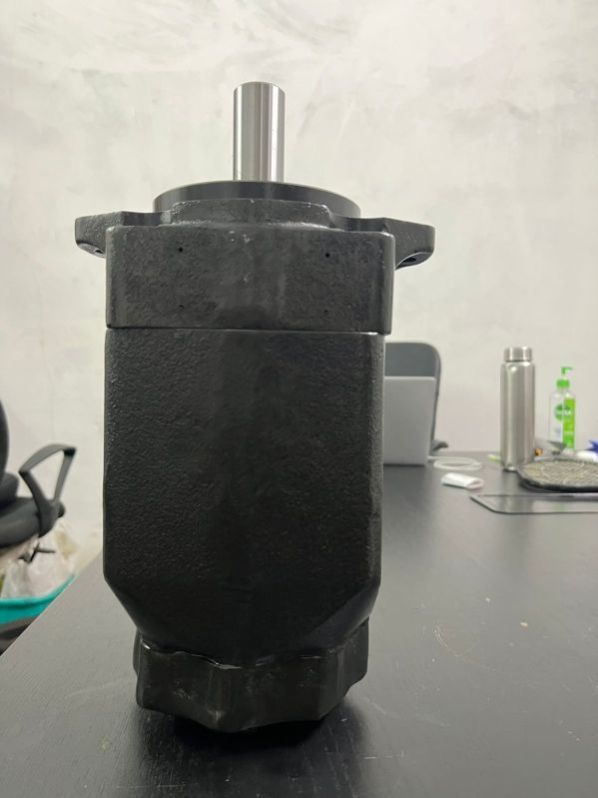

Veljan Denison Hydraulic vane pumps

We are offering variable displacement pumps and motors. We offer variable displacement variable displacement axial piston pumps with swashplate design for open circuits . Theese pumps are available in displacements of 28 to 140 cc with nominal pressure of 280 bar & peak pressure of 350 bars with different types of pressure controls.manifolds are connected with these pumps to control the flow from variable displacement pumps as the actuaters require varying flows and pressures. The main advantage of these pumps is the low operating cost & sensitive closed loop control range.theese pumps are used in hydraulic drives which require variable flow and pressure as the pump only supplies the actual amount of oil required. features: swashplate design for hydraulic open circuit systems. Flow is proportional to drive speed and displacement.it can be infinitely varied by adjustment of swashplate. Iso mounting flange . Flange connections to sae metric. Good suction characteristics with 2 case drain ports. Nominal pressure of 280 bar & peak pressure of 350 bars. Low noise level & long service life. Axial and radial loading of drive shaft possible. High power weight ratio & wide range of controls. Through drive option for multi circuit system & short response times.

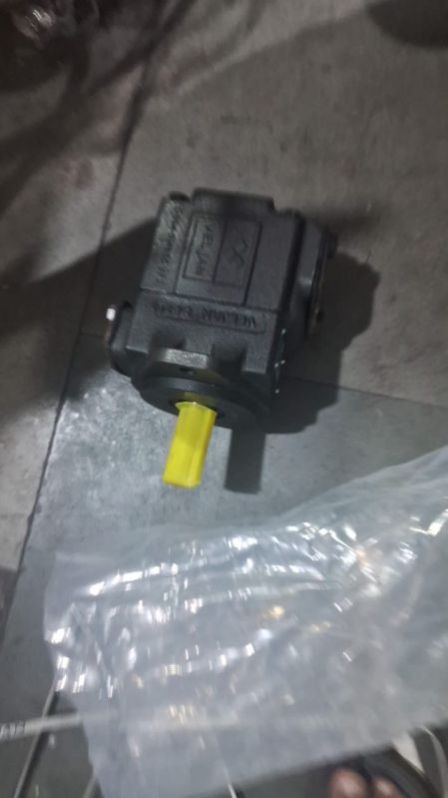

Veljan Denison Hydraulic pump

We are offering denison hydraulic vane pumps and hydraulic motors. Denison hydraulics produce a full range of hydraulic vane pumps and hydraulic motors that operate at pressures in excess of 4, 500 pounds per square inch ("psi") and vary in size from 0.35 cubic inches to 16 cubic inches, and in displacement from 1 to 250 gallons per minute ("gpm"). Denison hydraulics hydraulic vane pumps are recognized as among the strongest products in the hydraulics industry and are distinguished by their unique patented double-lip design, in which the vane is in contact with the cam ring at two points rather than at one as with the single-lip design. This double-lip design makes parker hannifin hpd's hydraulic vane pumps less susceptible to contamination than single-lip pumps. Denison hydraulics vane pumps are manufactured in the following configurations: t6b, t7b, t6c, t6d, t6e, t6cm, t6cp, t6dm, t6em, t6cr, t6dr, t6er and t6csh single pumps t7bb, t67bb, t67cb, t67db, t67eb, t6cc, t6dc, t6ec, t6ed, t6ccm, t6dch, t6ecm and t6edm double pumps t67dbb, t67dcb, t67edb, t6dcc, t6edc, t6dccm, t6edcm, t6dccr and t6edcr triple pumps.
