Softron Control Systems

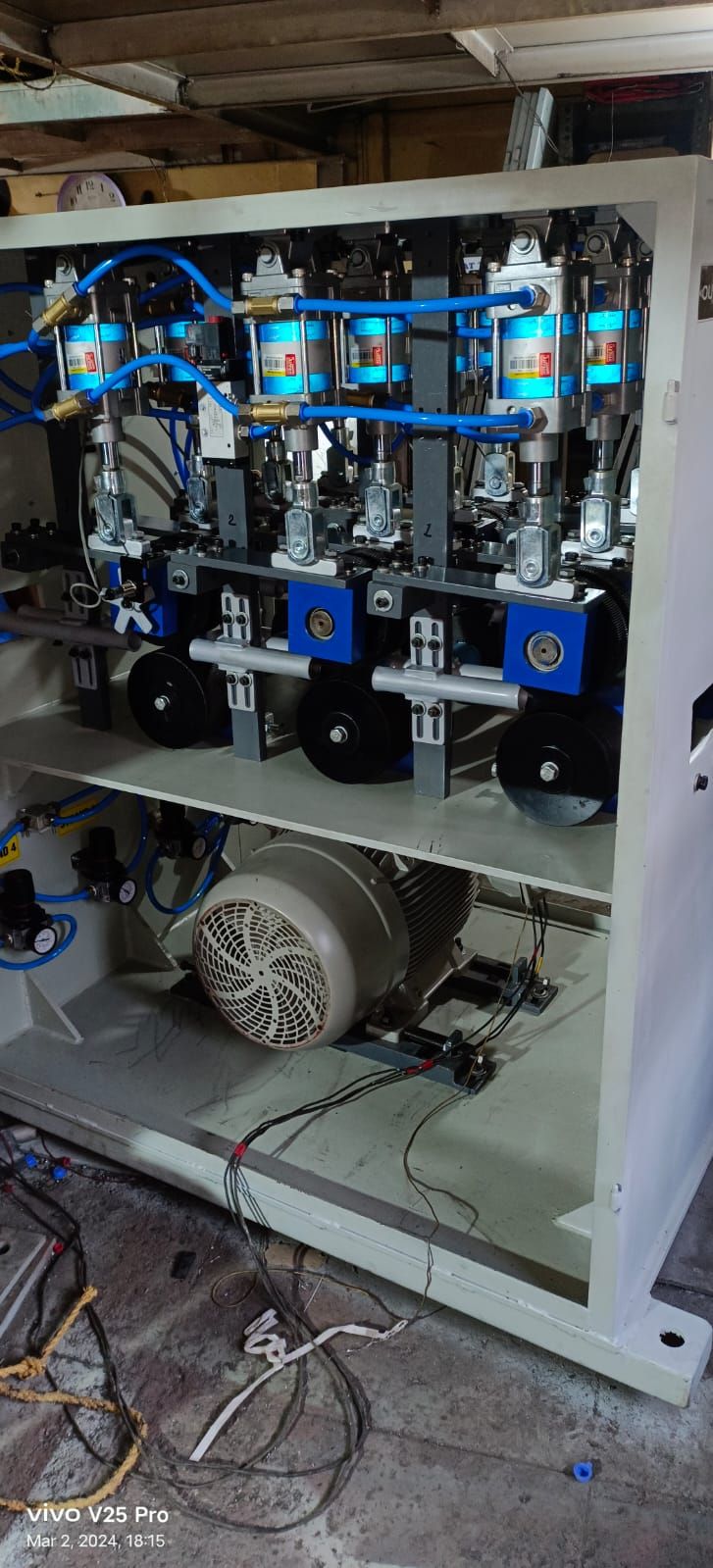

Two Strand Wire Feeding System

• Model No. SCS/WFM/2/222
• No. of Strands Two strand
• Size of Cored Wire Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max.
• Size of Aluminium/solid Wire Aluminium wire 9mm Min.-13mm Max
• Shape of Wire Round/Square/Rectangular/Polygonal
• Telescopic Guide Pipe Lifting Up &down / swiveling through pneumatic Actuated
• Feeding Procedure Sequentially – 1 Simultaneously – 2
• Speed Range mtr/min 0-300mtr/min. adjustable
• Technique of feed Horizontal / Vertical
• Accuracy of feed Tolerence of +/-500mm of feed
• Forward / Reverse jog speed 30 mtr/min.
• Indication range of Counter 0-9999 Mtr provided for pre-setting Length of wire to be fed.
• Method of setting the feed Through speed potentiometer located in the Remote Control Panel
• Location LF/VD /ARS /RH

Wire Feeder Caster Machine

• Model No. SCS/AWM/1/CCM/ALUMINIUMWIREFEEDER
• Feeding Rate 7Mtr per Min
• Wire rod (Dia) Aluminium 2 .5 – 5mm Dia Max
• No. of Strands One Strand
• Technique of feed Horizontal / Vertical.
• Accuracy of feed Tolerence of +/-500mm of feed

Dual Motor Four Strand Wire Feeding Systems

• Type Wire Feeding Systems
• Model No. SCS/WFM/4/440/DUALMOTORFOURSTRAND
• Wire Size 6-18mm CaSi Wire
• Aluminium Wire 6-16mm
• No. of Strands Four Strand
• Feeding Procedure Sequentially – 2 Simultaneously – 2 Speed Range

CaSi Cored Wire Feeder Machine

Technical Data : Wire Diameter 6 Mm to 21 Mm  Speed 15-300 Mtr/min Adujstable Through Plc Operating Systems with Vfd Control Upto 4 Strand Machine. Location : Vd/ladle/lrf/ars/rh

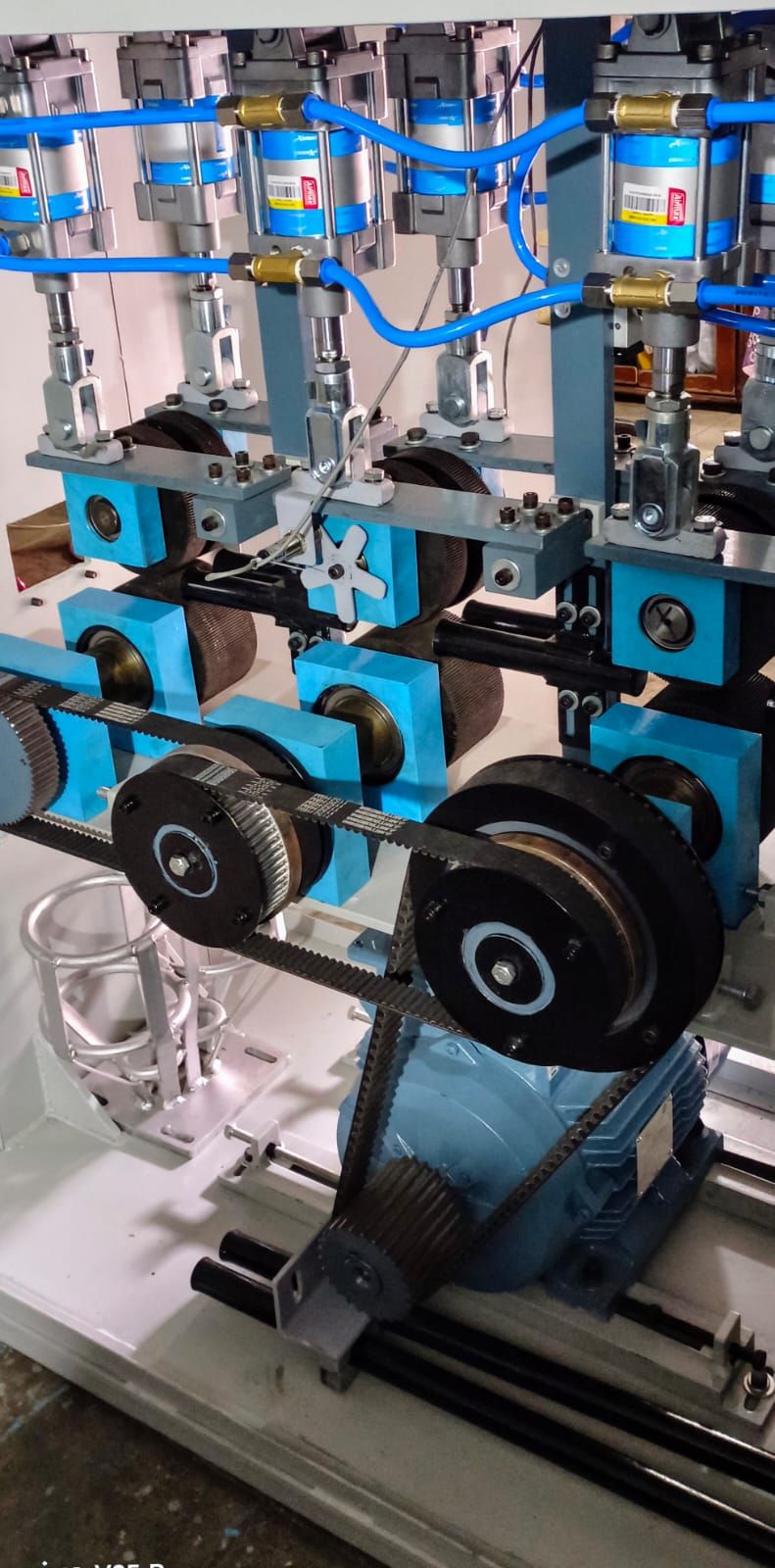

Four Strand Wire Feeding System

• Model No. SCS/WFM/4/440
• No. of Strands Four Strand
• Size of Cored Wire Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max.
• Size of Aluminium/solid Wire Aluminium wire 9mm Min.-13mm Max
• Shape of Wire Round/Square/Rectangular/Polygonal
• Telescopic Guide Pipe Lifting Up &down / swiveling through pneumatic Actuated
• Feeding Procedure Sequentially – 2 Simultaneously – 2
• Speed Range mtr/min. 0-300mtr/min. adjustable
• Technique of feed Horizontal / Vertical
• Accuracy of feed Tolerence of +/-500mm of feed
• Forward / Reverse jog speed 30 mtr/min
• Indication range of Counter 0-9999 Mtr provided for pre-setting Length of wire to be fed.
• Method of setting the feed Through speed potentiometer located in the Remote Control Panel
• Location LF/VD /ARS /RH

CaSi Cored Wire Injection Machine

• Wire Diameter 6 Mm to 21 Mm
• Speed 15-300 Mtr/min Adujstable
• Features Through Plc Operating Systems with Vfd Control,Upto 2 Strand Machine
• Location VD/LADLE/LRF/ARS/RH

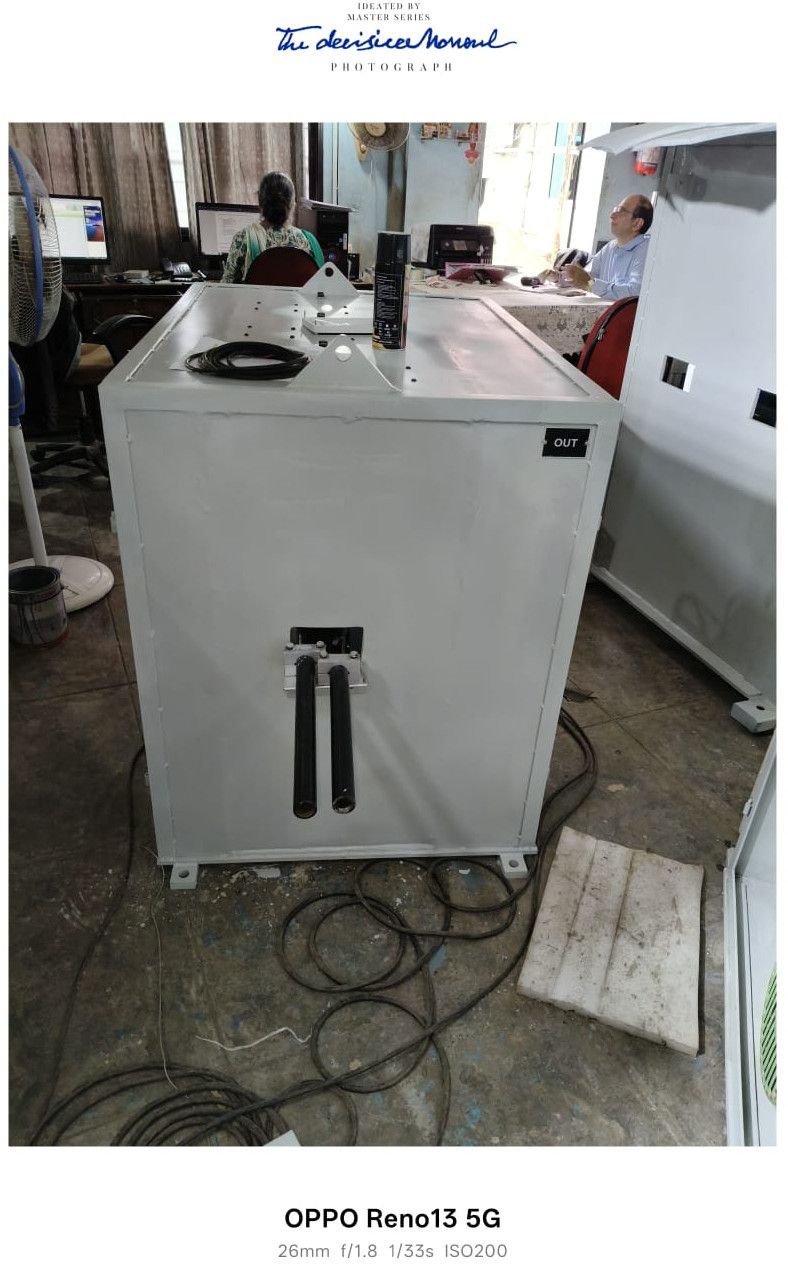

Two Strand Wire Feeding System with Electrical Control Panel

• Model No. SCS/WFM/2/222
• No. of Strands Two strand
• Size of Cored Wire Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max.
• Size of Aluminium/solid Wire Aluminium wire 9mm Min.-13mm Max
• Shape of Wire Round/Square/Rectangular/Polygonal
• Telescopic Guide Pipe Lifting Up &down / swiveling through pneumatic Actuated

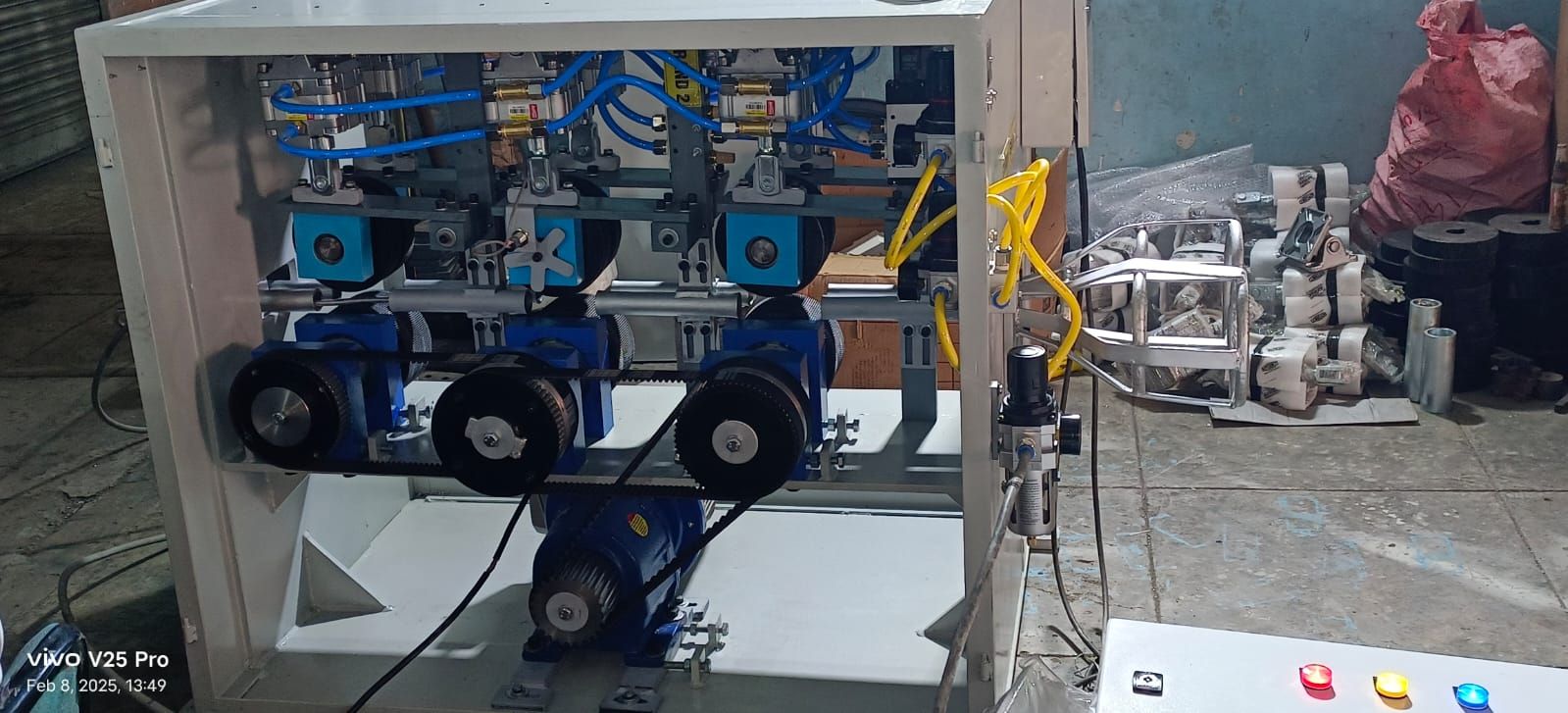

Aluminium & CaSi Wire Feeding Machine

• Location VD/LADLE/LRF/ARS/RH
• Material Line Height 55 to 100
• Material Thickness 0 to 1.6
• Voltage +/- 440 Volt
• Phase 3 Phase
• Frequency 50 Hz

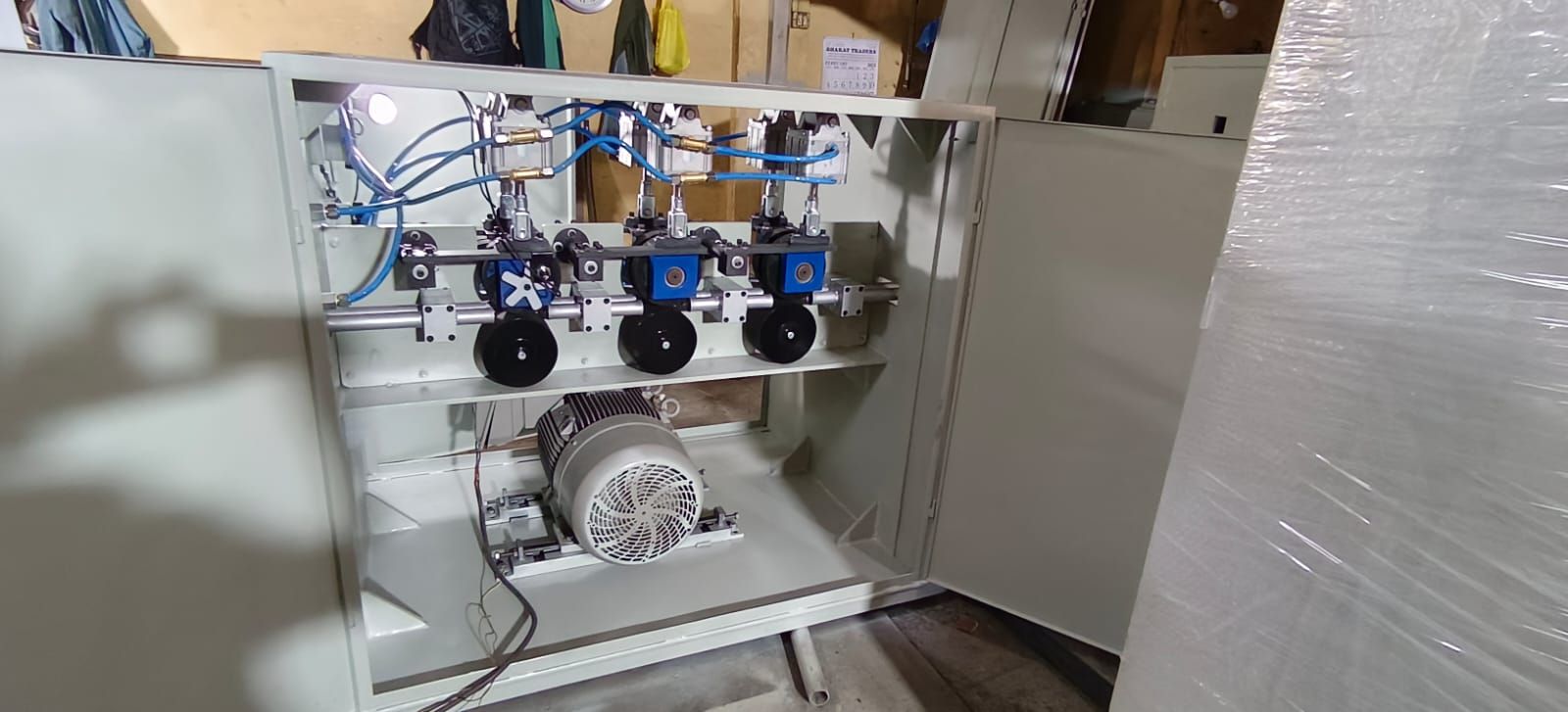

Calcium Cored Wire Feeder Machine

• Wire Diameter 6 Mm to 16 Mm
• Speed 15-150 Mtr/min Adujstable
• Features Through Plc Operating Systems with Vfd Control & as per Client Requirement, upto 2 Strand Machine
• Location VD/LADLE/LRF/ARS/RH

Cored Wire Feeder systems

• Size 6 to 21mm
• Speed 0 to 450 Meters/Min.
