Our Products

  1. Products 172 Products available

Our Products

We offer a complete product range of BELLOW SAFETY VALVE, INCONEL FLOATING BALL VALVE, Single Disc Check Valve, Duplex Basket Strainer and Y Strainer

Floating Ball Valve Manufacturer In India

Floating Ball Valve Manufacturer In India

Materials: Cast Steel (WCB, WCC, WC6, WC9), Cast Iron, SS316, SS304, F22, F51, LF2, F304, F304L, F316, F316L.

Class: 150 to 2500

Ends: Flanged, Socket weld, Butt weld, Threaded

Size:1/4 to 48

View Complete Details
Ask Latest Price & Details
PNEUMATIC ANGLE CONTROL VALVE

PNEUMATIC ANGLE CONTROL VALVE
₹ 86,824 / Piece Get Latest Price
  • End Connection Flanged, RF, MF, RTJ
  • Actuation Type Spring Return, Double Acting
  • Pressure PN 16 to PN 100, Class 150 to Class 600
  • SS316, Wcb 150/PN16,  300
  • Double Acting, Spring Return 1",  2",  3",  4",  5",  6"

Flow Characteristics Linear, Percentage, Quick Open
Allowable range 50: 1 (CV<6.3 30: 1)
Rated Cv value Percentage CV 1.6 to 630 ,linear CV 1.8 to 690
Allowable leakage Metal seal: IV grade(0.01% rated capacity)
Soft seal: VI grade(foam grade)
Performance   Pneumatic Electric
Allowable tolerance, % ±1.5 ±1.0
Return difference, % ≤1.5 ≤1.0
Dead zone, % ≤0.6 ≤1.0
Difference from beginning to end point, % ±2.5 ±2.5
Rated travel difference, % ≤2.5 ≤2.5
Note : specification on the basis of control valve with positioned and PTFE packing.

Dimensions

 DN 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L 115 115 130 130 150 170 190 215 250 275 325 375 375 425 475
H1 95 145   193 276 330 360 420 470 520
H2 205 238   344 421 483 512 562 620 672
H3 375 398   438 521 560 575 680 750 835
H4 700 _
H5 95 110 _
ΦD1 305 340 370 405 460 525 590 700 805 950 _
ΦD2 335 370 400 435 490 555 630 740 845 990 _
H 340 390 632 930
A 228 272 400 610
Weight(kg) 24 25 28 35 37 68 80 95 148 170 231 275 475 522 624

View Complete Details
Ask Latest Price & Details
PNEUMATIC ANGLE SEAT CONTROL VALVE

PNEUMATIC ANGLE SEAT CONTROL VALVE
₹ 1,687 / Piece Get Latest Price
  • Connection Threaded(BSP, NPT), Welded, Flanged, Clamp End
  • Control Type Normally closed, Normally open, Double acting
  • Ambient temperature -10ºC to 80ºC
  • Fluid temperature -10ºC to 180ºC, 25ºC to 220ºC
  • Applicable Fluid Water, Alcohol, Oil, Dye, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
  • Actuator Size 50mm, 63mm, 80mm, 90mm, 125mm
  • SS316, Wcb 150/PN16,  300
  • Double Acting, Spring Return 1",  2",  3",  4",  5",  6"
View Complete Details
Ask Latest Price & Details
3 WAY PNEUMATIC DIAPHRAGM CONTROL VALVE

3 WAY PNEUMATIC DIAPHRAGM CONTROL VALVE
₹ 2,798 / Piece Get Latest Price
  • Actuation Type Spring Return, Double Acting
  • Nominal Pressure PN10 to PN450, Class 150 to Class 2500
  • Nominal Size DN20 to DN200
  • Gasket Metal Graphite
  • End Connection Flanged, RF, MF, RTJ
  • Carbon Steel, SS316 150/PN16,  300
  • Double Acting, Spring Return 1",  2",  3",  4",  5",  6"
View Complete Details
Ask Latest Price & Details
FLUORINE LINED SINGLE SEAT CONTROL VALVE

FLUORINE LINED SINGLE SEAT CONTROL VALVE
₹ 4,298 / Piece Get Latest Price
  • Spring Range 0.02-0.10, 0.08 to 0.24MPa
  • Air Supply Pressure 0.14, 0.16, 0.28, 0.24MPa
  • Actuator Size Φ220, Φ270, Φ350, Φ470
  • Valve Action Air to Close, Air to Open
  • Nominal Pressure Class150 to Class600, PN10 to PN64
  • SS316, Wcb 150,  300
  • Double Acting, Spring Return 1",  2",  3",  4",  5",  6"
View Complete Details
Ask Latest Price & Details
PNEUMATIC CAGE CONTROL VALVE

PNEUMATIC CAGE CONTROL VALVE
₹ 77,561 / Piece Get Latest Price
  • Balanced Piston Steel, Aluminium
  • Nominal Size DN20 to DN400
  • Pressure PN 16 to PN 100, Class 150 to Class 600
  • Actuation Type Spring Return, Double Acting
  • End Connection Flanged, RF, MF, RTJ

Technical Specifications

Nominal Diameter(mm) 40 50 65 80 100 125 150 200 250 300 350 400
Rated flow coefficient Kv Equal percentage 25 40 63 100 160 250 400 630 900 1200 1960 2560
Liner 29 43 70 110 176 275 440 690 960 1300 2150 2816
Actuator Model Direct action PZMA-5 PZMA-6 PZMA-7 PZMA-8
Reaction PZMB-5 PZMB-6 PZMB-7 PZMB-8
Rated Stroke L(mm) 25 40 60 100
Diaphragm Effective Area(cm²） 400 600 1000 1600
Nominal Pressure PN(MPa) 1.6  2.5  4.0  6.4  10.0
Inherent flow Characteristics Equal percentage,Liner
Inherent rangeability R 50
The range of air source signals(Kpa) 20 to 100,40 to 200,80 to 240
Gas source pressure(Mpa) 0.14,0.25,0.28,0.4
Electric actuator Depand on the thrust and stroke which valve need
Power voltage 220V.AC 50Hz 380V.AC 50Hz( Three phase)
Leakage class III Class,IV Class
Flange connection form PN1.6Mpa, Convexity of valve body  PN≥4.0Mpa,Concavity of valve boday
Upper bonnet form Standard type Case Steel:-20 to 220°C,Cast Stainless steel:-40 to 220°C
Cooling type Case Steel:-29 to 425°C,Cast Stainless steel:-60 to 450°C
Cryogenic Cast Stainless steel:-60 to -100°C,-100 to -196°C

Dimensions:





DN(mm)

 L



H1





H3





H4





H5

 Actuator
PN16Class 150 PN64,Class 300 PN100Class 600 A B C H2 H6 H7
20 184 194 206 130 254 337 44 282 260 220 258 180 465
25 184 197 210 130 254 337 48 282 260 220 258 180 465
32 222 235 251 152 320 386 56 282 260 220 258 180 465
308 260 220 280 180 465
40 222 235 251 152 320 402 65 282 260 220 258 180 465
308 260 220 280 180 465
50 254 267 286 159 320 402 76 308 260 220 280 180 465
65 276 292 311 205 365 630 100 308 220 280 180 305 260
394 270 360 236 580 305
80 298 317 337 205 365 630 100 308 220 280 180 305 260
394 270 360 236 580 305
100 352 368 394 208 373 635 110 394 270 360 236 580 305
125 400 500 500 274 484 698 126 394 270 360 236 580 305
498 320 435 310 675 330
150 451 473 508 333 529 705 149 394 270 360 236 580 305
498 320 435 310 675 330
200 543 568 610 370 561 730 198 498 320 435 310 675 330
View Complete Details
Ask Latest Price & Details
Pneumatic Flow Control Valve

Pneumatic Flow Control Valve
₹ 71,881 / Piece Get Latest Price
  • Actuation Type Spring Return, Double Acting
  • Nominal Size DN20 to DN400
  • Pressure PN 16 to PN 100, Class 150 to Class 600
  • End Connection Flanged, RF, MF, RTJ
  • Carbon Steel, SS316 150/PN16,  300
  • Double Acting, Spring Return 1",  2",  3",  4",  5",  6"

Dimensions



DN L H B
PN16 PN40 PN64 Normal Heat Dissipation
DN20 184 194 206 394 509 245
DN25 184 197 210 396 512 245
DN32 200 210 210 402 523 245
DN40 222 235 251 437 589 290
DN50 254 267 286 451 597 290
DN65 276 292 311 607 707 362
DN80 298 317 337 613 718 362
DN100 352 368 394 631 731 362
DN125 410 425 440 736 848 454
DN150 451 473 508 778 887 454
DN200 600 620 650 796 898 454
DN250 650 660 670 1063 1172 560
DN300 740 770 800 1083 1183 560
DN350 850 850   1130 1235 560
DN400 950 950   1210 1315 560
View Complete Details
Ask Latest Price & Details
PNEUMATIC SINGLE SEAT GLOBE CONTROL VALVE

PNEUMATIC SINGLE SEAT GLOBE CONTROL VALVE
₹ 11,658 / Piece Get Latest Price
  • Pressure PN 16 to PN 100, Class 150 to Class 2500
  • Actuation Type Spring Return, Double Acting
  • End Connection Flanged, RF, MF, RTJ
  • SS316, Wcb 150,  300,  600,  900
  • 1", 2", 3", 4", 5" Double Acting,  Spring Return

Technical Parameter

Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
Pneumatic actuator
Diaphragm area, Ae(cm2)		 ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45
350 350 560 900
Action Spring range Metal sealing allowable pressure difference (MPa)
Air open 20-100KPa 4.46 3.09 1.98 1.16 0.7 0.44 0.28 0.18 0.17 0.11 0.07 0.07 0.05 0.03
40-200 KPa 6.4 6.4 5.94 3.34 2.14 1.31 0.84 0.53 0.51 0.33 0.21 0.22 0.15 0.09
80-240 KPa 6.4 6.4 6.4 6.4 4.99 3.05 1.95 1.25 1.18 0.78 0.5 0.51 0.36 0.21
Air close 20-100KPa 6.4 6.19 3.96 2.23 2.14 0.87 0.56 0.35 0.34 0.22 0.14 0.15 0.1 0.06
40-200 KPa 6.4 6.4 6.4 6.4 6.4 5.86 3.64 2.3 2.21 1.43 0.91 0.95 0.66 0.37
80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.04 3.18 3.06 1.98 1.26 1.32 0.92 0.52

Dimensions

DN L A H1 H2 H3 H4 H5 C H6
PN16/40 PN63/100 PN16/40 PN63/100 PN16/40 PN63/100 PN16/40 PN63/100 PN16/40 PN63/100
20 150 230 282 126 138 271 286 298 286 298 43 49 220 180
25 160 230 282 126 138 271 286 298 286 298 48 54 220 180
32 180 260 308 134 142 297 302 310 302 310 57 61 220 180
40 200 260 308 157 165 297 325 333 325 333 66 70 220 180
50 230 300 308 167 187 297 335 345 335 345 80 84 265 180
65 290 340 395 199 204 375 437 442 437 442 92 97 265 240
80 310 380 395 214 219 375 452 457 452 457 100 105 265 240
100 350 430 395 229 240 375 467 478 467 478 120 125 265 240
125 400 500 498 263 280 455 524 541 654 671 134 138 315 304
150 480 550 498 293 300 455 554 561 684 691 156 163 315 304
200 600 650 498 358 364 455 619 625 749 755 199 206 315 304

View Complete Details
Ask Latest Price & Details
CRYOGENIC EMERGENCY CUT OFF VALVE

CRYOGENIC EMERGENCY CUT OFF VALVE
₹ 39,121 / Piece Get Latest Price
  • Nominal Diameter DN10 to 100mm
  • Nominal Pressure PN1.6 to 6.4MPa
  • Cylinder Source Pressure PN0.3 to 0.6PMa
  • Suitable Temperature -196℃ to +70℃
  • Emergency Cut-off Temperature +70±5℃
  • CF8 PN16,  PN25,  PN40,  PN65
  • Buttweld, Flanged, Socket weld 1 1/2",  1 1/4",  1",  1/2",  2 1/2",  2",  3",  3/4",  3/8",  4"

Dimension



DN H L  L1 D D1 D2 b
10 392 61 151 100 10 14.5 6
15 392 61 151 100 15 18.5 6
20 448 81 192 100 22 24.5 6
25 448 81 192 100 26 28.5/32.5 6
32 505 102 248 100 32 38.5 9
40 505 102 248 100 42 45.5 9
50 571 127 287 100 54 58 10
65 571 150 287 100 68 71 10
80 623 182 329 100 84 89 17
100 623 200 329 100 104 109 15
View Complete Details
Ask Latest Price & Details
CRYOGENIC SHORT STEM GLOBE VALVE

CRYOGENIC SHORT STEM GLOBE VALVE
₹ 14,750 / Piece Get Latest Price
  • Nominal diameter DN10 to 100mm
  • Nominal Pressure PN16, PN25, PN40, PN64, Class150, Class300
  • Applicable medium O2, N2, Ar, LNG
  • Applicable temperature -80℃ to +80℃
  • CF8 150,  300
  • Buttweld, Flanged, Socket weld 1 1/2",  1 1/4",  1",  1/2",  1/4",  10",  2 1/2",  2",  3",  3/4",  3/8",  4",  5",  6",  8"

Dimension



DN (mm) H(on)mm H(off)mm L L1 D1 D2 D3
10 134 124 61 61 12 15 22
15 134 124 61 61 15 18.5 26
20 176 163 81 81 23 24.5 32
25 176 163 81 81 26 26 39
32 232 217 102 102 35 39 46
40 232 217 102 102 42 46 52
50 230 209 127 127 54 58 66
65 252 232 150 150 68 71 85
80 310 282 182 182 84 89 100
100 358 325 325 325 104 109 121
View Complete Details
Ask Latest Price & Details

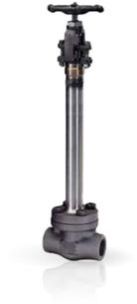

CRYOGENIC LONG STEM GLOBE VALVE

CRYOGENIC LONG STEM GLOBE VALVE
₹ 19,490 / Piece Get Latest Price
  • Nominal Diameter DN10 to DN100
  • Nominal Pressure PN16, PN25, PN40, PN64, Class150, Class300
  • Applicable medium O2, N2, Ar, LNG
  • Applicable temperature -80℃ to +80℃
  • CF8 150,  300
  • Buttweld, Flanged, Socket weld 1 1/2",  1 1/4",  1",  1/2",  1/4",  2 1/2",  2",  3",  3/4",  3/8",  4"

Dimension



DN (mm) H(on)mm H(off)mm L(mm) D(mm) D1(mm) D2(mm) b(mm)
10 255 245 61 65 10 14.5 6
15 255 246 61 65 15 18.5 6
20 302 289 81 80 22 24.5 6
25 302 289 81 80 26 28.5/32.5 6
32 355 340 102 100 32 38.5 9
40 356 340 102 100 42 45.5 9
50 391 370 127 137 54 58 10
65 435 413 150 205 68 71 10
80 486 516 182 202 84 89 17
100 564 531 200 213 104 109 15
View Complete Details
Ask Latest Price & Details
CRYOGENIC STEAM JACKET GLOBE VALVE

CRYOGENIC STEAM JACKET GLOBE VALVE
₹ 20,581 / Piece Get Latest Price
  • Nominal Diameter DN10 to DN50
  • Nominal Pressure PN1.6 to 6.4MPa, Class150, Class300
  • Suitable Media LNG, LO2, LN2, LAr
  • Suitable Temperature -196℃ to +80℃
  • Connection Type Flanged, Socketweld, Buttweld
  • Heat Insulating Type PU insulation
  • CF8 150,  300
  • Buttweld, Flanged, Socket weld 1 1/2",  1 1/4",  1",  1/2",  1/4",  2 1/2",  2",  3",  3/4",  3/8",  4"

Dimension



DN (mm) H(on)mm H(off)mm L L1 L2 D D1 D2 b
10 255 245 61 157 145 65 10 14.5 6
15 255 245 61 157 145 66 15 18.5 6
20 302 289 81 185 173 80 20 24.5 6
25 302 289 81 185 173 80 26 28.5 6
32 355 340 102 221 206 100 32 38.5 9
40 355 340 102 221 206 100 42 45.5 9
50 391 370 127 228 213 120 54 58 10
View Complete Details
Ask Latest Price & Details
CRYOGENIC TRUNNION BALL VALVE

CRYOGENIC TRUNNION BALL VALVE
  • End Connection Flanged, Buttweld, Socketweld
  • Nominal Pressure Class 150 to Class 1500
  • Working temperature -196ºC to +200ºC
  • Medium Water, Gas , Oil, Nitric acid, Acetic acid
  • Temperature -28ºC~300ºC
  • Air pressure 0.3 to 0.7MPa
  • Carbon Steel, Cast iron, Ductile Iron, SS304, SS316, Stainless steel, Wcb 150,  1500,  2500,  300,  400,  4500,  600,  900
  • Buttweld, Screwed 1 1/2",  1 1/4",  1",  1/2",  10",  12",  14",  16",  18",  2 1/2",  2",  20",  24",  28",  3",  3/4",  30",  32",  36",  4",  40,  5",  6",  8"

Dimension                                                 Unit: mm

DN D0 D1 L B H E
15 15 19 82 10 193 180
25 25 33 82 12 218 200
40 40 46 113 15 246 200
50 50 58 157 15 336 360
65 65 77 177 15 450 360
View Complete Details
Ask Latest Price & Details
CRYOGENIC BALL VALVE

CRYOGENIC BALL VALVE
₹ 14,184 / Piece Get Latest Price
  • Nominal Diameter DN15 to 65mm
  • Nominal Pressure PN1.6 to 6.4MPa. Class150, Class300, Class800
  • Suitable Media LO2, LN2, LAr, LNG
  • Suitable Temperature -196℃ to +80℃
  • SS304 300,  800

Dimension

DN H L B D0 D1 E
15 193 82 10 15 19 180
25 218 82 12 25 33 200
40 246 113 15 40 46 200
50 336 157 15 50 58 360
65 450 177 15 65 77 360
View Complete Details
Ask Latest Price & Details
CRYOGENIC GATE VALVE

CRYOGENIC GATE VALVE
₹ 7,893 / Piece Get Latest Price
  • Body Material SS304, SS316L
  • Class 150, 300, 600, 800
  • Size 1 1/2", 1", 1/2", 10", 16", 2", 3", 3/4", 4", 6", 8"
  • Nominal diameter DN15 to DN50
  • Nominal Pressure PN16, PN25, PN40, PN64, Class150 to Class800
  • Applicable medium O2, N2, Ar, LNG
  • Applicable temperature -80℃ to +80℃

Dimension                                         Unit: mm

DN L H W
15 79 290 125
20 92 305 125
25 111 340 160
32 120 390 160
40 120 405 180
50 140 455 200
View Complete Details
Ask Latest Price & Details
CRYOGENIC CHECK VALVE

CRYOGENIC CHECK VALVE
₹ 3,346 / Piece Get Latest Price
  • End Connection Buttweld, Socketweld, Flanged
  • Suitable Temperature -80℃ to +80℃
  • Suitable Media LO2, LN2, LAr, LNG, LCO2
  • Nominal Pressure PN40MPa
  • Nominal Diameter DN10 to DN80
  • CF8 PN40
  • Buttweld, Flanged, Socket weld 1 1/2",  1 1/4",  1",  1/2",  2 1/2",  2",  3/4",  3/8"

Dimension

DN H L B D0 D1 D2
10 64 195 6 12 15 22
15 64 195 6 15 19 26
20 81 201 6 23 26 34
25 81 201 6 26 33 39
32 102 215 9 35 39 46
40 102 215 10 42 46 52
50 127 267 10 54 58 66
65 150 267 10 68 77 85
80 182 267 10 84 89 100
View Complete Details
Ask Latest Price & Details
CRYOGENIC PNEUMATIC ACTUATED GLOBE VALVE

CRYOGENIC PNEUMATIC ACTUATED GLOBE VALVE
₹ 36,589 / Piece Get Latest Price
  • Seal ring PTFE
  • Nominal Diameter DN10 to DN100
  • Nominal Pressure PN1.6 to 6.4MPa
  • Cylinder Source Pressure PN0.3 to 0.6PMa
  • Suitable Temperature -196℃ to +70℃
  • Emergency Cut-off Temperature +75±5℃
  • CF8 PN40

Dimension

DN H L D D1 D2 b
10 448 61 100 10 14.5 6
15 448 61 100 15 18.5 6
20 515 81 100 22 24.5 6
25 515 81 110 26 28.5 6
32 571 102 110 32 38.5 9
40 571 102 110 42 45.5 9
50 622 127 110 54 58 10
65 622 127 110 68 71 10
80 675 152 110 84 89 17
100 675 152 110 104 109 15
View Complete Details
Ask Latest Price & Details
DIRECT ACTING PRESSURE REDUCING VALVE

DIRECT ACTING PRESSURE REDUCING VALVE
₹ 74,575 / Piece Get Latest Price
  • Pressure PN16, PN40
  • Body Material Ductile Iron
  • Class PN25
  • Size 1 1/2", 1 1/4", 1", 2 1/2", 2", 3", 4"
  • Temperature range: -10o°C to 70o°C

Dimensions

DN G L H H1
15 G1/2″ 65 75 35
20 G3-4″ 75 85 35
25 G1″ 90 3 46
32 G1-1/4″ 105 130 55
40 G1-1/2″ 120 155 65
50 G2″ 140 175 75
View Complete Details
Ask Latest Price & Details
STEAM PRESSURE REDUCING VALVE

STEAM PRESSURE REDUCING VALVE
₹ 18,868 / Piece Get Latest Price
  • Nominal Size DN15 to DN200
  • Nominal Pressure PN10 to PN40
  • Casing Body Test Pressure 3.75 MPa
  • Sealing Test Pressure 2.5 MPa
  • Max. Inlet pressure 2.5 MPa
  • Outlet pressure range 0.02 – 1.6 MPa
  • Ductile Iron PN25,  PN40
  • Flanged, Screwed 1 1/2",  1 1/4",  1",  1/2",  2",  3",  3/4"

Dimensions                                                               Unit:mm

DN L H H1
15 160 295 90
25 180 330 110
50 250 245 125
1001 350 385 170
150 450 415 210
200 500 475 240
View Complete Details
Ask Latest Price & Details
WATER PRESSURE REDUCING VALVE

WATER PRESSURE REDUCING VALVE
₹ 25,196 / Piece Get Latest Price
  • End Connection Flanged
  • Pressure Rating PN10 to PN64
  • Nominal Size DN20 to DN400
  • Ductile Iron PN16

Dimension                                 Unit: mm

PN16

DN L H H1
20 160 220 90
25 180 255 95
32 200 255 100
40 220 325 115
50 250 325 120
65 260 330 125
80 310 340 135
100 350 347 148
125 400 560 190
150 450 580 205
200 500 630 220
250 600 750 270
300 800 780 310
350 850 850 390
400 900 925 420

PN40

DN L H H1
20 160 220 90
25 200 265 95
32 220 265 100
40 240 330 115
50 270 330 120
65 280 340 125
80 330 340 135
100 380 360 148
125 450 565 200
150 500 585 210
200 560 635 245
View Complete Details
Ask Latest Price & Details
PILOT OPERATED PRESSURE REDUCING VALVE

PILOT OPERATED PRESSURE REDUCING VALVE
  • Body Cast Iron
  • Spring Washer Carbon Steel
  • Seal NBR
  • Nominal Size DN40 to DN400
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • End Connection Flanged

Dimensions                                                                                                 Unit: mm

DN ∅d ∅K n-∅dl ∅D T L
40 ∅84 ∅110 4-∅19 ∅150 19 200
50 ∅99 ∅125 4-∅19 ∅165 19 205
65 ∅118 ∅145 4-∅19 ∅185 19 215
80 ∅132 ∅160 8-∅19 ∅200 19 240
100 ∅156 ∅180 8-∅19 ∅220 19 290
125 ∅184 ∅210 8-∅19 ∅250 19 325
150 ∅211 ∅240 8-∅23 ∅285 19 355
200 ∅266 ∅295 8-∅23 ∅340 20 458
250 ∅319 ∅350 12-∅23 ∅395 22 530
300 ∅370 ∅400 12-∅23 ∅445 24.5 615
350 ∅429 ∅460 16-∅23 ∅505 24.5 686
400 ∅480 ∅515 16-∅28 ∅580 24.5 76
View Complete Details
Ask Latest Price & Details
PRESSURE RELIEF VALVE

PRESSURE RELIEF VALVE
₹ 25,764 / Piece Get Latest Price
  • Disc Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
  • Spring SS304
  • Shaft SS304
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN1.6, PN2.5, PN4.0
  • End Connections Flanged

Dimensions                                                                                            Unit: mm

DN L H H1
50 205 270 200
65 229 305 210
80 250 320 220
100 292 400 260
125 330 455 310
150 356 502 342
200 495 636 413
250 622 750 510
300 698 913 600
350 787 913 600
400 900 1035 685
450 978 1035 685
500 1075 1300 880
600 1230 1370 950
View Complete Details
Ask Latest Price & Details
FLOAT CONTROL VALVE

FLOAT CONTROL VALVE
₹ 22,349 / Piece Get Latest Price
  • Nominal Size DN20 to DN800
  • Nominal Pressure PN10 to PN25
  • Shell test pressure 1.5, 2.4, 3.75MPa
  • Sealed test pressure 1.1, 1.76, 2.75MPa
  • Suitable temperature ≤80℃
  • Suitable medium water, Sewage
  • Ductile Iron 150/PN16

Dimensions                                                                     Unit: mm

PN10

DN L D D1 H H1
20 180 105 75 212 179
25 180 115 85 212 179
32 180 135 100 212 179
40 203 145 110 265 210
50 203 160 125 265 210
65 235 180 145 310 215
80 285 195 160 350 245
100 360 215 180 460 305
125 400 245 210 520 365
150 455 280 240 570 415
200 585 335 295 695 510
250 650 390 350 780 560
300 800 440 400 905 658
350 860 500 460 1025 696
400 915 565 515 1080 735
450 980 615 565 1030 610
500 1075 670 620 1135 665
600 1230 780 725 1270 725
700 1300 895 840 1460 865
800 1450 1010 950 1640 975

PN16

DN L D D1 H H1
20 180 105 75 212 179
25 180 115 85 212 179
32 180 135 100 212 179
40 203 145 110 265 210
50 203 160 125 265 210
65 235 180 145 310 215
80 285 195 160 350 245
100 360 215 180 460 305
125 400 245 210 520 365
150 455 280 240 570 415
200 585 335 295 695 510
250 650 405 355 780 560
300 800 460 410 905 658
350 860 520 470 1025 696
400 915 580 525 1080 735
450 980 640 585 1030 610
500 1075 705 650 1135 665
600 1230 840 770 1270 725
700 1300 910 840 1460 865
800 1450 1020 950 1640 975
View Complete Details
Ask Latest Price & Details
STEAM SAFETY VALVE

STEAM SAFETY VALVE
₹ 8,885 / Piece Get Latest Price
  • End Connection NPT, RF, RTJ
  • Nozzle 2Cr13, SS304, SS316
  • Cap Carbon Steel
  • Working Pressure: PN1.6, PN2.5, PN4.0, Class 150 to Class 300
  • Face to Face Dimension ASME B16.10, EN558-1, DIN 3202
  • End Connection Dimension ASME B16.5, DIN 2543, DIN 2545, EN 12627
  • Cast iron, Cast Steel, Ductile Iron, Stainless steel PN16,  PN25,  PN40

Dimensions

Diameter(in) d0 D D1 D2 b t Z- Φd DN’ D’ D1′ D2′ b’ t Z’-Φd’ L L1 H
1/2″x3/4″ D 89 60.5 35 12 5 4-15 20 98 70 43 14 1.6 4-15 90 90 290
3/4″x1″4-15 D 98 70 43 14 5 4-15 25 108 79.5 51 15 1.6  4-15 96 92 310
1″x11/2″ D 108 79.5 51 15 5 4-15 40 127 98.5 73 18 1.6  4-15 115 105 320
1″x2″ D 108 79.5 51 15 5 4-15 50 152 120.5 92 18 1.6 4-19 115 105 320
11/2″x2″ G 127 98.5 73 18 5 4-15 50 152 120.5 92 18 1.6 4-19 121 124 350
11/2″x21/2″ G 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 121 124 360
11/2″x3″ G 127 98.5 73 18 5 4-15 80 190 152.5 127 22 1.6 4-19 124 130 360
2″x21/2″ H 152 120.5 92 18 5 4-19 65 178 139.5 105 20 1.6 4-19 124 130 380
2″x3″ J 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 380
21/2″x4″ J 178 139.5 105 20 5 4-19 100 229 190.5 157 24 1.6 8-19 143 137 380
3″x4″ L 190 152.5 127 22 5 4-19 100 229 190.5 157 24 1.6 8-19 162 156 480
4″x6″ N 229 190.5 157 24 10 8-19 150 279 241.5 216 26 1.6  8-22 210 197 540
6″x8″ P 279 241.5 216 26 10 8-22 200 343 298.5 270 29 1.6  8-22 241 240 760
8″x10″ R 343 298.5 270 29 10 8-22 250 406 362 324 31 1.6  12-25 279 276 830
12″x14″ T 483 432 381 32 10 12-25 350 533 476 413 35 1.6  12-29 370 360 890
View Complete Details
Ask Latest Price & Details
PRESSURE SAFETY VALVE

PRESSURE SAFETY VALVE
₹ 13,269 / Piece Get Latest Price
  • Bonnet WCB
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class600
  • End Connection Flanged
  • Wcb, WCC 150×150,  600×600

Dimensions

Size D D1 D2 b t  Z-Φd DN’ D’ D1′ D2′ b’ t’ Z’-Φd’  L L1 H
1/2″x3/4″ 89 60.5 35 12 5 4-15 20 98 70 43 14 1.6 4-15 90 90 290
3/4″x1″ 98 70 43 14 5 4-15 25 108 79.5 51 15 1.6 4-15 96 92 310
1″x11/2″ 108 79.5 51 15 5 4-15 40 127 98.5 73 18 1.6 4-15 115 105 320
1″x2″ 108 79.5 51 15 5 4-15 50 152 120.5 92 18 1.6 4-19 115 105 320
11/2″x2″ 127 98.5 73 18 5 4-15 50 152 120.5 92 18 1.6 4-19 121 124 350
11/2″x21/2″ 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 121 124 360
11/2″x3″ 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 124 130 360
2″x21/2″ 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 380
2″x3″ 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 380
21/2″x4″ 178 139.5 105 20 5 4-19 100 229 190.5 157 24 1.6 8-19 143 137 380
3″x4″ 190 152.5 127 22 5 4-19 100 229 190.5 157 24 1.6 8-19 162 156 480
4″x6″ 229 190.5 157 24 10 8-19 150 241.5 241.5 216 26 1.6 8-22 210 197 540
6″x8″ 279 241.5 216 26 10 8-22 200 298.5 298.5 270 29 1.6 8-22 241 240 760
8″x10″ 343 298.5 270 29 10 8-22 250 362 324 324 31 1.6 12-25 279 276 830
12″x14″ 483 432 381 32 10 12-25 350 476 413 413 35 1.6 12-25 370 370 890
View Complete Details
Ask Latest Price & Details
THERMAL SAFETY VALVE

THERMAL SAFETY VALVE
  • End Connection NPT, RF, RTJ
  • Bonnet Carbon Steel
  • Nozzle 2Cr13, SS304, SS316
  • Cap Carbon Steel
  • Working Pressure PN1.6, PN2.5, PN4.0, Class 150 to Class 300
  • Face to Face Dimension ASME B16.10, EN558-1, DIN 3202
  • End Connection Dimension ASME B16.5, DIN 2543, DIN 2545, EN 12627
  • Cast iron, Cast Steel, Ductile Iron, Stainless steel PN16,  PN25,  PN40

Dimensions

DN

do

Rc

L

L1

G

H

15

10

1/2″

37

65

3/4″

196

20

12

3/4″

40

70

1″

215

25

15

1″

45

78

1 1/4″

234

32

20

1 1/4″

55

90

1 1/2″

302

40

25

1 1/2″

67

105

2″

326

50

32

2″

76

115

2 1/2″

348

65

40

2 1/2″

110

145

3″

370

80

50

3″

110

145

4″

410
View Complete Details
Ask Latest Price & Details
BELLOW SAFETY VALVE

BELLOW SAFETY VALVE
₹ 21,234 / Piece Get Latest Price
  • Disc 2Cr13, SS304, SS316
  • Spring Alloy Steel, Inconel, Monel, SS304
  • Nominal Pressure Class150 to Class2500
  • Nominal Size DN25 to DN200
  • CF8M, Wcb 150×150,  300×150,  600×150

Dimensions

Size D D1 D2 b t Z-фd D` D1` D2` b` t Z`- фd` L L1 H
½”×3/4″ 89 60.5 35 12 5 4-ф15 98 70 43 14 1.6 4-ф15 90 90 340
3/4″×1″ 98 70 43 14 5 4-ф15 108 79.5 51 15 1.6 4-ф15 96 92 350
1″×1 ½” 108 79.5 51 15 5 4-ф15 127 98.5 73 18 1.6 4-ф15 115 105 360
1″×2″ 108 79.5 51 15 5 4-ф15 152 120.5 92 18 1.6 4-ф19 115 105 360
1 1/2″×2″ 127 98.5 73 18 5 4-ф15 152 120.5 92 18 1.6 4-ф19 121 124 380
1 1/2″×2 ½” 127 98.5 73 18 5 4-ф15 178 139.5 105 20 1.6 4-ф19 121 124 390
1 1/2″×3″ 127 98.5 73 18 5 4-ф15 178 139.5 105 20 1.6 4-ф19 124 130 390
2″×2 ½” 152 120.5 92 18 5 4-ф19 190 152.5 127 22 1.6 4-ф19 124 130 410
2″×3″ 152 120.5 92 18 5 4-ф19 190 152.5 127 22 1.6 4-ф19 124 130 410
2 1/2″×4″ 178 139.5 105 20 5 4-ф19 229 190.5 157 24 1.6 8-ф19 143 137 410
3″×4″ 190 152.5 127 22 5 4-ф19 229 190.5 157 24 1.6 8-ф19 162 156 480
4″×6″ 229 190.5 157 24 10 8-ф19 279 241.5 216 26 1.6 8-ф22 210 197 560
6″×8″ 279 241.5 216 26 10 8-ф22 343 298.5 270 29 1.6 8-ф22 241 240 790
8″×10″ 343 298.5 270 29 10 8-ф22 406 362 324 31 1.6 12-ф25 279 276 840
View Complete Details
Ask Latest Price & Details

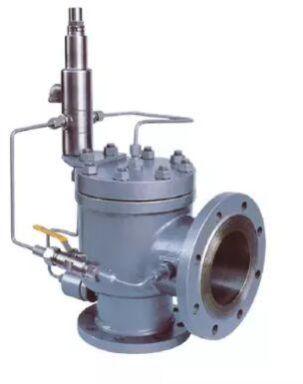

PILOT OPERATED SAFETY VALVE

PILOT OPERATED SAFETY VALVE
₹ 71,525 / Piece Get Latest Price
  • Size 1 1/2"×2", 2"×3", 3"x4", 4"X6", 6"×8", 8"×10"
  • Body Material CF8M, Wcb
  • Class 150×150, 300×150, 600×150
  • Nominal Pressure Class 150 to Class 1500
  • Nominal Size DN25 to DN300
View Complete Details
Ask Latest Price & Details
CONVENTIONAL SAFETY VALVE

CONVENTIONAL SAFETY VALVE
₹ 16,391 / Piece Get Latest Price
  • Bellows WCB, SS304, SS316
  • Nominal Size DN15 to DN200
  • Nominal Pressure PN 16 to PN40, Class150 to Class1500
  • Disc Stainless Steel
  • A105, CF8M, LCB, LF2, Wc6, Wcb 150×150,  300×150,  300×300,  600×150,  600×600

Dimension

Size D D1 D2 b t Z-фd D` D1` D2` b` t Z`- фd` L L1 H
½”×3/4″ 89 60.5 35 12 5 4-ф15 98 70 43 14 1.6 4-ф15 90 90 260
3/4″×1″ 98 70 43 14 5 4-ф15 108 79.5 51 15 1.6 4-ф15 92 92 280
1″×1 ½” 108 79.5 51 15 5 4-ф15 127 98.5 73 18 1.6 4-ф15 105 105 290
1″×2″ 108 79.5 51 15 5 4-ф15 152 120.5 92 18 1.6 4-ф19 105 105 290
1 1/2″×2″ 127 98.5 73 18 5 4-ф15 152 120.5 92 18 1.6 4-ф19 124 124 320
1 1/2″×2 ½” 127 98.5 73 18 5 4-ф15 178 139.5 105 20 1.6 4-ф19 124 124 340
1 1/2″×3″ 127 98.5 73 18 5 4-ф15 178 139.5 105 20 1.6 4-ф19 130 130 340
2″×2 ½” 152 120.5 92 18 5 4-ф19 190 152.5 127 22 1.6 4-ф19 130 130 360
2″×3″ 152 120.5 92 18 5 4-ф19 190 152.5 127 22 1.6 4-ф19 130 130 360
2 1/2″×4″ 178 139.5 105 20 5 4-ф19 229 190.5 157 24 1.6 8-ф19 137 137 360
3″×4″ 190 152.5 127 22 5 4-ф19 229 190.5 157 24 1.6 8-ф19 156 156 450
4″×6″ 229 190.5 157 24 10 8-ф19 279 241.5 216 26 1.6 8-ф22 197 197 510
6″×8″ 279 241.5 216 26 10 8-ф22 343 298.5 270 29 1.6 8-ф22 240 240 740
8″×10″ 343 298.5 270 29 10 8-ф22 406 362 324 31 1.6 12-ф25 279 276 810
View Complete Details
Ask Latest Price & Details
Swing Check Valve

Swing Check Valve
  • Face to face Dimension ASME B16.10, EN558
  • End Connection Flanged, Buttweld
  • Nominal Pressure Class150 to Class1500, PN16 to PN100
  • Nominal Diameter DN50 to DN600
  • A182 F316L, A351 CF3M, Cast iron, Cast Steel, Ductile Iron, SS304, SS316, SS316L 150,  150/PN16,  300,  600,  PN10/16,  PN64

Dimensions                                                                                          Unit:mm

Class150

DN d L O H
50 51 203 150 510
65 64 216 180 170
80 76 241 190 180
100 102 292 230 237
125 152 356 280 305
150 203 495 345 370
200 254 622 405 420
250 305 698 485 440
300 337 787 535 470
350 387 864 595 520
400 438 978 635 580
450 489 978 700 630
500 591 1295 815 870
600 635 1295 870 901
View Complete Details
Ask Latest Price & Details
DUAL DISC CHECK VALVE

DUAL DISC CHECK VALVE
  • Nominal Diameter DN50 to DN900
  • Nominal Pressure Class 150 to Class 2500, PN16 to PN250
  • Face to Face Dimension API 594, ASME B16.10
  • Flanged End Dimensions ASME B16.10
  • Cast iron, CF8M, Ductile Iron, LCC, Wcb 150/PN16,  300,  600

Dimensions                                                                                         Unit: mm

Class 150

DN L D D3 D2
50 60 103 51 58
65 67 122 65 73
80 73 135 80 88
100 73 173 102 108
125 86 195 127 132
150 98 220 152 160
200 127 277 203 210
250 146 337 254 265
300 181 407 305 310
350 184 448 350 355
400 191 512 400 405
450 203 547 450 455
500 219 604 500 505
600 222 715 600 605
700 305 827 685 690
750 305 878 740 740
800 305 935 785 790
900 368 1045 885 890
View Complete Details
Ask Latest Price & Details
SINGLE DISC CHECK VALVE

SINGLE DISC CHECK VALVE
  • Disc Carbon Steel, Stainless Steel
  • Spring Stainless Steel
  • Nominal Diameter DN50 to DN600
  • Nominal Pressure Class 150 to Class 2500, PN16 to PN64
  • Face to Face Dimension API 594, ASME B16.10
  • Flanged End Dimensions ASME B16.10
  • Carbon Steel, Stainless steel 150/PN16

Dimensions                                                                                 Unit: mm

Class150

DN A B L
40 87 23 19
50 104 30 19
65 124 41 19
80 136 54 19
100 174 71 19
125 197 92 19
150 222 112 19
200 279 155 28
250 339 201 28
300 409 240 38
350 450 270 44
400 514 311 51
450 549 360 60
500 606 410 64
600 717 490 –
View Complete Details
Ask Latest Price & Details
LIFT CHECK VALVE

LIFT CHECK VALVE
₹ 9,523 / Piece Get Latest Price
  • Disc Stainless Steel
  • Nominal Diameter DN15 to DN300
  • Nominal Pressure Class150 to Class900, PN16 to PN100
  • End Connection Flanged
  • Face to Face Dimension ASME B16.10
  • Flange End Dimension ASME B16.5
  • Buttweld Dimension ASME B16.25
  • Cast iron 150/PN16

Dimensions                                                                                  Unit: mm

Class150

DN L d H
15 108 13 76
20 117 19 76
25 127 25 98
32 140 32 102
40 165 38 115
50 203 51 140
65 216 64 162
80 241 76 168
100 292 102 194
125 356 127 210
150 406 152 226
200 495 203 250
250 622 254 275
300 699 305 332
View Complete Details
Ask Latest Price & Details
PRESSURE SEAL SWING CHECK VALVE

PRESSURE SEAL SWING CHECK VALVE
  • Disc WCB, WC1, WC6, WC9
  • Sealing Ring Stainless Steel
  • Nominal Diameter DN65 to DN350
  • Nominal Pressure Class1500 to Class2500 , PN10 to PN64
  • Face to Face Dimension ASME B16.10

Dimensions                                                                 Unit: mm

Class1500

DN L d H
65 254 56 282
80 325 64 300
100 406 84 350
125 483 100 400
150 559 126 425
200 711 158 490
250 864 200 540
300 991 250 650
350 1067 280 710

Class2000

DN L d H
65 330 50 240
80 368 60 305
100 457 80 315
125 533 96 409
150 610 118 465
200 762 147 528
250 914 180 613
300 1041 222 680
350 1118 254 745
View Complete Details
Ask Latest Price & Details
FORGED STEEL SWING CHECK VALVE

FORGED STEEL SWING CHECK VALVE
₹ 1,514 / Piece Get Latest Price
  • End Connections Buttweld, Socketweld, Flanged
  • Nominal Diameter DN15 to DN50
  • Nominal Pressure Class800 to Class2500
  • Face to Face Dimensions ASME B16.10
  • Flanged Ends ASME B16.5
  • ASTM A105N, ASTM-A182Gr-F304, ASTM-A182Gr-F316 1500,  800

Dimensions                                                                                                                     Unit: mm

Class800

DN L L1 E0 D H
15 79 9.6 21.8 10.5 61
20 92 12.7 27.1 13.5 61
25 111 12.7 33.8 18 78
32 120 12.7 42.6 24 84
40 120 12.7 48.7 29 84
50 160 15.9 61.2 36.5 120
View Complete Details
Ask Latest Price & Details
RISING STEM CAST IRON GATE VALVE

RISING STEM CAST IRON GATE VALVE
₹ 2,678 / Piece Get Latest Price
  • Sealing Ring EPDM
  • Stem Nut Brass, Bronze
  • Handwheel Cast Iron, Ductile Iron
  • Nominal Diameter DN50 to DN600
  • Nominal Pressure PN16 to PN40
  • End Connection: Flanged Buttweld, Socketweld
  • Cast iron 150/PN16
  • Buttweld, Flanged, Socket weld 10",  12",  14",  16",  18",  2 1/2",  2",  20",  24",  28",  3",  32",  36",  4",  40",  48",  5",  6",  8"

Dimensions                                                                      Unit: mm

PN16

DN L D H D1
50 178 165 258 125
65 190 185 287 145
80 203 308 388 160
100 229 349 449 180
125 254 441 566 210
150 276 441 591 240
200 292 553 753 295
250 330 615 865 355
300 356 714 1014 410
View Complete Details
Ask Latest Price & Details
NRS CAST IRON GATE VALVE

NRS CAST IRON GATE VALVE
₹ 1,934 / Piece Get Latest Price
  • End Connection Buttweld, Socketweld, Flanged
  • Nominal Pressure PN16 to PN40, Class150 to Class1500
  • Nominal Diameter DN50 to DN600
  • Handwheel Cast Iron, Ductile Iron
  • Holding Ring Brass
  • Cast iron 150/PN16
  • Buttweld, Flanged, Socket weld 10",  12",  14",  16",  18",  2 1/2",  2",  20",  24",  28",  3",  32",  36",  4",  40",  48",  5",  6",  8"
View Complete Details
Ask Latest Price & Details
FORGED STEEL GATE VALVE

FORGED STEEL GATE VALVE
₹ 1,854 / Piece Get Latest Price
  • Face to Face Dimensions ASME B16.10
  • Nominal Pressure Class800 to Class2500
  • Nominal Diameter DN8 to DN50
  • End Connections Buttweld, Socketweld, Flanged
  • Flanged Ends ASME B16.5
  • ASTM A105N, ASTM A182 F304, ASTM A182 F316 1500,  2500,  800

Dimensions                                                                          Unit: mm

Class800

DN d L H W
8 7 79 166 100
10 7 79 166 100
15 10 79 166 100
20 13.6 92 169 100
25 18 111 193 125
32 24 120 230 160
40 29 120 246 160
50 36.8 140 283 180
View Complete Details
Ask Latest Price & Details
DOUBLE DISC GATE VALVE

DOUBLE DISC GATE VALVE
₹ 46,053 / Piece Get Latest Price
  • Nominal Diameter DN40 to DN800
  • Nominal Pressure PN200 to PN500
  • Face to Face Dimension ASME B16.10
  • Buttweld Dimension ASME B16.25
  • Cast iron 150/PN16
  • Buttweld, Flanged, Socket weld 10",  12",  14",  16",  18",  20",  24",  3",  30",  36",  4",  6",  8"

Dimensions                                                                      Unit: mm

PN10

DN L D D1 D2 H H1 Do
40 165 150 110 84 257 302 160
50 180 165 1250 99 289 346 180
65 1950 185 145 118 334 408 180
80 210 200 160 132 377 465 200
100 230 220 180 156 433 542 200
125 255 250 210 184 527 662 240
150 280 285 240 211 596 754 240
200 330 340 295 266 772 984 320
250 380 395 350 319 904 1168 320
300 420 445 400 370 1045 1357 400
350 450 505 460 429 1177 1542 400
400 480 565 515 480 1345 1759 500
450 510 615 565 530 1497 1972 500
500 540 670 620 582 1648 2173 600
600 600 780 725 682 1830 2458 600
700 660 895 840 794 2185 2890 720
800 720 1015 950 901 2370 3185 720
View Complete Details
Ask Latest Price & Details
CAST FLOATING BALL VALVE

CAST FLOATING BALL VALVE
  • Connection Type Buttweld, Flanged
  • Body Material 904L, Carbon Steel, CF8, SS316L
  • Class 150
  • Size 1 1/2", 1 1/4", 1", 1/2", 10", 2 1/2", 2", 3", 3/4", 4", 6", 8"
View Complete Details
Ask Latest Price & Details
FORGED FLOATING BALL VALVE

FORGED FLOATING BALL VALVE
  • Size 1
  • Body Material A105N
  • Class 600
  • Operated type Pneumatic, Gear, Electric, Manual
View Complete Details
Ask Latest Price & Details
THREE PIECE FLANGED BALL VALVE

THREE PIECE FLANGED BALL VALVE
  • Size 1 1/2", 1", 1/2", 2", 3/4"
  • Body Material CF8, CF8M
  • Class 150
  • Operation Lever Operated
  • Connection Ends Female Threaded
  • Working Pressure PN16 to PN64
  • Port L/T Port
  • Safety Feature Locking operation

Dimension:

Size d D C G f T N-M L H H1 W W1 Kg
1/2 15 95 65 45 2 16 4-14 115 72 16.5 123 6.5 2.5
3/4 20 105 75 58 2 18 4-14 120 76 16.5 123 6.5 3.5
1 25 115 85 68 2 18 4-14 125 92 23.5 183 9.5 4.5
1 1/4 32 140 100 78 2 18 4-18 130 95 21.0 153 8 6.0
1 1/2 40 150 110 88 3 18 4-18 140 125 37.5 246 12 7.0
2 50 165 125 102 3 20 4-18 150 132 37.5 246 12 10.0
2 1/2 65 185 145 122 3 18 4-18 170 166 47.0 285 16 14.5
3 80 200 160 138 3 20 4-18 180 176 47.0 285 16 19.0
4 100 220 180 158 3 20 8-18 190 189 47.0 385 16 32.0
View Complete Details
Ask Latest Price & Details
FULLY WELDED BALL VALVE

FULLY WELDED BALL VALVE
₹ 778 / Piece Get Latest Price
  • Size 10", 12", 14", 16", 18", 2", 20", 24", 28", 32", 36", 4", 48", 64", 8"
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Body Material Carbon Steel, CF8, LF2
  • Class 150, 150/PN16, 400, 600, PN25, PN63
  • Gasket PTFE
  • Nominal Pressure PN16 to PN40, Class150 to Class1500

Dimensions



Class 150
Size in 2 3 4 6 8 10 12 14 16 18 20 22 24
D mm 49 74 100 150 201 252 303 334 385 435 487 538 589
L mm 46 283 305 457 521 559 635 762 838 914 991 1092 1143
H mm 165 193 231 329 393 401 441 481 598 643 708 798 863
W mm 230 400 460 1000 500 500 500 500 500 500 500 500 500
Weight(kg) 17 33 50 93 166 273 475 570 778 935 1190 1346 1579
Class300
Size in 2 3 4 6 8 10 12 14 16 18 20 22 24
D mm 49 74 100 150 201 252 303 334 385 435 487 538 589
L mm 216 283 305 457 521 559 635 762 838 914 991 1092 1143
H mm 165 193 231 329 393 401 441 481 598 643 708 798 863
W mm 230 400 460 1000 500 500 500 500 500 500 500 500 500
Weight(kg) 18 40 63 150 240 305 407 602 1000 1160 1320 1540 1874
View Complete Details
Ask Latest Price & Details
TOP ENTRY BALL VALVE

TOP ENTRY BALL VALVE
  • Gasket PTFE
  • Nominal Size DN40 to DN600
  • Nominal Pressure PN16 to PN40, Class150 to Class1500
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
View Complete Details
Ask Latest Price & Details

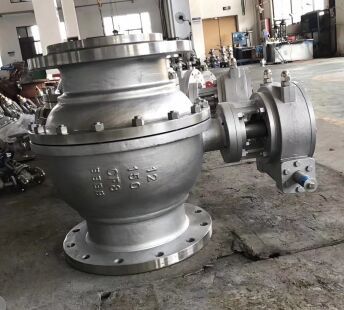

CASTING TRUNNION BALL VALVE

CASTING TRUNNION BALL VALVE
  • Size 1 1/2", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 22", 24", 3", 4", 5", 6", 8"
  • Body Materials Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, A105, F11, F22, F304, F316, F304L, F316L
  • Class 150, 1500, 2500, 300, 400, 600, 900
  • Temperature Rating -30 to 220℃
  • End Connection RF，BW

Dimension:

NPS



DN

 2



50

 2  1/2



65

 3



80

 4



100

 6



150

 8



200

 10



250

 12



300

 14



350

 16



400

 18



450

 20



500

 24



600

 in



mm
  CLASS 900Lb
L



(RF)

 14.50



368

 16.50



419

 15.00



381

 18.00



457

 24.00



610

 29.00



737

 33.00



838

 38.00



965

 40.50



1029

 40.50



1029

 48.00



1219

 52.00



1321

 61.00



1549

 in



mm
L1



(BW)

 14.62



371

 16.62



422

 15.12



384

 18.12



460

 24.12



613

 29.12



740

 33.12



641

 38.12



968

 40.88



1038

 40.88



1140

 48.50



1232

 52.50



1334

 61.75



1568

 in



mm
H 8.62



219

 9.25



235

 10.25



260

 15.38



390

 25.75



655

 30.25



770

 31.75



805

 38.00



965

 38.50



980

 45.00



1145

 47.00



1195

 53.50



1360

 56.00



1425

 in



mm
(d) 49 62 74 100 150 201 252 303 322 373 423 471 570



mm
W 20



500

 20



500

 20



500

 24



600

 24



600

 24



600

 24



600

 32



800

 32



800

 32



800

 32



800

 32



800

 32



800

 in



mm
WT



(kg)

 31



23

 43



31

 68



51

 98



61

 171



102

 345



240

 650



480

 940



735

 1205



965

 1565



1215

 2050



1625

 2535



1995

 3950



3335

 RF



BW
View Complete Details
Ask Latest Price & Details
FORGED TRUNNION BALL VALVE

FORGED TRUNNION BALL VALVE
  • Size 1 1/2
  • Face to face dimensions ANSI B16.10
  • End flange dimensions 2″- 24″ to ANSI B16.5 over 26″ to MSS SP-44 to B16.47 SERIES A to B16.47 SERIES B
  • Butt-welding ends ANSI B16.25
  • Type of operation: Lever, Gear Operated, Pneumatic Actuated, Electric Actuated
  • Body Material ASTM A105
  • Class 150, 1500, 2500, 300, 400, 600, 900
View Complete Details
Ask Latest Price & Details
JACKETED BALL VALVE

JACKETED BALL VALVE
  • Connection Type Flanged, Threaded or Welded
  • Body Material Carbon steel
  • Class 150/PN16
  • Size 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 4", 5", 6"

Dimensions

Class 150

Size



DN (mm)

 d L                         Flanged                       Raised Face Flange    W     H
NPS DN D D1 D2 f b N-ф
15 13 108 ½”×1 ¼” 15×32 115 89 64 2 11 4-ф16 140 140
20 19 117 ¾”×1 ½” 20×40 125 98.5 73 2 13 4-ф16 140 150
25 25 127          1”×2” 25×50 150 120.5 92 2 14.5 4-ф19 150 160
32 32 140 1 ¼”×2” 32×50 150 120.5 92 2 14.5 4-ф19 180 180
40 38 165 1 ½”×2 ½” 40×65 180 139.5 105 2 16 4-ф19 200 180
50 50 178 2”×3” 50×80 190 152.5 127 2 17.5 4-ф19 250 200
80 75 229 3”×6” 80×150 280 241.5 216 2 24 8-ф22 350 220
100 100 254 4”×8” 100×200 345 298.5 270 2 27 8-ф22 500 250
150 150 292 6”×10” 150×250 405 362 324 2 29 12-ф25 800 290
200 201 330 8”×14” 200×350 535 476 413 2 33.5 12-ф29 1000 330
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED THREE WAY BALL VALVE

ELECTRIC ACTUATED THREE WAY BALL VALVE
₹ 213 / Piece Get Latest Price
  • Size 1 1/2", 1 1/4", 1", 2 1/2", 2", 3", 4", 5", 6"
  • Connection type Flanged
  • Body Material Carbon Steel, CF8M
  • Class 150/PN16
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC

Dimensions

DN Inch L L0 L1 L2 H D D1 D2 C F n-φd
15 1/2 150 75 196/248 121/158 185/191 95 65 46 14 2 4-φ14
20 3/4 150 75 196/248 121/158 197/225 105 75 56 16 2 4-φ14
25 1 180 90 196/248 121/158 199/227 115 85 65 16 2 4-φ14
32 1 1/4 200 100 196/248 121/158 240/266 140 100 76 18 3 4-φ18
40 1 1/2 220 110 196/248 121/158 255/271 150 110 84 18 3 4-φ18
50 2 240 120 196/248 121/158 286/307 165 125 99 20 3 4-φ18
65 2 1/2 260 130 196/248 121/158 330/335 185 145 118 20 3 4-φ18
80 3 280 140 196/248 121/158 349/383 200 160 132 20 3 8-φ18
100 4 320 160 196/248 121/158 421/487 220 180 156 22 3 8-φ18
125 5 380 190 196/248 121/158 485/557 250 210 184 22 3 8-φ18
150 6 440 220 196/248 121/158 528/629 285 240 211 24 3 8-φ22
200 8 550 275 196/248 121/158 702/750 340 295 266 24 3 12-φ22
View Complete Details
Ask Latest Price & Details

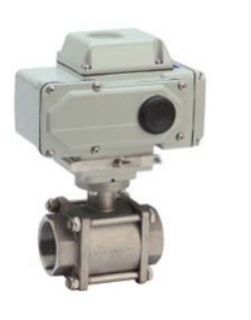

ELECTRIC ACTUATED THREE PIECE BALL VALVE

ELECTRIC ACTUATED THREE PIECE BALL VALVE
  • Size 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4"
  • Actuation Type Electric Actuated
  • Body Material Carbon Steel, CF8M
  • Class 1000PSI
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • Ball Material Stainless Steel
  • End Connections Screwed, Threaded Or Welded, Buttweld
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V

Dimensions                                                                                Unit: mm

DN G L H
15 15 72 130
20 20 82 130
25 25 90 165
32 32 112 165
40 38 120 190
50 50 145 190
65 65 185 250
80 80 210 250
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED FLOATING BALL VALVE

ELECTRIC ACTUATED FLOATING BALL VALVE
  • Actuation Type Electric Actuated
  • Body Carbon Steel, CF8M, CF8M
  • Nominal Diameter DN15 to DN250
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED CASTING TRUNNION BALL VALVE

ELECTRIC ACTUATED CASTING TRUNNION BALL VALVE
  • Body Carbon Steel, CF8M, CF8M
  • Nominal Diameter DN15 to DN250
  • Nominal Pressure PN1.0 to PN6.4, Class150 to Class300
  • Actuation Type Electric Actuated
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC

Dimensions

DN(mm) 15 20 25 32 40 50 65 80 100
Rated Kv 20 38 72 110 170 270 380 510 940
DN(mm) 125 150 200 250 300 350 400 450 500
Rated Kv 1400 2200 3500 5000 8500 11000 13500 17000 20500
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED FORGED TRUNNION BALL VALVE

ELECTRIC ACTUATED FORGED TRUNNION BALL VALVE
  • Body Carbon Steel, CF8M, CF8M
  • Nominal Diameter DN15 to DN250
  • Nominal Pressure PN1.0 to PN6.4, Class150 to Class300
  • Actuation Type Electric Actuated
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC

Dimensions                                                                                                                 Unit: mm

Size, Pressure C D D1 D2 Z-d f b
15 1.0 132 95 65 45 4-14 2 14
1.6 132 95 65 45 4-14 2 15
20 1.0 142 105 75 55 4-14 2 16
1.6 142 105 75 55 4-14 2 16
25 1.0 150 115 85 65 4-14 2 16
1.6 150 115 85 65 4-18 3 16
32 1.0 165 135 100 78 4-18 3 16
1.6 165 135 100 78 4-18 3 16
40 1.0 180 145 110 85 4-18 3 17
1.6 180 145 110 85 4-18 3 17
50 1.0 200 160 125 100 4-18 3 18
1.6 200 160 125 100 4-18 3 18
65 1.0 220 180 145 120 4-18 3 20
1.6 220 180 145 120 4-18 3 20
80 1.0 250 195 160 135 4-18 3 22
1.6 250 195 160 135 4-18 3 22
100 1.0 280 215 180 155 4-18 3 22
1.6 280 215 180 155 4-18 3 24
125 1.0 320 245 210 185 4-18 3 24
1.6 320 245 210 185 4-18 3 26
150 1.0 360 280 240 210 8-23 3 24
1.6 360 280 240 210 8-23 3 28
200 1.0 400 335 295 265 8-23 3 26
1.6 400 335 295 265 8-23 3 30
250 1.0 450 405 350 320 12-23 4 28
1.6 450 405 355 320 12-23 4 30
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED LUG BUTTERFLY VALVE

ELECTRIC ACTUATED LUG BUTTERFLY VALVE
  • Body Ductile Iron, SS304, SS316, WCB
  • End Connection Lug Type
  • Actuation Type Electric Actuated
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC

Dimensions                                                                     Unit: mm

DN L L1 L2 D D1 n-Φ d
50 42 178 121 52.9 120 4-Φ23
65 44.7 178 121 64.5 136.2 4-Φ26.5
80 45.2 210 131 78.8 160 8-Φ18
100 52.1 210 131 100.4 185 4-Φ24.5
125 54.4 210 131 123.3 215 4-Φ23
150 55.8 309 160 155.6 238 4-Φ25
200 60.6 309 160 202.5 295 4-Φ25
250 65.6 309 160 250.5 357 4-Φ29
300 76.5 309 177 301.6 407 4-Φ29
350 76.5 309 177 333.3 467 4-Φ30
400 86.5 309 177 389.6 515 4-Φ30
450 105.6 309 177 440.51 565 4-Φ30
500 131.8 309 177 491.5 620 4-Φ33
600 152 309 177 592.5 725 4-Φ36
700 163 309 177 695 840 4-Φ36
800 188 309 177 794.7 950 4-Φ39
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED WAFER BUTTERFLY VALVE

ELECTRIC ACTUATED WAFER BUTTERFLY VALVE
  • Size 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Body Material Ductile Iron, SS316
  • Class 150/PN16
  • Disc SS316
  • Voltage 110V AC, 230V AC, 24V AC, 24V DC
  • End Connection Wafer Type
  • Input and Output Signal DC 4-30mA, DC 0-10V, DC 1-5V
  • Voltage AC110-240V 380V 50/60Hz, DC 12V, DC 24V
  • Power Supply 24V AC, 24V DC, 110V AC, 230V AC
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED GATE VALVE

ELECTRIC ACTUATED GATE VALVE
  • Body Carbon Steel, Stainless Steel
  • Nominal Size DN40 to DN700
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                    Unit:mm

PN16

DN L D D1 D2 b f z-d H Torque(N.m)
40 200 145 110 85 16 3 4-18 595 –
50 250 160 125 100 16 3 4-18 653 ­-
65 265 180 145 120 18 3 4-18 665 –
80 280 195 160 135 20 3 8-18 725 –
100 300 215 180 155 20 3 8-18 787 100
150 350 280 240 210 24 3 8-23 955 160
200 400 335 295 265 26 3 12-23 1105 175
250 450 405 355 320 30 3 12-25 1343 275
300 500 460 410 375 30 3 12-25 1516 335
350 550 520 470 435 34 4 16-25 1678 505
400 600 580 525 485 36 4 16-30 1849 785
450 650 640 585 545 40 4 20-30 1937 835
500 700 705 650 608 44 4 20-34 2234 1045
600 800 840 770 718 48 5 20-41 3432 1415
700 900 910 840 788 50 5 24-41 2489 2100
View Complete Details
Ask Latest Price & Details
ELECTRIC ACTUATED GLOBE VALVE

ELECTRIC ACTUATED GLOBE VALVE
  • Body Material Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
  • Nominal Size DN40 to DN700
  • Nominal Pressure PN10 to PN150, Class150 to Class1500
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                                    Unit: mm

Class 150

DN L D   D2 b f Z-d H D0 WT(kg)
10 130 90 60 40 14 2 4-14 198 120 4.7
20 160 105 75 55 16 2 4-14 258 140 5.2
25 160 115 85 65 16 2 4-14 275 160 7.4
32 180 135 100 78 18 2 4-18 280 180 8.5
40 200 145 110 85 18 2 4-18 330 200 12.5
50 230 160 125 100 18 3 4-18 350 240 20
65 290 180 145 120 18 3 4-18 400 280 25
80 310 195 160 135 20 3 8-18 355 280 35
100 350 215 180 155 22 3 8-18 415 320 50
125 400 245 210 185 24 3 8-18 460 360 75
150 480 280 240 210 24 3 8-23 510 400 100
200 600 335 295 265 26 3 12-23 710 400 210
250 650 405 355 320 30 3 12-23 768 450 446
300 750 460 410 375 30 3 12-23 925 500 648
View Complete Details
Ask Latest Price & Details
PNEUMATIC THREE PIECE BALL VALVE

PNEUMATIC THREE PIECE BALL VALVE
  • Body CF8, CF8M, WCB
  • Nominal Size 1/2″ to 4″
  • Nominal pressure 1/4″ to 1″- 2000psi and 11/4″ to 4″ -1500psi
  • End connections Buttweld, Threaded, Flanged
  • Actuation Type Double Acting, Spring Return

Dimensions



DN L0 L L1 L2 L3 ~H d G D C Actuator Model
1/2″ 141/159 72 70 100 170 159/175 95 65 46 21 AT050D/AT063S
3/4″ 141/159 82 85 110 185 167/183 105 75 56 26 AT050D/AT063S
1″ 141/211 90 95 120 200 172/215 115 85 65 31 AT063D/AT075S
1 1/4″ 159/211 112 110 131 225 210/230 140 100 76 38 AT063D/AT088S
1 1/2″ 211/248 120 201/209 98/108 260 218/248 150 110 84 46 AT075D/AT088S
2″ 211/269 145 209/242 108/120 300 248/283 165 125 99 60 AT088D/AT100S
2 1/2″ 248/315 185 242/275 120/132   273/320 185 145 118   AT088D/AT115S
3″ 269/345 210 275/332 132/148   313/335 200 160 132   AT100D/AT125S
View Complete Details
Ask Latest Price & Details
PNEUMATIC THREE PIECE FLANGED BALL VALVE

PNEUMATIC THREE PIECE FLANGED BALL VALVE
  • Body CF8M, CF8, WCB
  • Nominal Size DN15 to DN200
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • End Connection NPT, FNPT, BW, SW, FLG
  • Actuation Type Double Acting, Spring Return

Dimensions



DN Online dimension Connecting Dimension
mm in L L0 L1 L2 H D D1 D2 C f n-Φd
15 1/2 150 72 178 121 204 95 65 46 14 2 4-Φ14
20 3/4 160 80 178 121 240 105 75 56 16 2 4-Φ14
25 1 180 90 178 121 257 115 85 65 16 2 4-Φ14
32 1 1/4 200 100 178 121 277 140 100 76 18 3 4-Φ18
40 1 1/2 220 110 210 131 292 150 110 84 18 3 4-Φ18
50 2 240 120 210 131 325 165 125 99 20 3 4-Φ18
62 2 1/2 260 130 210 131 357 185 145 118 20 3 4-Φ18
80 3 280 140 309 160 368 200 160 132 20 3 8-Φ18
100 4 320 160 309 160 410 220 180 156 22 3 8-Φ18
125 5 380 190 309 160 470 250 210 184 22 3 8-Φ18
150 6 440 220 309 177 556 285 240 211 24 3 8-Φ22
200 8 550 260 309 177 648 340 295 266 24 3 8-Φ22
View Complete Details
Ask Latest Price & Details
PNEUMATIC THREE WAY BALL VALVE

PNEUMATIC THREE WAY BALL VALVE
  • Body SS304, SS316, SS316L
  • Nominal size DN15-DN50
  • Nominal Pressure PN1.6 to 6.3MPa, 1000psi, 2000psi
  • End Connection Threaded, Buttweld, Flanged
  • Actuation Type Double Acting, Spring Return

Dimensions

DN inch 3 Way Actuator
    d L H A p
15 1/2 11 79 42 115 158
20 3/4 15 88 49 115 158
25 1 20 108 60 137 177
32 1 1/4 25 124 63 137 177
40 1 1/2 32 135 74 147 196
50 2 40 164 83 165 226
View Complete Details
Ask Latest Price & Details
PNEUMATIC THREE WAY FLANGED BALL VALVE

PNEUMATIC THREE WAY FLANGED BALL VALVE
  • Body CF8, CF8M, CF3, CF3M, WCB
  • Nominal Size DN15 to DN100
  • Nominal Pressure Class150 to Class1500, PN16 to PN40
  • End Connection NPT, FNPT, Flanged
  • Actuation Type Double Acting, Spring Return

Dimensions

Size PN ΦD Φd Φd1 Φd2 L n Φh T f H SR   DA
DN in H1 L1 H1 L1
15 1/2 10-40 15 95 65 45 155 4 14 16 2 64.5 181.5 207 165 162
20 3/4  10-40 20 105 75 58 165 4 14 18 2 64.5 193 237.5 181.5 207
25 1  10-40 25 115 85 68 181 4 14 18 2 67.5 196 237.5 184.5 207
32 1 1/4  10-40 32 140 100 78 190 4 18 18 2 78.5 207 237.5 195.5 207
40 1 1/2  10-40 40 150 110 88 212 4 18 18 3 85 226.5 271.5 213.5 237.5
50 2  10-40 50 165 125 102 232 4 18 20 3 93 264.5 328 234.5 271.5
65 2 1/2  10-40 65 185 145 122 290 4 18 22 3 121 304.5 366 292.5 328
80 3 10-16 80 200 160 138 310 8 18 20 3 153 359 428 336.5 366
100 4 10-16 100 220 180 158 352 8 18 22 3 170.5 392.5 430 376.5 428
View Complete Details
Ask Latest Price & Details
PNEUMATIC TRUNNION BALL VALVE

PNEUMATIC TRUNNION BALL VALVE
  • Body A105, F304, F316, F316L
  • Nominal Size DN50 to DN400
  • Nominal Pressure PN16 to PN63, Class150 to Class1500
  • End Connection Flanged
  • Actuation Type Double Acting, Spring Return
pneumatic trunnion ball valve

Dimensions

Size in 2 2 1/2 3 4 6 8 10 12 14 16
mm 50 65 80 100 150 200 250 300 350 400
L/L1(RF/BW) in 17.75 20.00 22.75 26.5 36.00 40.25 50.00 56.00 / /
mm 451 508 578 673 914 1022 1270 1422 / /
L2(RTJ) in 17.88 21.25 23.00 26.88 36.50 40.88 50.88 56.88 / /
mm 454 540 584 683 927 1038 1292 1445 / /
H in 7.50 9.00 11.00 14.12 15.75 18.88 20.50 26.38 / /
mm 190 230 280 360 400 480 520 670 / /
W in 24 32 32 32 32 40 40 40 / /
mm 600 800 800 800 800 1000 1000 1000 / /
WT(Kg) RF/RTJ 68 95 120 185 675 1100 1650 2300 / /
BW 54 74 91 122 555 918 1355 2950 / /
View Complete Details
Ask Latest Price & Details
PNEUMATIC ACTUATED GATE VALVE

PNEUMATIC ACTUATED GATE VALVE
  • Actuation Type Double Acting, Spring Return
  • Body Material Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
  • Nominal Size DN40 to DN700
  • Nominal Pressure PN10 to PN150, Class150 to Class900
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                     Unit: mm

Class150

DN L D D1 D2 b H z-фd H1 D0
50 250 160 125 100 16 950 4-ф18 570 ­180
65 270 180 145 120 18 1050 4-ф18 596 180
80 280 195 160 135 20 1080 8-ф18 635 200
100 300 215 180 155 20 1145 8-ф18 645 250
125 325 245 210 185 22   1210 8-ф18 685 250
150 350 280 240 210 24 1300 8-ф23 720 320
200 400 335 295 265 26 1660 12-ф23 940 400
250 450 405 355 320 30 1790 12-ф25 1020 400
300 500 460 410 375 30 1990 12-ф25 1150 450
350 550 520 470 435 34 2090 16-ф25 1170 450
400 600 580 525 485 36 2290 16-ф30 1325 500
450 650 640 585 545 40 2485 20-ф30 1465 500
500 700 705 650 608 44 2640 20-ф34 1590 550
600 800 840 770 718 48 2940 20-ф41 1720 550
700 900 910 840 788 50 3450 24-ф41 1960 600
View Complete Details
Ask Latest Price & Details
PNEUMATIC UNIDIRECTIONAL KNIFE GATE VALVE

PNEUMATIC UNIDIRECTIONAL KNIFE GATE VALVE
  • End Connection Wafer, Lug, Flanged
  • Actuation Type Double Acting, Spring Return
  • Body CF8, CF8M, WCB
  • Seat Retainer WCB, CF8, CF8M
  • Nominal Size DN50 to DN1000
  • Nominal Pressure Class150 to Class2500, PN16 to PN420

Dimensions

DN A B C D E F G H Weight (kg)
50 40 119 100 105 129 178 115 412 9
65 40 134 100 115 146 193 115 454 10
80 50 149 100 124 162 211 115 497 11
100 50 169 100 140 187 231 115 558 14
125 50 180 100 150 211 271 140 632 20
150 60 210 100 175 237 296 140 708 25
200 60 262 119 205 309 358 175 872 44
250 70 318 122 250 364 428 220 1042 67
300 70 372 122 300 414 478 220 1192 82
350 96 431 197 338 500 549 277 1387 135
400 100 486 197 392 550 599 277 1541 165
450 106 540 270 432 598 680 382 1710 220
500 110 602 270 485 658 730 382 1873 280
600 110 708 270 590 758 830 382 2178 330
700 110 834 380 686 875 985 444 2546 520
750 110 884 380 760 930 1035 444 2725 585
800 110 1015 320 791 974 1085 444 2850 650
900 110 1040 320 895 1105 1202 515 3202 850
1000 110 1146 320 975 1217 1296 515 3488 1060
View Complete Details
Ask Latest Price & Details
PNEUMATIC BI DIRECTIONAL KNIFE GATE VALVE

PNEUMATIC BI DIRECTIONAL KNIFE GATE VALVE
  • End Connection Wafer, Lug, Flanged
  • Actuation Type Double Acting, Spring Return
  • Body CF8, CF8M, WCB
  • Nominal Size DN50 to DN600
  • Nominal Pressure Class150 to Class2500, PN16 to PN420
  • Valve Type Unidirectional or Bidirectional

Dimensions

DN L O D S C f M-1 B H Kg
50 40 165 125 95 16 2 4-M16 136 430 7
65 40 185 145 110 16 2 4-M16 151 460 9
80 50 200 160 127 17 2 8-M16 170 510 12
100 50 220 180 148 17 2 8-M16 190 570 14
125 50 250 210 174 17 2 8-M16 212 660 22
150 60 285 240 199 21 2 8-M20 230 720 25
200 60 340 295 250 21 2 8-M20 286 890 38
250 70 395 350 308 24 2 12-M20 338 1120 65
300 70 445 400 360 24 2 12-M20 388 1230 77
350 96 505 460 416 33 2 16-M20 460 1370 195
400 100 565 515 466 35 2 16-M24 520 1570 240
450 106 615 565 525 36 2 20-M24 585 1720 306
500 110 670 620 584 37 2 20-M24 635 1850 365
600 110 780 725 664 37 2 20-M27 720 2150 420
View Complete Details
Ask Latest Price & Details
PNEUMATIC ACTUATED WAFER BUTTERFLY VALVE

PNEUMATIC ACTUATED WAFER BUTTERFLY VALVE
  • Body Ductile Iron, SS304, SS316, Cast Iron, WCB
  • End Connection Wafer Type
  • Nominal Size DN50 to DN1000
  • Nominal Pressure PN10, PN16, PN25, Class150 to Class2500
  • End Connection: Wafer or Lug Type
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

Dimensions



DN Φ H L Z – Φ d B   H L Z – Φ d B
50 125 483 125 4- Φ18 43 125 315 180 4- Φ18 43
65 145 453 125  4- Φ18 46 145 330 180 4- Φ18 46
80 160 478 125  4- Φ18 46 160 390 245 4- Φ18 46
100 180 519 125  4- Φ18 52 180 431 245 4- Φ18 52
125 210 713 245  4- Φ18 56 210 455 245 4- Φ18 56
150 240 749 245  4- Φ23 56 240 626 355  4- Φ23 56
200 295 843 245  4- Φ23 60 295 720 355  4- Φ23 60
250 355 947 313  4- Φ25 68 355 800 550  4- Φ25 68
300 410 1013 313  4- Φ30 78 410 860 600  4- Φ30 78
350 470 1046 313  4- Φ30 78 470 883 600  4- Φ30 78
400 515 1135 313  4- Φ31 88 515 972 600  4- Φ31 88
450 565 1226 431  4- Φ31 106 565 1043 750  4- Φ31 106
500 620 1328 439  4- Φ31 132 620 1098 750  4- Φ34 132
600 725 1394 556  4- Φ34 154 725 1236 750  4- Φ34 154
700 840 1534 556  4- Φ27 165 840 1431 750  4- Φ27 165
800 952 1159 556  4- Φ30 190 952 1488 750  4- Φ30 190
900 1050 1748 706  4- Φ30 211 1050      4- Φ30 211
1000 1160 1805 706  4- Φ33 224 1160      4- Φ33 224
View Complete Details
Ask Latest Price & Details
PNEUMATIC ACTUATED FLANGED BUTTERFLY VALVE

PNEUMATIC ACTUATED FLANGED BUTTERFLY VALVE
  • Body Ductile Iron, SS304, SS316, Cast Iron, WCB
  • End Connection: Flanged Type
  • Nominal Size DN50 to DN1000
  • Nominal Pressure PN10, PN16, PN25, Class150
  • Actuation Type Double Acting, Spring Return

Dimensions                                                     Unit: mm

DN L D H1 H2 P A
50 108 110 180 100 96 163
65 112 130 190 110 96 163
80 114 150 200 120 96 163
100 127 170 210 130 115 195
125 140 200 230 150 115 195
150 140 225 240 160 137 217
200 152 280 260 180 258 147
250 165 335 310 230 299 165
300 178 395 342 262 299 165
350 190 445 367 287 349 182
400 216 495 373 293 349 182
450 222 550 400 320 349 182
500 229 600 426 346 397 199
600 267 705 483 403 397 199
700 292 810 547 467 473 221
800 318 920 626 546 560 249
900 330 1020 626 596 560 249
1000 410 1120 726 646 601 280
View Complete Details
Ask Latest Price & Details
PNEUMATIC ACTUATED LUG BUTTERFLY VALVE

PNEUMATIC ACTUATED LUG BUTTERFLY VALVE
  • Body Ductile Iron, SS304, SS316, Cast Iron, WCB
  • End Connection Lug Type
  • Nominal Size DN50 to DN1000
  • Nominal Pressure PN10, PN16, PN25, Class150
  • Actuation Type Pneumatic Actuated
  • Pneumatic Actuation Type Double Acting, Spring Return

Dimensions

DN A B D L
40 113 68 118 33
50 126 72 123 43
65 134 82 137 46
80 157 96 180 46
100 167 114 199 52
125 180 129 226 56
150 203 142 262 56
200 228 172 315 60
250 266 213 380 68
300 291 242 429 78
350 332 258 493 78
400 363 302 556 102
450 397 333 637 114
500 425 378 706 127
600 498 438 831 154
View Complete Details
Ask Latest Price & Details
PLUNGER VALVE

PLUNGER VALVE
  • Body Material Ductile Iron, Stainless Steel
  • Size DN100 to DN2000
  • Temperature Range Up to 120°C
  • Pressure Rating PN10, PN16, PN25
  • Connections Flange
  • Operation Gear Operated, Electric, Pneumatic Actuated

Dimensions                                                                              Unit: mm

PN10

DN A B C D
100 325 22 180 140
125 325 22 210 160
150 350 24 240 195
200 400 24 295 220
250 500 26 350 220
300 600 26 400 280
350 700 26 460 340
400 800 26 515 440
450 900 28 565 500
500 1050 28 620 550
600 1175 34 725 645
700 1320 34 840 700
800 1480 36 950 805
900 1700 38 1050 895
1000 1900 38 1160 1030
1200 2100 44 1380 1155
1400 2420 48 1590 1390
1600 2700 52 1820 1605
1800 3070 56 2020 1760
2000 3250 60 2230 1965

PN16

DN A B C D
100 325 22 180 140
125 325 22 210 160
150 350 24 240 195
200 400 24 295 220
250 500 26 355 220
300 600 28 410 280
350 700 30 470 340
400 800 32 525 440
450 900 40 585 500
500 1050 44 650 550
600 1175 54 770 645
700 1320 40 840 700
800 1480 42 950 805
900 1700 44 1050 895
1000 1900 46 1170 1030
1200 2100 52 1390 1155
1400 2420 58 1590 1390
1600 2700 64 1820 1605
1800 3070 68 2020 1760
2000 3250 70 2230 1965
View Complete Details
Ask Latest Price & Details
SIMPLEX BASKET STRAINER

SIMPLEX BASKET STRAINER
  • Body Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316
  • Nominal Diameter DN25 to DN400
  • Nominal Pressure Class150 to Class300
  • Flange End Dimension ASME B16.25

Dimensions                                                                                              Unit: mm

Class150

DN L O W R Z-фd T f
25 250 110 79.4 50.8 4-ф16 9.6 2.0
40 275 125 98.4 73 4-ф16 12.7 2.0
50 275 150 120.7 92.1 4-ф19 14.3 2.0
65 310 180 139.7 104.8 4-ф19 15.9 2.0
80 318 190 152.4 127 4-ф19 17.5 2.0
100 430 230 190.5 157.2 4-ф19 22.3 2.0
125 480 255 215.9 185.7 8-ф22.5 22.3 2.0
150 500 280 241.3 215.9 8-ф22.5 23.9 2.0
200 625 345 298.5 269.9 8-ф22.5 27 2.0
250 660 405 362 323.8 12-ф25.5 28.6 2.0
300 750 485 431.8 381 12-ф25.5 30.2 2.0
350 800 535 476 413 12-ф28.5 33 2.0
400 900 595 539.8 469.9 16-ф28.5 35 2.0
View Complete Details
Ask Latest Price & Details
DUPLEX BASKET STRAINER

DUPLEX BASKET STRAINER
  • Body Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316
  • Nominal Diameter DN25 to DN200
  • Nominal Pressure Class125 to Class300, PN10 to PN420
  • Flanged End Dimension ANSI B16.1, BS EN 1092-2, DIN2501
  • Screwed End Dimension ANSI B1.20.1, BS21
  • Face to Face Dimension ANSI B16.10, DIN 3202, EN558-1, EN12982

Dimensions                                                                                       Unit:mm

DN L D H H1 H2
25 360 76 520 240 220
32 400 76 550 240 250
40 480 108 700 300 300
50 500 108 720 300 320
65 590 133 838 358 350
80 620 159 995 395 450
100 720 219 1075 435 460
125 860 273 1260 520 520
150 940 273 1355 535 570
200 1110 325 1585 605 680
View Complete Details
Ask Latest Price & Details
Y STRAINER

Y STRAINER
  • Body Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316
  • Nominal Diameter DN25 to DN500
  • Nominal Pressure Class150 to Class300
  • Face to Face Dimension ASME B16.25

Dimensions                                                                                              Unit: mm

Class150

DN L H H1
15 140 73 103
20 150 88 127
25 160 93 137
32 180 100 148
40 220 115 168
50 230 155 195
65 250 198 270
80 280 210 295
100 350 250 344
125 400 305 422
150 440 358 485
200 500 450 602
250 580 503 710
300 670 578 815
350 780 598 844
400 850 618 872
450 850 693 978
500 1000 765 1080
View Complete Details
Ask Latest Price & Details
BALL FLOAT STEAM TRAP

BALL FLOAT STEAM TRAP
  • Body Carbon Steel, Stainless Steel, Ductile Iron
  • Nominal Diameter DN15 to DN100
  • Nominal Pressure PN10 to PN64
  • Face to Face Dimension EN26554
View Complete Details
Ask Latest Price & Details
thermodynamic steam trap

Thermodynamic Steam Trap
  • Body Carbon Steel, Stainless Steel
  • Sealing Disc Stainless Steel
  • Nominal Diameter DN15 to DN50
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Face to Face Dimension EN26554

Dimensions                                                                                   Unit: mm

DN L H1 H2
15 150 55 50
20 150 55 58
25 160 58 62
32 210 71 80
40 230 75 90
50 230 85 105
View Complete Details
Ask Latest Price & Details
BIMETALLIC STEAM TRAP

BIMETALLIC STEAM TRAP
₹ 175 / Piece Get Latest Price
  • Body Carbon Steel, Stainless Steel
  • Nominal Diameter DN15 to DN50
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Face to Face Dimension EN26554

Dimensions                                                                                 Unit: mm

DN L H1 H2
15 150 111 23
20 150 111 23
25 160 111 26
32 210 118 27
40 230 123 30
50 230 123 30
View Complete Details
Ask Latest Price & Details
THERMOSTATIC STEAM TRAP

THERMOSTATIC STEAM TRAP
₹ 115 / Piece Get Latest Price
  • Body Carbon Steel, Stainless Steel
  • Nominal Diameter DN15 to DN50
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Face to Face Dimension EN26554

Dimensions                                                                                Unit: mm

DN L H1 H2
15 100 58 55
20 100 58 55
25 120 58 55
32 150 68 68
40 150 68 68
50 160 68 68
View Complete Details
Ask Latest Price & Details
FREE FLOAT STEAM TRAP

FREE FLOAT STEAM TRAP
  • Body Cast Iron, Ductile Iron
  • Sealing Disc Stainless Steel
  • Nominal Diameter DN15 to DN150
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Face to Face Dimension EN26554

Dimensions                                                                                Unit: mm

DN L H1 H2
15 195 197 100
20 195 201 101
25 215 210 105
32 270 245 135
40 280 275 160
50 290 275 160
65 410 390 245
80 430 415 255
100 430 415 255
125 480 506 311
150 480 506 311
View Complete Details
Ask Latest Price & Details
INVERTED BUCKET STEAM TRAP

INVERTED BUCKET STEAM TRAP
  • Body Carbon Steel, Stainless Steel, Ductile Iron
  • Nominal Diameter DN20 to DN32
  • Nominal Pressure PN10 to PN64
  • Face to Face Dimension EN26554

Dimension                                                             Unit:mm

DN L B C
20 210 94 137
25 210 94 137
32 210 94 137
View Complete Details
Ask Latest Price & Details
SLURRY KNIFE GATE VALVE

SLURRY KNIFE GATE VALVE
₹ 690 / Piece Get Latest Price
  • End Connection Wafer, Lug
  • Body Ductile Iron, Carbon Steel
  • Nominal Diameter DN50 to DN600
  • Nominal Pressure Class150, PN6, PN10, PN16
  • Face to Face Dimension MSS SP-81
  • Pre-temperature Rating ANSI B16.34

Dimensions                         Unit: mm

DN L O D N-M
50 54 165 125 4-M16
65 54 185 145 4-M16
80 57 200 160 4-M16
100 57.5 220 180 4-M16
125 59 250 210 4-M16
150 65 285 240 4-M20
200 77 340 295 4-M20
250 78 395 350 8-M20
300 83 445 400 8-M20
350 84 505 460 12-M20
400 92 565 515 12-M24
450 103 615 565 16-M24
500 121 670 625 16-M24
600 121 780 725 12-M27
View Complete Details
Ask Latest Price & Details
THROUGH CONDUIT KNIFE GATE VALVE

THROUGH CONDUIT KNIFE GATE VALVE
₹ 230.21 / Piece Get Latest Price
  • Body Ductile Iron, WCB, CF8, CF8M
  • Nominal Diameter DN50 to DN500
  • Nominal Pressure Class150, PN10, PN16
  • Operation Manual, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                    Unit: mm

DN A B C D E F G H H1
50 48 140 106 100 129 85 180 340 530
65 48 175 106 135 147 85 180 420 710
80 51 185 106 145 168 85 200 480 810
100 51 220 106 150 192 85 200 520 850
125 57 195 120 170 215 87 250 590 1000
150 57 225 130 175 245 87 280 650 1100
200 70 280 130 215 302 105 300 800 1380
250 70 356 140 270 355 105 350 960 1670
300 76 405 160 310 401 105 400 1100 1950
350 76 480 180 330 465 117 450 1250 2200
400 89 530 180 375 511 117 450 1460 2780
View Complete Details
Ask Latest Price & Details
FLANGED KNIFE GATE VALVE

FLANGED KNIFE GATE VALVE
₹ 226 / Piece Get Latest Price
  • Size 10", 12", 14", 16", 18", 2 1/2", 2", 20", 24", 3", 4", 5", 6", 8"
  • Body Material Ductile Iron, SS316
  • Seal Ring Polyurethane, EPDM, NBR, VITON
  • Nominal Pressure Class150 to Class30, PN10
  • End Type Flanged
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimension MSS SP-81
  • Flanged End Dimension DIN, JIS
  • Class 150/PN16
View Complete Details
Ask Latest Price & Details
DUPLEX DUAL PLATE CHECK VALVE

DUPLEX DUAL PLATE CHECK VALVE
  • End Connection Lugged
  • Body Duplex Stainless Steel, Alloy Steel, Super Duplex, Inconel, Incoloy, Titanium
  • Nominal Size 2″ to 24″
  • Nominal Pressure PN16, PN10, Class150 to Class600
  • End Dimension ASME B16.5, ANSI B16.10, JIS B2220
View Complete Details
Ask Latest Price & Details
DUPLEX WAFER BUTTERFLY VALVE

DUPLEX WAFER BUTTERFLY VALVE
  • Body Duplex 4A, 5A, Carbon Steel, Stainless Steel, Super Duplex Stainless Steel, Hastelloy, Alloy Steel,
  • Nominala Size DN50 to DN200
  • Nominal Pressure Class 150 to Class 600, PN10 to PN40
  • End Connections Wafer, Lug, Flanged
  • Operation Manual, Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752

Dimensions                                                                                                               Unit: mm

DN(mm) L L1 D D1 D2 D3 D4 Ф H1 H2 H3 Z-Фd
1.0 1.6 1.0 1.6
50 42 220 52.9 125 125 92 77 57 12.6 70 147 32 4-Ф23 4-Ф23
65 44.7 220 64.5 145 145 110 77 57 12.6 76 155 32 4-Ф23 4-Ф23
80 45.2 255 78.8 160 160 121 77 57 12.6 92 164 32 8-Ф20 4-Ф20
100 52.1 255 104 180 180 153 92 70 15.78 106 175 32 4-Ф23 4-Ф23
125 54.4 290 123.3 210 210 176 92 70 18.92 119 194 32 4-Ф23 4-Ф23
150 55.8 290 155.6 240 240 207 92 70 18.92 132 206 32 4-Ф25 4-Ф25
200 60.6 340 202.5 295 295 259 115 89 22.1 162 273 45 4-Ф25 4-Ф295
View Complete Details
Ask Latest Price & Details
DUPLEX GATE VALVE

DUPLEX GATE VALVE
₹ 546 / Piece Get Latest Price
  • Body Material 4A, Duplex
  • Class 150, 300, 600, 900
  • Size 1", 2", 3", 4", 6", 8"
  • Nominal Size DN15 to DN500
  • Nominal Pressure PN16 to PN43, Class150 to Class1500
  • Face to Face Dimensions ANSI B16.10, ASME B16.10
  • Operations Handwheel, Electric Actuated, Pneumatic Actuated

Dimensions                                                                       Unit: mm

PN16

DN L D D1 D2 b Z-d f H H1 D0
15 130 95 65 45 14 4-14 2 220 240 120
20 150 105 75 55 14 4-14 2 255 284 140
25 160 115 85 65 14 4-14 2 275 303 160
32 180 135 100 78 16 4-18 2 280 321 180
40 200 145 110 85 16 4-18 3 300 352 200
50 250 160 125 100 16 4-18 3 358 438 240
65 265 180 145 120 18 4-18 3 375 450 240
80 280 195 160 135 20 8-18 3 438 528 280
100 300 215 180 155 20 8-18 3 502 620 320
125 325 245 210 185 22 8-18 3 612 753 360
150 350 280 240 210 24 8-23 3 676 847 360
200 400 335 295 265 26 12-23 3 820 1039 400
250 450 405 355 320 30 12-25 3 969 1245 450
300 500 460 410 375 30 12-25 3 1142 1472 560
350 550 520 470 435 34 16-25 4 1280 1450 640
400 600 580 525 485 36 16-30 4 1452 1887 640
450 650 640 585 545 40 20-30 4 1541 2011 720
500 700 705 650 608 44 20-34 4 1676 2181 720



RELATED PRODUCTS
  • Quick View   SUPER DUPLEX FLOATING BALL VALVE Custom Enquiry
  • Quick View   INCONEL SAFETY RELIEF VALVE Custom Enquiry
  • Quick View   ALLOY 20 SWING CHECK VALVE Custom Enquiry
  • SALE! Quick View ₹649.00 ALLOY FLANGED GATE VALVE Custom Enquiry
GO TOP ABOUT US

Specialityvalve has modeled its operational framework based on customer satisfaction. We strive to make a difference for our manufacturers by addressing various issues of manufacturing logistic solutions.


  •
  •
  •
Global Support : +91 7708220219
sales@specialityvalve.com Copyright © 2021 Specialityvalve. All Rights Reserved.
View Complete Details
Ask Latest Price & Details
DUPLEX GLOBE VALVE

DUPLEX GLOBE VALVE
  • End Connection Flanged, Buttweld, Socketweld
  • Body Material 4A, F51
  • Class 150, 300, 600, 900
  • Size 1", 2", 4", 6", 8"
  • Nominal Size DN50 to DN400
  • Nominal Pressure Class150 to Class1500, PN16 to PN63
  • Operations Handwheel, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, ASME B16.10

Dimensions                                                                     Unit: mm

Class150

DN L(RF) L(RTJ) L(BW) W
50 203 216 203 200
65 216 229 216 250
80 241 254 241 250
100 292 305 292 300
125 356 369 356 350
150 406 419 406 400
200 495 508 495 500
250 622 635 622 550
300 698 711 698 610
350 787 800 787 680
400 914 928 914 780
View Complete Details
Ask Latest Price & Details
DUPLEX FLOATING BALL VALVE

DUPLEX FLOATING BALL VALVE
  • Body Duplex Stainless Steel, Alloy 20, Super Duplex, Hastelloy C276/B3, Inconel, F347, F44, F317L, F321
  • Nominal Size DN15 to DN250
  • Nominal Pressure PN16, Class150, Class300
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions                                                         Unit: mm

Class150

DN L H W
15 108 59 130
20 117 63 130
25 127 75 160
40 165 95 230
50 178 153 400
65 191 165 400
80 203 195 600
100 229 213 850
150 394 272 1100
200 457 342 1500
250 533 495 2350
View Complete Details
Ask Latest Price & Details
DUPLEX TOP ENTRY BALL VALVE

DUPLEX TOP ENTRY BALL VALVE
  • Body Duplex Stainless Steel, Alloy Steel, Carbon Steel, Stainless Steel
  • Nominal Diameter DN6 to DN24
  • Nominal Pressure PN16 to PN420, Class150 to Class2500
  • End Connection Flanged, Buttweld
  • Operations Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Standard ANSI B16.10, ASME B16.34, API6D, DIN EN558.1
  • Buttweld Dimensions ASME B16.25, DIN EN12627

Dimensions
NPS in 6 8 10 12 14 16 18 20 24
d mm 152 203 254 305 337 387 432 483 584
L(RF) mm 403 502 568 648 762 838 914 991 1143
d1 mm 216 270 324 381 413 470 533 584 692
d2 mm 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 318 381 445 521 584 648 711 775 914
b mm 37 42 48 51 54 58 61 64 70
n-Фd mm 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 330 448 505 556 620 700 750 805 1110
W mm 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
ALLOY LUG BUTTERFLY VALVE

ALLOY LUG BUTTERFLY VALVE
  • Body Material Alloy 20
  • Nominal Size 2″ to 12″
  • Nominal Pressure Class 150 to Class 300
  • Face to Face Dimensions API609
  • Flange Dimensions ASME B16.5

Dimensions:                                                                          Unit: mm

PN16

DN A B C L фK N-M
40 70 164 32 33 110 4-M16
50 80 169 32 43 125 4-M16
65 89 176 32 46 145 4-M16
80 95 183 32 46 160 8-M16
100 114 201 32 52 180 8-M16
125 127 214 32 56 210 8-M16
150 139 229 32 56 240 8-M20
200 175 257 45 60 295 12-M20
250 203 280 45 68 350 12-M24
300 242 327 45 78 400 12-M24
View Complete Details
Ask Latest Price & Details
ALLOY FLANGED GATE VALVE

ALLOY FLANGED GATE VALVE
₹ 649 / Piece Get Latest Price
  • Body Alloy 20, WC6, WC9
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Operations Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN15 to DN400
  • Nominal Pressure PN 1.0 to 2.5Mpa, Class 150 to Class2500
  • Temperature -198°c to 450°c
  • Face to Face Dimension ANSI B16.10, API 6D

Dimensions                                                    Unit: mm

DN L H D D1
15 130 175 95 65
20 150 180 105 75
25 160 210 115 85
32 180 280 140 100
40 200 350 150 110
50 250 358 165 125
65 270 375 185 145
80 280 433 200 160
100 300 502 220 180
125 325 612 250 210
150 350 676 285 240
200 400 820 340 295
250 450 969 405 355
300 500 1142 460 410
350 550 1280 520 470
400 600 1452 580 525
View Complete Details
Ask Latest Price & Details
ALLOY FLANGED GLOBE VALVE

ALLOY FLANGED GLOBE VALVE
₹ 651.28 / Piece Get Latest Price
  • Body Alloy 20, WC6, WC9
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Operations Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN15 to DN400
  • Nominal Pressure PN 1.0 to 2.5Mpa, Class 150 to Class2500
  • Temperature -198°c to 450°c
  • Face to Face Dimension ANSI B16.10, API 6D
  • Butt welded End ANSI B16.5

Dimensions                                             Unit: mm

DN L H W
15 130 218 120
20 150 260 140
25 160 275 160
32 180 282 180
40 200 332 200
50 230 350 240
65 290 405 280
80 310 360 280
100 350 412 320
125 400 462 360
150 480 510 400
200 600 715 400
250 650 789 450
300 750 925 500
350 850 980 650
400 950 1030 700
View Complete Details
Ask Latest Price & Details
ALLOY PRESSURE SEAL GLOBE VALVE

ALLOY PRESSURE SEAL GLOBE VALVE
  • Body F11, F22, F51, LF2, A105
  • Gasket F11, F22, F51, SS316L+Graphite
  • Nominal Size DN15 to DN50
  • Nominal Pressure Class800 to Class2500
  • Socketweld End Connection ASME B16.11
  • Threaded End Connection ASME B1.20.1
  • Buttweld End Connection ASME B16.25
  • Flanged End Dimension ASME B16.5

Dimensions

DN L W H d
15 140 200 320 10.5
20 140 200 320 13.5
25 140 200 320 18
32 178 280 440 22
40 178 280 440 28
50 216 300 490 34
View Complete Details
Ask Latest Price & Details
ALLOY PLUG VALVE

ALLOY PLUG VALVE
₹ 166 / Piece Get Latest Price
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25
  • Design and Manufacture API 6D
  • Materials Alloy 20, CF8, CF8M, CF3, CF3M , CN7M, Monel, 4A, 5A, C95800, C95500

Parts And Materials

No of internal parts



Seat ring or body





Gate,disc ,ball or body





Stem





No of internal parts





Seat ring or body





Gate,disc,ball or body





Stem
1 13Cr 13Cr 13Cr 31 STELLITE 321SS 321SS
2 304SS 304SS 304SS 32 STELLITE STELLITE 321SS
3 310SS 310SS 310SS 33 347SS 347SS 347SS
4 HARD 13Cr HARD 13Cr 13Cr 34 STELLITE 347SS 347SS
5 STELLITE STELLITE 13Cr 35 NICKEL ALLOY 13Cr 13Cr
6 Cu-Ni 13Cr 13Cr 36 A105/PTFE A105+ENP A105+ENP
7 13Cr HARD 13Cr 13Cr 37 A105/PTFE WCB+ENP A105+ENP
8 STELLITE 13Cr 13Cr 38 13Cr/PTFE 13Cr 13Cr
9 Cu-Ni Cu-Ni Cu-Ni 39 304SS/PTFE 304SS 304SS
10 316SS 316SS 316SS 40 316SS/PTFE 316SS 316SS
11 Cu-Ni STELLITE Cu-Ni 41 A105/RPTFE A105+ENP A105+ENP
12 STELLITE 316SS 316SS 42 A105/RPTFE WCB+ENP A105+ENP
13 ALLOY 20 ALLOY 20 ALLOY 20 43 13Cr/RPTFE 13Cr 13Cr
14 STELLITE ALLOY 20 ALLOY 20 44 304SS/RPTFE 304SS 304SS
15 STELLITE STELLITE 304SS 45 316SS/RPTFE 316SS 316SS
16 STELLITE STELLITE 316SS 46 A105/NYLON A105+ENP A105+ENP
17 STELLITE STELLITE 347SS 47 A105/NYLON WCB+ENP A105+ENP
18 STELLITE STELLITE ALLOY 20 48 A105/NYLON 304SS 304SS
19 MONEL MONEL MONEL 49 A105/NYLON 316SS 316SS
20 BRONZE BRONZE 13Cr 50 13Cr/NYLON 13Cr 13Cr
21 HASTELLOY B HASTELLOY B HASTELLOY B 51 304SS/NYLON 304SS 304SS
22 HASTELLOY C HASTELLOY C HASTELLOY C 52 316SS/NYLON 316SS 316SS
23 STELLITE 304SS 304SS 53 A105/PEEK A105+ENP A105+ENP
24 304LSS 304LSS 304LSS 54 A105/PEEK WCB+ENP A105+ENP
25 STELLITE 304LSS 304LSS 55 13Cr/PEEK 13Cr 13Cr
26 STELLITE STELLITE 304LSS 56 304SS/PEEK 304SS 304SS
27 316LSS 316LSS 316LSS 57 316SS/PEEK 316SS 316SS
28 STELLITE 316LSS 316LSS
29 STELLITE STELLITE 316LSS
30 321SS 321SS 321SS

Dimension:

Class150

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 438 489 591
L(RF) mm 178 190 203 229 394 457 533 610 686 762 864 914 1016
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 120.5 139.5 152.5 190.5 241.5 298.5 362 432 476 540 578 635 749.5
D mm 152 178 190 229 279 343 406 483 533 597 635 699 813
b mm 16 18 19 24 26 29 31 32 35 37 40 43 48
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
H mm 175 180 190 214 270 370 420 490 500 645 690 740 800
W mm 350 600 700 700 900 600 600 600 600 700 760 760 760

Class300

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 184 190 195 265 307 390 433 500 630 740 790 830 890
W mm 500 550 600 700 900 600 600 700 700 760 760 760 760

Class600

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 356 432 508 559 660 787 838 889 991 1092 1194 1397
L(RTJ) mm 295 359 435 511 562 664 791 841 892 994 1095 1200 1407
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 194 205 270 300 350 405 460 500 630 740 790 830 890
W mm 500 780 1100 600 600 600 600 700 700 760 760 760 760

Class900

NPS in 2 3 4 5 6 8 10 12 14 16
d mm 47 73 98 121 146 190 234 282 311 354
L(RF) mm 368 381 457 559 610 737 838 965 1029 1130
L(RTJ) mm 371 384 460 562 613 740 841 968 1039 1140
d1 mm 92 127 157 186 216 270 324 381 413 470
d2 mm 165 190.5 235 279.4 317.5 393.7 469.9 533.4 558.8 615.9
D mm 216 241 292 349 381 470 545 610 640 705
b mm 38.5 38.5 44.5 51 56 64 70 79.5 86 89
n-Фd mm 8-26 8-26 8-32 8-35 12-32 12-39 16-39 20-39 20-42 20-45
H mm 215 250 300 350 365 405 460 510 550 600
W mm 700 800 1100 600 700 760 760 760 760 760
View Complete Details
Ask Latest Price & Details
INCOLOY GLOBE VALVE

INCOLOY GLOBE VALVE
₹ 550 / Piece Get Latest Price
  • Body Material Incoloy
  • Class 150, 300
  • Size 1", 2", 3"
  • End Connections Flanged
  • Operation Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN1.0 to 25MPa, Class150 to Class2500
  • Face to Face Dimension ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605

Dimensions                                                                                                Unit: mm

Class 150

DN



L

 d H H1 W W1
RF RTJ BW
50 203 216 203 51 330 – 200 –
65 216 229 216 64 360 – 250 –
80 241 254 241 76 390 – 280 –
100 292 305 292 102 445 – 300 –
125 356 369 356 127 480 – 350 –
150 406 419 406 152 520 556 350 310
200 495 508 495 203 600 658 400 310
250 622 635 622 254 773 805 450 460
300 698 711 698 305 880 955 500 460
350 787 800 787 337 950 1100 600 460
400 914 927 914 387 996 1175 600 460
500 978 991 978 488 – 1450 – 600
600 1295 1308 1295 590 – 1690 – 600
View Complete Details
Ask Latest Price & Details
INCOLOY GATE VALVE

INCOLOY GATE VALVE
₹ 550 / Piece Get Latest Price
  • Body Material Incoloy
  • Class 150, 300
  • Size 1", 2", 3"
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure PN1.0 to 25MPa, Class150 to Class2500
  • Face to Face Dimension ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Butt welded End Dimension ANSI B16.5

Dimensions                                                                                                  Unit: mm

Class 150

DN L d H H1 W W1
RF RTJ BW
50 178 191 216 51 400 – 200 –
65 190 203 241 64 435 – 200 –
80 203 216 283 76 515 – 250 –
100 229 241 305 102 595 – 280 –
125 254 267 381 127 725 – 280 –
150 262 279 403 152 780 820 300 310
200 292 305 419 203 975 1020 350 310
250 330 343 457 254 1150 1200 400 310
300 356 368 502 305 1380 1430 450 310
350 381 394 572 337 1545 1580 500 310
400 406 419 610 387 1733 1780 500 460
450 432 445 660 438 1915 1990 500 460
500 457 470 711 489 2122 2220 600 460
View Complete Details
Ask Latest Price & Details
INCONEL LUG BUTTERFLY VALVE

INCONEL LUG BUTTERFLY VALVE
  • Body Inconel, Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Hastelloy, Monel, Titanium
  • Disc Duplex Stainless Steel, Hastelloy, SS316, Titanium, Aluminium Bronze
  • Working Pressure Class 150 to Class 2500, PN 10 to PN40
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752
  • End Dimensions ASME B16.5, JIS B2210, DIN
  • Operation Manual, Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions:                                                                            Unit: mm

DN фA фB C D L F фL H фM фN N- фP
50 47 102 140 98 43 16 46 11 70 90 4- ф9
65 64 122 152 106 46 16 59 11 70 90 4- ф9
80 76 133 165 113 46 16 76 11 70 90 4- ф9
100 98 156 185 130 52 20 93 14 70 92 4- ф9
125 119 188 205 147 56 20 118 14 70 95 4- ф9
150 140 216 223 161 56 22 139 17 70 125 4- ф11
200 190 268 268 203 60 25 190 19 102 125 4- ф11
250 237 323 323 235 68 28 238 22 102 150 4- ф14
300 280 336 336 268 78 32 281 27 125 150 4- ф14
350 318 415 415 312 92 38 312 27 125 145 4- ф18
View Complete Details
Ask Latest Price & Details
INCONEL WAFER BUTTERFLY VALVE

INCONEL WAFER BUTTERFLY VALVE
  • Body Inconel, Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Hastelloy, Monel, Titanium
  • Disc Duplex Stainless Steel, Hastelloy, SS316, Titanium, Aluminium Bronze
  • Working Pressure Class 150 to Class 2500, PN 10 to PN40
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752
  • End Dimensions ASME B16.5, JIS B2210, DIN
  • Operation Manual, Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions

DN A B C E L H a D1 D2 D3 D4 N-D5 D6 D7 D8 D9 D10
mm inch
50 2″ 280 161 42.04 52.9 32 9.52 45° 83 11  52.6 120 4-23 70 10 102 100 12.6
65 21/2″ 303 175 44.68 64.5 32 9.52 45° 83 11  64.3 136.13 4-26.6 70  10 102 120 12。6
80 3″ 315 181 45.21 78.8 32 9.52 45°/22.5° 83 11  78.8 152.4/160.0 4-24/4-18 70  10 102 127 12.6
100 4″ 353 200 52.07 104 32 11.11 45°/22.5°  83 11 104  177.8/185.16 4.17.5/4-25.8 70  10 102 156 15.77
125 5″ 379 213 54.36 123.3 32 12.7 22.5° 83 11  123.3 215.01 4-23 70 10 102 190 18.92
150 6″ 404 226 55.75 155.6 32 12.7 22.5° 83 11  155.7  238.12 4-25 70  10 102 212 18.92
200 8″ 487 260 60.58 202.5 45  15.87 15°/22.5°  127 14 202.4 296.07 4-23/4-26 102  12 152 268 22.1
250 10″ 547 292 65.63 250.5 51 – 22.5°/15° 127 14 250.4 357 4-22/4-29 102  12 152 325 28.45
300 12″ 631 337 76.9 301.6 51 – 15°  127 14 301.5 406.4/431.8  4-30.2/4-25.4 102  12 152 403 28.4
View Complete Details
Ask Latest Price & Details
INCONEL DUAL PLATE CHECK VALVE

INCONEL DUAL PLATE CHECK VALVE
  • Body Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Nominal Size 2″ to 24″
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimensions ANSI B16.10, API 6D, DIN3202, BS EN558-1
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25

Dimensions

DN D D1 D2 L R T
2″ 102 65 32 54 29 25
2.5″ 121 78 42.1 60 36 29.3
3″ 134 94 82 67 43.4 27.7
4″ 171 117 97.5 67 55.6 26.7
5″ 193 145 111.8 83 67.6 38.6
6″ 219 171 127 95 78.6 46.3
8″ 276 222 161.7 127 104.4 66
10″ 336 276 213.4 140 128 70.7
12″ 406 327 237.9 181 156.7 102
14″ 448 375 312.2 184 179.8 89.2
16″ 511 416 351 191 198.4 92.5
18″ 546 467 409 203 226.2 96.2
20″ 603 514 451.9 213 248.2 102.7
24″ 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
INCONEL SWING CHECK VALVE

INCONEL SWING CHECK VALVE
  • Body Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Ste
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimensions ANSI B16.10, API 6D, DIN3202, BS EN558-1
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25

Dimensions                                                         Unit: mm

Class150

DN L H
50 203 150
65 216 168
80 241 180
100 292 210
125 330 230
150 356 275
200 495 340
250 622 355
300 698 410
350 787 475
400 864 552
450 978 600
500 978 660
600 1295 740
View Complete Details
Ask Latest Price & Details
INCONEL FLOATING BALL VALVE

INCONEL FLOATING BALL VALVE
  • Body Inconel 600, Inconel 625
  • Nominal Size 2″ to 8″
  • Nominal Pressure PN1.0 to 10MPa, Class150 to Class600
  • Face to Face Dimension ANSI B16.10, ASME B16.10
  • Flange End Dimension ANSI B16.5, ASME B16.5, DIN, JIS

Dimensions

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
INCONEL TRUNNION MOUNTED BALL VALVE

INCONEL TRUNNION MOUNTED BALL VALVE
  • Body Inconel 600, Inconel 625
  • End Cap CF8, CF8M
  • Nominal Size 2″ to 24″
  • Nominal Pressure PN1.0 to 10MPa, Class150 to Class600
  • Face to Face Dimension ANSI B16.10, ASME B16.10
  • Flange End Dimension ANSI B16.5, ASME B16.5, DIN, JIS

Dimensions

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
INCONEL GATE VALVE

INCONEL GATE VALVE
₹ 1,479.38 / Piece Get Latest Price
  • Pressure Rating PN 1.0 to 25 Mpa, Class 150 to 2500
  • Body Material Inconel
  • Class 150, 300
  • Size 1", 2", 3"
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Size DN6 to 500mm, NPS 1/4″ to 20″
  • Temperature -198°c to +450°c
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld

Dimensions                                                                                                  Unit: mm

Class 150

DN L d H H1 W W1
RF RTJ BW
50 178 191 216 51 400 – 200 –
65 190 203 241 64 435 – 200 –
80 203 216 283 76 515 – 250 –
100 229 241 305 102 595 – 280 –
125 254 267 381 127 725 – 280 –
150 262 279 403 152 780 820 300 310
200 292 305 419 203 975 1020 350 310
250 330 343 457 254 1150 1200 400 310
300 356 368 502 305 1380 1430 450 310
350 381 394 572 337 1545 1580 500 310
400 406 419 610 387 1733 1780 500 460
450 432 445 660 438 1915 1990 500 460
500 457 470 711 489 2122 2220 600 460
View Complete Details
Ask Latest Price & Details
INCONEL GLOBE VALVE

INCONEL GLOBE VALVE
₹ 1,479.38 / Piece Get Latest Price
  • Body Material Inconel
  • Class 150, 300
  • Size 1", 2", 3"
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Pressure Rating PN 1.0 to 25 Mpa, Class 150 to 2500
  • Size DN6 to 500mm, NPS 1/4″ to 20″
  • Temperature -198°c to +450°c
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Dimensions                                                                                        Unit: mm

Class 150

DN L d H H1 W W1
RF RTJ BW
50 203 216 203 51 330 – 200 –
65 216 229 216 64 360 – 250 –
80 241 254 241 76 390 – 280 –
100 292 305 292 102 445 – 300 –
125 356 369 356 127 480 – 350 –
150 406 419 406 152 520 556 350 310
200 495 508 495 203 600 658 400 310
250 622 635 622 254 773 805 450 460
300 698 711 698 305 880 955 500 460
350 787 800 787 337 950 1100 600 460
400 914 927 914 387 996 1175 600 460
500 978 991 978 488 – 1450 – 600
600 1295 1308 1295 590 – 1690 – 600
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE SWING CHECK VALVE

ALUMINIUM BRONZE SWING CHECK VALVE
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Disc Aluminium Bronze, SS304, SS316
  • Nominal Size DN40 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to Class 2500
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Butt welded end ANSI B16.5

Dimensions                                                 Unit: mm

PN16

DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
125 350 265
150 400 285
200 500 345
250 600 394
300 700 420
350 800 455
400 900 520
450 1000 565
500 1100 610
600 1300 740
View Complete Details
Ask Latest Price & Details
ALUMINIUM DUAL PLATE WAFER CHECK VALVE

ALUMINIUM DUAL PLATE WAFER CHECK VALVE
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Nominal Size 2″ to 24″
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to Class 2500
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Butt welded end ANSI B16.5

Dimensions
Size D D1 D2 L R T
2″ 102 65 32 54 29 25
2.5″ 121 78 42.1 60 36 29.3
3″ 134 94 82 67 43.4 27.7
4″ 171 117 97.5 67 55.6 26.7
5″ 193 145 111.8 83 67.6 38.6
6″ 219 171 127 95 78.6 46.3
8″ 276 222 161.7 127 104.4 66
10″ 336 276 213.4 140 128 70.7
12″ 406 327 237.9 181 156.7 102
14″ 448 375 312.2 184 179.8 89.2
16″ 511 416 351 191 198.4 92.5
18″ 546 467 409 203 226.2 96.2
20″ 603 514 451.9 213 248.2 102.7
24″ 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE LUG BUTTERFLY VALVE

ALUMINIUM BRONZE LUG BUTTERFLY VALVE
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Disc Aluminium Bronze, SS304, SS316
  • Nominal Size DN40 to DN300
  • Nominal Pressure PN1.6 to PN4.0, Class 150 to Class 300
  • End Type Lugged
  • Face to Face Dimension API 609, DIN3202, EN558-1, ISO5752
  • Flanged End Dimension ANSI B16.5, ASME B16.47, EN1092, DIN2543

Dimensions                                                                                           Unit: mm

DN фA фB C D L F фL H фM фN N- фP
50 47 102 140 98 43 16 46 11 70 90 4- ф9
65 64 122 152 106 46 16 59 11 70 90 4- ф9
80 76 133 165 113 46 16 76 11 70 90 4- ф9
100 98 156 185 130 52 20 93 14 70 92 4- ф9
125 119 188 205 147 56 20 118 14 70 95 4- ф9
150 140 216 223 161 56 22 139 17 70 125 4- ф11
200 190 268 268 203 60 25 190 19 102 125 4- ф11
250 237 323 323 235 68 28 238 22 102 150 4- ф14
300 280 336 336 268 78 32 281 27 125 150 4- ф14
350 318 415 415 312 92 38 312 27 125 145 4- ф18
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE WAFER BUTTERFLY VALVE

ALUMINIUM BRONZE WAFER BUTTERFLY VALVE
  • Body Aluminium Bronze( C95800, C83600, C84400, B62)
  • Disc Aluminium Bronze, SS304, SS316
  • Nominal Size DN40 to DN300
  • Nominal Pressure PN1.6 to PN4.0, Class 150 to Class 300
  • Face to Face Dimension API 609, DIN3202, EN558-1, ISO5752
  • Flanged End Dimension ANSI B16.5, ASME B16.47, EN1092, DIN2543

Dimensions                                                                                    Unit: mm

DN A B C D1 n-ф
40 110 70 33 110 4-19
50 161 80 42 125 4-19
65 175 89 44.7 145 4-19
80 181 95 45.2 160 8-19
100 200 114 52.1 180 8-19
125 213 127 54.4 210 8-19
150 226 139 55.8 240 8-23
200 260 175 60.6 295 8-23
250 292 203 65.6 350 12-23
300 337 242 76.9 400 12-23
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE FLOATING BALL VALVE

ALUMINIUM BRONZE FLOATING BALL VALVE
  • Body Aluminium Bronze
  • Bonnet Bronze, Aluminium Bronze
  • Nominal Size DN15 to DN200
  • Nominal Pressure Class150 to Class300
  • End Connection Flanged
  • Operation Handle Operated, Gear Operated
  • Face to Face Dimension ASME B16.10
  • Flanged End Dimension ASME B16.5

Dimensions                                                   Unit: mm

DN d D D1 D2 L H W b f n-фd
15 13 90 60.3 34.9 108 82 120 10 2 4- ф16
20 19 100 69.9 42.9 117 90 120 11 2 4- ф16
25 25 110 79.4 50.8 127 98 140 11.6 2 4- ф16
32 32 115 88.9 63.5 140 110 180 13.2 2 4- ф16
40 38 125 98.4 73 165 125 200 14.7 2 4- ф16
50 49 150 120.7 92.1 178 137 230 16.3 2 4- ф19
65 62 180 139.7 104.8 191 155 260 18 2 4- ф19
80 74 190 152.4 127 203 167 280 19.5 2 4- ф19
100 100 230 190.5 157.2 229 205 320 24.3 2 4- ф19
150 150 280 241.3 215.9 394 295 600 26 2 8- ф22
200 201 345 298.5 269.9 457 330 800 29 2 8- ф22
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE TRUNNION BALL VALVE

ALUMINIUM BRONZE TRUNNION BALL VALVE
  • Body Aluminium Bronze
  • Bonnet Bronze, Aluminium Bronze
  • Nominal Size 6″ to 20″
  • Nominal Pressure Class150 to Class300
  • End Connection Flanged
  • Operation Handle Operated, Gear Operated
  • Face to Face Dimension ASME B16.10
  • Flanged End Dimension ASME B16.5

Dimensions

NPS L D1 D2 D3 B f n-Φd
6 394 280 241.3 215.9 23.9 2 8-Φ22
8 657 365 298.5 269.9 27 2 8-Φ22
10 533 405 362 323.8 28.6 2 12-Φ25
12 670 485 431.8 381 30.2 2 12-Φ25
16 762 595 539.8 469.9 35 2 16-Φ29
20 914 700 635 584.7 41.3 2 20-Φ32
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE GATE VALVE

ALUMINIUM BRONZE GATE VALVE
  • Body Material Aluminium Bronze
  • Class 150/PN16
  • Size 1 1/2", 1", 10", 12", 14", 2 1/2", 2", 3", 4", 6", 8"
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Size DN 50 to 500mm, NPS 1/4″ to 20″
  • Temperature -198°c to +450°c
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld

Dimensions                                                                                        Unit: mm

Class150

DN L H(Open) D D1 D2 b Z-фd D0
50 178 409 152 120 92 19 4-19 200
80 203 570 190 152 127 23 4-19 250
100 229 590 229 190 157 23 8-19 250
150 267 630 279 241 216 25 8-22 300
200 292 960 343 298 270 28 8-22 350
250 330 1158 406 362 324 30 12-25 400
300 356 1378 483 432 381 31 12-25 450
350 381 1543 533 476 413 35 12-29 500
400 406 1738 597 539 470 36 16-29 600
450 432 1959 635 578 533 39 16-32 600
500 457 2214 698 635 584 42 20-32 680
600 508 2599 813 749 692 47 20-35 760
View Complete Details
Ask Latest Price & Details
ALUMINIUM BRONZE GLOBE VALVE

ALUMINIUM BRONZE GLOBE VALVE
  • Body Material Aluminium Bronze
  • Class 150/PN16
  • Size 1 1/2", 1", 2", 3", 4", 6", 8"
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Size DN 15 to 200mm, NPS 1/4″ to 20″
  • Temperature -198°c to +450°c
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld

Dimensions                                                                                              Unit: mm

Class150

DN L H D D1 D2 b n-фd W
15 108 169 90 60 35 12 4-15 125
20 117 180 98 70 43 12 4-15 125
25 127 190 108 79 51 12 4-15 125
40 165 347 127 98 73 14 4-16 180
50 203 356 152 120 92 15 4-19 180
65 216 381 178 139 105 17 4-19 240
80 241 413 190 152 127 19 4-19 280
100 292 500 229 190 157 24 8-19 280
150 406 656 279 241 216 25 8-22 360
200 495 660 343 298 270 29 8-22 450
View Complete Details
Ask Latest Price & Details
TITANIUM FLOATING BALL VALVE

TITANIUM FLOATING BALL VALVE
₹ 443 / Piece Get Latest Price
  • Size 1", 2", 3", 4"
  • Body Material Titanium
  • Class 150/PN16
  • Connection Type Flanged
  • Nominal Size 1″ to 8″
  • Nominal Pressure Class 150 to Class 600, PN16 to PN63
  • End Connection Flanged
  • Handle Lever Handle, Locking Device Handle
  • Operation Manual, Pneumatic, Electric Actuated
  • Face to Face Dimension DIN3202, EN1266, ANSI B16.10
  • Buttweld Dimension ANSI B16.25

Dimensions

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
TITANIUM TRUNNION MOUNTED BALL VALVE

TITANIUM TRUNNION MOUNTED BALL VALVE
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimension:

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500

API Trim NO. Table

No of internal parts Seat ring or body Gate,disc,ball or body Stem No of internal parts Seat ring or body Gate,disc,ball or body Stem
01 13Cr 13Cr 13Cr 31 STELLITE 321SS 321SS
02 304SS 304SS 304SS 32 STELLITE STELLITE 321SS
03 310SS 310SS 310SS 33 347SS 347SS 347SS
04 HARD 13Cr HARD 13Cr 13Cr 34 STELLITE 347SS 347SS
05 STELLITE STELLITE 13Cr 35 NICKEL ALLOY 13Cr 13Cr
06 Cu-Ni 13Cr 13Cr 36 A105/PTFE A105+ENP A105+ENP
07 13Cr HARD 13Cr 13Cr 37 A105/PTFE WCB+ENP A105+ENP
08 STELLITE 13Cr 13Cr 38 13Cr/PTFE 13Cr 13Cr
09 Cu-Ni Cu-Ni Cu-Ni 39 304SS/PTFE 304SS 304SS
10 316SS 316SS 316SS 40 316SS/PTFE 316SS 316SS
11 Cu-Ni STELLITE Cu-Ni 41 A105/RPTFE A105+ENP A105+ENP
12 STELLITE 316SS 316SS 42 A105/RPTFE WCB+ENP A105+ENP
13 ALLOY 20 ALLOY 20 ALLOY 20 43 13Cr/RPTFE 13Cr 13Cr
14 STELLITE ALLOY 20 ALLOY 20 44 304SS/RPTFE 304SS 304SS
15 STELLITE STELLITE 304SS 45 316SS/RPTFE 316SS 316SS
16 STELLITE STELLITE 316SS 46 A105/NYLON A105+ENP A105+ENP
17 STELLITE STELLITE 347SS 47 A105/NYLON WCB+ENP A105+ENP
18 STELLITE STELLITE ALLOY 20 48 A105/NYLON 304SS 304SS
19 MONEL MONEL MONEL 49 A105/NYLON 316SS 316SS
20 BRONZE BRONZE 13Cr 50 13Cr/NYLON 13Cr 13Cr
21 HASTELLOY B HASTELLOY B HASTELLOY B 51 304SS/NYLON 304SS 304SS
22 HASTELLOY C HASTELLOY C HASTELLOY C 52 316SS/NYLON 316SS 316SS
23 STELLITE 304SS 304SS 53 A105/PEEK A105+ENP A105+ENP
24 304LSS 304LSS 304LSS 54 A105/PEEK WCB+ENP A105+ENP
25 STELLITE 304LSS 304LSS 55 13Cr/PEEK 13Cr 13Cr
26 STELLITE STELLITE 304LSS 56 304SS/PEEK 304SS 304SS
27 316LSS 316LSS 316LSS 57 316SS/PEEK 316SS 316SS
28 STELLITE 316LSS 316LSS
29 STELLITE STELLITE 316LSS
30 321SS 321SS 321SS
View Complete Details
Ask Latest Price & Details
TITANIUM GATE VALVE

TITANIUM GATE VALVE
  • Pressure Rating PN 1.0 to 25 Mpa, Class 150 to 2500
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Size DN50 to 600mm, NPS 1/4″ to 20″
  • Temperature -198°c to +450°c
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld
  • Butt welded end ANSI B16.5
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605

Dimensions                                                                                        Unit: mm

Class150

DN L H(Open) D D1 D2 b Z-фd D0
50 178 409 152 120 92 19 4-19 200
80 203 570 190 152 127 23 4-19 250
100 229 590 229 190 157 23 8-19 250
150 267 630 279 241 216 25 8-22 300
200 292 960 343 298 270 28 8-22 350
250 330 1158 406 362 324 30 12-25 400
300 356 1378 483 432 381 31 12-25 450
350 381 1543 533 476 413 35 12-29 500
400 406 1738 597 539 470 36 16-29 600
450 432 1959 635 578 533 39 16-32 600
500 457 2214 698 635 584 42 20-32 680
600 508 2599 813 749 692 47 20-35 760
View Complete Details
Ask Latest Price & Details
TITANIUM DUAL PLATE CHECK VALVE

TITANIUM DUAL PLATE CHECK VALVE
  • Body Titanium TA1, TA2, TA10, TC4, GR2, GR3, GR5, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
  • Nominal Size 2″ to 24″
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to Class 2500
  • Temperature -198°c to +450°c
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Flanged connection 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
  • Butt welded end ANSI B16.5

Dimensions
Size D D1 D2 L R T
2″ 102 65 32 54 29 25
2.5″ 121 78 42.1 60 36 29.3
3″ 134 94 82 67 43.4 27.7
4″ 171 117 97.5 67 55.6 26.7
5″ 193 145 111.8 83 67.6 38.6
6″ 219 171 127 95 78.6 46.3
8″ 276 222 161.7 127 104.4 66
10″ 336 276 213.4 140 128 70.7
12″ 406 327 237.9 181 156.7 102
14″ 448 375 312.2 184 179.8 89.2
16″ 511 416 351 191 198.4 92.5
18″ 546 467 409 203 226.2 96.2
20″ 603 514 451.9 213 248.2 102.7
24″ 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
TITANIUM SWING CHECK VALVE

TITANIUM SWING CHECK VALVE
  • Body Material Titanium, Duplex, Hastelloy C276/B3, Monel, Alloys20, 4A, 5A, C95800, C95500, Monel, Alloy 20, F347, Super Duplex, Inconel
  • Valve Pressure 150LB to 2500LB (PN1.6-42MPa)
  • Operating temperature from -196 degrees Celsius to 593 degrees Celsius.
  • Connection Flanged, Butt-welded
  • Face to Face Dimensions ANSI B16.10
  • Butt Welded Dimensions ANSI B16.25

Dimension:
Pressure (Mpa) PN1.6Mpa
Size   mm 50 65 80 100 125 150 200 250 300 350 400
L 230 290 310 350 400 480 550 650 750 850 950
H 305 354 402 437 496 541 699 815 914 1189 1350
Wt(kg) 21 28 38 58 92 130 210 295 365 410 460
Pressure (Mpa) PN2.5Mpa
Size   mm 50 65 80 100 125 150 200 250 300 350 400
L 230 290 310 350 400 480 550 650 750 850 950
H 305 363 415 453 505 556 744 864 948 1269 1450
Wt(kg) 21 29 38 61 96 132 213 297 375 415 460

API Trim NO. Table



No of internal parts



Seat ring or body



Gate, disc, ball or body



Stem



No of internal parts



Seat ring or body



Gate, disc, ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22

HASTELLOY C

HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS




View Complete Details
Ask Latest Price & Details
TITANIUM GLOBE VALVE

TITANIUM GLOBE VALVE
  • Size DN15 to 200mm, NPS 1/4″ to 20″
  • Connections Flanged, Threaded, Socket welded, ButtWeld
  • Pressure rating PN 1.0 to 25 Mpa, Class 150 to 2500
  • Temperature -198°c to +450°c
  • Face to face (end to end) ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • End Connections Flanged, Socketweld, Buttweld

Dimensions                                                                                      Unit: mm

Class150

DN L H D D1 D2 b n-фd W
15 108 169 90 60 35 12 4-15 125
20 117 180 98 70 43 12 4-15 125
25 127 190 108 79 51 12 4-15 125
40 165 347 127 98 73 14 4-16 180
50 203 356 152 120 92 15 4-19 180
65 216 381 178 139 105 17 4-19 240
80 241 413 190 152 127 19 4-19 280
100 292 500 229 190 157 24 8-19 280
150 406 656 279 241 216 25 8-22 360
200 495 660 343 298 270 29 8-22 450
View Complete Details
Ask Latest Price & Details
ZIRCONIUM GLOBE VALVE

ZIRCONIUM GLOBE VALVE
  • Body Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605

Dimensions                                                                Unit: mm

Class 150

DN L L1 L2 H W
50 203 216 203 350 220
65 216 229 216 362 250
80 241 254 241 385 280
100 292 305 292 400 320
125 356 369 356 455 320
150 406 419 406 537 400
200 495 508 495 707 450
250 622 635 622 788 560
300 698 711 698 820 580
350 787 800 787 898 –
400 914 927 914 930 –
450 978 991 978 980 –
500 978 991 978 1028 –
600 1295 1308 1295 1134 –
View Complete Details
Ask Latest Price & Details
ZIRCONIUM GATE VALVE

ZIRCONIUM GATE VALVE
  • Body Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Butt welded End Dimension ANSI B16.5

Dimensions                                                                Unit: mm

Class 150

DN L L1 L2 H W
50 178 191 216 341 200
65 190 203 241 371 200
80 203 216 283 402 250
100 229 241 305 472 280
125 254 267 381 530 300
150 267 279 403 587 300
200 292 305 419 743 350
250 330 343 457 904 400
300 356 368 502 1047 450
350 381 394 572 1172 500
400 406 419 610 1297 600
450 432 445 660 1433 680
500 457 470 711 1590 750
600 508 521 813 1898 800
View Complete Details
Ask Latest Price & Details
ZIRCONIUM FLOATING BALL VALVE

ZIRCONIUM FLOATING BALL VALVE
  • Body Zirconium 702, Zirconium 705, Zirconium 703
  • End Connections Flanged
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN15 to DN250
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Dimension ANSI B16.5, MSS-SP-44 to API605
  • Butt welded End Dimension ANSI B16.5

Dimensions                                                                                                          Unit: mm

DN 15 20 25 32 40 50 65 80 100 125 150 200 250
d 15 20 25 32 40 50 65 80 100 125 150 200 250
L 108 117 127 140 165 178 190 203 229 256 394 457 533
D 89 98 108 117 127 152 178 190 229 254 279 343 406
C 60.5 70 79.5 89 98.5 120.5 139.5 152.5 190.5 215.9 241.5 298.5 362
g 35 43 51 64 73 92 105 127 157 186 261 270 324
T 12.7 12.7 13 14.5 15 16 18 19 24 24 26 29 30
t 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
H 87.5 87.5 91.5 107 136 136 158 196 212 252 272 342 345
W 142 142 142 190 200 200 300 350 700 1100 1100 1500 1500
n-ф 4-15 4-15 4-15 4-15 4-19 4-19 4-19 4-19 4-19 8-22 8-22 8-22 12-25
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX FLOATING BALL VALVE

SUPER DUPLEX FLOATING BALL VALVE
  • Body Super Duplex Stainless Steel
  • Nominal Size 2″ to 8″
  • Nominal Pressure Class150 to Class2500, PN16 to PN63
  • Ends Flanged
  • Design and Manufacture Standard API 6D
  • Face to Face Dimensions ANSI B16.10
  • Flange End Dimensions ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX HIGH PRESSURE BALL VALVE

SUPER DUPLEX HIGH PRESSURE BALL VALVE
  • Body Super Duplex Stainless Steel
  • Nominal Size 2″ to 24″
  • Nominal Pressure Class150 to Class2500, PN16 to PN63
  • Ends Flanged
  • Face to Face Dimensions ANSI B16.10
  • Flange End Dimensions ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 356 432 508 559 660 787 838 889 991 1092 1194 1397
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 1500 500 500 500 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX TOP ENTRY BALL VALVE

SUPER DUPLEX TOP ENTRY BALL VALVE
  • Body Super Duplex Stainless Steel
  • Nominal Size 6″ to 24″
  • Nominal Pressure Class150 to Class2500, PN16 to PN63
  • Ends Flanged
  • Face to Face Dimensions ANSI B16.10
  • Flange End Dimensions ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions

NPS in 6 8 10 12 14 16 18 20 24
d mm 152 203 254 305 337 387 432 483 584
L(RF) mm 403 502 568 648 762 838 914 991 1143
d1 mm 216 270 324 381 413 470 533 584 692
d2 mm 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 318 381 445 521 584 648 711 775 914
b mm 37 42 48 51 54 58 61 64 70
n-Фd mm 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 330 448 505 556 620 700 750 805 1110
W mm 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX TRUNNION MOUNTED BALL VALVE

SUPER DUPLEX TRUNNION MOUNTED BALL VALVE
  • Body Super Duplex Stainless Steel
  • Nominal Size 2″ to 24″
  • Nominal Pressure Class150 to Class2500, PN16 to PN63
  • Ends Flanged
  • Face to Face Dimensions ANSI B16.10
  • Flange End Dimensions ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX DUAL PLATE CHECK VALVE

SUPER DUPLEX DUAL PLATE CHECK VALVE
  • Body Super Duplex Stainless Steel 4A, 5A, 6A, Duplex Stainless Steel, Alloy 20,
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimensions ANSI B16.10, API 6D, DIN3202, BS EN558-1
  • Flange End Dimensions ANSI B16.5, DIN 2543, BS EN 1092-1
  • Buttweld End Dimensions ANSI B16.25

Dimensions                                              Unit:mm



DN D D1 D2 L R T
50 102 65 32 54 29 25
60 121 78 42.1 60 36 29.3
80 134 94 82 67 43.4 27.7
100 171 117 97.5 67 55.6 26.7
125 193 145 111.8 83 67.6 38.6
150 219 171 127 95 78.6 46.3
200 276 222 161.7 127 104.4 66
250 336 276 213.4 140 128 70.7
300 406 327 237.9 181 156.7 102
350 448 375 312.2 184 179.8 89.2
400 511 416 351 191 198.4 92.5
450 546 467 409 203 226.2 96.2
500 603 514 451.9 213 248.2 102.7
600 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX LUG BUTTERFLY VALVE

SUPER DUPLEX LUG BUTTERFLY VALVE
  • Body Super Duplex Stainless Steel, Carbon Steel, Stainless Steel, Duplex Stainless Steel, Hastelloy, Alloy Steel, Monel, Inconel, Incoloy, Titanium, Bronze
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Nominal Size DN50 to DN2000
  • Nominal Pressure Class 150 to Class 600, PN 1.0 to PN 4.0
  • End Connections Wafer, Lug, Flanged
  • Operation Manual, Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752

Dimensions

Size A B C D E F d G H J L Wt(kg)
DN Inch
50 2″ 126 78 14 117 9 50 8 70 31 34 43 2.8
65 2 1/2″ 134 84 14 131 9 50 8 70 45 36 46 3.7
80 3″ 138 92 14 176 9 50 8 70 64 36 46 5.1
100 4″ 167 114 14 206 11 70 10 90 91 40 52 6.9
125 5″ 180 129 18 236 14 70 10 90 110 44 56 9.3
150 6″ 203 144 18 258 14 70 10 90 146 44 56 10.5
200 8″ 228 179 25 321 17 102 12 125 193 50 60 17.4
250 10″ 266 216 25 395 22 102 12 125 241 57 68 28.1
300 12″ 291 247 25 461 22 102 12 125 292 66 78 40
350 14″ 332 273 30 511 27 125 14 150 329 62 78 55
400 16″ 363 317 30 580 27 125 14 150 376 84 102 85
450 18″ 397 348 39 630 36 140 18 175 425 94 114 114
500 20″ 425 393 39 700 36 140 18 175 475 110 127 144
600 24″ 498 453 49 823 46 165 22 210 573 120 154 227
700 28″ 626 531 90 928 63 254 18 300 674 54 165 342
750 30″ 660 564 90 984 63 254 18 300 727 54 165 400
800 32″ 666 601 90 1061 63 254 18 300 771 60 190 485
900 36″ 722 660 110 1170 75 254 18 300 839 60 203 605
1000 40″ 806 728 120 1290 84 298 22 350 939 60 216 776
1100 44″ 826 771 140 1404 95 298 22 350 1036 50 255 985
1200 48″ 941 874 150 1511 105 298 22 350 1137 62 276 1190
1400 56″ 1000 940 175 1685 140 356 32 415 1351 62 279 1380
1600 64″ 1155 1085 195 1930 160 356 32 415 1548 65 318 2054
1800 72″ 1200 1170 195 2170 175 406 39 475 1703 70 356 3075
2000 80″ 1363 1360 245 2345 199 406 39 475 1938 75 406 4500
View Complete Details
Ask Latest Price & Details
SUPER DUPLEX WAFER BUTTERFLY VALVE

SUPER DUPLEX WAFER BUTTERFLY VALVE
  • Body Super Duplex Stainless Steel, Duplex Stainless Steel, Carbon Steel, Stainless Steel, Hastelloy, Alloy Steel, Monel, Inconel, Incoloy, Titanium, Bronze
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Nominal Size DN50 to DN200
  • Nominal Pressure Class150 to Class600, PN1.0 to PN4.0
  • End Connections Wafer, Lug, Flanged
  • Operation Manual, Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752

Dimensions                                                                                                             Unit: mm

DN L L1 D D1 D2 D3 D4 ф H1 H2 H3 Z-Фd
1.0 1.6 1.0 1.6
50 42 220 52.9 125 125 92 77 57 12.6 70 147 32 4-Ф23 4-Ф23
65 44.7 220 64.5 145 145 110 77 57 12.6 76 155 32 4-Ф23 4-Ф23
80 45.2 255 78.8 160 160 121 77 57 12.6 92 164 32 8-Ф20 4-Ф20
100 52.1 255 104 180 180 153 92 70 15.78 106 175 32 4-Ф23 4-Ф23
125 54.4 290 123.3 210 210 176 92 70 18.92 119 194 32 4-Ф23 4-Ф23
150 55.8 290 155.6 240 240 207 92 70 18.92 132 206 32 4-Ф25 4-Ф25
200 60.6 340 202.5 295 295 259 115 89 22.1 162 273 45 4-Ф25 4-Ф295
View Complete Details
Ask Latest Price & Details
MONEL FLOATING BALL VALVE

MONEL FLOATING BALL VALVE
  • Body Monel
  • Thrust Washer PTFE, RPTFE, PPL
  • Nominal Size 2″ to 8″
  • Nominal Pressure Class150 to Class2500, PN1.6 to PN4.0
  • End Type Flanged
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5

Dimensions

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
View Complete Details
Ask Latest Price & Details
MONEL HIGH PRESSURE BALL VALVE

MONEL HIGH PRESSURE BALL VALVE
  • Body Monel
  • Ball Monel
  • End Cap Monel
  • Thrust Washer PTFE, RPTFE, PPL
  • Nominal Size 2″ to 24″
  • Nominal Pressure Class150 to Class2500
  • End Type Flanged
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 356 432 508 559 660 787 838 889 991 1092 1194 1397
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 1500 500 500 500 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
MONEL TOP ENTRY BALL VALVE

MONEL TOP ENTRY BALL VALVE
  • Body Monel
  • End Cap Monel
  • Nominal Size 6″ to 24″
  • Nominal Pressure Class150 to Class2500
  • End Type Flanged
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10
  • Flange end Dimension ANSI B16.5
  • Butt Welded Dimensions ANSI B16.25

Dimensions

NPS in 6 8 10 12 14 16 18 20 24
d mm 152 203 254 305 337 387 432 483 584
L(RF) mm 403 502 568 648 762 838 914 991 1143
d1 mm 216 270 324 381 413 470 533 584 692
d2 mm 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 318 381 445 521 584 648 711 775 914
b mm 37 42 48 51 54 58 61 64 70
n-Фd mm 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 330 448 505 556 620 700 750 805 1110
W mm 1000 300 350 400 500 500 500 500 500
View Complete Details
Ask Latest Price & Details
MONEL TRUNNION MOUNTED BALL VALVE

MONEL TRUNNION MOUNTED BALL VALVE
  • Body Monel
  • Ball Monel
  • End Cap Monel
  • Nominal Size 2″ to 24″
  • Nominal Pressure Class150 to Class2500
  • End Type Flanged
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
View Complete Details
Ask Latest Price & Details
MONEL LUG BUTTERFLY VALVE

MONEL LUG BUTTERFLY VALVE
  • Body Monel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Hastelloy, Alloy Steel, Inconol, Incoloy, Titanium, Bronze
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Nominal Size DN50 to DN2000
  • Nominal Pressure Class 150 to Class 600, PN10 to PN64
  • End Connection Lug
  • Operation Manual, Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752

Dimensions

Size A B C D E F d G H J L Wt(kg)
DN Inch
50 2″ 126 78 14 117 9 50 8 70 31 34 43 2.8
65 2 1/2″ 134 84 14 131 9 50 8 70 45 36 46 3.7
80 3″ 138 92 14 176 9 50 8 70 64 36 46 5.1
100 4″ 167 114 14 206 11 70 10 90 91 40 52 6.9
125 5″ 180 129 18 236 14 70 10 90 110 44 56 9.3
150 6″ 203 144 18 258 14 70 10 90 146 44 56 10.5
200 8″ 228 179 25 321 17 102 12 125 193 50 60 17.4
250 10″ 266 216 25 395 22 102 12 125 241 57 68 28.1
300 12″ 291 247 25 461 22 102 12 125 292 66 78 40
350 14″ 332 273 30 511 27 125 14 150 329 62 78 55
400 16″ 363 317 30 580 27 125 14 150 376 84 102 85
450 18″ 397 348 39 630 36 140 18 175 425 94 114 114
500 20″ 425 393 39 700 36 140 18 175 475 110 127 144
600 24″ 498 453 49 823 46 165 22 210 573 120 154 227
700 28″ 626 531 90 928 63 254 18 300 674 54 165 342
750 30″ 660 564 90 984 63 254 18 300 727 54 165 400
800 32″ 666 601 90 1061 63 254 18 300 771 60 190 485
900 36″ 722 660 110 1170 75 254 18 300 839 60 203 605
1000 40″ 806 728 120 1290 84 298 22 350 939 60 216 776
1100 44″ 826 771 140 1404 95 298 22 350 1036 50 255 985
1200 48″ 941 874 150 1511 105 298 22 350 1137 62 276 1190
1400 56″ 1000 940 175 1685 140 356 32 415 1351 62 279 1380
1600 64″ 1155 1085 195 1930 160 356 32 415 1548 65 318 2054
1800 72″ 1200 1170 195 2170 175 406 39 475 1703 70 356 3075
2000 80″ 1363 1360 245 2345 199 406 39 475 1938 75 406 4500
View Complete Details
Ask Latest Price & Details
MONEL WAFER BUTTERFLY VALVE

MONEL WAFER BUTTERFLY VALVE
  • Body Monel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, Hastelloy, Alloy Steel, Inconol, Incoloy, Titanium, Bronze
  • Disc Stainless Steel, Duplex Stainless Steel, Hastelloy, Titanium
  • Operation Manual, Lever Operated, Electric, Pneumatic Actuated
  • Nominal Size DN50 to DN200
  • Nominal Pressure PN10 to PN64, Class150 to Class300
  • Face to Face Dimensions ANSI B16.10, API 609, MSS-SP-68, ISO 5752
  • End Dimensions ASME B16.5, JIS B2210, DIN

Dimensions                                                                                                                                                  Unit: mm

DN L L1 D D1 D2 D3 D4 Ф H1 H2 H3 Z-Фd
1.0 1.6 1.0 1.6
50 42 220 52.9 125 125 92 77 57 12.6 70 147 32 4-Ф23 4-Ф23
65 44.7 220 64.5 145 145 110 77 57 12.6 76 155 32 4-Ф23 4-Ф23
80 45.2 255 78.8 160 160 121 77 57 12.6 92 164 32 8-Ф20 4-Ф20
100 52.1 255 104 180 180 153 92 70 15.78 106 175 32 4-Ф23 4-Ф23
125 54.4 290 123.3 210 210 176 92 70 18.92 119 194 32 4-Ф23 4-Ф23
150 55.8 290 155.6 240 240 207 92 70 18.92 132 206 32 4-Ф25 4-Ф25
200 60.6 340 202.5 295 295 259 115 89 22.1 162 273 45 4-Ф25 4-Ф295
View Complete Details
Ask Latest Price & Details
MONEL DUAL PLATE CHECK VALVE

MONEL DUAL PLATE CHECK VALVE
  • Body Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Ends Wafer Type

Dimensions

DN D D1 D2 L R T
2″ 102 65 32 54 29 25
2.5″ 121 78 42.1 60 36 29.3
3″ 134 94 82 67 43.4 27.7
4″ 171 117 97.5 67 55.6 26.7
5″ 193 145 111.8 83 67.6 38.6
6″ 219 171 127 95 78.6 46.3
8″ 276 222 161.7 127 104.4 66
10″ 336 276 213.4 140 128 70.7
12″ 406 327 237.9 181 156.7 102
14″ 448 375 312.2 184 179.8 89.2
16″ 511 416 351 191 198.4 92.5
18″ 546 467 409 203 226.2 96.2
20″ 603 514 451.9 213 248.2 102.7
24″ 714 616 554.7 222 297.4 107.3
View Complete Details
Ask Latest Price & Details
MONEL SWING CHECK VALVE

MONEL SWING CHECK VALVE
  • Body Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • Disc Monel 400, Monel K500, Monel 600, Inconel, Duplex Stainless Steel, Super Duplex Stainless Steel, All
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Buttweld End Dimensions ANSI B16.25

Dimensions                                                         Unit: mm

Class150

DN L H
50 203 150
65 216 168
80 241 180
100 292 210
125 330 230
150 356 275
200 495 340
250 622 355
300 698 410
350 787 475
400 864 552
450 978 600
500 978 660
600 1295 740
View Complete Details
Ask Latest Price & Details
MONEL GATE VALVE

MONEL GATE VALVE
₹ 1,031 / Piece Get Latest Price
  • Body Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End ANSI B16.5, MSS-SP-44 to API605

Dimensions                                                                Unit: mm

Class 150

DN L L1 L2 H W
50 178 191 216 341 200
65 190 203 241 371 200
80 203 216 283 402 250
100 229 241 305 472 280
125 254 267 381 530 300
150 267 279 403 587 300
200 292 305 419 743 350
250 330 343 457 904 400
300 356 368 502 1047 450
350 381 394 572 1172 500
400 406 419 610 1297 600
450 432 445 660 1433 680
500 457 470 711 1590 750
600 508 521 813 1898 800
View Complete Details
Ask Latest Price & Details
MONEL GLOBE VALVE

MONEL GLOBE VALVE
₹ 1,031 / Piece Get Latest Price
  • End Connections Flanged, Socketweld, Buttweld
  • Operations Handwheel Operated, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN600
  • Nominal Pressure PN 1.0 to 25 Mpa, Class 150 to 2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End ANSI B16.5, MSS-SP-44 to API605
  • Butt welded End ANSI B16.5

Dimensions                                                                      Unit:mm

Class150

DN L L1 L2 H W
50 203 216 203 350 220
65 216 229 216 362 250
80 241 254 241 385 280
100 292 305 292 400 320
125 356 369 356 455 320
150 406 419 406 537 400
200 495 508 495 707 450
250 622 635 622 788 560
300 698 711 698 820 580
350 787 800 787 898 –
400 914 927 914 930 –
450 978 991 978 980 –
500 978 991 978 1028 –
600 1295 1308 1295 1134 –
View Complete Details
Ask Latest Price & Details
BRONZE WAFER BUTTERFLY VALVE

BRONZE WAFER BUTTERFLY VALVE
  • Body Bronze
  • Disc Bronze, Aluminium Bronze
  • End Connection Wafer
  • Operation Lever Operated, Electric Actuated, Pneumatic Actuated
  • Face to Face Dimension API 609, MSS SP-67, DIN3202, BS EN558-1
  • Flanged End Dimension ANSI B16.1, BS4504, DIN2501

Dimensions                                                                                    Unit: mm

DN A B C D1 n-ф
40 110 70 33 110 4-19
50 161 80 42 125 4-19
65 175 89 44.7 145 4-19
80 181 95 45.2 160 8-19
100 200 114 52.1 180 8-19
125 213 127 54.4 210 8-19
150 226 139 55.8 240 8-23
200 260 175 60.6 295 8-23
250 292 203 65.6 350 12-23
300 337 242 76.9 400 12-23
View Complete Details
Ask Latest Price & Details
BRONZE DUAL PLATE CHECK VALVE

BRONZE DUAL PLATE CHECK VALVE
  • End Connection Wafer
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Buttweld End ANSI B16.25
  • Flanged End Connection ANSI B16.5
  • Face to Face Dimension ANSI B16.10, API 6D
  • Nominal Pressure Class150 to Class900
  • Nominal Size DN50 to DN600

Dimensions                                                                                   Unit: mm

Class150

DN L D d D1
50 60 103 51 56
65 67 122 65 73
80 73 135 80 88
100 73 173 102 108
150 98 220 152 160
200 127 277 203 210
250 146 337 254 266
300 181 407 305 310
350 184 448 350 355
400 191 512 400 405
450 203 547 450 455
500 219 604 500 505
600 222 715 600 605
View Complete Details
Ask Latest Price & Details
BRONZE SWING CHECK VALVE

BRONZE SWING CHECK VALVE
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • End Connection Flanged, Buttweld, Socketweld
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure Class150 to Class300
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25

Dimensions                                                                            Unit: mm

Class150

DN L L1 L2 H
50 203 203 216 152
65 216 216 229 165
80 241 241 254 175
100 292 292 305 204
150 356 356 368 293
200 495 495 508 353
250 622 622 635 390
300 699 699 711 432
350 787 787 800 475
400 864 864 876 525
450 978 978 991 582
500 978 978 991 627
View Complete Details
Ask Latest Price & Details
BRONZE FLANGED GATE VALVE

BRONZE FLANGED GATE VALVE
  • End Connection Flanged, Buttweld, Socketweld
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure Class150 to Class2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25

Dimensions                                                           Unit: mm

DN L H D0
50 178 386 200
65 191 434 200
80 203 480 250
100 229 584 300
150 267 765 300
200 292 956 350
250 330 1149 400
300 356 1350 450
350 381 1508 500
400 406 1703 550
450 432 1892 600
500 457 2119 640
View Complete Details
Ask Latest Price & Details
BRONZE GATE VALVE

BRONZE GATE VALVE
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • End Connection Flanged, Buttweld, Socketweld
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure PN20, PN16
  • Face to Face Dimension ANSI B16.10, API 6D
  • Buttweld End ANSI B16.25

Dimensions                                                           Unit: mm

DN D L H
15 14 47.5 73
20 18 51.5 85
25 23.5 57.5 90
32 29 64 110
40 35 71.5 120
50 45 83 145
65 61 85 174
80 72 95 220
100 88 100 261
View Complete Details
Ask Latest Price & Details
BRONZE FLOATING BALL VALVE

BRONZE FLOATING BALL VALVE
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • Stop Plate Carbon Steel+Zn
  • Handle Carbon Steel
  • Nominal Size DN15 to DN300
  • Nominal Pressure Class150 to Class600
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25

Dimensions                                                      Unit: mm

Class150

DN L L1 H W
15 108 140 55 130
20 117 152 55 130
25 127 165 70 160
40 165 190 90 200
50 178 216 105 350
65 190 241 155 400
80 203 283 185 500
100 229 305 205 500
150 394 457 255 600
200 457 521 280 800
250 533 559 345 800
300 610 635 420 800
View Complete Details
Ask Latest Price & Details
BRONZE FLANGED GLOBE VALVE

BRONZE FLANGED GLOBE VALVE
  • Body Bronze, Aluminium Bronze(C95800, C95500, C95200)
  • End Connection Flanged, Buttweld, Socketweld
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure Class150 to Class2500
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25

Dimensions                                                                                    Unit: mm

Class150

DN L L1 L2 H D0
50 203 203 203 380 180
65 216 216 216 445 240
80 241 241 241 515 280
100 292 292 292 535 280
150 406 406 406 560 320
200 495 495 495 615 320
250 622 622 622 815 400
300 698 698 698 910 450
350 787 787 787 1230 500
400 914 914 914 1450 600
View Complete Details
Ask Latest Price & Details
BRONZE GLOBE VALVE

BRONZE GLOBE VALVE
  • End Connection Flanged, Buttweld, Socketweld
  • Operation Handwheel, Electric Actuated, Pneumatic Actuated
  • Nominal Size DN50 to DN500
  • Nominal Pressure PN25, PN32
  • Face to Face Dimension ANSI B16.10, API 6D
  • Flanged End Connection ANSI B16.5
  • Buttweld End ANSI B16.25

Dimensions                                                           Unit: mm

DN D L H
15 14 47.5 73
20 18 51.5 85
25 23.5 57.5 90
32 29 64 110
40 35 71.5 120
50 45 83 145
65 61 85 174
80 72 95 220
100 88 100 261
View Complete Details
Ask Latest Price & Details
brass ball valve

Brass Ball Valve
  • Body Brass
  • Cap Brass
  • Handle Steel
  • Nominal Size 1/2″ to 2″
  • Nominal Pressure 15bar to 25bar
  • End Connection NPT(ANSI B1.20.1, BSP, BSPT(BS21.0)
  • Working Medium Water, Oil

Dimensions                                                                                    Unit:mm

DN L H D
15 53 46 95
20 57 51 110
25 72 56 110
32 79 64 140
40 89 68 140
50 105 140 160
View Complete Details
Ask Latest Price & Details
BRASS FLANGED BALL VALVE

BRASS FLANGED BALL VALVE
  • Body Brass
  • Ball Brass
  • Nominal Size DN25 to DN100
  • Nominal Pressure PN16, Class150
  • End Connection Flanged
  • Working Medium Water, Oil

Dimension                                                                       Unit: mm

DN L H D D1 B n-фd
25 83 90 133 85 20 4-14
32 95.5 82 158 100 25 4-18
40 98 86 158 110 32 4-18
50 99 93.5 175 125 40 4-18
65 106 120.5     213 145 50 8-18
80 120.5 135.5 213 160 65 8-18
100 134 154 243 180 80 8-18
View Complete Details
Ask Latest Price & Details
BRASS FLANGED GATE VALVE

BRASS FLANGED GATE VALVE
  • Body Brass
  • Disc Brass
  • Handwheel Cast Iron
  • Nominal Size DN15 to DN150
  • Nominal Pressure PN16, Class150
  • End Connection Flanged
  • Suitable Medium Water, Oil, Gas

Dimension                                                                           Unit: mm

DN L H D0 фD фd1 n-фd1
15 80 80 52 95 65 4-14
20 90 90 60 105 75 4-14
25 100 100 60 115 85 4-14
32 110 114 76 140 100 4-14
40 120 131.5 76 150 110 4-18
50 135 165 88 165 125 4-18
65 165 185 100 185 145 4-18
80 185 198 115 200 160 8-18
100 190 250 130 220 180 8-18
125 210 365 200 250 210 8-18
150 229 410 250 285 240 8-22
View Complete Details
Ask Latest Price & Details
BRASS GATE VALVE

BRASS GATE VALVE
  • End Connection NPT, BSPT, BSP
  • Body Brass
  • Cap Brass
  • Nominal Size DN15 to DN100
  • Nominal Pressure PN10, PN16, PN20

Dimension                                                                  Unit: mm

DN A B C D G
15 43 12.7 71 54 15
20 46 16 76.5 54 20
25 49 20 86 60 25
32 52 26 99 68 32
40 56.5 32 109.5 72 40
50 64 43 130.5 80 50
65 80 52 156.5 100 65
80 83 63.5 183.5 110 80
100 101.5 84 223 126 100
View Complete Details
Ask Latest Price & Details
BRASS FLANGED GLOBE VALVE

BRASS FLANGED GLOBE VALVE
  • Body Brass
  • Disc Brass
  • Handwheel Cast Iron
  • Nominal Size DN15 to DN150
  • Nominal Pressure PN16, Class150
  • End Connection Flanged
  • Suitable Medium Water, Oil, Gas

Dimension                                                                   Unit: mm

DN D H L
15 55 79.5 80
20 60 88.6 90
25 72 94 100
32 80 114 110
40 100 132 120
50 140 183 135
View Complete Details
Ask Latest Price & Details
BRASS GLOBE VALVE

BRASS GLOBE VALVE
  • End Connection NPT, BSPT, BSP
  • Body Brass
  • Disc Brass
  • Nominal Size DN15 to DN50
  • Nominal Pressure PN10, PN16, PN20

Dimension                                                        Unit: mm

DN A B C D G
15 45 11 65 54 1/2
20 51 11 71 60 3/4
25 64.5 15 82 72 1
32 75 16 95.4 80 1 1/4
40 82 17 109 100 1 1/2
50 100 19 122.5 110 2
View Complete Details
Ask Latest Price & Details
BRASS SWING CHECK VALVE

BRASS SWING CHECK VALVE
  • End Connection Threaded NPT, BSP, BSPT
  • Body Brass
  • Disc Brass
  • Nominal Size DN15 to DN100
  • Nominal Pressure PN10, PN16

Dimension

DN A B C G
15 48 13 34 ½
20 59 17 40.5 ¾
25 68 23 46 1
32 78 30 51.5 1 ¼
40 88 35 57.5 1 ½
50 105 45 68.5 2
65 130 63 85.5 2 ½
80 147 75 95.5 3
100 180 93 116.5 4
View Complete Details
Ask Latest Price & Details
Brass Vertical Check Valve

Brass Vertical Check Valve
  • Body Brass
  • Disc Brass
  • Nominal Size DN15 to DN50
  • Nominal Pressure PN16
  • End Connection Threaded
  • Threaded Connection NPT, BSP., BSPT

Dimension                                                                                      Unit: mm

DN A B C           S
15 33.5 47 11 24.5
20 40 54.5 14 31
25 44.5 55 14 38
32 58 63.5 14 46.5
40 65.5 69 17 52
50 75.5 70 17 65
View Complete Details
Ask Latest Price & Details
BRASS Y STRAINER

BRASS Y STRAINER
  • Body Brass
  • Filter Stainless Steel
  • Nominal Size DN15 to DN50
  • Sealing Ring Teflon
  • Nominal Pressure PN16, PN25
  • End Connection Threaded
  • Threaded Connection NPT, BPT, BSPT

Dimension                                           Unit: mm

DN L H
15 55 40
20 65 48
25 78 54
32 85 58
40 90 67.5
50 109 80.5
View Complete Details
Ask Latest Price & Details
BRASS SAFETY VALVE

BRASS SAFETY VALVE
  • End Connection Threaded
  • Bonnet Brass
  • Body Brass
  • Cartridge Brass
  • Cap Set Screw Steel
  • Nominal Size DN15 to DN50
  • Nominal Pressure PN16, PN25

Dimension

DN A B C D L
15 13 14.5 ½” 46.2 156
20 19 16.5 ¾” 53.8 170
25 25 19.2 1” 66 200
32 32 22 1 ¼” 73.7 217
40 38 22.5 1 ½” 86.6 243
50 50 27 2” 98 280
View Complete Details
Ask Latest Price & Details
TRIPLE DUTY VALVE

TRIPLE DUTY VALVE
  • Body Cast Iron
  • Disc Nickel Plated, Bronze
  • Nominal Size DN65 to DN300
  • Nominal Pressure Class125
  • End Connection Flanged

Dimensions

DN D1 D2 D3 n-ΦD L T f H(Min) H(max) A B
65 118 145 185 4-Φ19 304 19 3 243 272 187 117
80 132 160 200 8-Φ19 305 19 3 273 307 208 98
100 156 180 220 8-Φ19 355 19 3 273 307 244 111
125 184 210 250 8-Φ19 445 19 3 349 400 305 140
150 211 240 285 8-Φ23 525 19 3 362 419 359 168
200 266 295 310 12-Φ23 716 20 3 520 579 481 233
250 319 355 105 12-Φ28 762 22 3 585 653 516 248
300 370 410 460 12-Φ28 967 24.5 4 677 762 611 356
View Complete Details
Ask Latest Price & Details
SUCTION DIFFUSER

SUCTION DIFFUSER
  • Body Cast Iron, Ductile Iron
  • Bonnet Ductile Iron
  • Ball Valve Alloy, Stainless Steel
  • Nominal Diameter DN50*DN40 to DN500*DN500
  • Nominal Pressure Class125, Class150, Class300, PN16, PN25, PN40
  • End Connection Flanged

Dimensions

NPS DN L1 L2 L3 H NPT Kv Cv
2″*1 1/2″ 50*40 114.3 114.3 253 125 3/4” 18 21
2″*2″ 50*50 114.3 114.3 253 125 3/4” 64.5 75.2
2 1/2″*2″ 65*50 127 127 270 125 3/4” 64.5 75.2
2 1/2″*2 1/2″ 65*65 127 127 270 138 3/4” 64.5 75.2
3″*2″ 80*50 139.7 139.7 270 138 3/4” 109 127.2
3″*2 1/2″ 80*65 139.7 139.7 284 143 3/4” 109 127.2
3″*3″ 80*80 139.7 139.7 284 143 3/4” 143 166.9
4″*3″ 100*80 165 165 328 166 1” 143 166.9
4″*4″ 100*100 165 165 334 172 1” 252 294.1
5″*4″ 125*100 190.5 190.5 345 172 1” 252 294.1
5″*5″ 125*125 190.5 190.5 394 223 1” 252 294.1
6″*4″ 150*100 192 192 394 223 1” 498 581.2
6″*5″ 150*125 203 203 423 250 1” 498 581.2
6″*6″ 150*150 203 203 423 250 1” 498 581.2
8″*5″ 200*125 203 203.2 455 250 1” 585 682.7
8″*6″ 200*150 228.6 228.6 487 312 1” 585 682.7
8″*8″ 200*200 228.6 228.6 539 315 1 1/4” 910 1062
10″*8″ 250*200 279.4 228.6 542 355 1 1/4” 910 1062
10″*10″ 250*250 279.4 279.4 551 355 1 1/4” 910 1062
12″*8″ 300*200 280 279.4 678 454 1 1/4” 1480 1727.2
12″*10″ 300*250 304.8 280 678 458 1 1/4” 1480 1727.2
12″*12″ 300*300 304.8 304.8 678 458 1 1/4” 1480 1727.2
14″*10″ 350*250 318 328 678 460 1 1/4” 2150 2509.2
14″*12″ 350*300 318 328 678 460 1 1/4” 2150 2509.2
14″*14″ 350*350 318 328 678 460 1 1/4” 460 2509.2
16″*12″ 400*300 334 364 745 522 1 1/4” 522 3617.7
16″*14″ 400*350 334 364 745 522 1 1/4” 522 3617.7
16″*16″ 400*400 334 364 745 522 1 1/4” 522 3617.7
18″*14″ 450*350 370 389 785 562 1 1/4” 562 4726.4
18″*16″ 450*400 370 389 785 562 1 1/4” 562 4726.4
18″*18″ 450*450 370 389 785 562 1 1/4” 562 4726.4
20″*16″ 500*400 406 428 849 612 1 1/4” 612 5718.3
20″*18″ 500*450 406 428 849 612 1 1/4” 612 5718.3
20″*20″ 500*500 406 428 849 612 1 1/4” 612 5718.3
View Complete Details
Ask Latest Price & Details
CAST IRON DIAPHRAGM VALVE

CAST IRON DIAPHRAGM VALVE
  • Size 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 4", 5", 6"
  • Body Material Cast iron
  • Class PN16
  • Connection Type Flanged, Screwed
  • Body Cast Iron, Ductile Iron, WCB
  • Nominal Diameter DN15 to DN250
  • Nominal Pressure PN6 to PN16, Class150
  • End Connection Flanged
  • Operation Handwheel

Dimensions

PN10/PN16

DN L D D1 D2 f b Z-Φd DO H
15 125 95 65 45 3 15 4-14 120 120
20 135 105 75 55 3 17 4-14 120 120
25 145 115 85 65 3 17 4-14 160 130
32 160 140 100 75 3 19 4-18 160 135
40 180 150 110 85 3 19 4-18 180 160
50 210 165 125 100 3 21 4-18 200 165
65 250 185 145 120 33 21 4-18 250 200
80 300 200 160 135 3 21 4-18 280 220
100 350 220 180 155 3 23 8-18 300 275
125 400 250 210 185 4 24 8-18 320 335
150 460 285 240 210 4 26 8-22 350 380
200 570 340 295 265 4 26 12-22 450 500
250 680 395 350 320 4 28 12-26 500 575
View Complete Details
Ask Latest Price & Details
DUCTILE IRON DIAPHRAGM VALVE

DUCTILE IRON DIAPHRAGM VALVE
  • Size 1 1/2", 1 1/4", 1", 1/2", 2 1/2", 2", 3", 3/4", 4", 6"
  • End Connection Flanged
  • Body Material Ductile Iron
  • Class PN16
  • Connection Type Flanged, Screwed
  • Body Ductile Iron, Cast Iron, WCB
  • Nominal Diameter DN15 to DN250
  • Nominal Pressure PN6 to PN16, Class150
  • Operation Handwheel

Dimensions

PN10/PN16                                                                                       Unit: mm

DN L D D1 D2 f b Z-Φd DO H
15 125 95 65 45 3 15 4-14 120 120
20 135 105 75 55 3 17 4-14 120 120
25 145 115 85 65 3 17 4-14 160 130
32 160 140 100 75 3 19 4-18 160 135
40 180 150 110 85 3 19 4-18 180 160
50 210 165 125 100 3 21 4-18 200 165
65 250 185 145 120 33 21 4-18 250 200
80 300 200 160 135 3 21 4-18 280 220
100 350 220 180 155 3 23 8-18 300 275
125 400 250 210 185 4 24 8-18 320 335
150 460 285 240 210 4 26 8-22 350 380
200 570 340 295 265 4 26 12-22 450 500
250 680 395 350 320 4 28 12-26 500 575
View Complete Details
Ask Latest Price & Details
CONNECTION LIFT PLUG VALVE

CONNECTION LIFT PLUG VALVE
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class900, PN16 to PN63
  • Seat PTFE, PPL
  • Packing Graphite, PTFE, PPL

Dimensions                                                                       Unit: mm

DN L-RF L-BW H W
15 108 152 190 120
20 117 178 195 140
25 127 203 225 140
32 140 216 260 180
40 165 229 280 200
50 178 267 310 220
65 190 305 340 260
80 203 330 395 280
100 220 356 435 300
125 254 381 470 340
150 267 394 535 400
200 292 457 590 450
250 330 533 630 450
300 356 610 680 500
350 381 686 720 500
View Complete Details
Ask Latest Price & Details
ECCENTRIC PLUG VALVE

ECCENTRIC PLUG VALVE
₹ 297 / Piece Get Latest Price
  • End Connection Flanged
  • Body Cast Iron, Ductile Iron
  • Nominal Size DN15 to DN350
  • Nominal Pressure PN10 to PN63, Class150 to Class900
  • Packing Graphite, PTFE

Dimensions

Class150                                                                                   Unit: mm

DN L-RF L-BW H W
15 108 152 59 300
20 117 178 63 300
25 127 203 75 320
32 140 216 95 320
40 165 229 107 350
50 178 267 142 380
65 190 305 152 380
80 203 330 178 400
100 229 356 252 400
125 254 381 272 500
150 267 394 342 500
200 292 457 398 600
250 330 533 495 600
300 356 610 580 820
350 381 686 625 820

Class300

DN L-RF L-BW H W
15 140 152 59 300
20 152 178 63 300
25 165 203 75 320
32 178 216 95 320
40 190 229 107 350
50 216 267 142 380
65 241 305 152 380
80 283 330 178 400
100 305 356 252 400
125 381 381 272 500
150 403 457 342 600
200 419 521 398 600
250 457 559 495 820
300 502 635 580 1000
350 762 762 625 1000
View Complete Details
Ask Latest Price & Details
ORBIT PLUG VALVE

ORBIT PLUG VALVE
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Packing Graphite, PTFE, PPL
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class2500, PN16 to PN420
  • Face to Face Dimension ANSI B 16.10, API 6D, DIN3202, EN558-1, EN12982, ISO 5752
  • Flanged End Dimension ANSI B 16.5, ASME B16.47; EN1092, DIN2543~DIN2547, AS2129
  • Screwed End Dimension ANSI B1.20.1, BS21, JIS BO20

Dimensions                                                            Unit: mm

Class150

DN L-RF L-BW H W
15 108 152 230 120
20 117 178 260 140
25 127 203 300 140
32 140 216 340 180
40 165 229 380 200
50 178 267 435 220
65 190 305 460 260
80 203 330 490 280
100 229 356 525 300
125 254 381 570 340
150 267 394 625 400
200 292 457 700 450
250 330 533 780 450
300 305 610 870 500
350 381 686 980 500
View Complete Details
Ask Latest Price & Details
TWIN SEAL PLUG VALVE

TWIN SEAL PLUG VALVE
₹ 1,913 / Piece Get Latest Price
  • End Connection Flanged, Screwed
  • Nominal Size DN15 to DN1500
  • Nominal Pressure Class150 to Class2500, PN16 to PN420
  • Operation Handwheel
  • Screwed End Dimension ANSI B1.20.1, BS21, JIS BO20
  • Face to Face Dimension ANSI B 16.10, API 6D, DIN3202, EN558-1, EN12982, ISO 5752

Dimensions

NPS L D1 D2 D3 B f n-Φd
6 394 280 241.3 215.9 239 2 8-Φ22
8 457 345 298.5 269.9 27 2 8-Φ22
10 533 405 362 323.8 28.6 2 12-Φ25
12 670 485 431.8 381 30.2 2 12-Φ25
16 762 595 539.8 469.9 35 2 16-Φ29
20 914 700 635 584.7 413 2 20-Φ32
View Complete Details
Ask Latest Price & Details
JACKETED PLUG VALVE

JACKETED PLUG VALVE
  • Body WCB, CF8, CF8M, CF3, CF3M
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class 150LB to 2500LB; PN16 to PN420
  • End Connections Flanged, Screwed

Dimensions

Class 150

DN L H W
15 108 110 175
20 117 115 175
25 127 115 175
32 140 135 220
40 165 140 228
50 178 150 305
65 190 165 350
80 203 180 405
100 229 380 300
125 245 460 300
150 267 520 320
200 292 580 320
250 330 660 350
300 356 680 380
350 381 760 450
View Complete Details
Ask Latest Price & Details
LUBRICATED PLUG VALVE

LUBRICATED PLUG VALVE
₹ 1,214.73 / Piece Get Latest Price
  • End Connection Screwed, Flanged
  • Body Material Carbon Steel
  • Class 150/PN16
  • Size 10", 4", 6", 8"
  • Body WCB, LCB, WC6, CF8, CF8M, CF3, CF3M
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class900, PN16 to PN63

Dimensions

Class150                                                                                  Unit: mm

DN L H W
15 108 180 400
20 117 180 400
25 127 185 500
32 140 200 500
40 190 210 600
50 178 215 600
65 190 250 820
80 203 270 820
100 229 300 300
125 254 340 300
150 267 365 320
200 292 400 320
250 330 450 350
300 356 510 380
350 381 590 380
View Complete Details
Ask Latest Price & Details
NON-LUBRICATED SLEEVED PLUG VALVE

NON-LUBRICATED SLEEVED PLUG VALVE
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Packing Graphite, PTFE, PPL
  • Nominal Size DN15 to DN350
  • Nominal Pressure Class150 to Class900, PN16 to PN63

Dimensions

Class150                                                                                  Unit: mm

DN L H W
15 108 110 175
20 117 115 175
25 127 115 175
32 140 135 220
40 165 140 280
50 178 150 305
65 190 165 350
80 203 180 405
100 229 380 300
125 245 460 300
150 267 520 320
200 292 580 320
250 330 260 350
300 356 680 380
350 381 760 450
View Complete Details
Ask Latest Price & Details
3 WAY PLUG VALVE

3 WAY PLUG VALVE
  • Body WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
  • Packing Graphite, PTFE, PPL
  • Nominal Size DN15 to DN300
  • Nominal Pressure Class150 to Class2500, PN10 to PN420
  • Face to Face Dimension ASME B16.10
  • Flanged End Dimension ASME B16.5, ASME B16.47
  • Butt welded End Dimension ASME B16.25

Dimensions

PN10                                                                                                               Unit: mm

DN L D D1 D2 Z-Φd S h H
15 145 95 65 45 4-Φ14 14 26 99
20 145 105 75 55 4-Φ14 14 34 124
25 145 115 85 56 4-Φ14 17 38 133
32 165 135 100 78 4-Φ18 19 45 152
40 190 145 110 85 4-Φ18 22 55 212
50 200 160 125 100 4-Φ18 27 74 260
65 230 180 145 120 4-Φ18 32 82 295
80 260 195 160 125 4-Φ18 36 95 327
100 300 215 180 155 8-Φ23 46 135 425
125 350 245 210 185 8-Φ23 50 154 482
150 400 280 240 210 8-Φ23 55 172 512
200 480 335 295 265 8-Φ23 75 195 605
250 530 390 350 320 8-Φ23 85 230 660
300 610 440 400 368 8-Φ23 100 263 760
View Complete Details
Ask Latest Price & Details
Foot Valve

Foot Valve
  • Nominal pressure PN16, Class150
  • End Connection Flanged
  • Body Material Cast iron, Ductile Iron, SS304, SS316
  • Class 150/PN16
  • Size 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Nominal Size DN50 to DN300

Dimensions                                                                                                                      Unit: mm

DN D D1 D2 b-f z-*d h0 H
50 140 110 90 16-3 4-14 17 142
65 160 130 110 16-3 4-14 25 180
80 185 150 125 18-3 4-18 32 197
100 205 170 145 18-3 4-18 40 230
125 235 250 175 20-3 8-18 43 270
150 260 225 200 20-3 8-18 38 297
200 315 280 255 22-3 8-18 65 382
250 370 335 310 24-3 12-18 84 460
300 435 395 262 24-4 12-23 90 530
View Complete Details
Ask Latest Price & Details
DOUBLE ORIFICE AIR VALVE

DOUBLE ORIFICE AIR VALVE
  • Body Material Cast iron, Ductile Iron
  • Class 150/PN16, PN10
  • Size 1 1/2", 2", 3", 4", 6", 8"
  • Connection Type Flanged, Screwed
  • Nominal Diameter DN80 to DN200
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Flanged End Dimension DIN2501

Dimensions                                                                                                             Unit:mm

DN L H
50 418 351
80 454 375
100 492 419
150 595 440
200 698 475
View Complete Details
Ask Latest Price & Details
DOUBLE ORIFICE KINETIC AIR VALVE

DOUBLE ORIFICE KINETIC AIR VALVE
  • Body Material Cast iron, Ductile Iron
  • Class 150/PN16, PN10
  • Size 1 1/2", 2", 3", 4", 6", 8"
  • Connection Type Flanged, Screwed
  • Nominal Diameter DN40 to DN250
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Flanged End Dimension DIN2501

Dimensions                                                                                                Unit: mm

PN16

DN A C D фD ФD1 ФD2 n-d b f
40 215 115 187 150 110 84 4-19 19 2
50 215 115 187 165 125 99 4-19 19 3
65 215 115 187 185 145 118 4-19 19 3
80 240 145 230 200 160 132 8-19 19 3
100 285 145 300 220 180 156 8-19 19 3
150 385 190 369 285 240 211 8-23 19 3
200 500 205 398 340 295 266 12-23 20 3
250 630 235 452 405 355 319 12-28 22 3
View Complete Details
Ask Latest Price & Details
SINGLE ORIFICE AIR VALVE

SINGLE ORIFICE AIR VALVE
  • Size 1 1/2", 1", 1/2", 2", 3/4"
  • Body Material Cast iron, Ductile Iron
  • Class PN10
  • Connection Type Flanged, Screwed
  • Flanged End Dimension DIN2501
  • Nominal Pressure Class150 to Class300, PN16 to PN40
  • Nominal Diameter DN40 to DN200

Dimensions                                                                                                Unit: mm

PN16

DN D D1 D0 b H n-фd W
40 150 110 84 18 224 4-ф19 166
50 165 125 99 20 236 4-ф19 178
65 185 145 118 20 244 4-ф19 199
80 200 160 132 22 248 8-ф19 202
100 220 180 156 24 284 8-ф19 233
150 285 240 211 26 324 8-ф23 282
View Complete Details
Ask Latest Price & Details
SURGE ANTICIPATOR VALVE

SURGE ANTICIPATOR VALVE
₹ 44,402 / Piece Get Latest Price
  • Body Material Ductile Iron
  • Size 10", 12", 4", 5", 6", 8"
  • Connection EN558-1, ISO5752
  • Class PN10/16
  • Nominal Diameter DN50 to DN600
  • Nominal Pressure PN10, PN16, PN25, PN40
  • Flange Drilling EN1092-2, ISO7005-2, ANSI, JIS, AS2129

Dimensions

DN L D H1 K S Weight(kg)
50 230 139 85 173 3/8” 14
65 290 159 95 198 3/8” 19
80 310 179 102 226 3/8” 23
100 350 214 112 265 ½” 32
125 350 214 127 265 ½” 45
150 480 333 145 351 1½” 68
200 600 407 172 436 3/4” 125
250 730 476 205 524 1” 200
300 850 526 232 606 1” 260
350 850 526 262 606 1” 310
400 1100 624 292 741 11/2” 560
450 1100 624 325 741 11/2” 620
500 1250 720 360 1002 2” 880
600 1450 835 425 1308 2” 1300
View Complete Details
Ask Latest Price & Details
NEEDLE VALVE

NEEDLE VALVE
₹ 1,616 / Piece Get Latest Price
  • Size 1 1/2", 1", 1/2", 1/4", 2", 3/4"
  • Pattern Straight or Angle
  • Body Material A182 F304, SS304
  • Class 1500, 6000PSI
  • Nominal Size DN8 to DN20
  • Nominal Pressure 1500, 6000PSI

Dimensions                                                                 Unit: mm

DN A B C±3 D
8 25 55 92 50
10 25 60 92 55
15 32 75 98 55
20 36 75 114 65
View Complete Details
Ask Latest Price & Details
BALANCING VALVE

BALANCING VALVE
₹ 3,426 / Piece Get Latest Price
  • Size 1 1/2", 10", 12", 2 1/2", 2", 3", 4", 5", 6", 8"
  • Body Material Cast iron
  • Class 150/PN16
  • Nominal Diameter DN50 to DN150
  • Nominal Pressure Class150, PN16
  • Flanged End Dimensions EN1092-1 PN25
  • Face to face Dimensions EN558-1

Dimensions                                        Unit: mm

Class150

DN L H
50 230 260
65 290 290
80 310 310
100 350 325
125 400 355
150 480 390
View Complete Details
Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

View Contact No.
