Our Products

  1. Products 9 Products available

Our Products

We are leaders in the market for providing best range of Repeaters, Band Pass Filter, Dual Band Yagi Antenna, 2 Way Power Splitter and Band Reject Filter

Band Reject Filter

Band Reject Filter
  • Material Aluminium Alloy
  • Model No SI
  • Frequency (MHz) 890 - 960
  • Insertion Loss @ 890 - 894 MHz (dB) 4.5 (Max)
  • Insertion Loss @ 894 -900 MHz (dB) 1.5 (Max)
  • Return Loss (dB) 18 (Typ) 14 (min)
  • Attenuation @ 889 MHz (dB) 10
  • Attenuation @ 860- 888 MHz (dB) 30 (Min)
  • Impedance (Ohms) 50
  • Average Power(dBm) 50 CW
  • Connector DIN 7/16 Female
  • Temperature Range -20°C to +70°C
View Complete Details
Ask Latest Price & Details
3 Way Power Splitter

3 Way Power Splitter
  • Type No SI 3W SP 000
  • Frequency Range(MHz) 820 - 2500 MHz
  • VSWR 1.3:1 Max
  • Impedance 50 Ohms
  • Insertion Loss < 5 dB
  • Termination N - Female
  • Total Input Power Rating 150 Watts
  • Dimension (mm/inch) 201×43×25mm/7.9"×1.7"×1
  • Weight(Kgs/lbs) 0.38 kgs / 0.9 lbs Approx
  • Packing Size (mm/inch) 215 ×50×35mm / 9"× 2" × 2"
  • Housing Material Aluminium
  • Inner Conductor Material Brass
View Complete Details
Ask Latest Price & Details
Repeaters

Repeaters
  • Number Of Flower SunTelecom
  • Product Name Repeaters
  • Place of Origin india
  • Delivery time NA
View Complete Details
Ask Latest Price & Details
Band Pass Filter

Band Pass Filter
  • Number Of Flower SunTelecom
  • Availability 4kgs
  • Product Name Band Pass Filter
  • Place of Origin india
  • Delivery time NA
  • Model No 20822701
  • Frequency range(uplink) 1710-1785(MHz)
  • Frequency range(downlink) 1805-1880(MHz)
  • Band width                Band width available upon request
  • Maximum gain UL: 70dB   DL: 70dB
  • Manual gain control 31 dB @ 1dB step
  • +/- 400 KHz  <50dB
  • +/-600KHz <40dB
  • +/- 1MHz <35dB
  • +/-5MHz <25dB
  • Out put power Ul: 24dBm  (9KHz - 1GHz)
  • Supurious emission <36dBm(9KHz-1GHz) & <30dBm(1GHz-12.75GHz)
  • Retum loss 2000
  • Group delay             <5us
  • Dimension (Lxwxh)       270x225x60mm
  • Temperature Range 20°C to +70°C
  • Humidity 5 to 95%
View Complete Details
Ask Latest Price & Details
Dual Band Yagi Antenna

Dual Band Yagi Antenna
  • Number Of Flower SunTelecom
  • Gain 12dBi
  • Product Name Dual Band Yagi Antenna
  • Place of Origin india
  • Delivery time NA
  • Model No ST
  • Frequency range   890-960/1850-1990MHz  824-896/1880-1990MHz
  • VSWR                          <=1.5
  • Polarization                           vertical
  • Impedance                      50
  • Maximum input power                    50w
  • Connector                               N female
  • Operating temperature                40°C to +80°C
  • Antenna dimention                910x190mm
  • Weight 1.2kg
View Complete Details
Ask Latest Price & Details
Point Of Interconnect

Point Of Interconnect
  • Product Name Point of interconnect
  • Number Of Flower SunTelecom
  • Place of Origin india
  • Delivery time NA
  • Type   4:2/8:4/10:4 or Customized
  • Frequency range 824-960MHz/1710-2500 MHz
  • Insertion Loss dB 6.9±0.3 or Customized
  • Isolation Loss dB (900 to 1800MHz) 80dB
  • Isolation Loss dB (824-2170 to 824-2500MHz) 25dB
  • VSWR 01:01.30
  • Termination N- Female
  • Power Handling 100W
View Complete Details
Ask Latest Price & Details

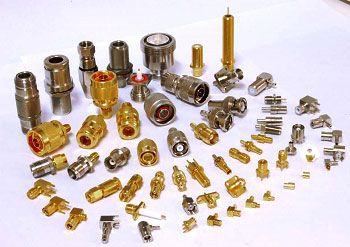

Connector and Adopter

Connector And Adopter
  • Number Of Flower SunTelecom
  • Freq. Range 0-2.5GHz
  • Impedance 50 O
  • VSWR 1.15
  • Dielectric with standing voltage Err:509
  • Dielectric resistance Err:509
  • Contact Resistance :Center Contact #NAME?
  • Contact Resistance :Outer Contact #NAME?
  • Mating Cycles 500
  • Body Brass(Ni Plating)
  • Insulator PTFE
  • Center Conductor Phosphor Bronze (Ag Plating)
  • Product Name Connector & Adopter
  • Place of Origin india
  • Delivery time NA
View Complete Details
Ask Latest Price & Details
2 Way Power Splitter

2 Way Power Splitter
  • Number Of Flower SunTelecom
  • Material Aluminium
  • Product Name 2 way Power Splitter
  • Place of Origin india
  • Delivery time NA
  • Model No SI
  • Frequency(MHz) 700-3500
  • Split Loss(dB) 3
  • Insertion Loss(dB) <0.3
  • VSWR 1.3:1 Max
  • Intermodulation at IM3 (2 × 43 dBm Carrier) dBc) <_140 at 2 × 20 W
  • Impedance(Ohms) 50
  • Maximum Input(W) 100
  • Input / Output Connector N Female
  • Dimension (LxWxH) (mm) 196.4×25×25
  • Weight(grams) 350
  • FinishBlack Black Powder Coat
  • Temperature Range -20°C to +70°C
View Complete Details
Ask Latest Price & Details
Cable and Jumper

Cable And Jumper
  • Number Of Flower SunTelecom
  • Product Name Cable and jumper
  • Place of Origin india
  • Delivery time NA
  • Freq. Range 0-3 GHz or customized
  • Cable Types RG58, RG223, LMR200, 400, 1/2” & 7/8 Feeder
  • Impedance) 50 O
  • VSWR 1.15
  • Velocity of propagation 85.00%
  • Voltage withstand 2, 500 VDC
  • Peak power 1 kW & more
  • Jacket spark 8, 000 VRMS
View Complete Details
Ask Latest Price & Details
