Material
Aluminium
-
Brand Name
SMC
-
Size
63 mm
-
Usage
Industrial
-
Pressure
Medium Pressure
-
Model Name/Number
CCT63-50

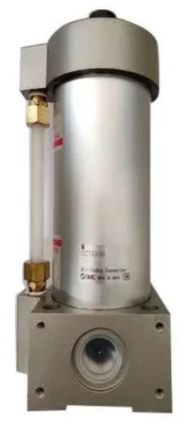

The SMC CCT63-50 Air Hydro Convertor Valve consists of a converter and a valve unit that are compactly integrated. It converts air pressure to an equivalent hydraulic pressure, and this hydraulic pressure is used for operating an actuator, thus solving the problem that is associated with the compression characteristics of air. Thus, in spite of using pneumatic equipment, it performs similarly to a hydraulic unit, operating at a consistent speed during starting or in the presence of load fluctuations, and at the same time solving the problems of sticking and slipping associated with low speed operations. This unit is ideal for achieving accurate and constant speed of the cylinder, intermediate stopping, skip movement, or for slow operation of a rotary actuator. Air-hydro converter, series CCT Converter size (mm): 63, 100, 160 Stroke range (mm): 50 to 800 Operating pressure: 0 to 0.7MPa Proof pressure: 1.05MPa Fluid: turbine oil (40 to 100cSt)
