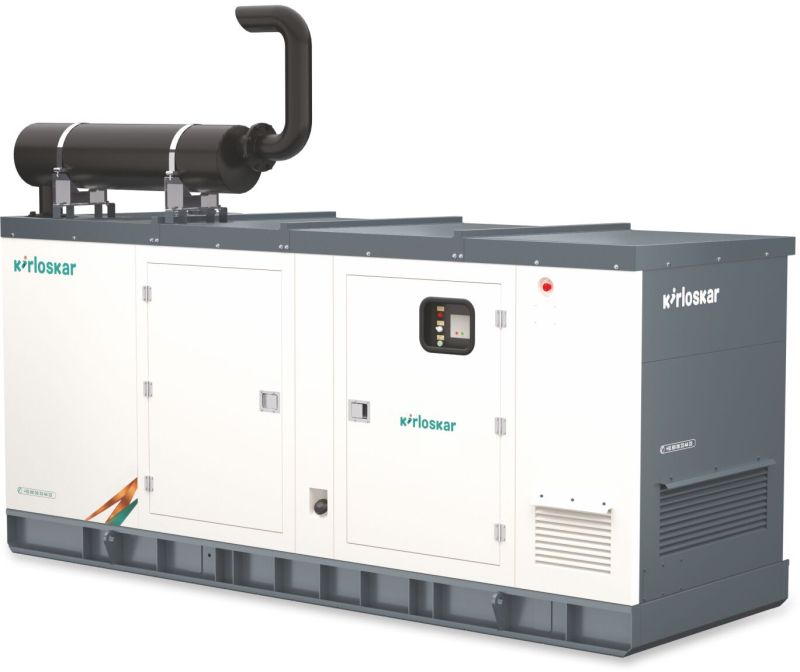

1 Products availableWe offer a complete product range of CPCB IV+ 82.5KVA TO 160KVA Kirloskar Diesel Generator, CPCB IV+ 200kVA to 250kVA Kirloskar Diesel Generator, Automatic Cpcb IV+ 320KVA TO 750KVA Kirloskar Diesel Generator, CPCB IV+ 25 KVA - 58.5 KVA Kirloskar Diesel Generator and 1010 KVA HD TO 1500 KVA HD Kirloskar Diesel Generator
Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 82.5 | 100 | 125 | 160 | |
| kW | 66 | 80 | 100 | 128 | ||
| Frequency | 50 | |||||
| Power Factor | 0.8 | |||||
| Voltage | 415 (3ɸ) | |||||
| Noise level | dBA | <75 | ||||
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 1800 | 2170 | 2200 | 2980 |
| Wet (w/o fuel) | Kg | 1860 | 2230 | 2260 | 3050 | |
| Overall dimensions of genset ^ | Length | mm | 3200 | 3200 | 3200 | 4200 |
| Width | mm | 1350 | 1350 | 1350 | 1450 | |
| Height | mm | 1595 | 1796 | 1796 | 1900 | |
| Engine Model | 4R1190ETA 4G1 | 4K1080ETA 4G1 | 4K1080ETA 4G1 | 6K1080ETA 4G1 | ||
| Rated output | HP | 105 | 156 | 156 | 200 | |

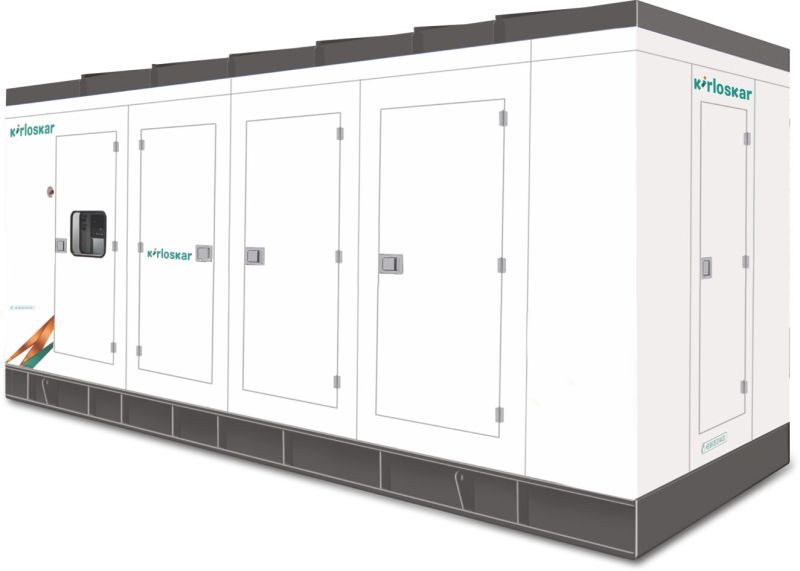

Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 320 | 400 | 500 | 625 | 750 | |
| kW | 256 | 320 | 400 | 500 | 600 | ||
| Frequency | 50 | 50 | 50 | 50 | 50 | ||
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
| Voltage | 415 (3ɸ) | ||||||
| Noise level | dBA | <75 | |||||
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 4090 | 6220 | 6240 | 8150 | 8760 |
| Wet (w/o fuel) | Kg | 4200 | 6415 | 6435 | 8370 | 9100 | |
| Overall dimensions of genset ^ | Length | mm | 4750 | 5575 | 5575 | 6500 | 6800 |
| Width | mm | 1700 | 2125 | 2125 | 2125 | 2300 | |
| Height | mm | 2005 | 2610 | 2610 | 2710 | 2715 | |
| Engine Model | 6SL90ETA 4G3 | DV8ETA 4G2 | DV8ETA 4G3 | DV10ETA 4G2 | DV12ETA 4G2 | ||
| Rated output | HP | 380 | 490 | 608 | 763 | 900.6 | |

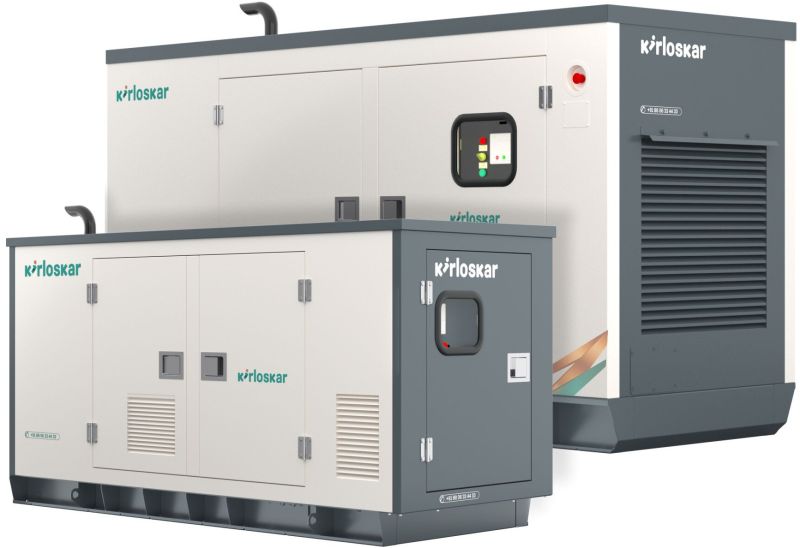

Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 25 | 30 | 40 | 58.5 | |
| kW | 20 | 24 | 32 | 46.8 | ||
| Frequency | Hz | 50 | 50 | 50 | 50 | |
| Power Factor | Lagging | 0.8 | ||||
| Voltage | V | 230 (1ɸ) & 415 (3ɸ) | 415 (3ɸ) | |||
| Noise level | dBA | <75 | ||||
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 770 | 1025 | 1165 | 1460 |
| Wet (w/o fuel) | Kg | 780 | 1040 | 1180 | 1485 | |
| Overall dimensions of genset ^ | Length | mm | 2330 | 2500 | 2750 | 2900 |
| Width | mm | 950 | 950 | 1050 | 1100 | |
| Height | mm | 1260 | 1385 | 1495 | 1580 | |
| Engine Model | 3R550ETA 4G1 | 3R1190ENA 4G1 | 3R1190ETA 4G1 | 4R810ETA 4G1 | ||
| Rated output | HP | 36 | 42 | 56 | 74 | |

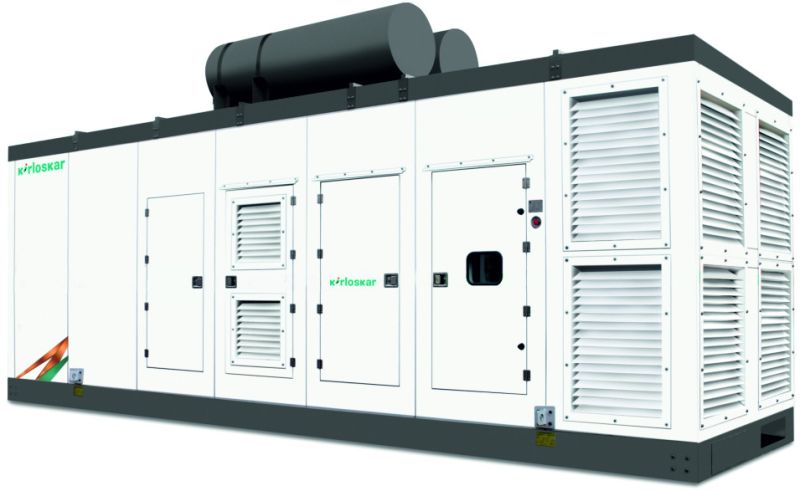

Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 1010 HD | 1250 HD | 1500 HD | |
| kW | 808 | 1000 | 1200 | ||
| Genset Model | KG1-1010WS | KG1-1250WS | KG1-1500WS | ||
| Frequency | Hz | 50 | |||
| Power Factor | lagging | 0.8 | |||
| Voltage | V | 415 (3ɸ) | |||
| Noise level | dBA | Contact Kirloskar Oil Engines Ltd for Design | |||
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 13200 | 13075+ | |
| Overall dimensions of genset ^ | Length | mm | 7800 | 5650+ | |
| Width | mm | 2300 | 2300+ | ||
| Height | mm | 2713 | 2680+ | ||
| Engine Model | DV16ETA | 12K4300-E1 | 12K4300-E2 | ||
| Rated output | HP | 1210 | 1482 | 1760 | |

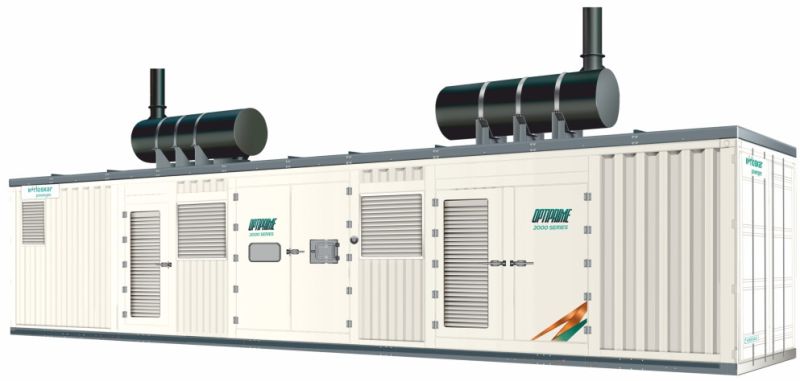

OPTIPRIME - Redefining Power Solutions
Our Twin hybrid power pack generators are engineered with patented technology to provide optimum power and unmatched fuel efficiency. Designed for reliability and sustainability, our generator has in-built synchronization and power redundancy, they guarantee seamless operation across variable loads.
Application: Industries with variable load requirements, such as Infrastructure, government, healthcare, hospitality, retail, logistics, and manufacturing. Their compact design and space-saving footprint make them suitable for commercial setups with limited space, while the advanced hybrid power capabilities cater to urban and rural power solutions.
Why Choose Optiprime?
Our Solution combines cutting-edge innovation with operational excellence. Whether you require power for commercial, industrial, or hybrid applications, our Genset ensures maximum performance with minimal environmental impact. Organizations prioritizing sustainability and cost-efficiency will benefit from reduced emissions and optimized fuel consumption, ensuring reliable performance across all environments.
Specification
| CPCB IV+ 117 kVA |
CPCB IV+ 400 kVA |
CPCB IV+ 500 kVA |
CPCB IV+ 640 kVA |
CPCB IV+ 1000 kVA |
CPCB IV+ 1500 kVA |
2020 kVA (Containerized) |
||
| (58.5x2) kVA | (200x2) kVA | (250x2) kVA | (320x2) kVA | (500x2) kVA | (750x2) kVA | (1010x2) kVA | ||
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 58.5 X2 | 200 X2 | 250 X2 | 320 X2 | 500 X2 | 750 X2 | 1010X2 |
| kW | 46.8 X 2 | 160 X 2 | 200 X 2 | 256 X 2 | 400 X 2 | 600 X 2 | 808X2 | |
| Voltage (V) | 415V | |||||||
| Frequency (Hz) | 50 Hz | |||||||
| Power Factor | 0.8 lagging | |||||||
| Noise level (dBA) | ≤ 75 dBA (Genset with canopy) | Contact KOEL for details | ||||||
| Weight of Genset with canopy (approx.)$ {in Kg} |
Dry | 2511 | 6000 | 8000 | 8100 | 13786 | 18500 | 25170 |
| Wet | 2561 | 6100 | 8150 | 8250 | 14000 | 18900 | 26000 | |
| Overall dimensions of Genset^ (mm) |
Length | 2900 | 7500 | 8500 | 8500 | 11200 | 12000 | 12192 |
| Width | 2100 | 1450 | 1700 | 1700 | 2125 | 2300 | 2438 | |
| Height (without silencer) | 1701 | 1900 | 2042 | 2042 | 2655 | 2713 | 2895 | |
| Height (with silencer) | 1701 | 2730 | 2487 | 2487 | 3655 | 3381 | 4002 | |
| Genset alignment/configuration | Parallel | Series | Series | Series | Series | Series | Series | |
| Engine Model | 4R810ETA 4G1 | 6K1080ETA 4G2 | 6SL90ETA 4G2 | 6SL90ETA 4G3 | DV8ETA 4G3 | DV12ETA 4G2 | DV16 ETA G3 | |
| Rated output (HP) | 74X2 | 250X2 | 310X2 | 380X2 | 608X2 | 900.6X2 | 1210X2 | |

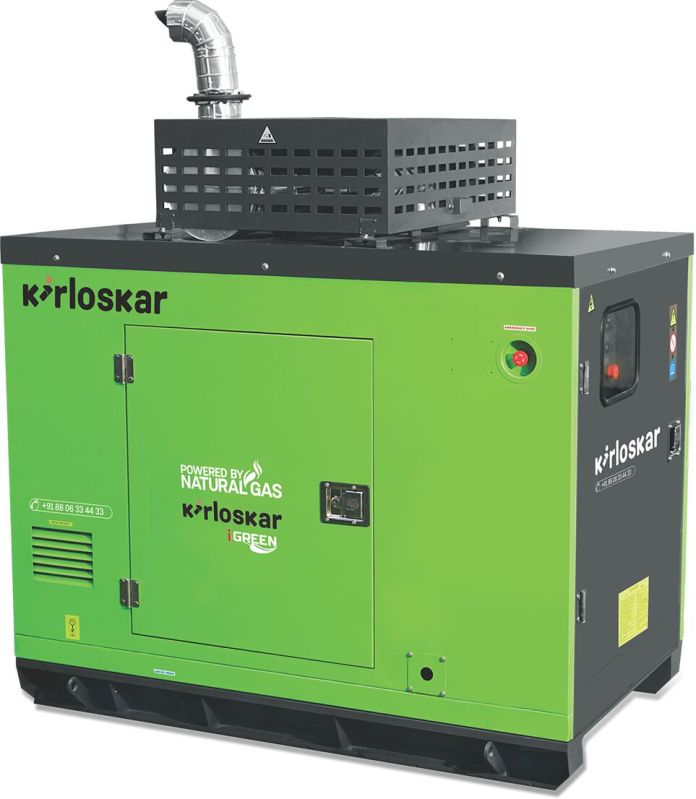

Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 15 (ESP) | 30 | 58.5 | 125 | 250 | |
| kW | 12 | 24 | 46.8 | 100 | 200 | ||
| Frequency | Hz | 50 | |||||
| Power Factor | lagging | 0.8 | |||||
| Voltage | V | 230 (1Ø ) & 415 (3Ø) | 230 (1Ø ) & 415 (3Ø) | 415 (3Ø) | |||
| Noise level | dBA | < 75 @ 1 metrs | |||||
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 850 | 1100 | 2500 | 3600 | 5700 |
| Overall dimensions of genset ^ | Length | mm | 1740 | 2550 | 3325 | 3750 | 5100 |
| Width | mm | 1050 | 1122 | 1225 | 1500 | 2000 | |
| Height | mm | 1410 | 1410 | 1800 | 1980 | 2410 | |
| Engine Model | HA294 NG1 | 3R1040NG1 | 6R1080 NG1 | SL90TA NG1 | DV8TA NG1 | ||
| Rated output | HP | 20.5 | 42 | 83 | 156 | 310 | |
Kirloskar Diesel 3.5 kVA Inverter Technology Single Phase Portable Generator:
\nIntroducing the Kirloskar Diesel 3.5 kVA – Inverter Technology Portable Generator.
\nCompact, efficient, and reliable, this portable generator on wheels is designed to meet your power needs. Whether for home, small business, or field operations, this genset offers robust performance with a user-friendly design. They deliver reliable power with low noise levels, ensuring optimal performance even in challenging conditions. Ideal for those needing a consistent power backup, these gensets are built to last with minimal maintenance requirements. Unlike traditional generators, which directly supply electricity, our inverter generator first converts the power into Direct Current (DC) and then back into a smooth and steady Alternating Current (AC).
\nGenerator Features:
\n\n
1. Power on Wheels & Low Noise Operation:
\nEasy to install in small spaces along with quiet performance for residential areas. Lightweight and portable, this genset is easy to transport and set up, making it ideal for various applications.
\n\n
2. Automatic Start:
\nSwitches on automatically when power is needed, ensuring uninterrupted supply.
\n\n
3. Efficient Performance:
\nDesigned to optimize fuel usage, ensuring maximum efficiency and lower operational costs.
\n\n
4. Peace-of-Mind Ownership:
\nWith Kirloskar's renowned durability and after-sales support, you can trust this genset for uninterrupted power supply.
\n\n
5. Longer Service Intervals:
\nDesigned for extended service intervals, reducing the frequency of maintenance and operational costs.
\n\n
6. Advanced Safety Features:
\nEquipped with multiple safety mechanisms, this genset ensures secure operation even in challenging conditions.
\n\n
7. Overload Protection:
\nAutomatically shuts down to prevent damage in case of overload.
\n\n
8. Compliance with Emission Norms:
\nThis genset adheres to the latest CPCB2 emission norms, ensuring a cleaner and more environmentally friendly operation.
\n\n
9. Easy Maintenance:
\nDesigned with easy access to key components, this genset simplifies routine maintenance, reducing downtime.
\n\n
10. Robust Engine:
\nPowered by a durable Kirloskar engine, this genset guarantees long-lasting performance even under demanding conditions.
\n\n
11. Inverter Power Output:
\nThe inverter technology delivers smooth and consistent electricity, perfect for safely powering sensitive electronics like laptops, smartphones, and other gadgets without worrying about power surges or fluctuations.

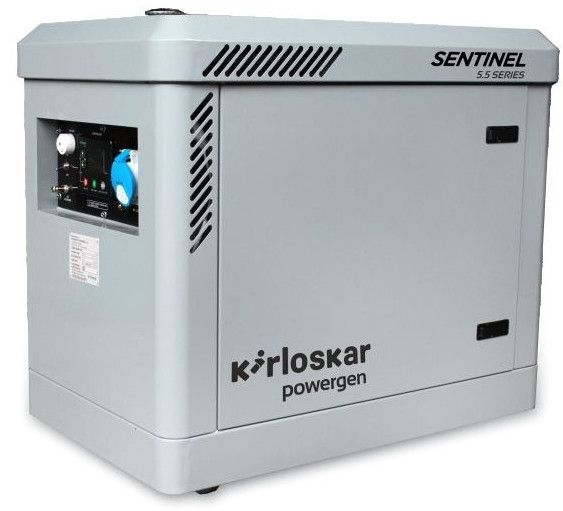

Kirloskar Diesel 5.5 kVA – Inverter Technology Portable Generator
\nIntroducing the Kirloskar Diesel 5.5 kVA – Inverter Technology Portable Generator.
\nCompact, efficient, and reliable, this portable generator on wheels is designed to meet your power needs. Whether for home, small business, or field operations, this genset offers robust performance with a user-friendly design. They deliver reliable power with low noise levels, ensuring optimal performance even in challenging conditions. Ideal for those needing a consistent power backup, these gensets are built to last with minimal maintenance requirements. Unlike traditional generators, which directly supply electricity, our inverter generator first converts the power into Direct Current (DC) and then back into a smooth and steady Alternating Current (AC)
\n\n
Generator Features:
\n\n
1. Power on Wheels & Low Noise Operation:
\nEasy to install in small spaces along with quiet performance for residential areas. Lightweight and portable, this genset is easy to transport and set up, making it ideal for various applications.
\n\n
2. Automatic Start:
\nSwitches on automatically when power is needed, ensuring uninterrupted supply.
\n\n
3. Efficient Performance:
\nDesigned to optimize fuel usage, ensuring maximum efficiency and lower operational costs.
\n\n
4. Peace-of-Mind Ownership:
\nWith Kirloskar's renowned durability and after-sales support, you can trust this genset for uninterrupted power supply.
\n\n
5. Longer Service Intervals:
\nDesigned for extended service intervals, reducing the frequency of maintenance and operational costs.
\n\n
6. Advanced Safety Features:
\nEquipped with multiple safety mechanisms, this genset ensures secure operation even in challenging conditions.
\n\n
7. Overload Protection:
\nAutomatically shuts down to prevent damage in case of overload.
\n\n
8. Compliance with Emission Norms:
\nThis genset adheres to the latest CPCB2 emission norms, ensuring a cleaner and more environmentally friendly operation.
\n\n
9. Easy Maintenance:
\nDesigned with easy access to key components, this genset simplifies routine maintenance, reducing downtime.
\n\n
10. Robust Engine:
\nPowered by a durable Kirloskar engine, this genset guarantees long-lasting performance even under demanding conditions.
\n\n
11. Inverter Power Output:
\nThe inverter technology delivers smooth and consistent electricity, perfect for safely powering sensitive electronics like laptops, smartphones, and other gadgets without worrying about power surges or fluctuations.
Compact, efficient, and reliable, this portable generator on wheels is designed to meet your power needs. Whether for home, small business, or field operations, this genset offers robust performance with a user-friendly design. They deliver reliable power with low noise levels, ensuring optimal performance even in challenging conditions. Ideal for those needing a consistent power backup, these gensets are built to last with minimal maintenance requirements. Unlike traditional generators, which directly supply electricity, our inverter generator first converts the power into Direct Current (DC) and then back into a smooth and steady Alternating Current (AC).
\n\n
Generator Features:
\n\n
1. Power on Wheels & Low Noise Operation:
\nEasy to install in small spaces along with quiet performance for residential areas. Lightweight and portable, this genset is easy to transport and set up, making it ideal for various applications.
\n\n
2. Automatic Start:
\nSwitches on automatically when power is needed, ensuring uninterrupted supply.
\n\n
3. Efficient Performance:
\nDesigned to optimize fuel usage, ensuring maximum efficiency and lower operational costs.
\n\n
4. Peace-of-Mind Ownership:
\nWith Kirloskar's renowned durability and after-sales support, you can trust this genset for uninterrupted power supply.
\n\n
5. Longer Service Intervals:
\nDesigned for extended service intervals, reducing the frequency of maintenance and operational costs.
\n\n
6. Advanced Safety Features:
\nEquipped with multiple safety mechanisms, this genset ensures secure operation even in challenging conditions.
\n\n
7. Overload Protection:
\nAutomatically shuts down to prevent damage in case of overload.
\n\n
8. Compliance with Emission Norms:
\nThis genset adheres to the latest CPCB2 emission norms, ensuring a cleaner and more environmentally friendly operation.
\n\n
9. Easy Maintenance:
\nDesigned with easy access to key components, this genset simplifies routine maintenance, reducing downtime.
\n\n
10. Robust Engine:
\nPowered by a durable Kirloskar engine, this genset guarantees long-lasting performance even under demanding conditions.
\n\n
11. Inverter Power Output:
\nThe inverter technology delivers smooth and consistent electricity, perfect for safely powering sensitive electronics like laptops, smartphones, and other gadgets without worrying about power surges or fluctuations

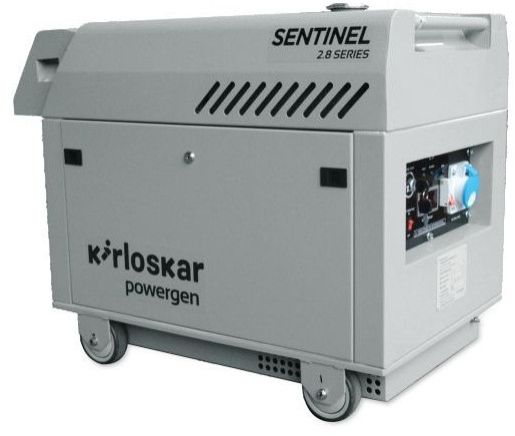

Introducing the Kirloskar 5 kW Single Phase Portable Generator:
\n\n
Compact, efficient, and reliable, this portable generator on wheels is designed to meet your power needs. Whether for home, small business, or field operations, this genset offers robust performance with a user-friendly design. They deliver reliable power with low noise levels, ensuring optimal performance even in challenging conditions. Ideal for those needing a consistent power backup, these gensets are built to last with minimal maintenance requirements. Unlike traditional generators, which directly supply electricity, our inverter generator first converts the power into Direct Current (DC) and then back into a smooth and steady Alternating Current (AC).
\n\n
Generator Features:
\n\n
1. Power on Wheels & Low Noise Operation:
\nEasy to install in small spaces along with quiet performance for residential areas. Lightweight and portable, this genset is easy to transport and set up, making it ideal for various applications.
\n\n
2. Automatic Start:
\nSwitches on automatically when power is needed, ensuring uninterrupted supply.
\n\n
3. Efficient Performance:
\nDesigned to optimize fuel usage, ensuring maximum efficiency and lower operational costs.
\n\n
4. Peace-of-Mind Ownership:
\nWith Kirloskar's renowned durability and after-sales support, you can trust this genset for uninterrupted power supply.
\n\n
5. Longer Service Intervals:
\nDesigned for extended service intervals, reducing the frequency of maintenance and operational costs.
\n\n
6. Advanced Safety Features:
\nEquipped with multiple safety mechanisms, this genset ensures secure operation even in challenging conditions.
\n\n
7. Overload Protection:
\nAutomatically shuts down to prevent damage in case of overload.
\n\n
8. Compliance with Emission Norms:
\nThis genset adheres to the latest CPCB2 emission norms, ensuring a cleaner and more environmentally friendly operation.
\n\n
9. Easy Maintenance:
\nDesigned with easy access to key components, this genset simplifies routine maintenance, reducing downtime.
\n\n
10. Robust Engine:
\nPowered by a durable Kirloskar engine, this genset guarantees long-lasting performance even under demanding conditions.

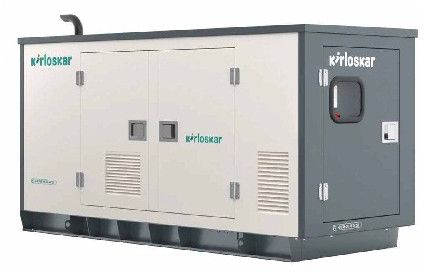

Specification
| Prime Rating at rated rpm (as per ISO8528)1 | kVA | 7.5 | 10 | 15 | 20 | |
| kW | 6 | 8 | 12 | 16 | ||
| Frequency | Hz | 50 | ||||
| Power Factor | Lagging | 0.8 | ||||
| Voltage | V | 230 (1ɸ) & 415 (3ɸ) | ||||
| Noise level | dBA | <75 | ||||
| Overall dimensions of genset ^ | Length | mm | 1600 | 1800 | 1850 | 2180 |
| Width | mm | 760 | 760 | 760 | 905 | |
| Height | mm | 1050 | 1050 | 1050 | 1150 | |
| ✪ Weight of genset with canopy (approx..)^ | Dry | Kg | 545 | 585 | 605 | 680 |
| Wet (w/o fuel) | Kg | 550 | 590 | 610 | 690 | |
| Engine Model | 2R550NA 4G1 | 3R550NA 4G1 | 3R550TC 4G1 | 3R550TA 4G1 | ||
| Rated output | HP | 10.74 | 15 | 20.9 | 25.5 | |
