T-Power Transformer And Switchgear Private Limited

Vishwakarma Industrial Area, Jaipur, Rajasthan

Standard Fittings

Include Lifting Lugs, Oil level Gauge, Rating & Diagram Plate, HV & LV Bushings with fittings, Skid Base/Roller Arrangement, Silica gel Breather, Drain/Filter Valves, Thermometer, Pressure Relief Device/Explosion vent.



Optional Fittings

Include Terminal Connectors, Magnetic Oil Level Gauge, Oil Temperature Indicator, Winding Temperature Indicator, Buchholz Relay, RTCC Panel, Condenser Type Bushing for voltage class of 33 kV & 66 kV, Off circuit Tap Switch / On-load Tap Changer with RTCC, HV / LV Cable Boxes, Disconnecting, Epoxy / Touch proof Bushings with connector, Siphon Thermo Filter, Conservator, Lightening Arrester, Arcing Horns, Protective Fuse, Secondary Circuit Breaker, Bird Guard.

Standard Fittings

Include Lifting Lugs, Oil level Gauge, Rating & Diagram Plate, HV & LV Bushings with fittings, Skid Base/Roller Arrangement, Silica gel Breather, Drain/Filter Valves, Thermometer, Pressure Relief Device/Explosion vent.



Optional Fittings

Include Terminal Connectors, Magnetic Oil Level Gauge, Oil Temperature Indicator, Winding Temperature Indicator, Buchholz Relay, RTCC Panel, Condenser Type Bushing for voltage class of 33 kV & 66 kV, Off circuit Tap Switch / On-load Tap Changer with RTCC, HV / LV Cable Boxes, Disconnecting, Epoxy / Touch proof Bushings with connector, Siphon Thermo Filter, Conservator, Lightening Arrester, Arcing Horns, Protective Fuse, Secondary Circuit Breaker, Bird Guard.

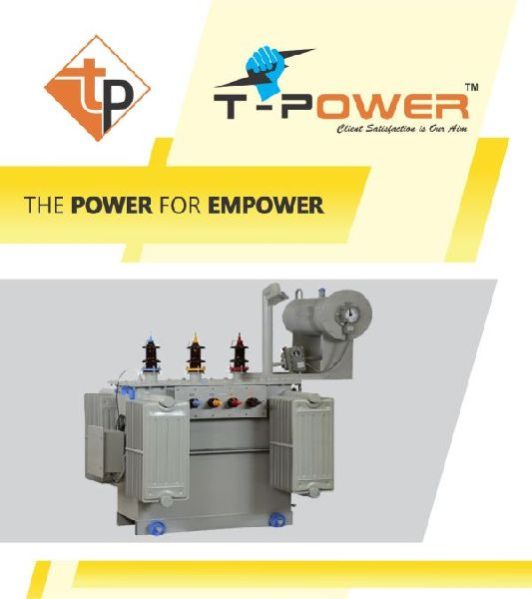

T-Power make three phase distribution transformers are available in stack core / wound coreupto 10kVA to 2500kVA. (Energy Efficient transformers from 1 Star to 5 Star up to 200 KVA, BIS Level 1, 2&3). They are made available in aluminum / copper as per requirement. On demand higher rating can also be offered. We manufacture Three phase distribution transformers up to 2500 kVA, 11kv, 22kv &33kv class. Our transformers have following features.Standard Fittings Include Lifting Lugs, Oil level Gauge, Rating & Diagram Plate, HV & LV Bushings with fittings, Skid Base/Roller Arrangement, Silica gel Breather, Drain/Filter Valves, Thermometer, Pressure Relief Device/Explosion vent. Optional Fittings Include Terminal Connectors, Magnetic Oil Level Gauge, Oil Temperature Indicator, Winding Temperature Indicator, Buchholz Relay, RTCC Panel, Condenser Type Bushing for voltage class of 33 kV & 66 kV, Off circuit Tap Switch / On-load Tap Changer with RTCC, HV / LV Cable Boxes, Disconnecting, Epoxy / Touch proof Bushings with connector, Siphon Thermo Filter, Conservator, Lightening Arrester, Arcing Horns, Protective Fuse, Secondary Circuit Breaker, Bird Guard.

T-Power make three phase distribution transformers are available in stack core / wound coreupto 10kVA to 2500kVA. (Energy Efficient transformers from 1 Star to 5 Star up to 200 KVA, BIS Level 1, 2&3). They are made available in aluminum / copper as per requirement. On demand higher rating can also be offered. We manufacture Three phase distribution transformers up to 2500 kVA, 11kv, 22kv &33kv class. Our transformers have following features.BIS BEE Certified transformer manufacturing. Highest purity of aluminum/copper winding material. Entire range Upto 10kVA to 2500 kVA. ERDA/ERTO/CPRI/ C&I tested for star ratings. Vendor approval from Necessary department. Conformity with IS:1180 specifications. More than 50000 transformers working successfully in all field. Standard Fittings Include Lifting Lugs, Oil level Gauge, Rating & Diagram Plate, HV & LV Bushings with fittings, Skid Base/Roller Arrangement, Silica gel Breather, Drain/Filter Valves, Thermometer, Pressure Relief Device/Explosion vent. Optional Fittings Include Terminal Connectors, Magnetic Oil Level Gauge, Oil Temperature Indicator, Winding Temperature Indicator, Buchholz Relay, RTCC Panel, Condenser Type Bushing for voltage class of 33 kV & 66 kV, Off circuit Tap Switch / On-load Tap Changer with RTCC, HV / LV Cable Boxes, Disconnecting, Epoxy / Touch proof Bushings with connector, Siphon Thermo Filter, Conservator, Lightening Arrester, Arcing Horns, Protective Fuse, Secondary Circuit Breaker, Bird Guard.

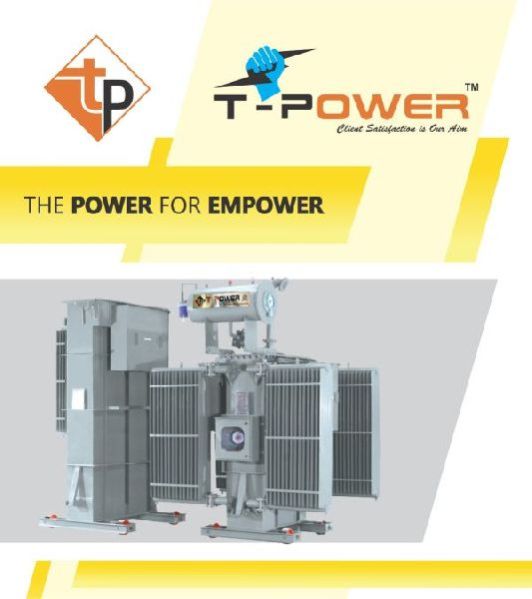

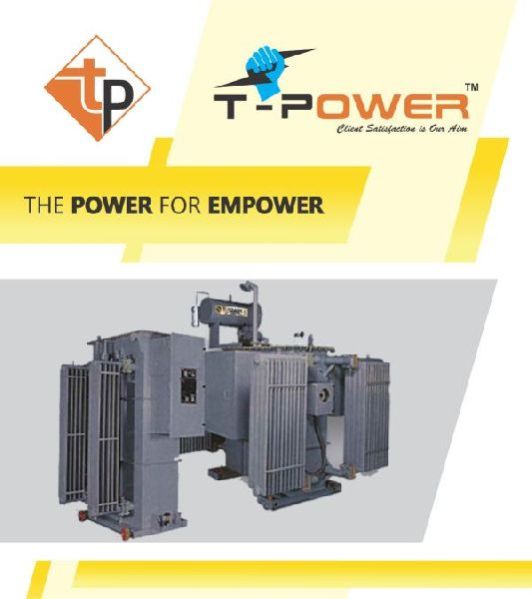

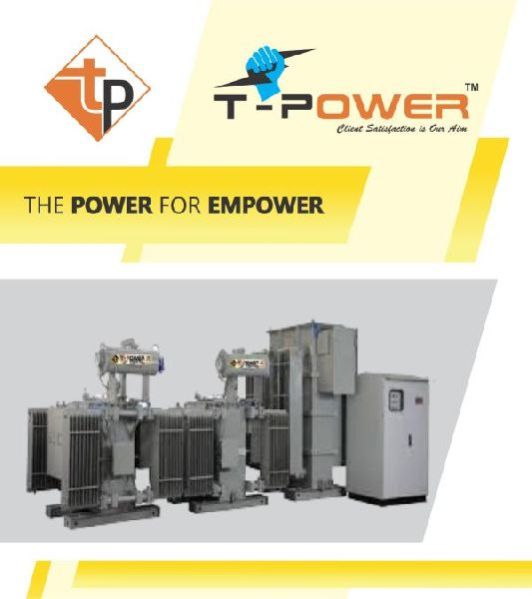

A normal distribution transformer generally Steps-Down the voltage from H.T. to L.T., however it cannot take care of the fluctuating voltage and most of the times and at most of the sites, it has been realized that, the problem of fluctuating voltage remains, resulting in improper function of electrical systems. H.T. Transformer with Built In H.T. Automatic Voltage Stabilizer provides total solutions for voltage fluctuation and stabilization. The unit is basically a combination of H.T. Automatic Voltage Stabilizer and standard H.T. Distribution Transformer working in conjunction. These are available up to 5000 KVA in 11 KV & 33 KV Class.



Standard transformers can correct limited voltage variations and cannot regulate the voltage in ‘on load’ condition. The only smart way to tackle this problem is by installing highly efficient T power Transformer and switchgear pvt ltd with Built In H.T. Automatic Voltage Stabilizer. These systems can be used in various industrial and commercial applications.



Working

The fluctuating voltage from electricity authority input is initially stabilized by the Built-In H.T. Automatic Voltage Stabilizer and then fed to the Transformer, providing constantL.T. Output within ± 1% accuracy.



Advantages

• Better Efficiency.
• Protection of Motors etc.
• Reduced Installation Cost.
• Reduced production break down.
• Reduced Electricity Bill.

In view of the requirement of Indian Industry, we have introduced T Power Cast Resin (Dry Type) Transformers. This introduction supplements our existing product viz. Vacuum Resin Impregnated Dry Type Transformers. Dry Type Transformers of both the above varieties are in use.



The Company Cast Resin Dry type Transformers up to 12.5 MVA, 33 KV Class (In Technical collaboration with a leading GERMAN Company).



Cast-resin power transformers encase the windings in epoxy resin. These transformers simplify installation since they are dry, without cooling oil, and so require no fire-proof vault for indoor installations. The epoxy protects the windings from dust and corrosive atmospheres. However, because the molds for casting the coils are only available in fixed sizes, the design of the transformers is less flexible, which may make them more costly if customized features (voltage, turns ratio, taps) are required.



Advantage of Cast Resin Transformers :

• No Fire Hazard.
• Near Load Center or even near to load.
• Low as transformer is near to load. Also cable drop is reduced.
• Negligible smoke generation.
• Suitable for indoor use as no fire risk.
• Can be fitted outdoor in IP 45 enclosure.
• Suitable for as low as -25° C ambient temperature



Standard Fittings

• Rating & Diagram Plate
• Lifting Lugs
• Earthing Terminals
• LV & HV Side Cable Box

Industrial, Substation & Distribution purpose manufacturing range upto 2MVA. 11KV, 22KV naturally air cooled. A dry type transformer has an iron core, vacuum pressure resin impregnated high voltage windings and low voltage windings. The Low voltage winding is constructed with conductors. Depend nomex insulating material includes and apparatus to secure the windings in place during a vaccum and pressure resin impregnation process. The result is a coil that exhibits high short circuit protection due to the tightly bond conductors comparable to completely resin encased molded transformers at a substantially reduced cost. Transformers at a substantially reduced cost.

Application Areas Of Dry Type Transformers

These Transformers are suitable where safety, reliability and low noise level are of the prime concern like:

• Airports
• Electronics Industries
• High Rise Buildings
• Metro Railways
• Nuclear Stations
• Power Plants
• Steel Plants
• Stadiums
• Textile Plants
• Chemical Plants
• Hospitals
• Hotels
• Material Handling
• Oil Plants
• Ports
• Ships
• Software Parks
• Schools
• Theaters & Multiplexes etc.

Advantages Of Dry Type Transformers

• These Transformers are safe, eco-friendly, fire-resistant, explosion proof, easy to install and easy to maintain beside being better in appearance.
• Moisture ingress resistant & immune to polluted atmosphere.
• Resistance to temperature fluctuations.
• Good impulse withstand strength.
• High dynamic short circuit & mechanical strength.
• Less space and civil work needed.
• Special safety features are not required.
• Longer transformer life due to low thermal and dielectric ageing

Standard Fittings

• Rating & Diagram Plate
• Lifting Lugs
• Earthing Terminals
• LV & HV Side Cable Box

Details :

• Off circuit tap changer to provide 5% in 5 Step, 7.5% in & Step taps in step of 2.5% and customer requirement.
• Winding Material Aluminum or Copper with multi paper covering (MFGC).
• Painting Epoxy, Polyurethane or customer specific.

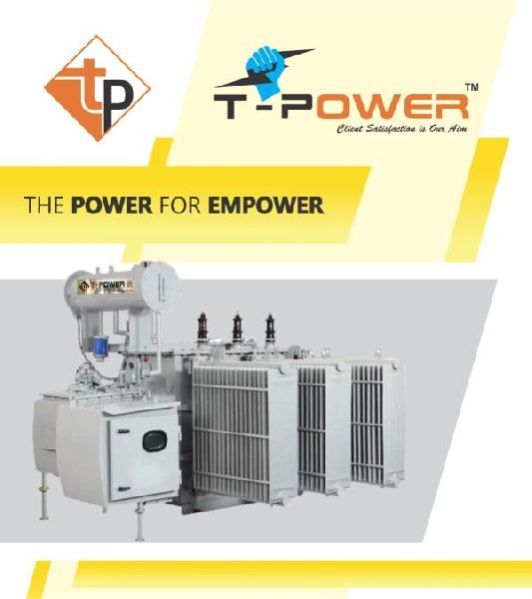

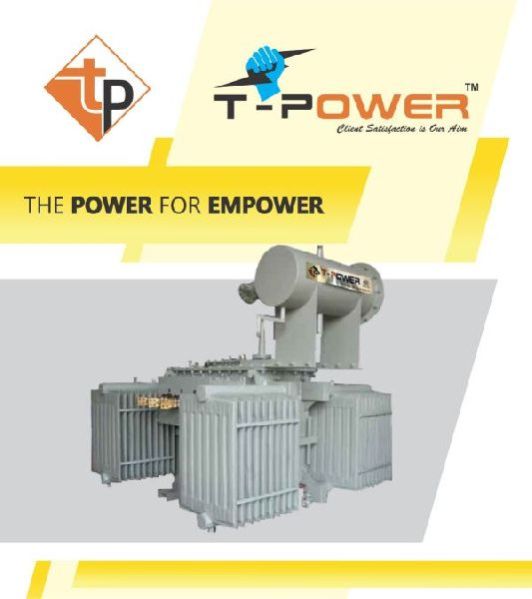

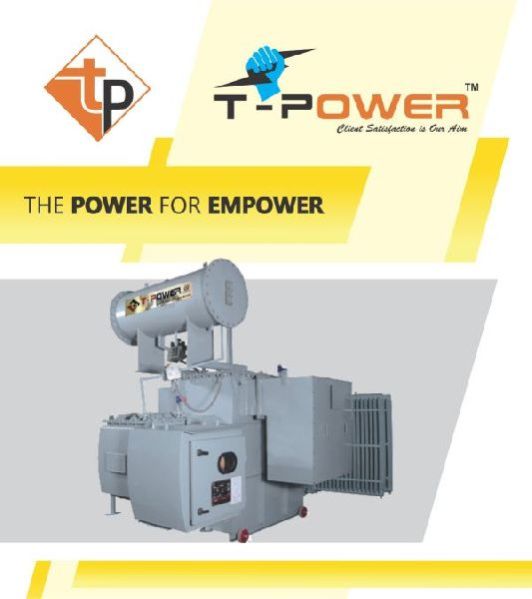

At T-Power we manufacturer Three Phase Power Transformers Stack Core Type Copper wound, outdoor/ indoor type, Step Down/Step Up, Completely Self Protected-LV&HV transformers, connection options of Delta & Star Type as per Vector group ref. Dyn 11 with rating range of 1000kVA to 10000kVA. T-Power make power transformers have been installed at coal fields, power projects, housing projects, national level business houses, and individual manufacturing units.



Details :

• Off circuit tab changer to provide ±5% in 5 Step, ±7.5% in &Step taps in step of 2.5% and customer requirement.
• On load tap changer to provide ±5% to -15% tabs in steps o 1.25% as standard range & also custom built for any other ranges, OLTC will be internally/externally mounted as per the requirement.
• Winding Material Copper with multi paper covering (MPC).
• Painting Epoxy, Polyurethane ore customer specific.
• Vector Group Dyn 11 or YND 11 or YNyn 0 or any specific
• Insulating Fluid PCB Free Mineral Oil, both inhibited & uninhibited, as per IS/IEC and customer requirement



Protective Devices

• Buchholz Relay with Alarm and Trip Contact
• Oil Temperature Indicator(OTI) with Alarm an Trip Contact
• Winding Temperature Indicatore(WTI) with Alarm and Trip Contact
• Magnetic Oil level gauge(MOLG) with Alarm Contact
• Marshalling Box to House O.T.I and WTI



Standard Fittings

• Rating & Diagram Plate
• Earthing Terminals
• Lifting Lugs
• Thermometer Pocket
• Oil Conservation with Drain Plug
• Explosion Vent with Diaphragm
• Oil Level Indicator
• Bottom-Filter Valve
• Top Filter Valve
• Silica Gel Breather
• Cooling Radiators
• LV & HV Side Cable Box



Optional Accessories on Request

• Neutral C.T.
• Shut – off Valves
• Annunciation Window
• Pressure Release Valve
• Windowing temperature indicator and oil temperature indicator with indication
• RTDs for winding temperature measurement
• Oil preservation system through air cell/thermosphyon filter
• Neutral earthing bar with epoxy supports.



Features

• cost effectiveness and reliability
• Designed for 25 years of trouble-free performance.
• Design conforms to IS 2026, IEC 60076, ANSi and other relevant standards
• Low Power loss and Low Noise
• Designed to withstand electrical impulses and thermal and dynamic stresses
• Optimum utilization of active materials for compactness.Modern manufacturing techniques ensure

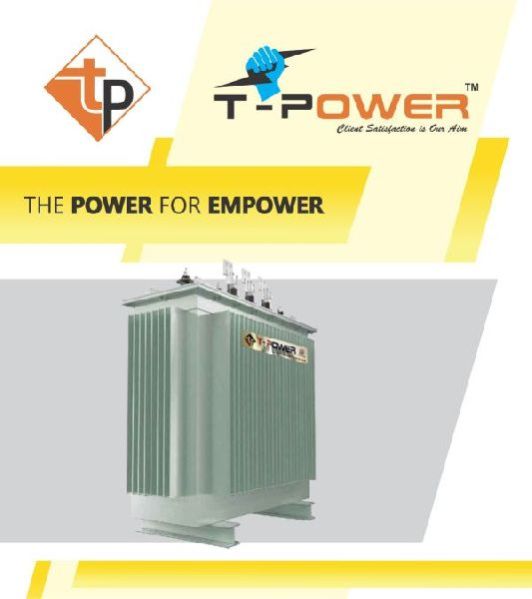

T-Power make three phase distribution transformers are available in stack core / wound core upto 10kVA to 2500kVA. (Energy Efficient transformers from 1 Star to 5 Star up to 200 KVA, BIS Level 1, 2&3). They are made available in aluminum / copper as per requirement. On demand higher rating can also be offered. We manufacture Three phase distribution transformers up to 2500 kVA, 11kv, 22kv &33kv class. Our transformers have following features.

• BIS BEE Certified transformer manufacturing.
• Highest purity of aluminum/copper winding material.
• Entire range Upto 10kVA to 2500 kVA.
• ERDA/ERTO/CPRI/ C&I tested for star ratings.
• Vendor approval from Necessary department.
• Conformity with IS:1180 specifications.
• More than 50000 transformers working successfully in all field.

Entire range of distribution transformers is produced by us. Wide range of such transformers are accommodated as different SEB’s have varied technical specifications. Self protected transformers with Lighting arrestors, MCBs /MCCBs in load side, internal tripping device etc can be used for the same.



Protective Devices

• Buchholz Relay with Alarm and Trip Contact starting form 500 KVA.
• Oil Temperature Indicator(OTI) with Alarm an Trip Contact starting form 500 KVA.
• Winding Temperature Indicatore(WTI) with Alarm and Trip Contact starting form 500 KVA.
• Magnetic Oil level gauge(MOG) with Alarm Contact starting form 500 KVA.
• Marshalling Box to House O.T.I and WTI starting form 500 KVA.



Standard Fittings

• Earthing Terminals
• Lifting Lugs
• Thermometer Pocket
• Oil Conservation with Drain Plug
• Explosion Vent with Diaphragm
• Oil Level Indicator
• Bottom-Filter Valve
• Top Filter Valve
• Silica Gel Breather
• Cooling Radiators
• LV & HV Side Cable Box
